SoundQubed BG4-700 BG Series 4 Channel Amp, 700w

Model: BG4-700   Sold as: Each

BG4-700 700 Watt Bagger Series Amp (Ultra Compact)

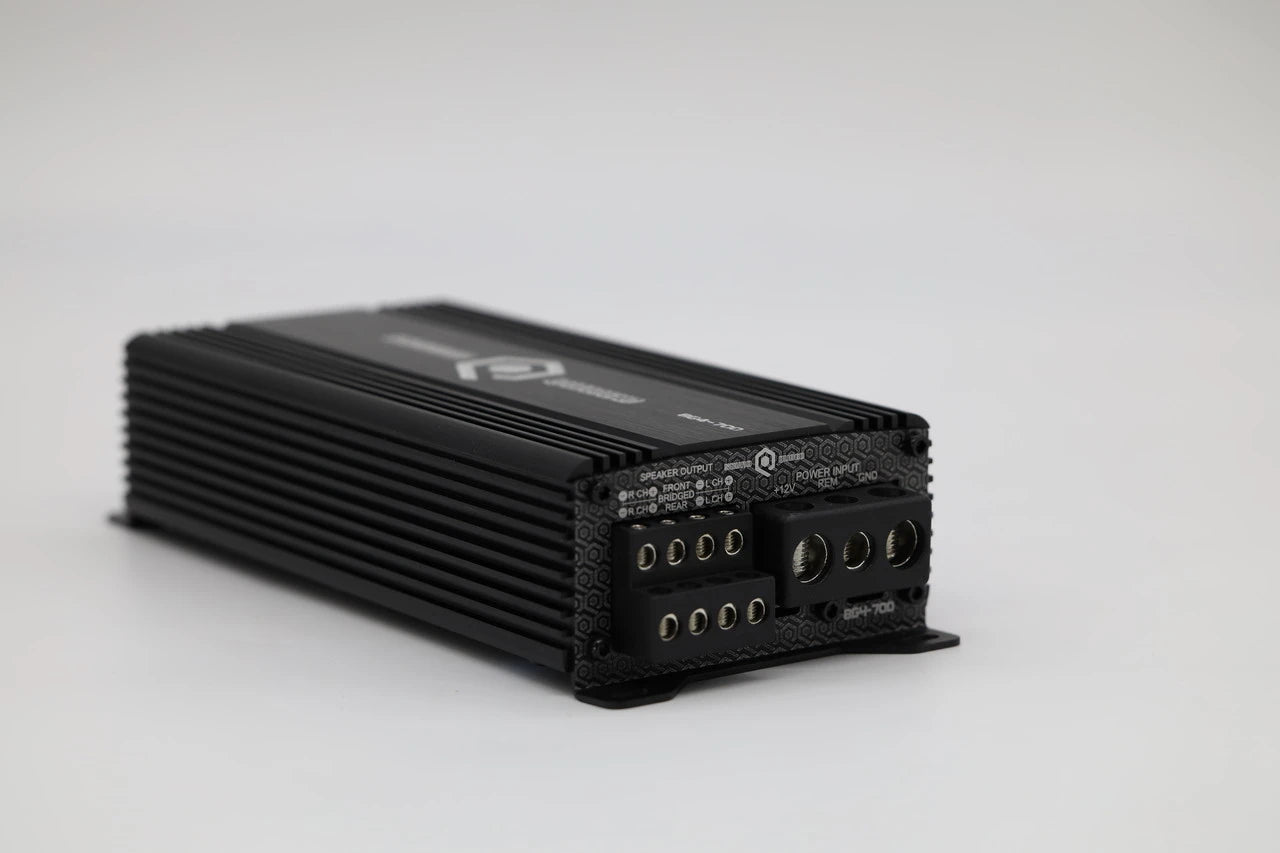

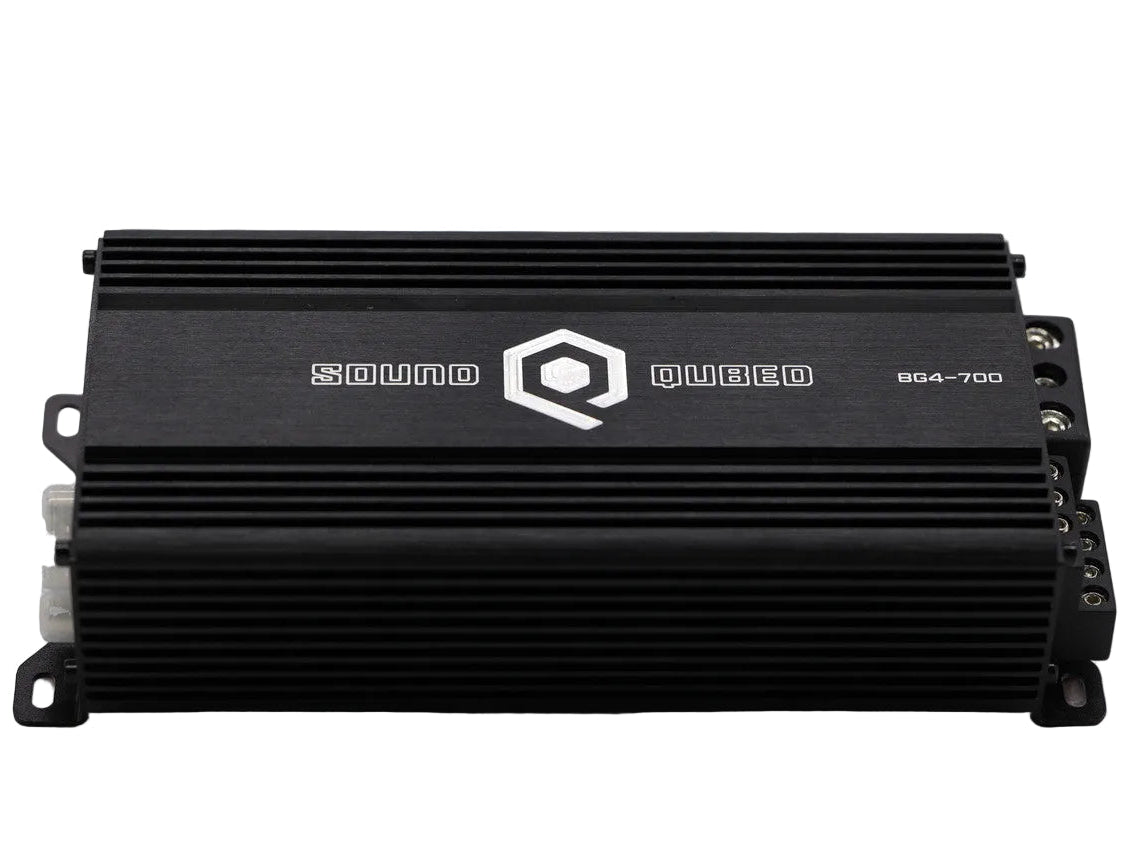

BG4-700 amplifier measures a small yet stout casing size of 8.3" long by 3.8" wide and 1.7" tall. Within this casing, we were able to achieve the ability to produce all four channels providing 100 watts RMS of output at 4 ohms. Much like all SoundQubed amplifiers, they wanted to maintain the sleek, professional look of a black case with machined logos. They also included lasered end caps that include an aray of our logo and of course, input and output identification.

Features:
Amplifier Class: Digital
Amplifier Type: Stereo Full-Range
Number of Channels: 4
Minimum Impedance: 2 Ohm Stereo / 4 Ohm Bridge
LED Indicator: Power / Protect / Clip
Power Input Terminal Size: 4Ga
Fuse Size: 3 x 40A
Thermal Protection
Over-Load Protection
DC Output Protection
Short Circuit Output Protection
Voltage Input Protection
Automatic Hi-Level Input from RCA
Latest High-Efficiency Digital Circuit Design
PCB with Anti-Corrosion Protection Coating
Compact Size Especially Designed for Baggers
Quality Control Verification Using Audio Precision Instruments

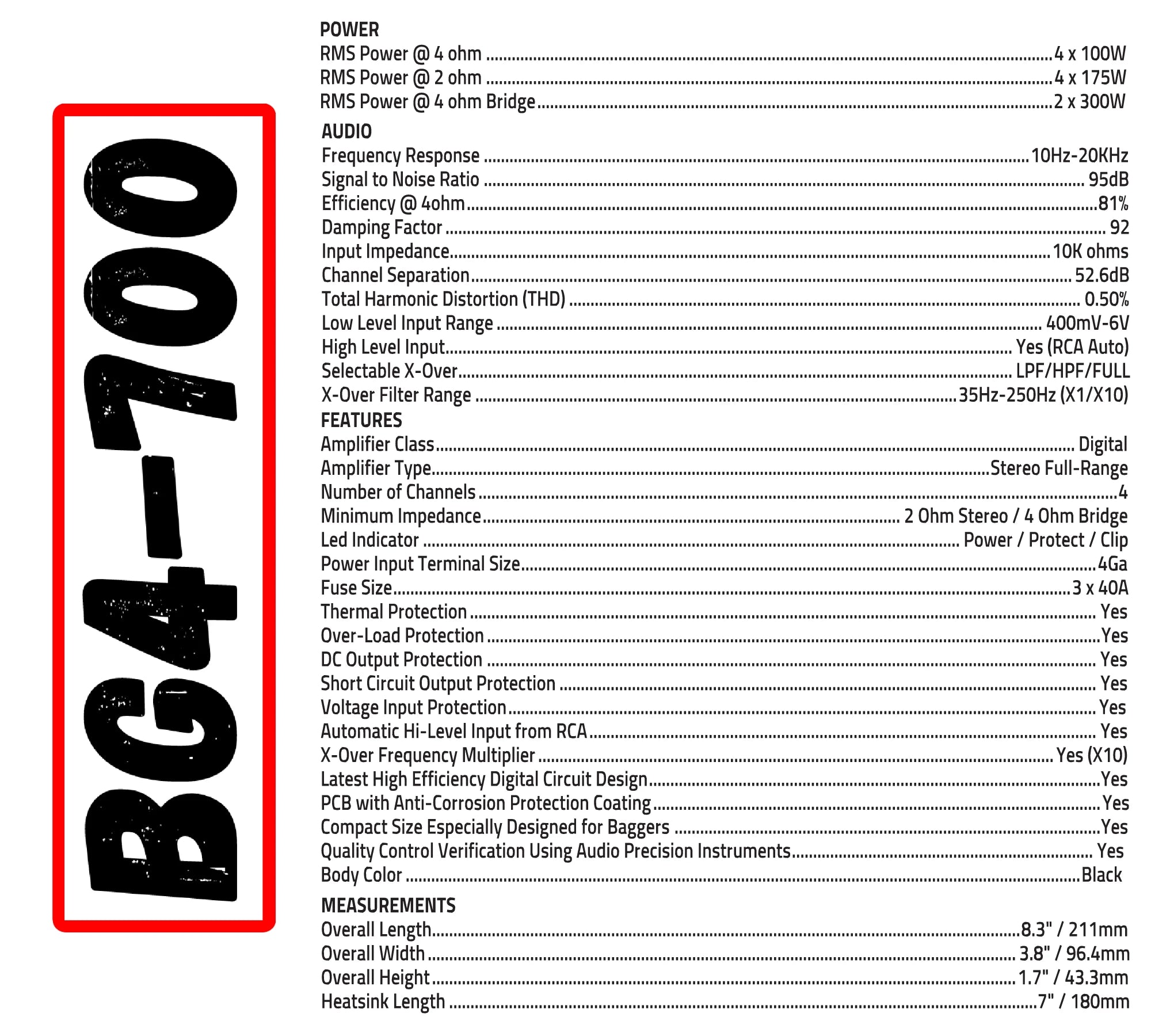

Power:
RMS Power @ 4 ohm: 4 x 100W
RMS Power @ 2 ohm: 4 x 175W
RMS Power @ 4 ohm Bridge: 2 x 300W
Audio:
Frequency Response: 10Hz-20KHz
Signal to Noise Ratio: 95dB
Efficiency @ 4ohm: 81%
Damping Factor: 92
Input Impedance: 10K ohms
Channel Separation: 52.6dB
Low Level Input Range: 400mV-6V
X-Over Filter Range: 35Hz-250Hz (X1/X10)
