Build a stronger speaker system without giving up a large mounting area. The SounDigital XP 800.4 delivers four channels of up to 200 watts RMS at 2 ohms in a 5.72 × 4.44-inch footprint. Bridged operation provides two channels of 400 watts RMS at 4 ohms.
Use the adjustable high-pass or low-pass crossover to match the amplifier to your speakers, or select full-range operation. RCA and high-level connections provide flexible source integration.
User manual: View / Download the SounDigital XP 800.4 User Manual (English PDF)
| Speaker load | 4Ω version |
|---|---|
| 4Ω per channel | 4 × 132 W RMS |
| 2Ω per channel | 4 × 200 W RMS |
| 4Ω bridged | 2 × 400 W RMS |
This listing is the 4Ω version: minimum load is 2Ω per channel or 4Ω bridged.
Manufacturer RMS ratings: 14.4 V, 60 Hz, maximum 1% THD.
| Specification | Details |
|---|---|
| Frequency response (−3 dB) | 5 Hz–34 kHz |
| Signal-to-noise ratio | 91 dB |
| Operating voltage | 9–16 V DC |
| RCA input sensitivity | 0.2–2 V |
| High-level input sensitivity | 1.5–15 V |
| Current draw | 35 A music / 70 A maximum |
| Recommended fuse for music | 40 A |
| Minimum external battery capacity | 60 Ah |
| Manufacturer power-cable specification | 10 mm² (7 AWG) |
| Manufacturer speaker-cable specification | 1.5 mm² (15 AWG) per conductor |
| Dimensions (W × L × H) | 5.72 × 4.44 × 2.00 inches |
| Amplifier net weight | 1.69 lb |
Powered by the vehicle’s external DC electrical system; no built-in battery and no battery included. Battery capacity above refers to the external power supply. Follow the user manual for wiring, fusing and setup, and mount the amplifier in a dry, ventilated location.
SounDigital XP 800.4 4-Channel Amplifier

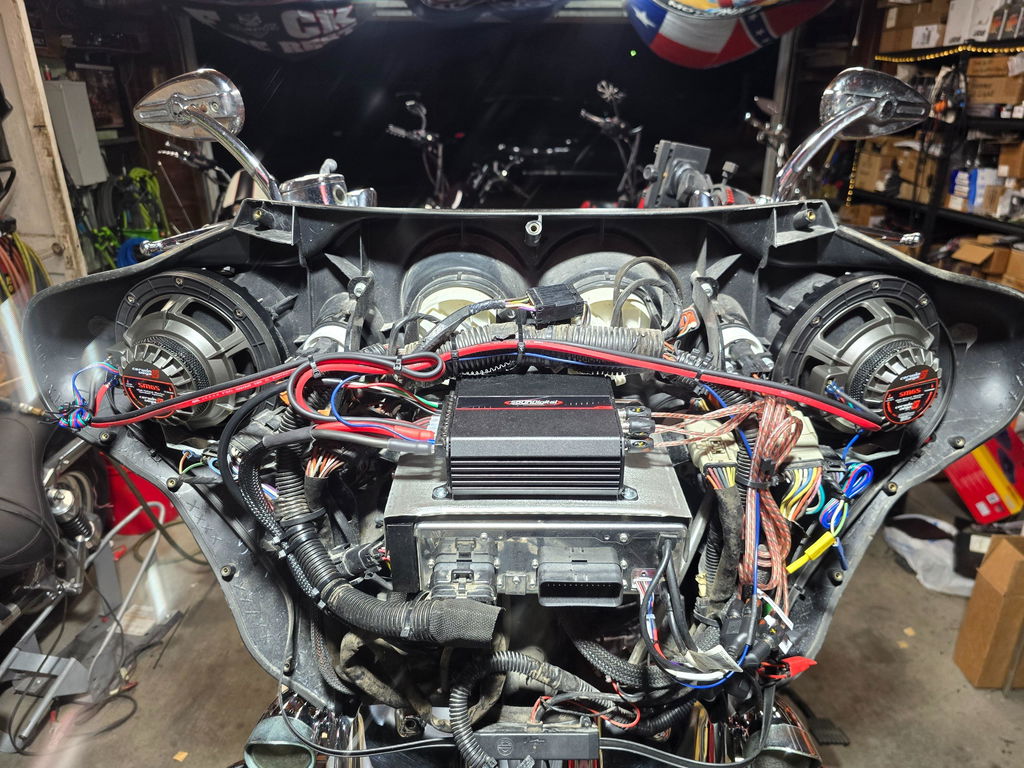

Clean power and easy to install on top of the head unit in the fairing of a 2012 Harley Davidson Streetglide.
