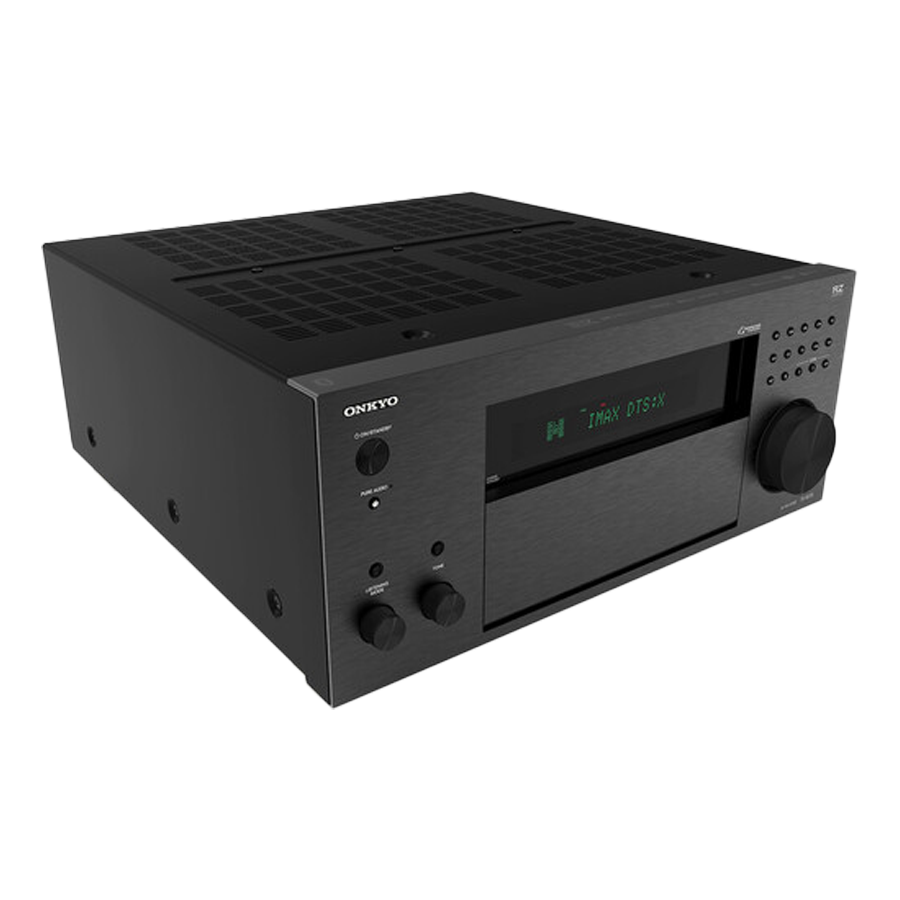

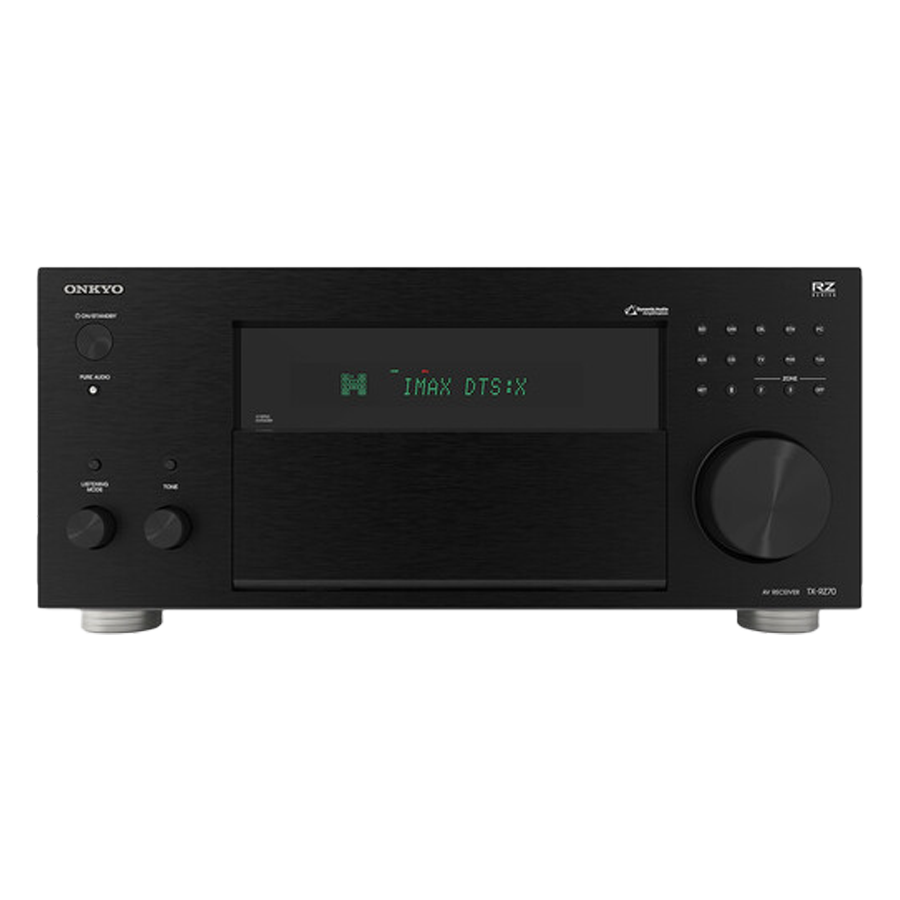

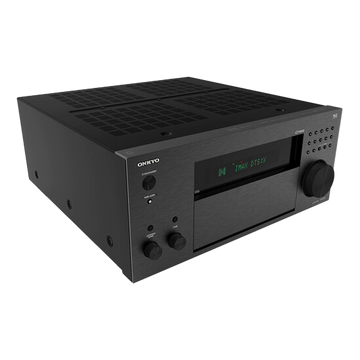

Onkyo TX-RZ70 11.2-channel home theater receiver with Dirac Live

Flagship home theater performance from Onkyo

The Onkyo TX-RZ70 combines 11 channels of amplification with flexible home theater connectivity. With audio processed by built-in ESS Sabre DACs and video connections that accept 8K Ultra HD signals, this feature-packed Onkyo delivers audiophile and cinephile performance. It's a centerpiece for your whole home audio and video system, too, with three-zone wired capabilities and more wireless zones with the addition of a Sonos Port and other Sonos gear.

Ideal for Dolby Atmos® or a multi-zone sound system

The TX-RZ70 can power up to 11 speakers at the same time. Use all 11 channels in a 7.2.4 or 9.2.2 Dolby Atmos or DTS:X® system. Or, go with a more conventional surround sound setup, and repurpose the extra channels for sound in up to two additional zones.

At 140 watts per channel (2-channels driven), the TX-RZ70's high-powered amplifier will drive your speakers with precision and impact. If you have unused surround channel connections, you can bi-amp a pair of compatible front right and left speakers for a powerful front soundstage.

Precise room calibration

Dirac Live® is one of the finest room correction systems in the industry, and it comes standard on the 'RZ70. Dirac Live Room Correction Full Bandwidth is included, with an included calibration microphone and support for Onkyo's mobile app. Or pick up a third-party USB mic (sold separately) and run the Dirac software on your laptop to take more precise sound measurements in your room. After the software completes the test, it then creates a personalized EQ correction curve for all your speakers, made to overcome your room's specific acoustic characteristics. As an optional upgrade, Dirac Live Bass Control is available to calibrate your subwoofers for the lowest, cleanest bass possible.

Klipsch Optimize Mode

If you have Klipsch Reference or Reference Premiere speakers, the 'RZ70 is made for you. Select your speakers for each channel in the setup menu, and the Klipsch Optimize Mode automatically selects the correct crossover mode for the best performance. Your Klipsch speakers have never sounded better!

Advanced video processing for movies and more

Onkyo equipped the TX-RZ70 with the latest video technology. All six of its rear-panel HDMI inputs support 8K and 4K video content — perfect for high-quality sources like a 4K Ultra HD Blu-ray player, an Apple TV, or your next-gen gaming system. (The front-panel HDMI input supports 4K/60 video content.)

IMAX Enhanced Mode

IMAX Enhanced Mode brings you all the excitement of an IMAX-mastered movie. This mode brings you clean, clear picture quality, just as the filmmakers intended. It even provides a stretched aspect ratio for more picture on your screen.

Many music options

Stream music with Bluetooth or play Wi-Fi networked sources like Apple AirPlay 2, Chromecast built-in, DTS Play-Fi and Spotify® Connect. Use the optical or coaxial digital inputs to connect a CD player, or break out your vinyl collection and connect your turntable to the dedicated phono input. For uncompromising sound quality, you can play high-resolution music files from a USB stick or a networked computer.

Integrate Sonos with your system

This "Works with Sonos" certified receiver lets you tie your home theater into a whole-house audio system when you add a Sonos Port. Control the audio on your receiver using the Sonos app on your mobile device, PC, or Mac® for a whole-home Sonos experience. The app will even turn on the TX-RZ70 and select the correct input.

Power and processing:

• 11-channel amplifier
• 140 watts per channel into 8 ohms (20-20,000 Hz) at 0.08% THD, with 2 channels driven (FTC Power Output Rating)
• Dolby® and DTS® surround sound decoding
  • Dolby Atmos and DTS:X processing for use with in-ceiling or "height" speakers for ultra-enveloping home theater sound
• IMAX® Enhanced reproduces the full dynamic range of specially encoded IMAX soundtracks from compatible sources
• THX® Certified for theater reference sound
  • ensures you get the same reference volume level of a commercial theater in rooms where the screen-to-seat distance is about 12 feet
  • includes a variety of THX listening modes for movies, music, and gaming
• Klipsch Optimize Mode implements the precise crossover values for specific new Klipsch speakers, maximizing sound quality
• Dirac Live speaker calibration system helps fine-tune your system to best match your room's acoustics
  • calibration microphone included; Dirac Live Room Correction Full Bandwidth is standard
  • 3rd-party USB mic (sold separately) allows more advanced calibration with Dirac Live desktop/laptop application for Mac® or PC
  • Dirac Live Bass Control ready (single or multi) as an optional user upgrade

Digital and streaming music options:

• plays high-resolution digital music files via USB storage device or a networked computer (up to 24-bit/192kHz resolution)
• built-in Wi-Fi for listening to music from a networked PC, free internet radio, and music services
  • includes support for TIDAL, Amazon Music, and Spotify® (subscription required for some services)
• compatible with Sonos Port — receiver turns on automatically and sets the right input when selected in the app
• Apple AirPlay 2 lets you easily stream from an iPhone® or iPad® and ask Siri to play Apple Music®
• built-in Bluetooth for wireless music listening with smartphones, tablets, and compatible computers
  • supports Bluetooth transmission for sending audio from the receiver to Bluetooth-enabled headphones
• Chromecast built-in for streaming music from the cloud with compatible mobile apps
• works with Amazon Alexa voice control assistants
• works as a Roon player (requires subscription and Roon Core running on your network)
  • Roon Core is media server software that runs on your computer, NAS drive, or other compatible hardware
• Using this receiver for music only? You may need to connect a TV or monitor via HDMI temporarily for initial setup.

HDMI features:

• HDMI 2.1 audio/video switching: 7 in, 3 out (including 1 front-panel input)
  • 6 rear-panel inputs and 2 outputs support 8K/60Hz and 4K/120Hz video (HDMI 2.1)
  • 1 front-panel input supports 4K/60Hz video (HDMI 2.0)
• HDCP 2.3 technology ensures compatibility with Ultra HD sources and TVs
• HDR-compatible for extended picture contrast and brightness with compatible TVs and HDR-encoded content
  • supports HDR10+, Dolby Vision™, and HLG (Hybrid Log Gamma)
• supports ARC (Audio Return Channel) and eARC (Enhanced Audio Return Channel)
  • eARC receives uncompressed surround sound signals including Dolby Atmos and DTS:X via the HDMI connection with your compatible TV
• gaming-optimized video processing technologies for a smooth, lag-free gaming experience
  • Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), and Quick Frame Transport (QFT) reduce or eliminate lag and frame tearing

Multi-room audio/video:

• three-room/three-source output
• amp assign function lets you use select speaker outputs in different configurations like bi-amping the front speakers, or for use in Zone 2 or 3
  • using powered multi-room output allows 7.2- or 9.2-channel sound in main room
• Zone 2 HDMI output
• Zone 2 and 3 stereo preamp outputs for use with optional external amplifiers
  • Zone 3 stereo preamp outputs can't be activated when using the following home theater speaker configurations: 6.1, 7.1, 6.1.2, 7.1.2, 4.1.4, 5.1.4, 6.1.4, or 7.1.4

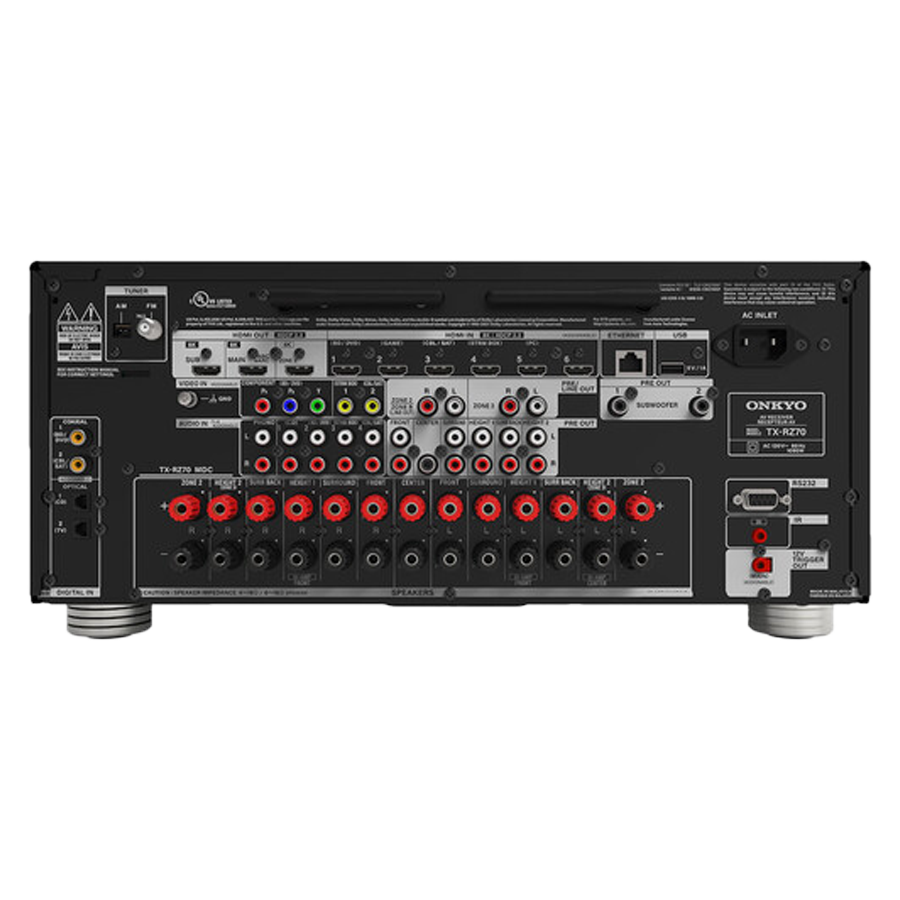

Other connections:

• digital audio inputs: 2 Toslink optical, 2 coaxial
• 4 analog stereo RCA line-level audio inputs
• MM (moving magnet) RCA phono input for connecting a turntable
• 1 component video input
• 2 composite video inputs
• USB port for audio playback from USB flash drives (rear-panel)
• outputs for 13 speakers (Front L/R, Center, Surround L/R, Surround Back L/R, Height 1 L/R, Height 2 L/R, Zone 2 L/R)
  • receiver can power a maximum of 11 channels at once
• 11.2-channel preamp outputs, including independent dual mono RCA subwoofer outputs
• full-sized front-panel headphone jack
• RS-232C, remote IR (infrared), and 12-volt trigger connections for use with optional third-party controllers

Dimensions and other info:

• handheld remote control included
• support for IP-based third-party remote control systems
• AM/FM tuner
• 17-3/16"W x 7-15/16"H x 19-7/8"D (as measured by Crutchfield)
• weight: 48.5 lbs.
• warranty: 3 years
