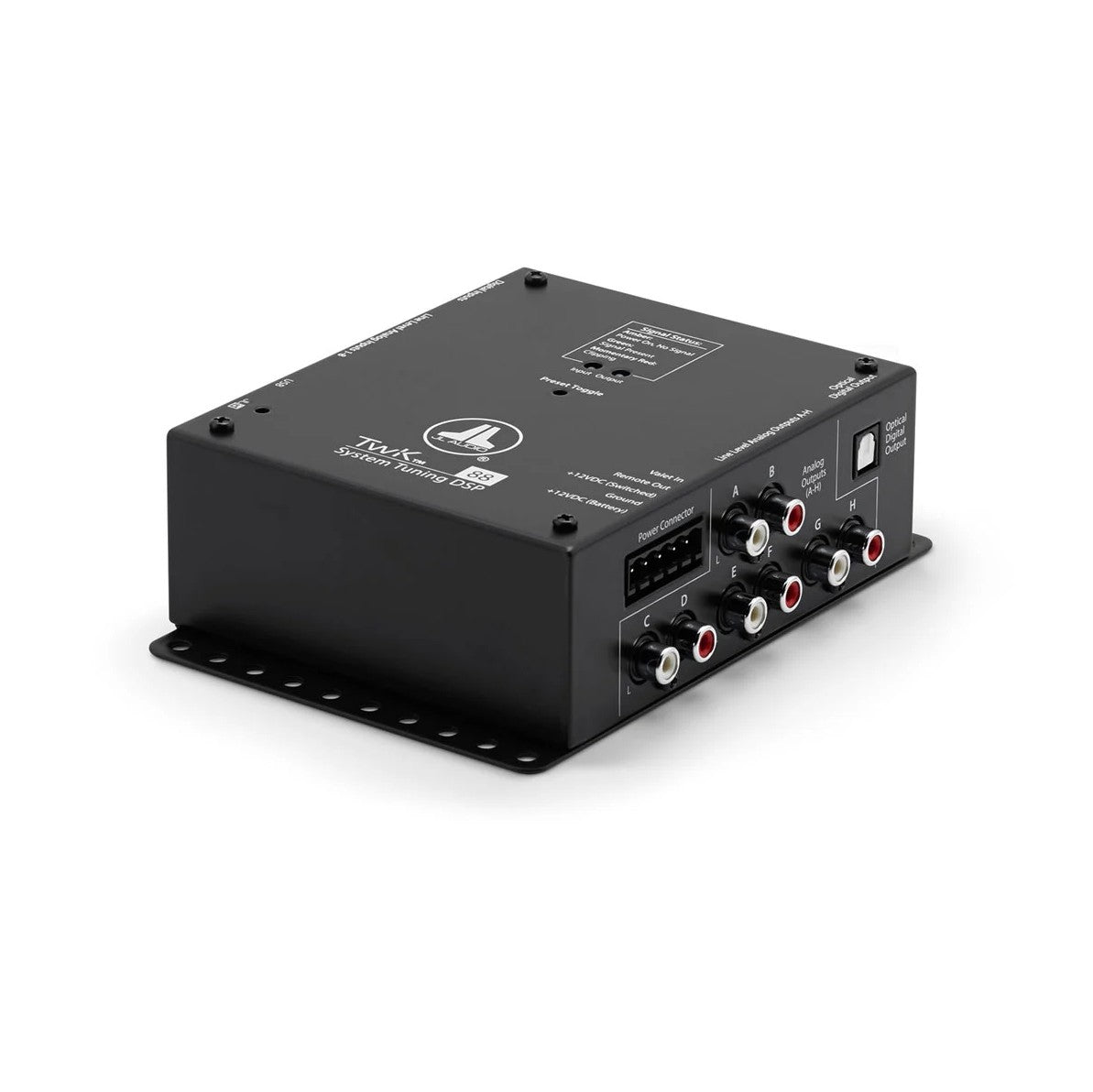

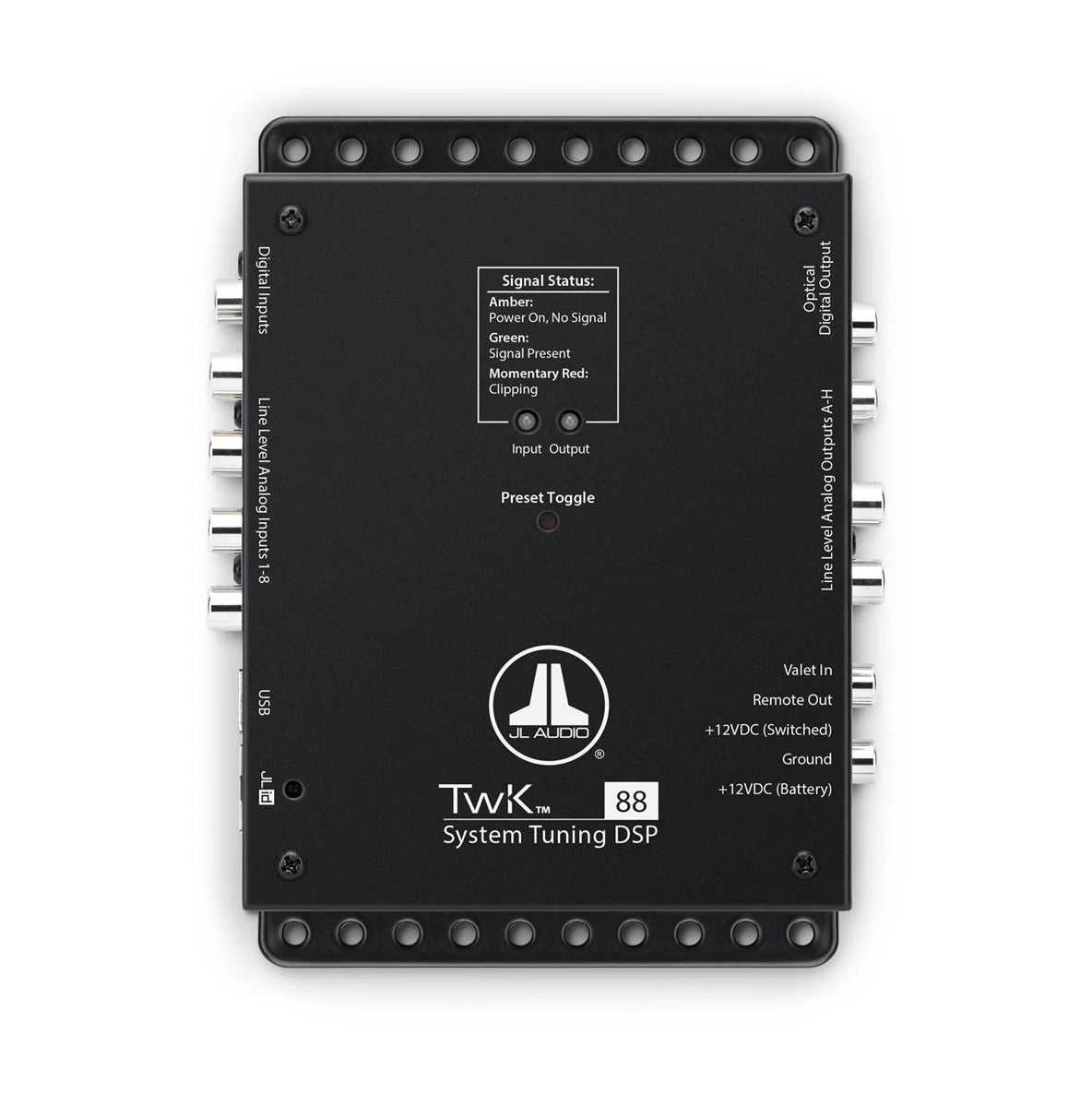

Equipped with an advanced 24-bit DSP, the TwK 88 and TwK D8 tuning systems provide the real-time data to bring out the best in your vehicle’s sound system. Whether you’re an audio beginner, passionate enthusiast or dedicated audiophile, TwK DSPs put an amazing set of tuning supertools right at your fingertips.
8 CHANNELS OF AUDIO OUTPUT PLUS 1 DIGITAL PASS-THROUGH
80 TOTAL BANDS OF EQUALIZATION
TüN® SOFTWARE OFFERS QUICK INPUT/OUTPUT SETUP AND WIDE SELECTION OF EQ, CROSSOVER, DELAY AND LEVEL ADJUSTMENTS

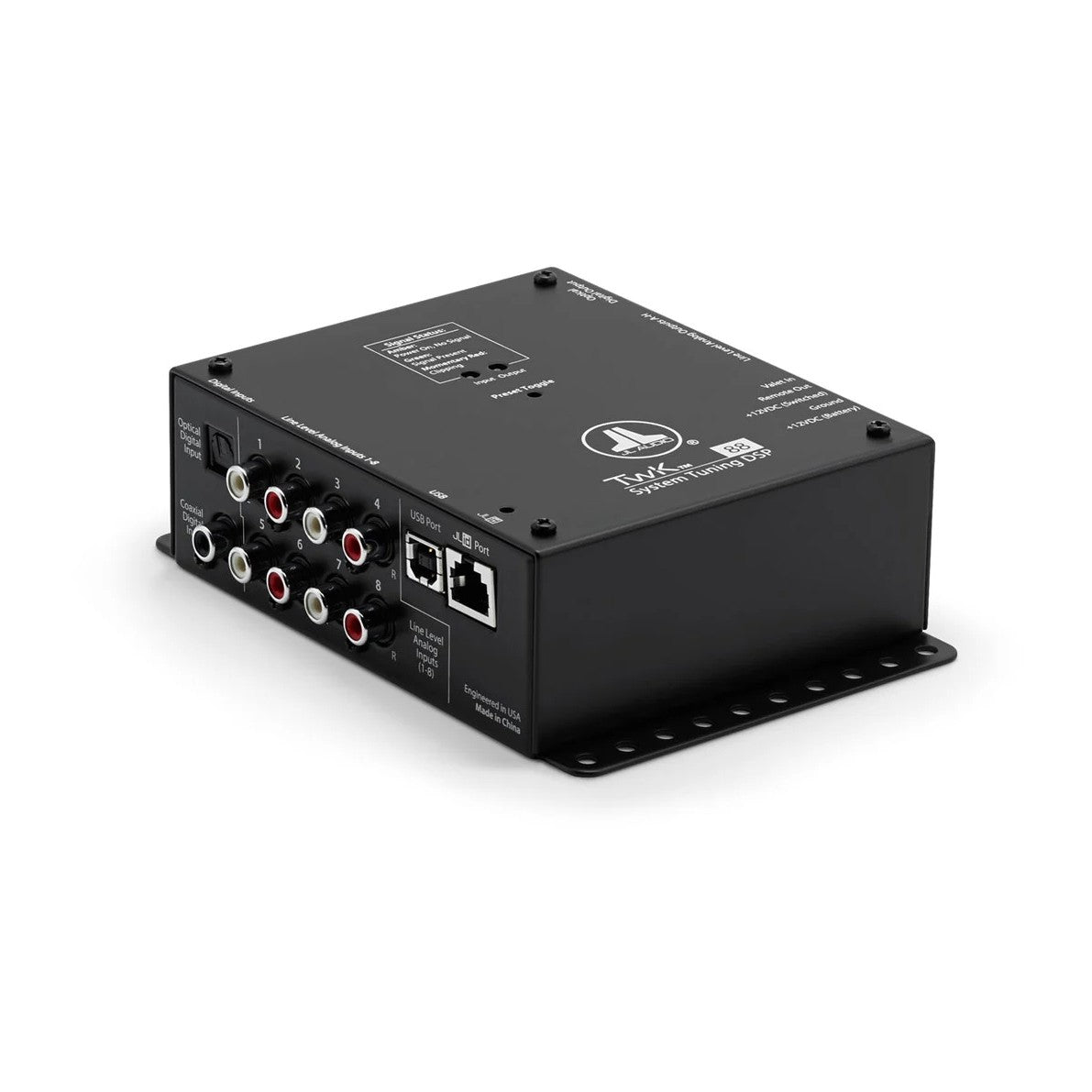

8 RCA INPUTS OR 1 OPTICAL INPUT
INCLUDED DRC-200 OFFERS REMOTE AUDIO CONTROL
2-YEAR WARRANTY
| Warranty | 2 years |
|---|---|
| Input channels | TwK-88: 8 TwK-D8: 1 Digital Input |
| Output channels | 8 |
| Physical dimensions (Height) | 1.85" (47 mm) |
| Physical dimensions (Width) | 4.29" (109 mm) |
| Physical dimensions (Depth) | 6.14" (156 mm) |
| Weight |
2.58 lbs (1.17 kg) |
| Power supply type | Regulated DC-DC SMPS |
| Operating voltage | 10-16 VDC |
Audio |
|
| Signal-to-Noise Ratio @ 4 V (RMS) | TwK-88: 98 dB TwK-D8: 96 dB |
|---|---|
| THD+N @ Rated Power | 0.02% (20 Hz-20 kHz) |
| Input type | Line-level, Differential-balanced |
| Input voltage range | 250 mV-7.1 V RMS |
| Minimum input voltage | 10 mV RMS |
| Input level setting | TwK-88: Eleven discrete selections from 250 mV-7.1V RMS |

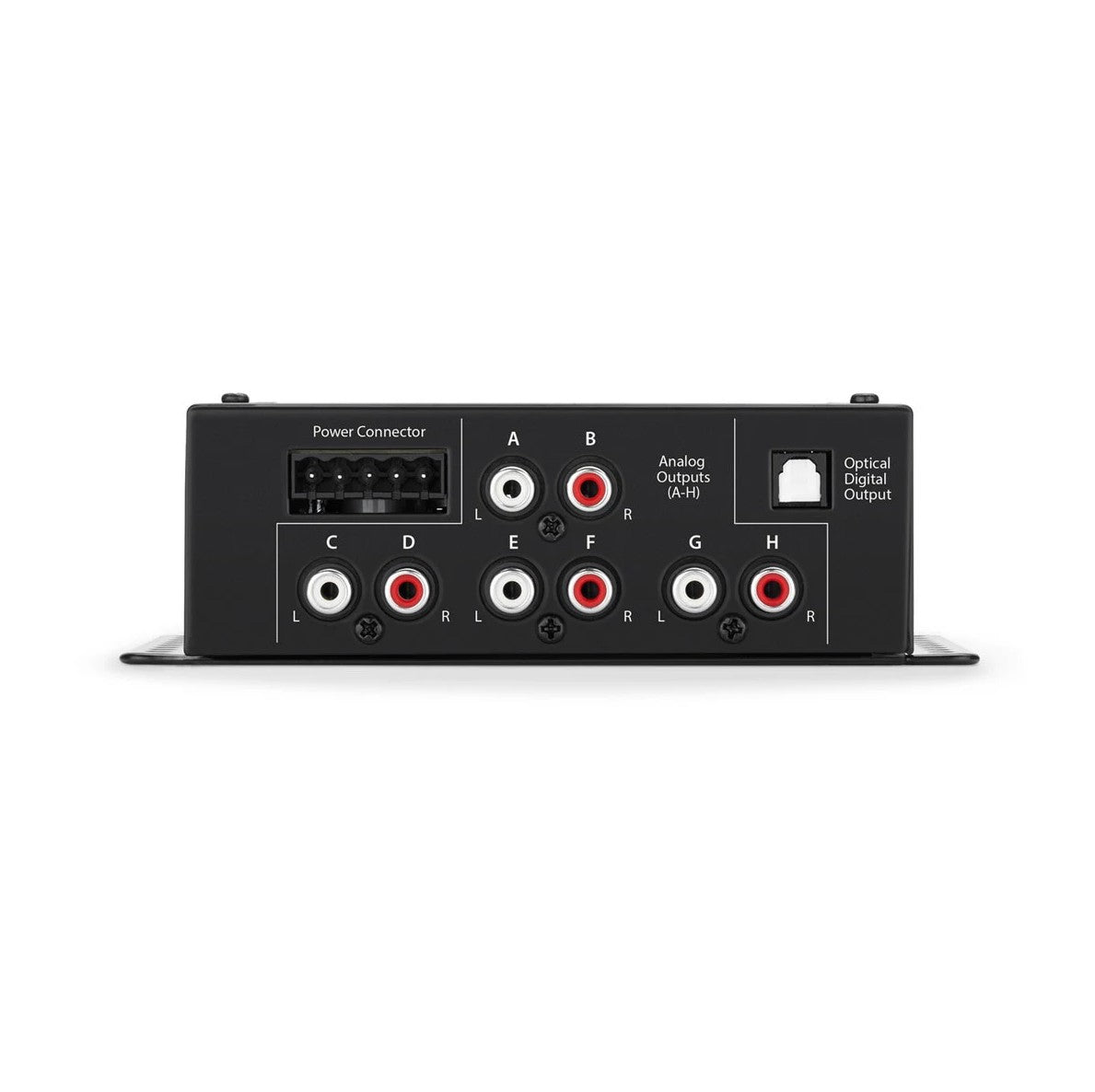

| Analog output | Unbalanced, stereo RCA jacks |
| Digital output | Optical (Toslink) output (S/PDIF) |
| Output impedence | 450 Ω |
| Current consumption (Standby) | <1.5 mA |
| Current consumption (Idle) | 0.7 A |
| Fuse rating | 1 A |
Signal Processing |
|
| Latency | Optical - Optical: 4.860 mS Optical - Analog: 4.805 mS TwK-88: Analog - Analog: 5.425 mS TwK-88: Analog - Optical: 5.470 mS |
|---|---|
| Audio resolution | 24 bit/48 kHz |
| Number of EQ bands | 10 x 8 Channels |
| Remote level control | Included (DRC-200) |
| Remote level modes | Master Volume Control + Trim; Master Volume Control + Fader; Zone Control, LED Status Reporting |
