SoundQubed Q4-3200 16v Q Series 4 Channel Amplifier, 3200w

Model: Q4-3200   Sold as: Each

Q4-3200: Unmatched Power and Precision for Serious Audio Systems

The Q4-3200 is a high-speed Class A/B-like processor with a Class D footprint, offering the best of both worlds. Imagine if Class A/B and Class D had a baby—this is it! Designed with a standard plexi backing and matching oversized heat sink, this amplifier delivers both sleek style and high-performance functionality, making it a standout addition to any audio setup.

Equipped with fully bandpassable crossovers, the Q4-3200 eliminates the need for a DSP, providing a convenient, hassle-free solution for sound optimization. A built-in clip indicator ensures users always know when their system is reaching its limit, maintaining reliable and efficient performance.

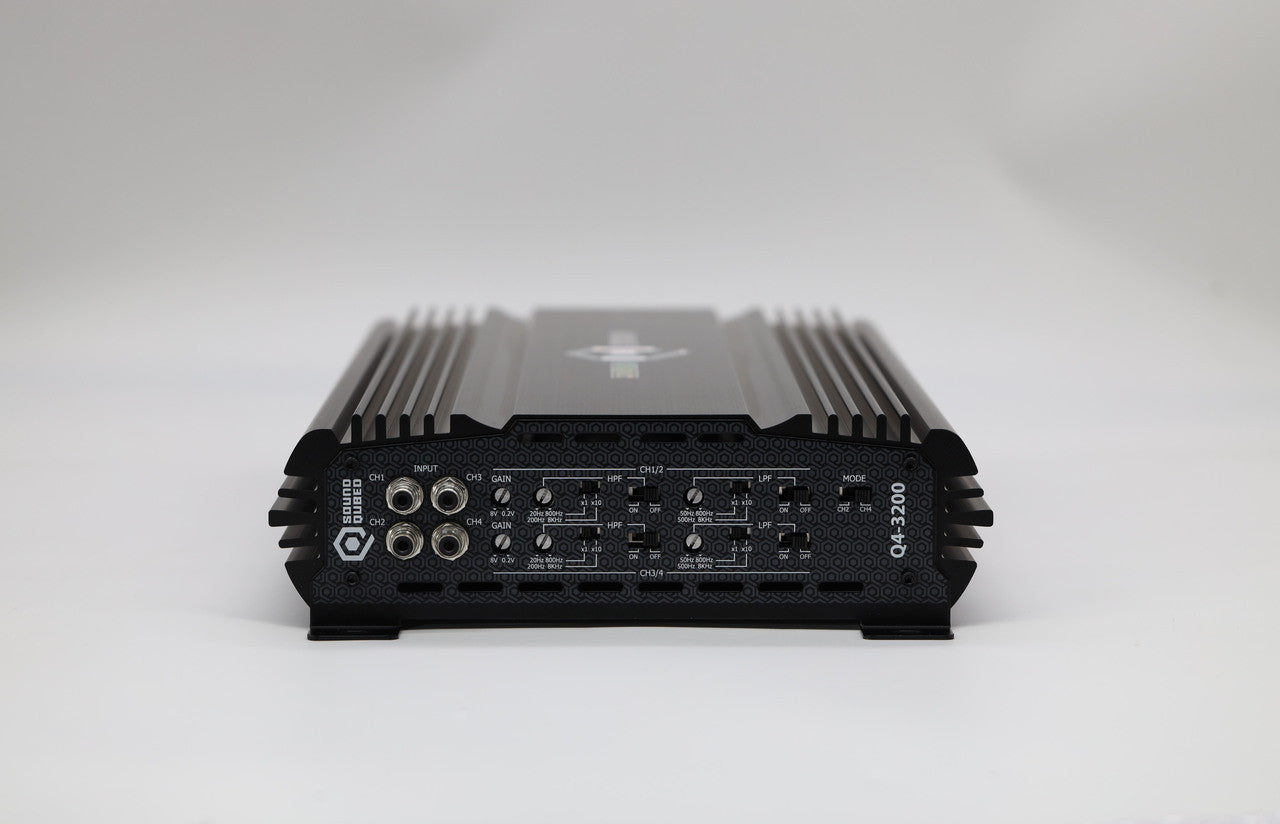

Featuring Tiffany-style RCA connections, the Q4-3200 not only enhances audio quality but also adds a refined touch to any system. With crossover multipliers, users can precisely control the top and bottom sides of the slope, offering flexibility for fine-tuning their setup. The option of two or four-channel input selection allows for seamless adaptation to various audio configurations.

With a 10Hz – 20kHz frequency response, this amplifier captures every detail of the music with stunning clarity and accuracy. Built using surface component mount technology, it ensures long-lasting durability, even under demanding conditions. It is also bridgable at 4 Ohm stable, allowing multiple speakers to be connected without sacrificing sound quality.

As part of SoundQubed’s Flagship line, the Q4-3200 is made in Korea and shares its cutting-edge technology with its baby brother, the Q4-2000, ensuring exceptional performance across both models. Whether your customers are professional audio engineers or passionate bassheads, the Q4-3200 delivers the ultimate in power, precision, and versatility.

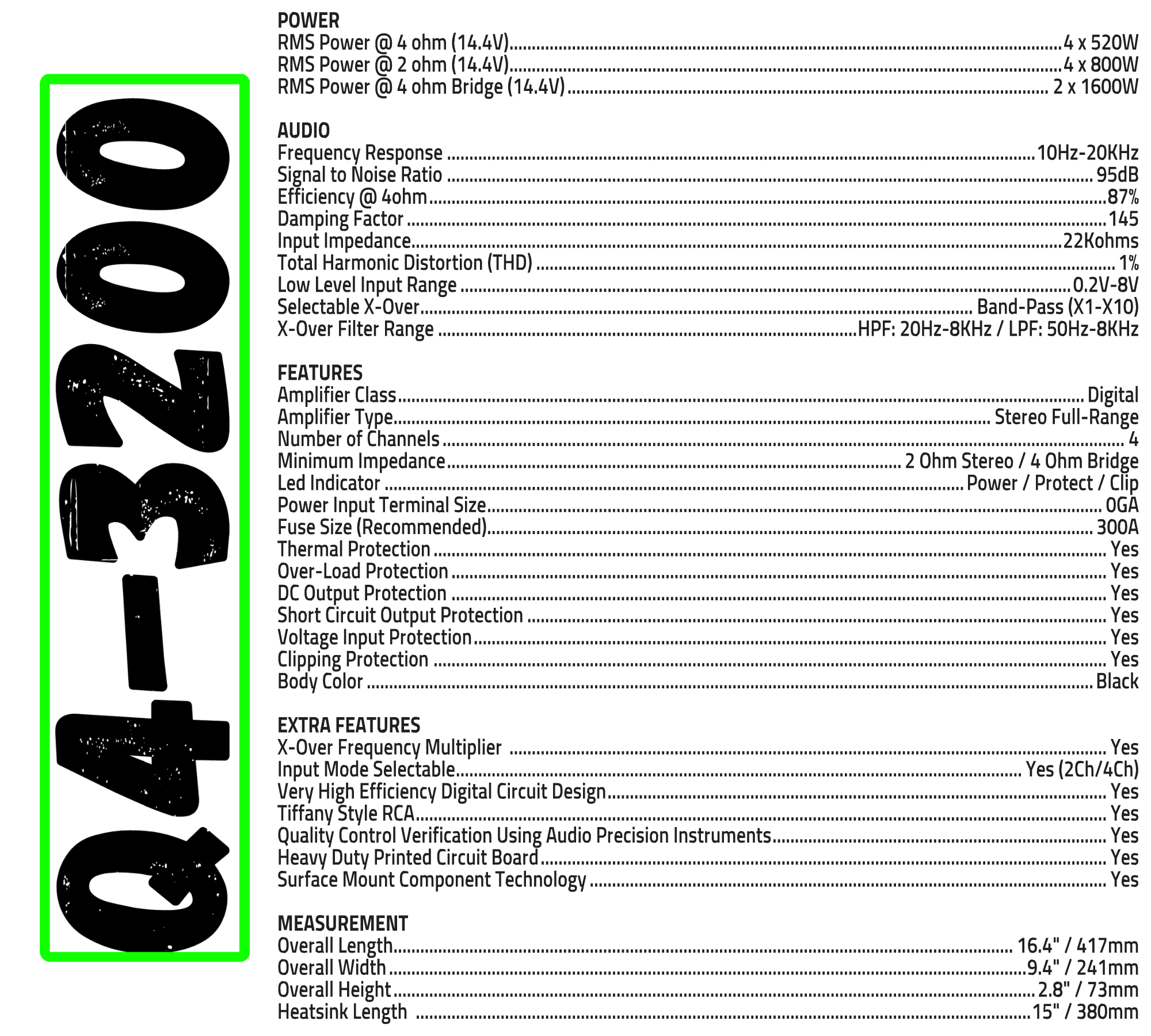

Power:
RMS Power @ 4 ohm (14.4V): 4 x 520W
RMS Power @ 2 ohm (14.4V): 4 x 800W
RMS Power @ 4 ohm Bridge (14.4V): 2 x 1600W
Audio:
Frequency Response: 10Hz-20KHz
Signal to Noise Ratio: 95dB
Efficiency @ 4ohm: 87%
Damping Factor: 145
Input Impedance: 22Kohms
Total Harmonic Distortion (THD): 1%
Low Level Input Range: 0.2V-8V
Selectable X-Over: Band-Pass (X1-X10)
X-Over Filter Range: HPF: 20Hz-8KHz / LPF: 50Hz-8KHz
Features:
Amplifier Class: Digital
Amplifier Type: Stereo Full-Range
Number of Channels: 4
Minimum Impedance: 2 Ohm Stereo / 4 Ohm Bridge
Led Indicator: Power / Protect / Clip
Power Input Terminal Size: 0GA
Fuse Size (Recommended): 300A
Thermal Protection
Over-Load Protection
DC Output Protection
Short Circuit Output Protection
Voltage Input Protection
Clipping Protection
Body Color: Black
Measurements:
Overall Length: 16.4" / 417mm
Overall Width: 9.4" / 241mm
Overall Height: 2.8" / 73mm
Heatsink Length: 15" / 380mm
