SoundQubed Q4-2000 16v Q Series 4 Channel Amplifier, 2000w

Model: Q4-2000   Sold as: Each

Introducing the Q4-2000: Power, Precision, and Versatility

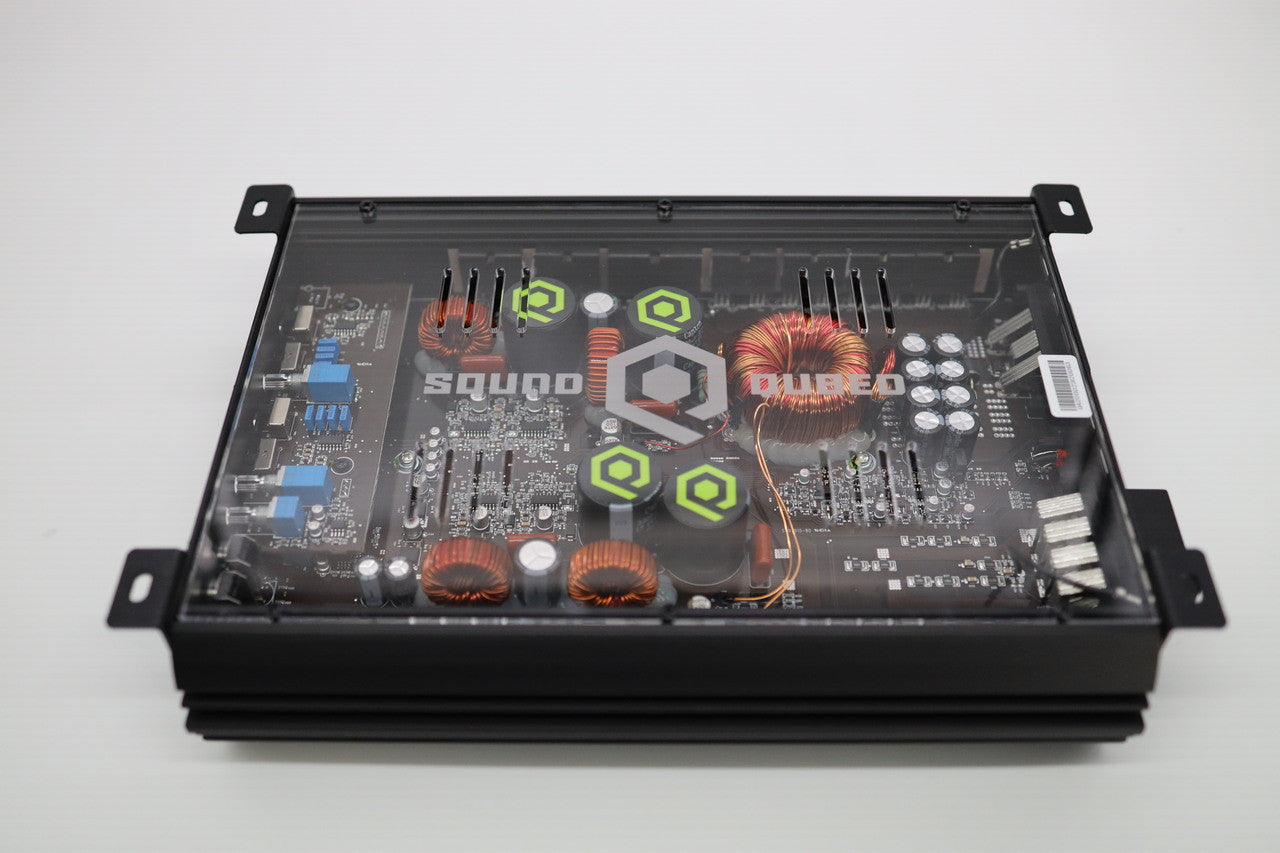

The Q4-2000 is a high-speed Class A/B-like processor with a Class D footprint, delivering the best of both worlds. With a sleek plexi backing and oversized heat sink, this amplifier combines style and performance to complement any audio setup.

Equipped with fully bandpassable crossovers, the Q4-2000 eliminates the need for a DSP, making it a convenient and hassle-free choice. The clip indicator ensures your customers know when their system is being pushed beyond its limits, providing reliable and efficient performance.

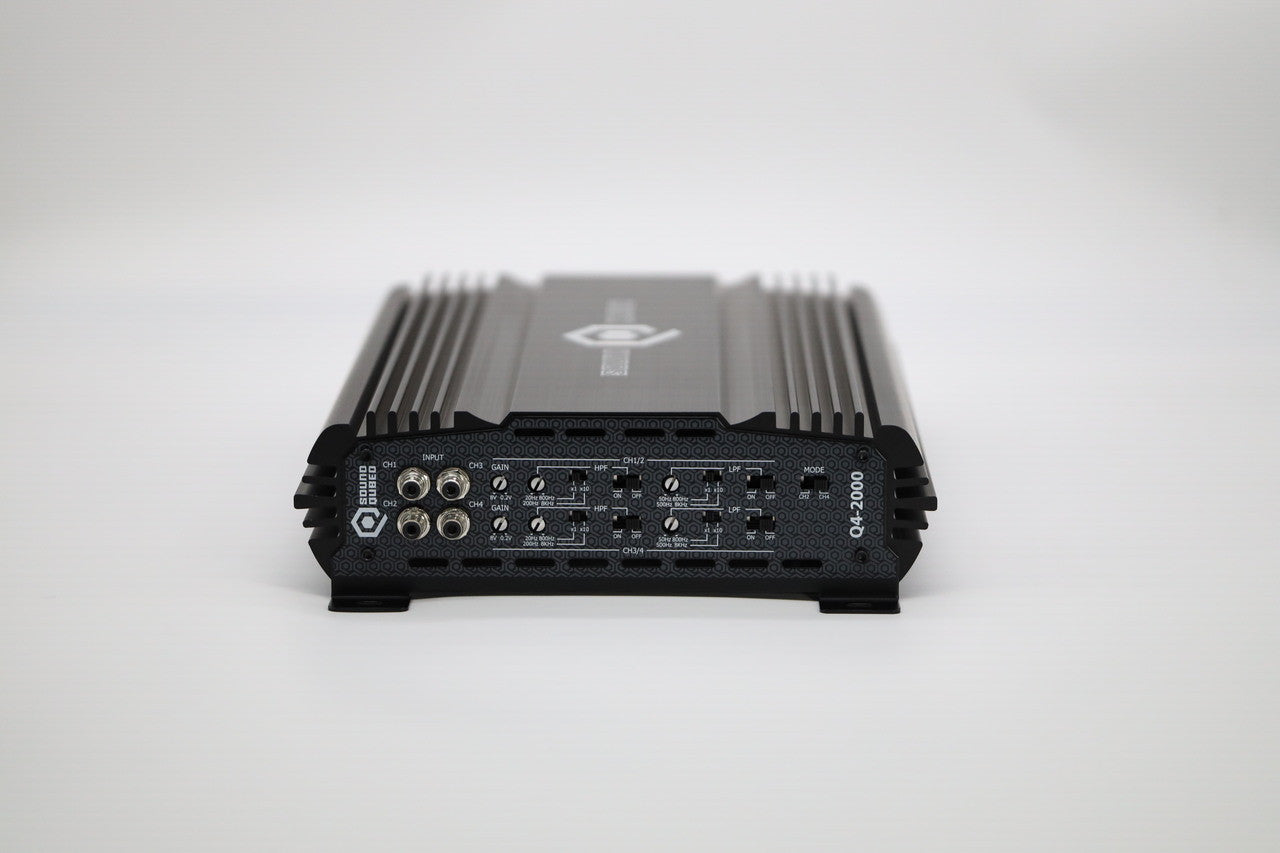

Featuring Tiffany-style RCA connections, this amplifier delivers exceptional sound quality while adding a touch of elegance to any setup. The crossover multipliers offer precise control over the top and bottom sides of the slope, allowing for a fully customizable audio experience. With two or four-channel input selection, the Q4-2000 adapts to any system, ensuring seamless integration.

Its 10Hz – 20kHz frequency response captures every detail of the music with crystal-clear precision. Utilizing surface component mount technology, this amplifier guarantees durability and reliability, even in demanding conditions. It is also bridgable at 4 Ohm stable, giving your customers flexibility in their speaker configurations without compromising sound quality.

Made in Korea as part of SoundQubed’s Flagship line, the Q4-2000 delivers the same cutting-edge technology as the Q4-3200, ensuring elite performance for professional audio engineers and bassheads alike.

Take your customers audio experience to the next level with the Q4-2000—precision, power, and unmatched versatility in one amplifier!

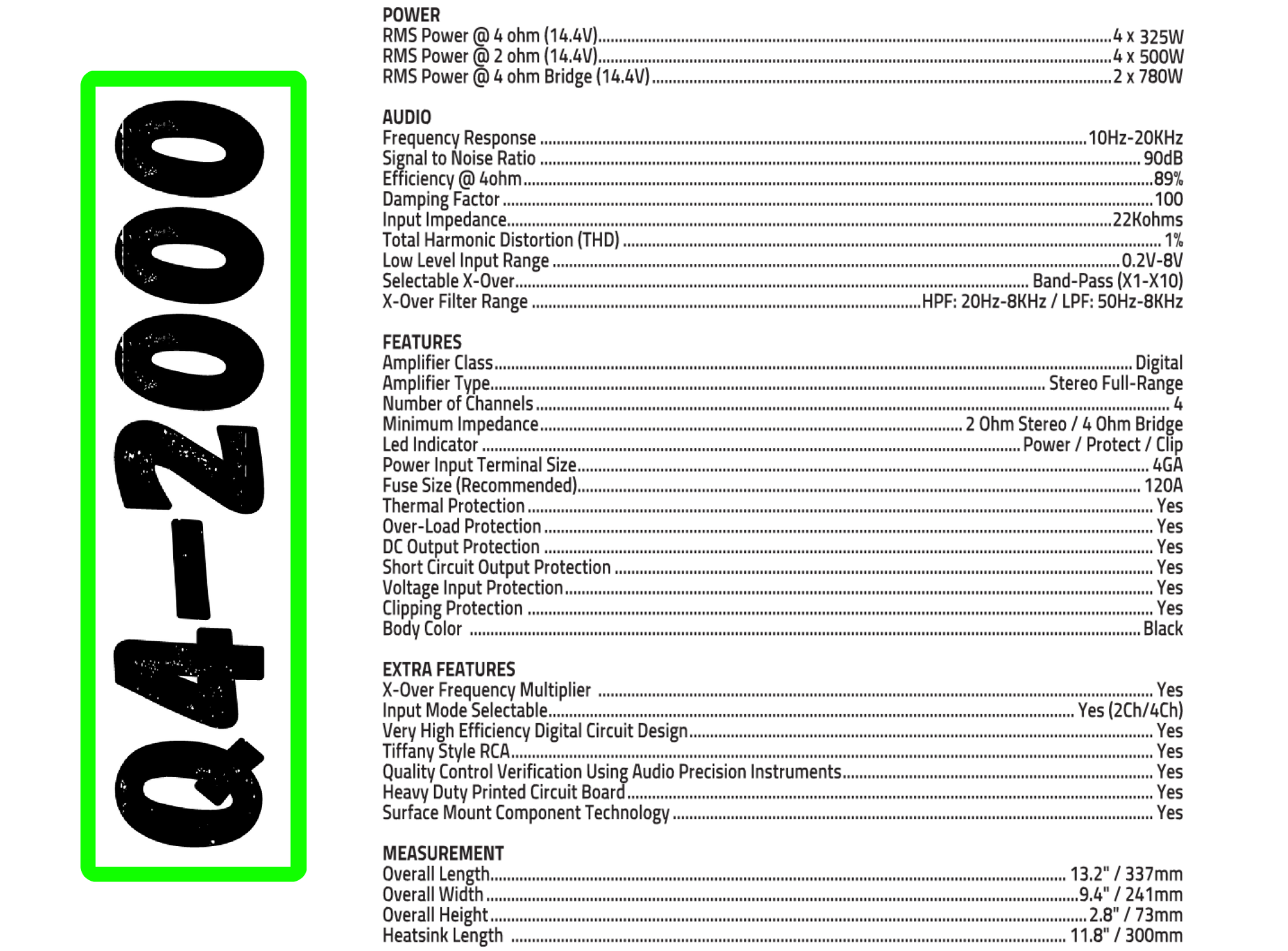

Power:
RMS Power @ 4 ohm (14.4V): 4 x 325W
RMS Power @ 2 ohm (14.4V): 4 x 500W
RMS Power @ 4 ohm Bridge (14.4V): 2 x 780W
Audio:
Frequency Response: 10Hz-20KHz
Signal to Noise Ratio: 90dB
Efficiency @ 4Ohm: 89%
Damping Factor: 100
Input Impedance: 22Kohms
Total Harmonic Distortion (THD): 1%
Low Level Input Range: 0.2V-8V
Selectable X-Over: Band-Pass (X1-X10)
X-Over Filter Range: HPF: 20Hz-8KHz / LPF: 50Hz-8KHz
Features:
Amplifier Class: Digital
Amplifier Type: Stereo Full-Range
Number of Channels: 4
Minimum Impedance: 2 Ohm Stereo / 4 Ohm Bridge
Led Indicator: Power / Protect / Clip
Power Input Terminal Size: 4GA
Fuse Size (Recommended): 120A
Thermal Protection
Over-Load Protection
DC Output Protection
Short Circuit Output Protection
Voltage Input Protection
Clipping Protection
Body Color: Black
Measurements:
Overall Length: 13.2" / 337mm
Overall Width: 9.4" / 241mm
Overall Height: 2.8" / 73mm
Heatsink Length: 11.8" / 300mm
