SoundQubed Q1-8000 18v Q-Series Mono Amplifier, 8000w

Model: Q1-8000   Sold as: Each

Serious Bass for Serious Systems

You asked for more power - here it is in an 8000W monoblock! For customers who demand dominating bass, uncompromising power, and lane-crushing performance, the SoundQubed Q1-8000 is the ultimate car audio amplifier. This BEAST is built for competitors pushing extreme builds to the limit and daily drivers who want enough bass to announce their arrival from a half-mile away. If your customers need relentless power and performance, the Q1-8000 delivers.

Competition Ready 8000W Monoblock Amp

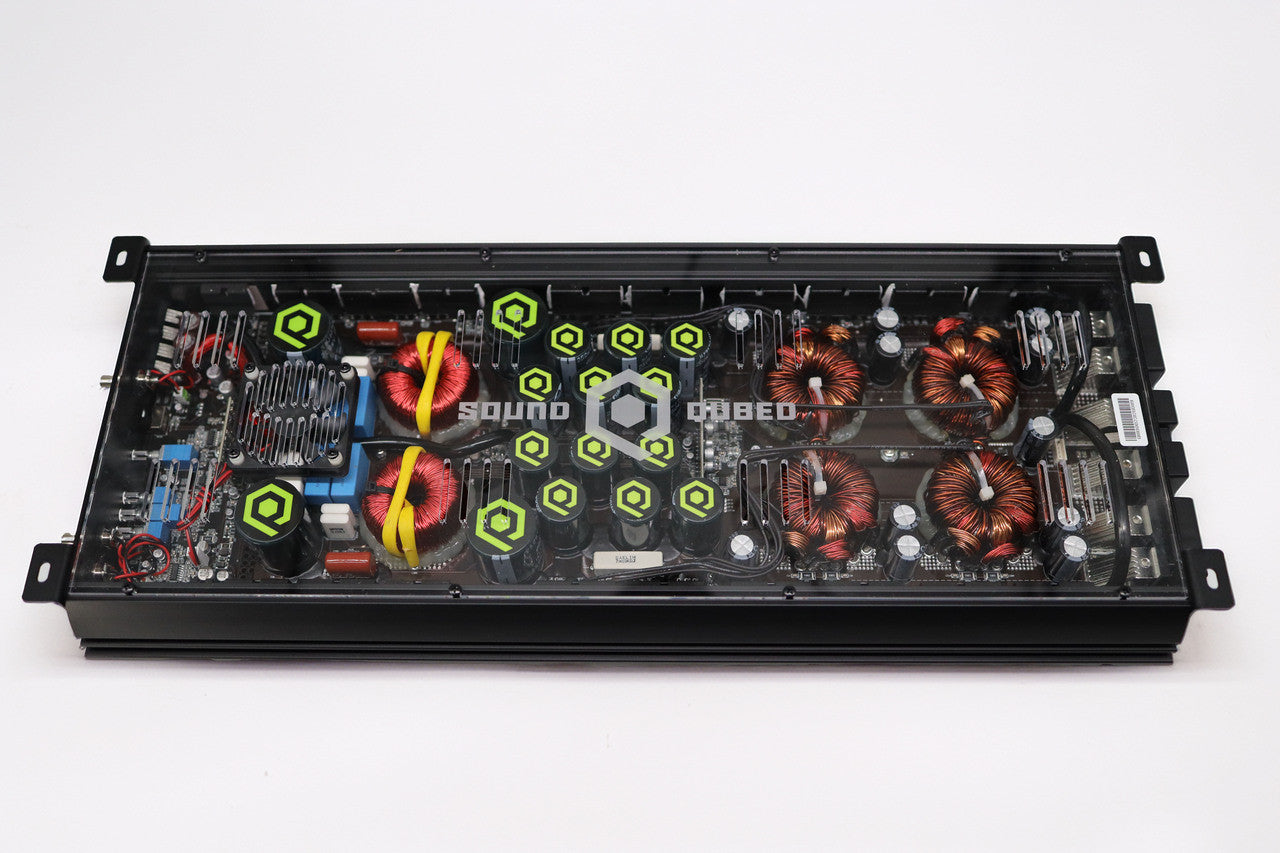

The Korean Half-Bridge board in the Q1-8000 delivers the same trusted quality found in SoundQubed’s Q-Series amplifiers. Built with robust, workhorse components, this amp is designed to handle extreme use and keep performing. Need to power multiple subwoofers? Run an 8K to each subwoofer or strap two together for a massive 16,000-watt load at 2 Ohms—perfect for serious competitors and high-power builds.

Required: Upgraded Electrical Charging System

Your customer will need to have The Big Three wiring upgrade, at least one 250 Amp high-output alternator, and at least one secondary battery with 500 Ah of AGM or 80 Ah of Lithium to run this 8000W monoblock.
Single Channel
8000 Watts (RMS) @ 1 Ohm
1-Ohm stable
(3) 1/0 AWG inputs
Charging system upgrades are necessary

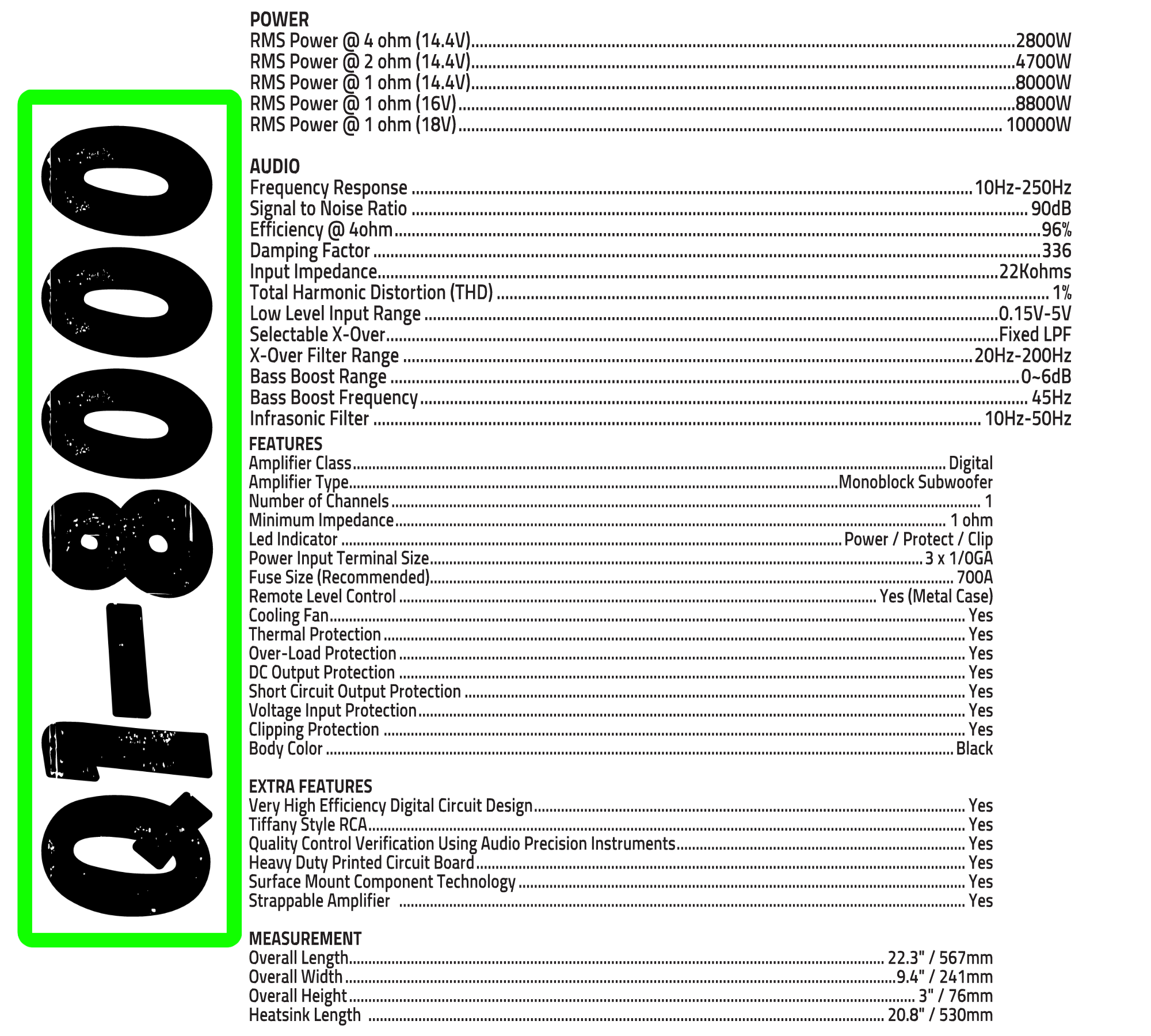

Power:
4ohms at 14.4V: 2800W
2ohms at 14.4V: 4700W
1ohm at 14.4V: 8000W
1ohm at 16V: 8800W
1ohm at 18V: 10,000W
Audio:
Frequency Response: 10Hz-250Hz
Signal to Noise Ratio: 90dB
Efficiency @ 4ohm: 96%
Damping Factor: 336
Input Impedance: 22Kohms
Total Harmonic Distortion (THD): 1%
Low Level Input Range: 0.15V-5V
Selectable X-Over: Fixed LPF
X-Over Filter Range: 20Hz-200Hz
Bass Boost Range: 0~6dB
Bass Boost Frequency: 45Hz
Infrasonic Filter: 10Hz-50Hz
Features:
Amplifier Class: Digital
Amplifier Type: Monoblock Subwoofer
Number of Channels: 1
Minimum Impedance: 1 ohm
Led Indicator: Power / Protect / Clip
Power Input Terminal Size: 3 x 1/0GA
Fuse Size (Recommended): 700A
Remote Level Control: Metal Case
Measurements:
Overall Length: 22.3" / 567mm
Overall Width: 9.4" / 241mm
Overall Height: 3" / 76mm
Heatsink Length: 20.8" / 530mm
