SoundQubed Q1-10000 18v Q-Series Mono Amplifier, 10,000w

Model: Q1-10000   Sold as: Each

The Soundqubed Q1-10000 combines extreme power and smart design. Experience room-shaking bass with every turn of the knob. This amplifier brings serious power and style in one clean, black and machined casing.

Built for audio enthusiasts and professionals, the Q1-10000 takes your sound system to the next level. The smart and compact design will let you optimize power and space in any setup. This amplifier does require several eletrical upgrades in your customers setup to insure it has the appropriate power to produce its rated power. High output alternator, additional reserve bank and big three are a MUST!

Please consult a Soundqubed employee or install professional before installing this amplifier, to make sure you have all neccesary equipment to run this amplifier the right way!

Feel the earth shake and windows rattle with the Soundqubed Q Series Q1-10000 10,000 watt amplifier This powerhouse packs a punch in a compact 25.5" casing with the following features:
Massive 10,000+ watt output

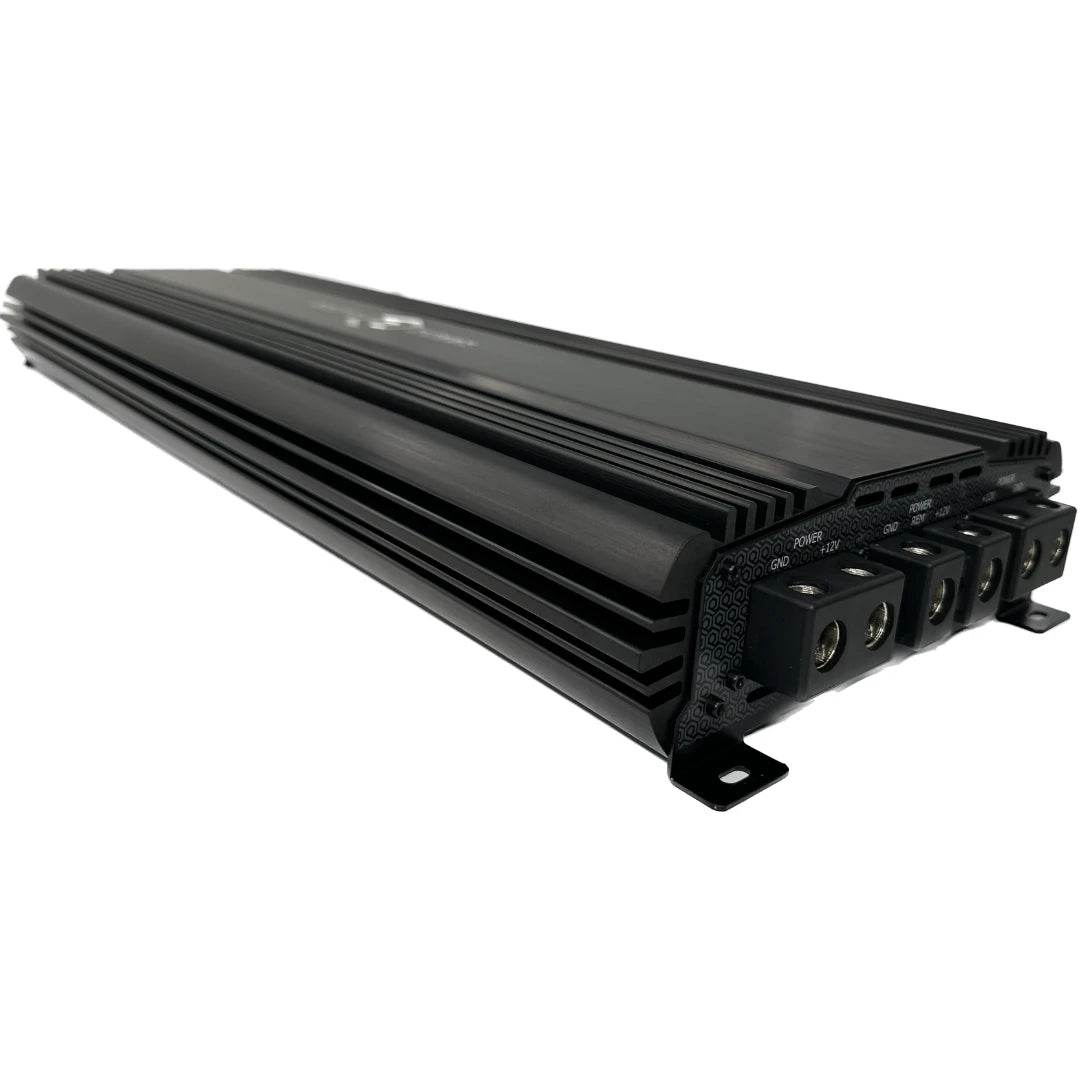

3 power and ground inputs
Silk screen logo etched end caps
Factory 1/4" plexi backing
Master/slave connectivity to link 2 amps
Beefy 16v capability pushing out 15,000+ watts
Premium Tiffany RCA inputs
1 Ohm Stable
Variable Low pass Filter

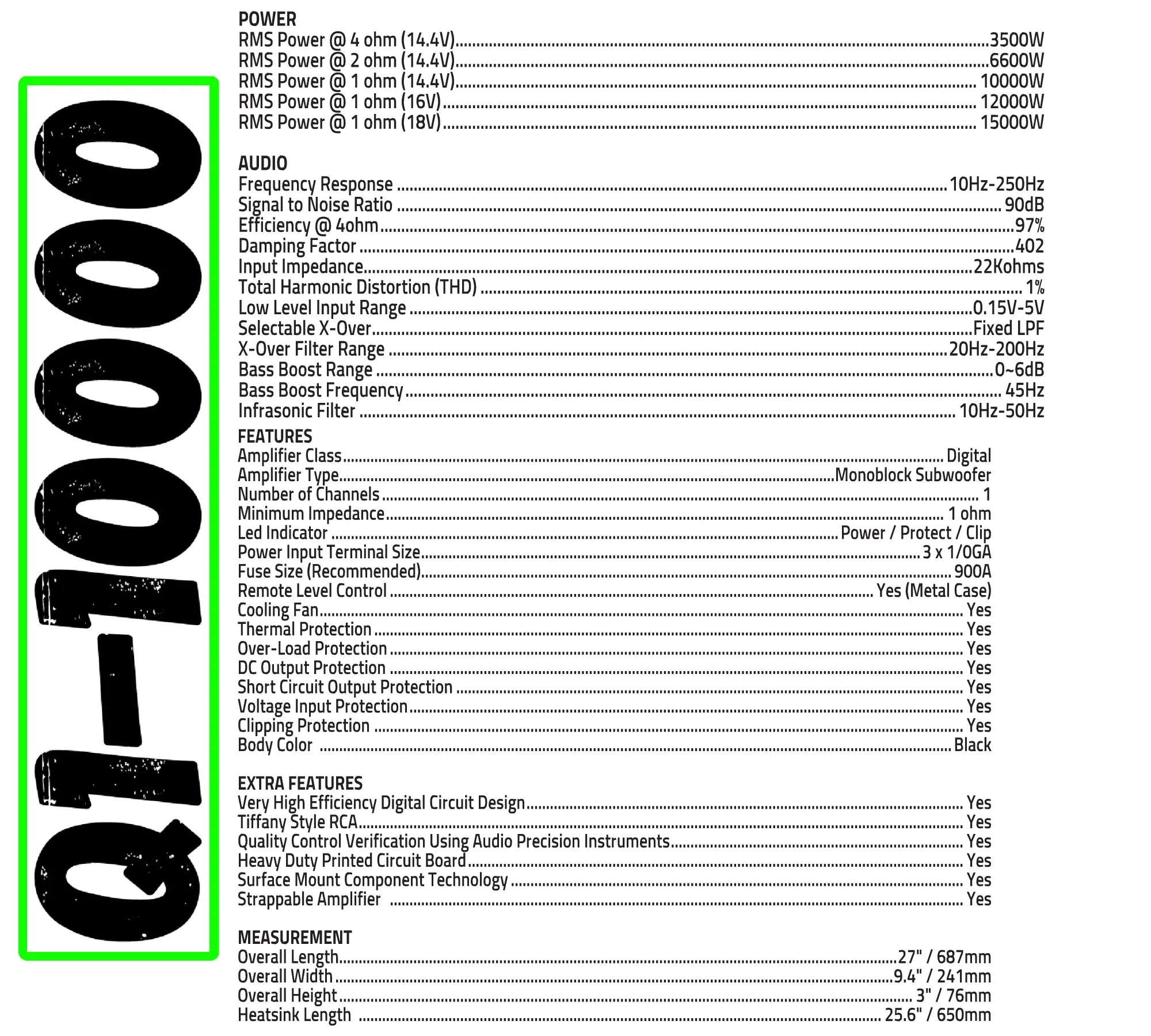

Power:
RMS Power @ 4 ohm (14.4V): 3500W
RMS Power @ 2 ohm (14.4V): 6600W
RMS Power @ 1 ohm (14.4V): 10000W
RMS Power @ 1 ohm (16V): 12000W
RMS Power @ 1 ohm (18V): 15000W
Audio:
Frequency Response: 10Hz–250Hz
Signal-to-Noise Ratio: 90dB
Efficiency @ 4 ohms: 97%
Damping Factor: 402
Input Impedance: 22K ohms
Total Harmonic Distortion (THD): 1%
Low-Level Input Range: 0.15V–5V
Selectable X-Over: Fixed LPF
Bass Boost Range: 0–6dB
Bass Boost Frequency: 45Hz
Infrasonic Filter: 10Hz–50Hz
Features:
Amplifier Class: Digital
Amplifier Type: Monoblock Subwoofer
Number of Channels: 1
Minimum Impedance: 1 ohm
LED Indicator: Power / Protect / Clip
Power Input Terminal Size: 3 x 1/0GA
Fuse Size (Recommended): 900A
Cooling Fan
Thermal Protection
Over-Load Protection
DC Output Protection
Short Circuit Output Protection
Voltage Input Protection
Clipping Protection
Body Color: Black
Extra Features:
Very High Efficiency Digital Circuit Design
Tiffany Style RCA
Quality Control Verification Using Audio Precision Instruments
Heavy Duty Printed Circuit Board
Surface Mount Component Technology
Strappable Amplifier
Measurements:
Overall Length: 27" / 687 mm
Overall Width: 9.4" / 241 mm
Overall Height: 3" / 76 mm
Heatsink Length: 25.6" / 650 mm
