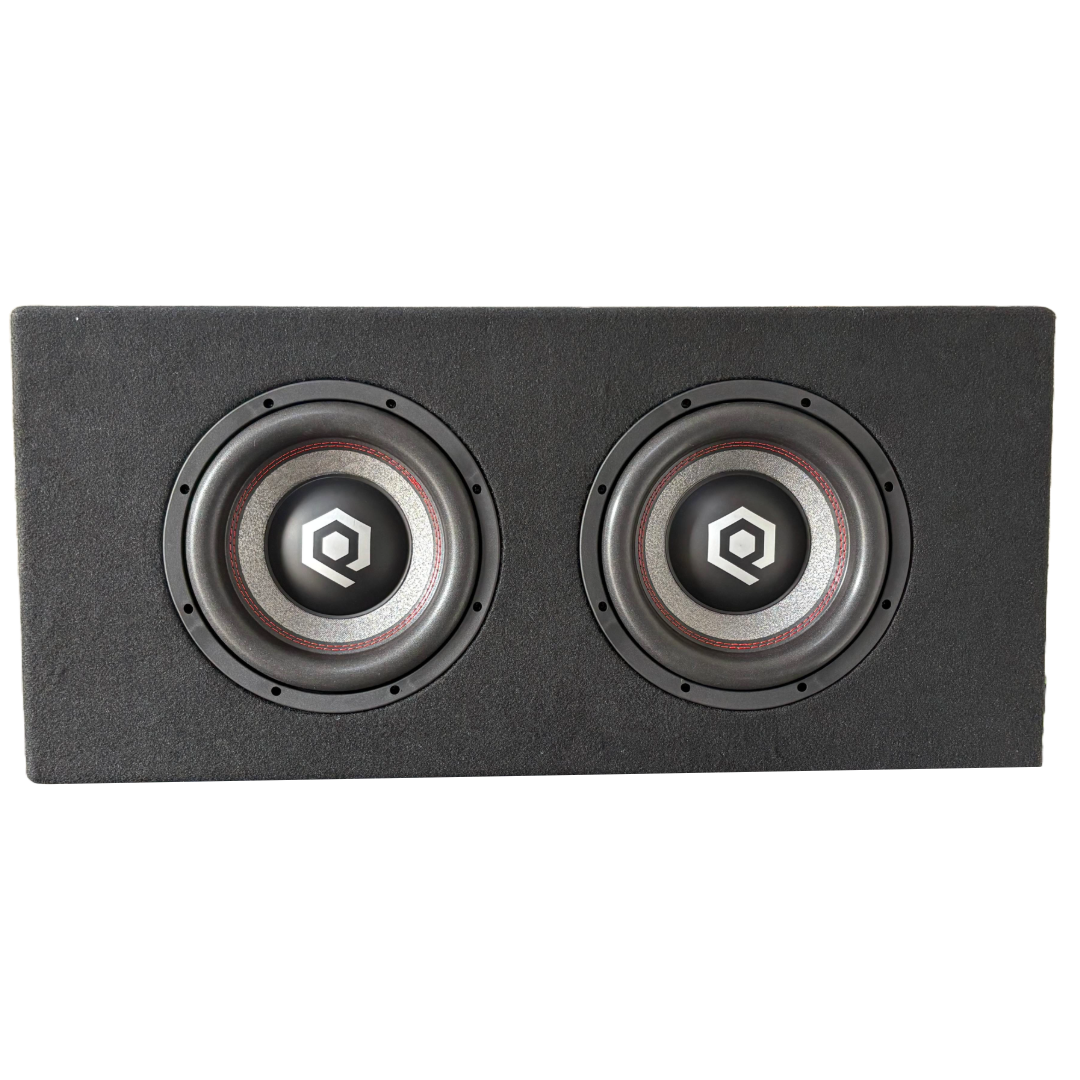

SoundQubed HDB2-210LE-D4 10" D4 HDB2 Series Subwoofer, Loaded & Ported Enclosure, 800w/1600w

Model: HDB2-210LE-D4   Sold as: Each

HDB2 Series Subwoofer Dual 10" Loaded & Ported Enclosure Dual 4 Ohm Voice Coil Woofers 800w/1600w

The SoundQubed HDB2-210LE-D4 is a dual 10” loaded and ported subwoofer enclosure engineered for serious bass in a space-efficient design. With two 4-ohm dual voice coil subwoofers wired in parallel to a 1-ohm final load, this box delivers 800W RMS and 1600W peak power handling. Its 94dB sensitivity and 29Hz–250Hz frequency range ensure powerful, tight low-end performance, perfect for daily drivers and SPL setups. Housed in a durable 5/8” MDF enclosure with a side port tuned to 35Hz, and finished in sleek black vinyl, the HDB2-210LE-D4 is ideal for those seeking hard-hitting bass in a mid-sized footprint.

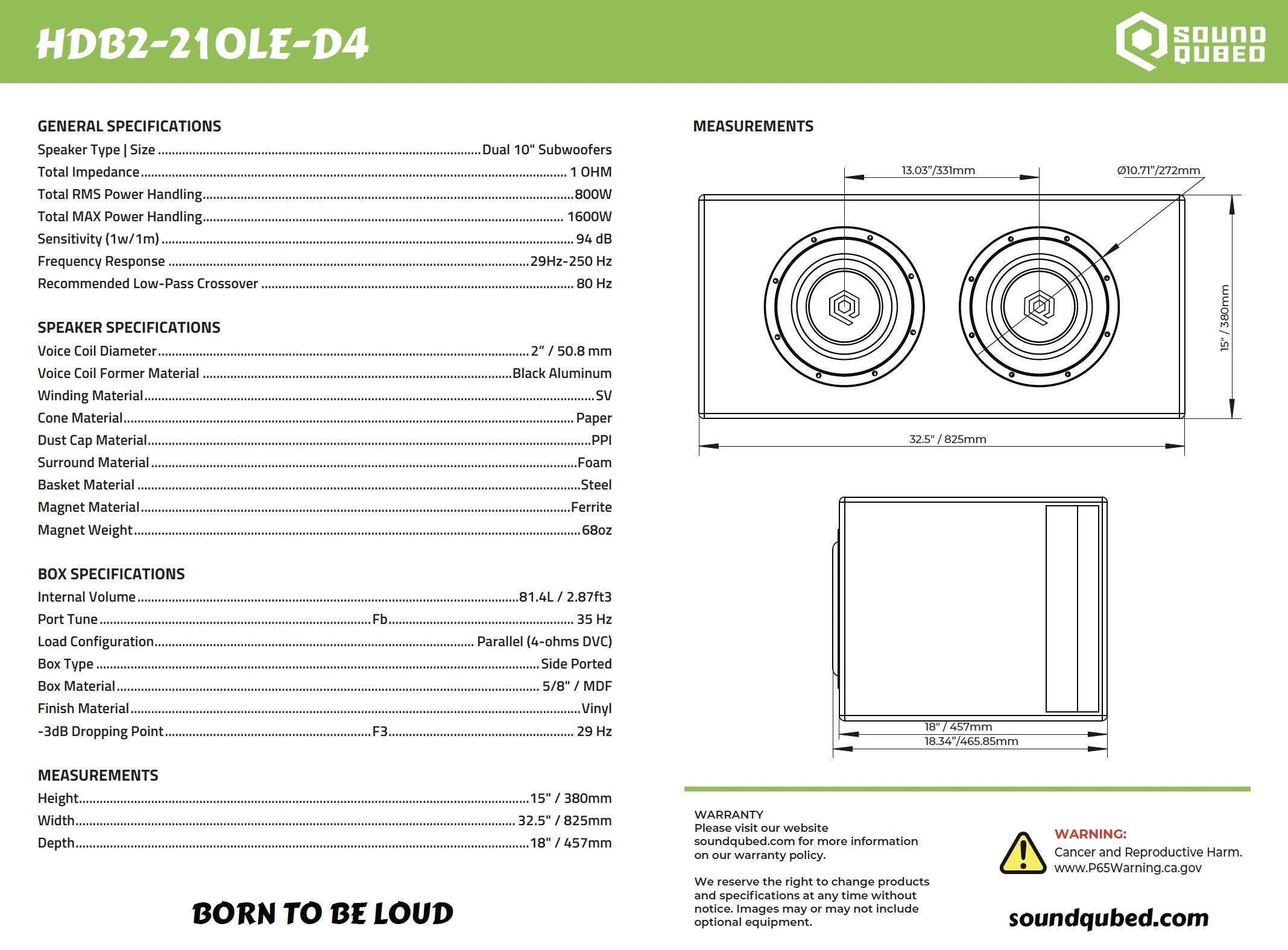

General Specifications
Speaker Type / Size: Dual 10" Subwoofers
Total Impedance: 1 Ohm
Total RMS Power Handling: 800W
Total MAX Power Handling: 1600W
Sensitivity (1w/1m): 94dB
Frequency Response: 29Hz-250 Hz
Recommended Low-Pass Crossover: 80 Hz
Speaker Specifications
Voice Coil Diameter: 2" / 50.8mm
Voice Coil Former Material: Black Aluminum
Winding Material: SV
Cone Material: Paper
Dust Cap Material: PPI
Surround Material: Foam
Basket Material: Steel
Magnet Material: Ferrite
Magnet Weight: 68oz
Box Specifications
Internal Volume: 81.4L / 2.87ft³
Port Tune (Fb): 35 Hz
Load Configuration: Parallel (4-ohms DVC)

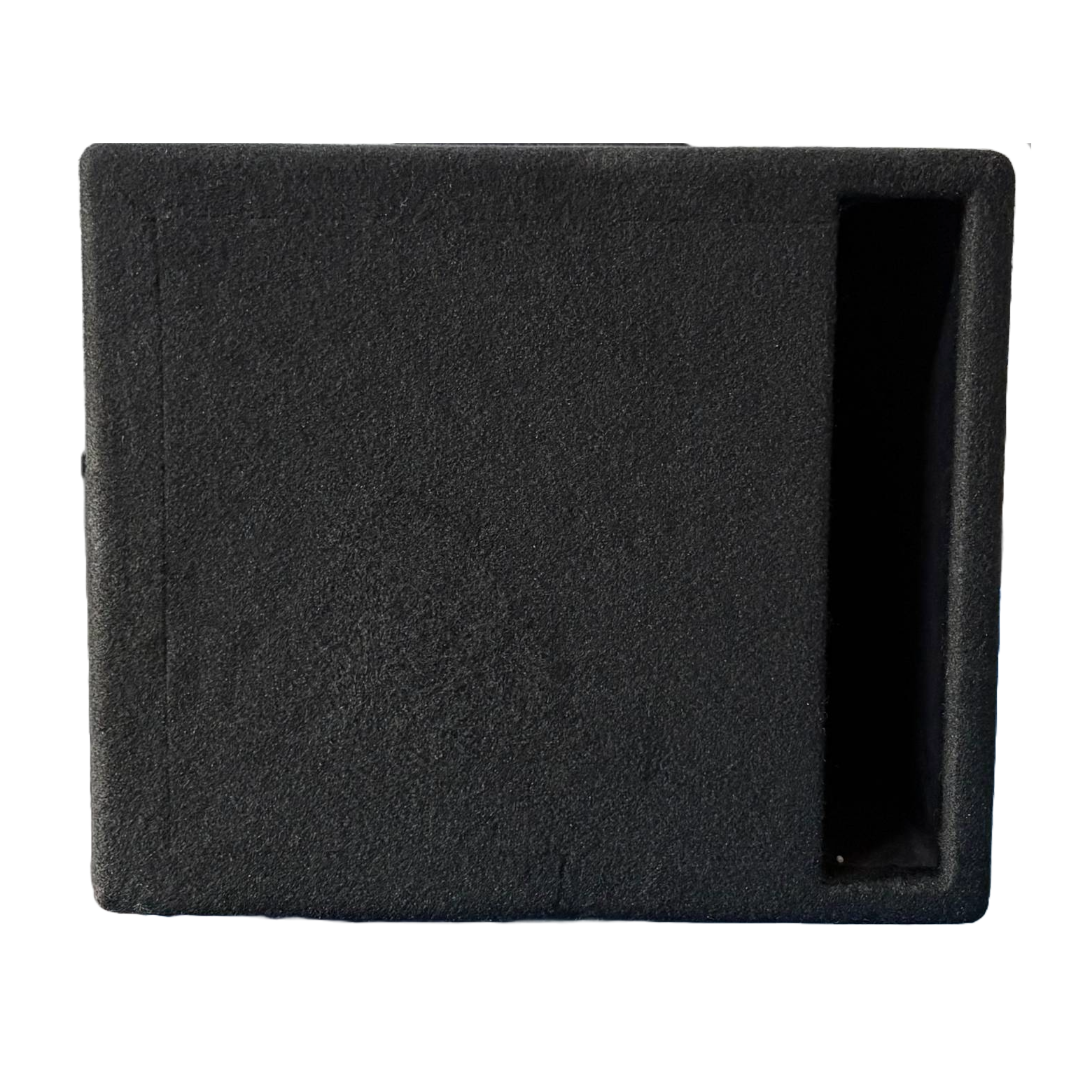

Box Type: Side Ported
Box Material: 5/8" / MDF
Finish Material: Vinyl
-3dB Dropping Point (F3): 29 Hz
Measurements
Height: 15" / 380mm
Width: 32.5" / 825mm
Depth: 18" / 457mm
