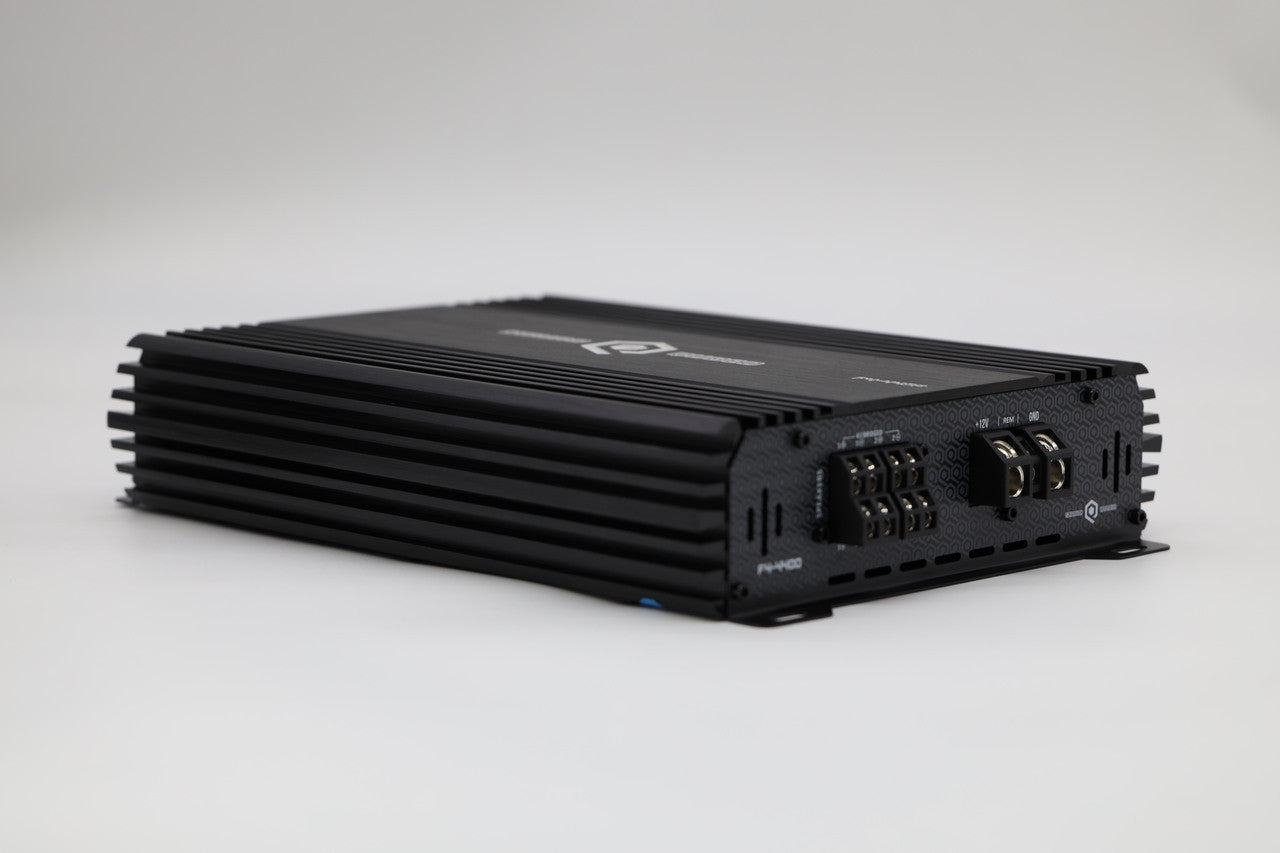

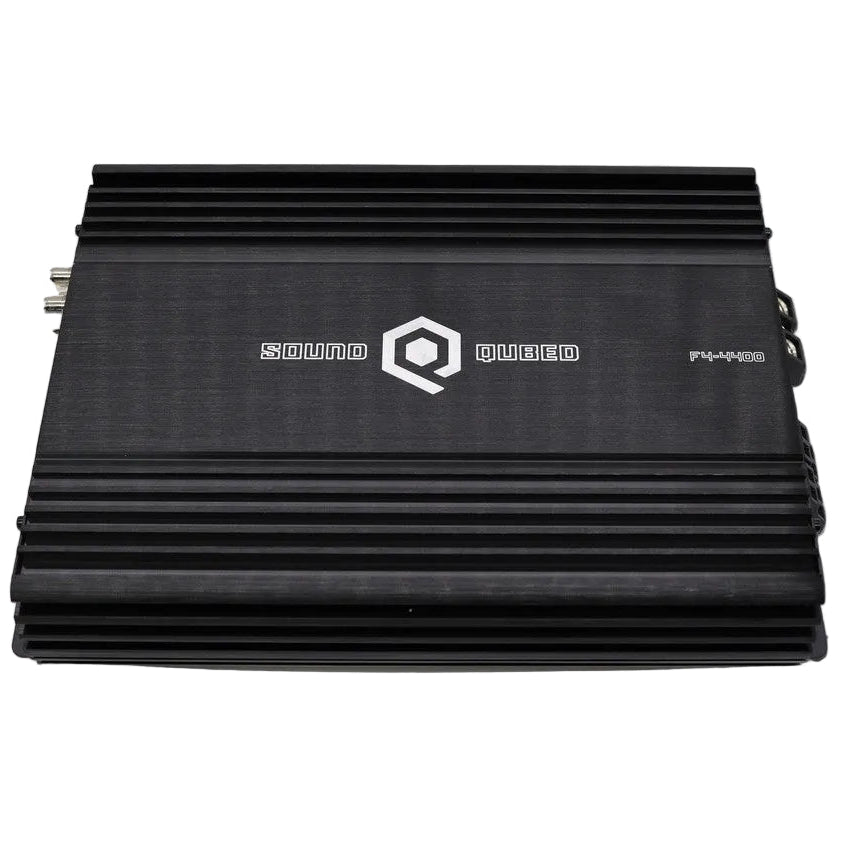

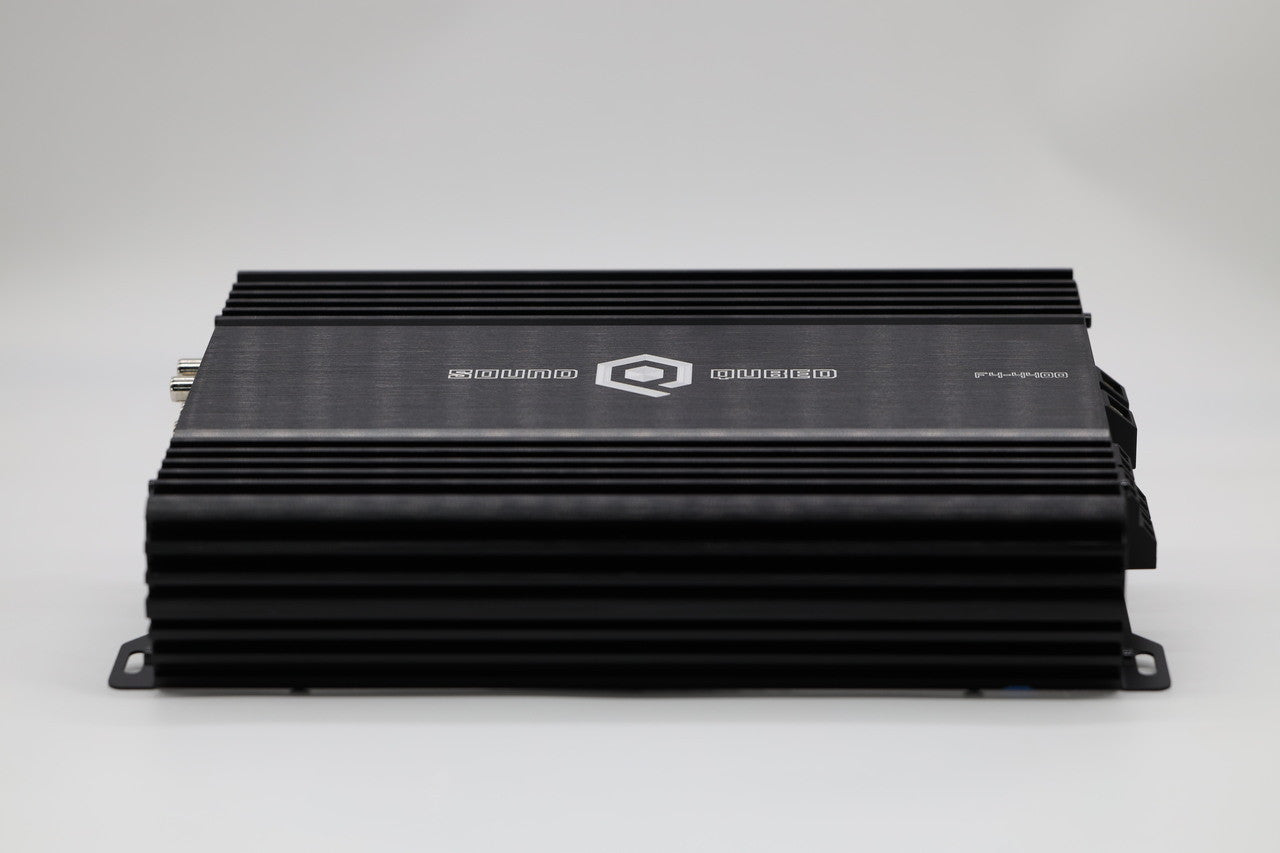

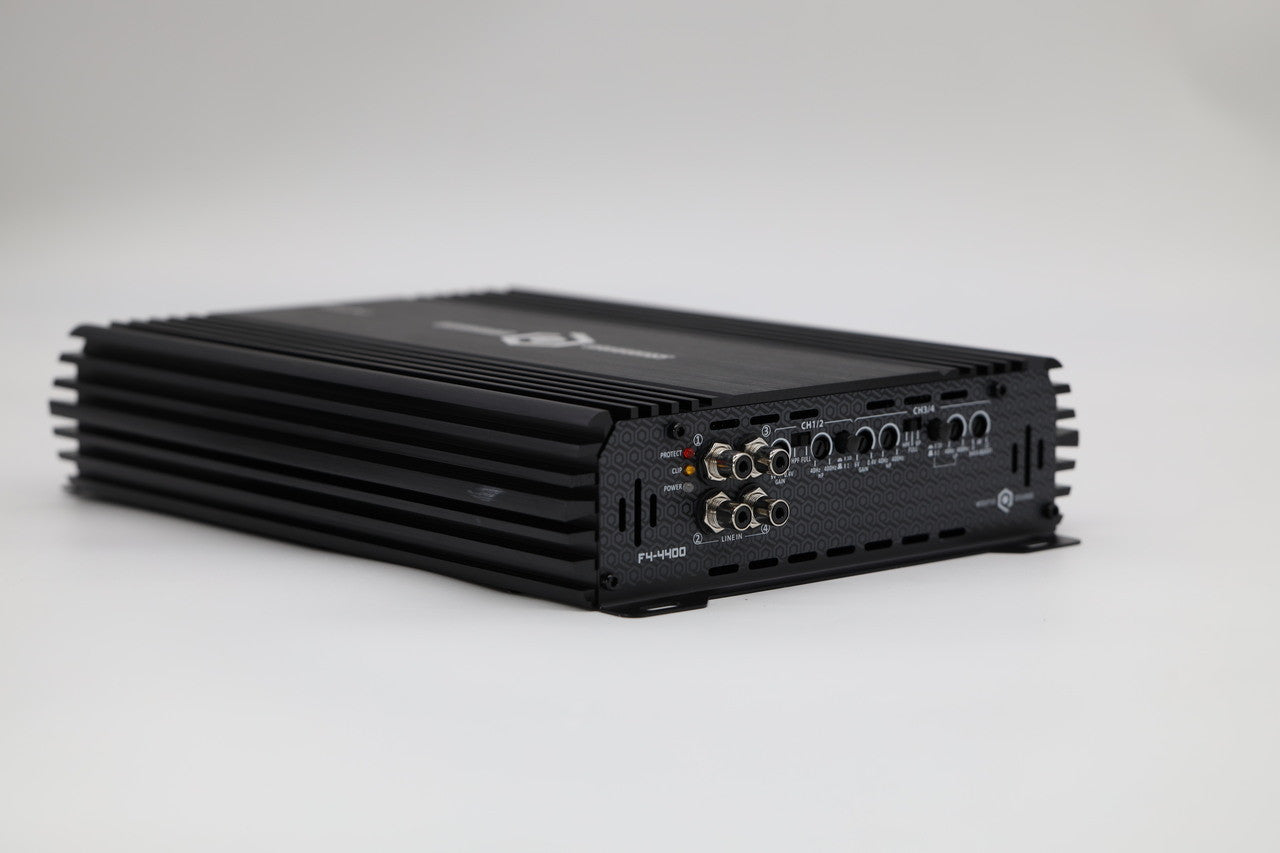

SoundQubed F4-4400 Full Bridge 4 Channel Amplifier, 4400w

Model: F4-4400   Sold as: Each

The F4-4400 is the next 4 channel of this series, and this amplifier BRINGS THE POWER! With total measurments being, 11.81" L x 8.46" W x 2.28" T. This amplifier also packs a punch in a small platform. Frequency capability range goes from 10Hz to 20kHz.

Introducing the SoundQubed F-Series Amplifiers—a powerful, compact solution for high-performance audio. Designed with cutting-edge full-bridge technology, these amplifiers deliver exceptional power output ranging from 3000W to 12,000W, ensuring maximum performance for any setup.

Despite their compact size, the F-Series features an enlarged heat sink for improved cooling, preventing overheating during intense use. For added convenience, an optional bass knob display provides real-time temperature and voltage readings, giving your customer complete control over their system.

Engineered for versatility, these amplifiers handle a full range of frequencies, making them perfect for various applications. Built with durability in mind, they’ve undergone over a year of rigorous testing to ensure they withstand extreme conditions while maintaining reliability.

Best of all, the F-Series delivers premium power and quality at an affordable price, making it an unbeatable choice for audio enthusiasts who demand the best without breaking the bank. Upgrade your customers sound system with Soundqubed F-Series Amplifiers—where power, innovation, and reliability meet.

Features
Amplifier Class: Digital
Amplifier Type: Stereo Full-Range
Number of Channels: 4
Minimum Impedance: 2 Ohm Stereo / 4 Ohm Bridge
LED Indicator: Power / Protect / Clip
Power Input Terminal Size: 4GA
Fuse Size (Recommended): 360A
Thermal Protection
Over-Load Protection
DC Output Protection
Short Circuit Output Protection
Voltage Input Protection
Clipping Protection
Power:
RMS Power @ 4 ohm: 4 x 750W
RMS Power @ 2 ohm: 4 x 1100W
RMS Power @ 4 ohm Bridge: 2 x 2200W
Audio
Frequency Response: 10Hz-20KHz
Signal to Noise Ratio: 95dB
Efficiency @ 4ohm: 85%
Damping Factor: 92
Input Impedance: 20K ohms
Channel Separation: 53dB
Total Harmonic Distortion (THD): 0.50%
Low-Level Input Range: 400mV-6V
Selectable X-Over (CH 1/2): HPF / FULL
X-Over Filter Range (CH 1/2): 40Hz-400Hz (X1/X10)
Selectable X-Over (CH 3/4): HPF / FULL / BPF
X-Over Filter Range (CH 3/4): HPF: 40Hz-400Hz / LPF: 40Hz-400Hz (X1/X10)
Bass Boost Range: 0~12dB (CH 3/4)
Bass Boost Frequency: 45Hz
