SoundQubed F4-1600 Full Bridge 4 Channel Amplifier, 1600w

Model: F4-1600   Sold as: Each

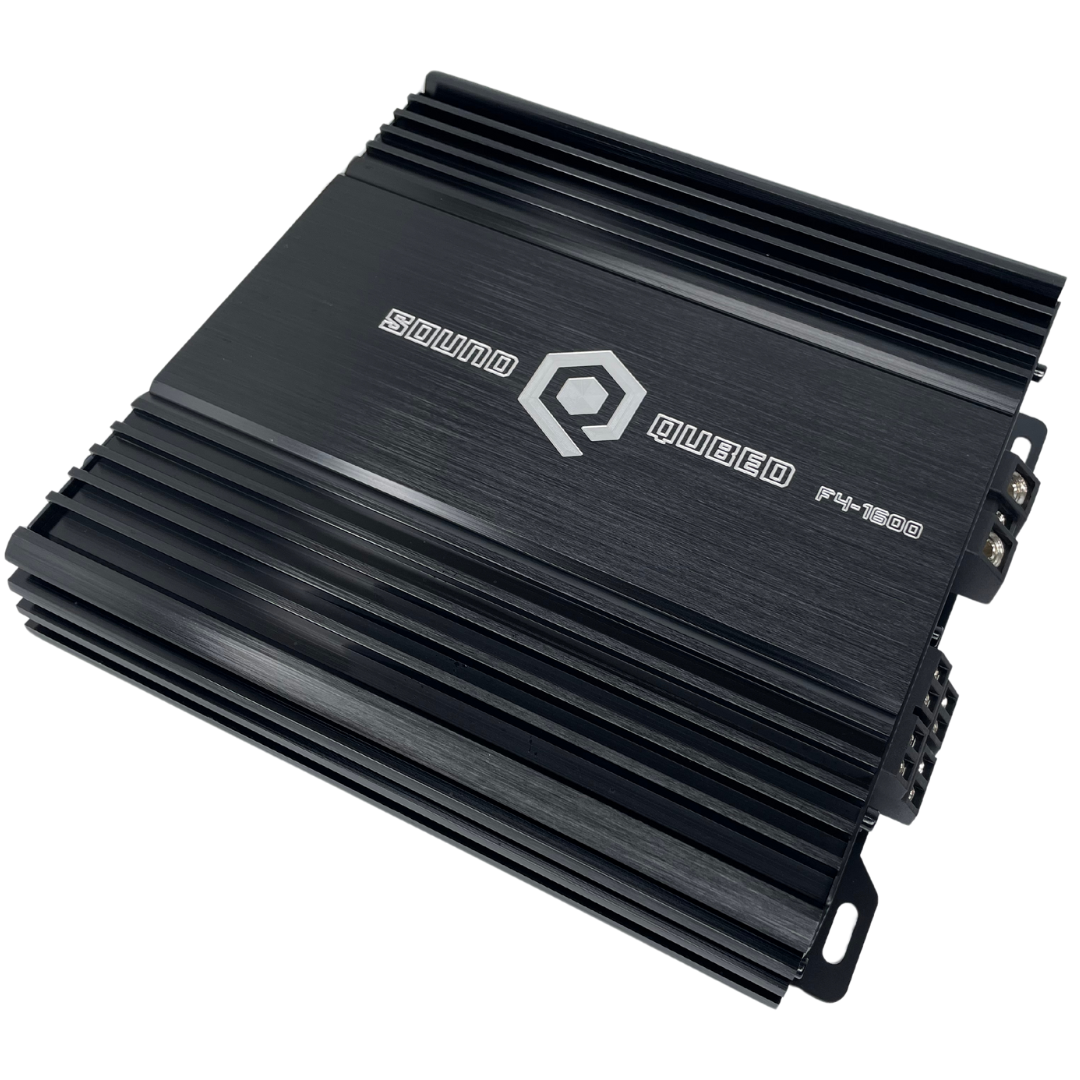

The F4-1600 is just the beginning of this series, but it still has great power with options such as 10x crossover frequency multiplier. With total measurments being, 9.13" L x 8.46" W x 2.28" T. This amplifier packs a punch in a small platform. Frequency capability range goes from 10Hz to 20kHz.

Introducing the SoundQubed F-Series Amplifiers—a powerful, compact solution for high-performance audio. Designed with cutting-edge full-bridge technology, these amplifiers deliver exceptional power output ranging from 3000W to 12,000W, ensuring maximum performance for any setup.

Despite their compact size, the F-Series features an enlarged heat sink for improved cooling, preventing overheating during intense use. For added convenience, an optional bass knob display provides real-time temperature and voltage readings, giving your customer complete control over their system.

Engineered for versatility, these amplifiers handle a full range of frequencies, making them perfect for various applications. Built with durability in mind, they’ve undergone over a year of rigorous testing to ensure they withstand extreme conditions while maintaining reliability.

Best of all, the F-Series delivers premium power and quality at an affordable price, making it an unbeatable choice for audio enthusiasts who demand the best without breaking the bank. Upgrade your customers sound system with Soundqubed F-Series Amplifiers—where power, innovation, and reliability meet.

Features:
Amplifier Class: Digital
Amplifier Type: Stereo Full-Range
Number of Channels: 4
Minimum Impedance: 2 Ohm Stereo / 4 Ohm Bridge
LED Indicator: Power / Protect / Clip

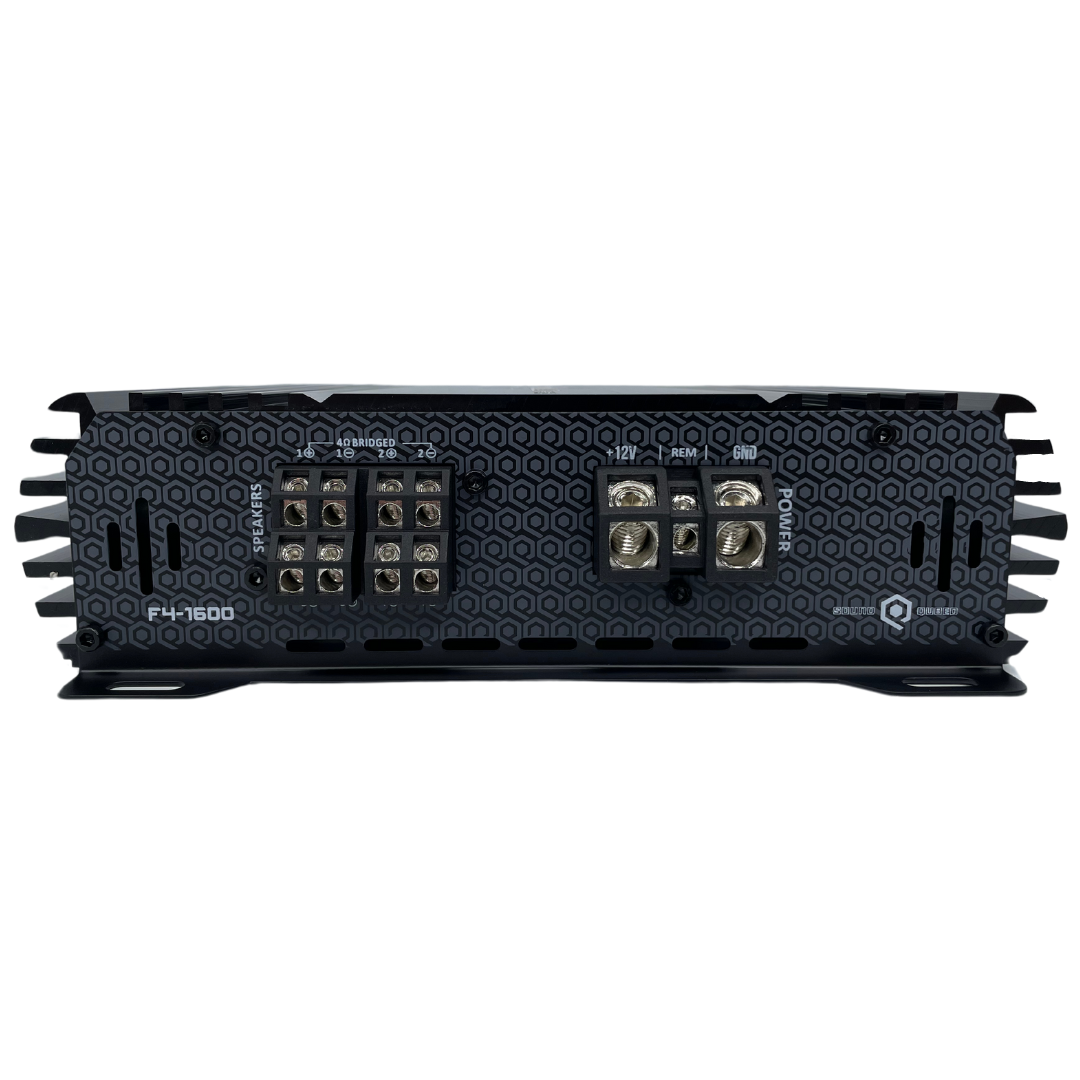

Power Input Terminal Size: 4GA
Fuse Size (Recommended): 100A
Thermal Protection
Over-Load Protection
DC Output Protection
Short Circuit Output Protection
Voltage Input Protection
Clipping Protection
Power
RMS Power @ 4 ohm: 4 x 250W
RMS Power @ 2 ohm: 4 x 400W
RMS Power @ 4 ohm Bridge: 2 x 800W
Audio:
Frequency Response: 10Hz-20KHz
Signal to Noise Ratio: 95dB
Efficiency @ 4ohm: 84%
Damping Factor: 92
Input Impedance: 20K ohms
Channel Separation: 53dB
Total Harmonic Distortion (THD): 0.50%
Low-Level Input Range: 400mV-6V

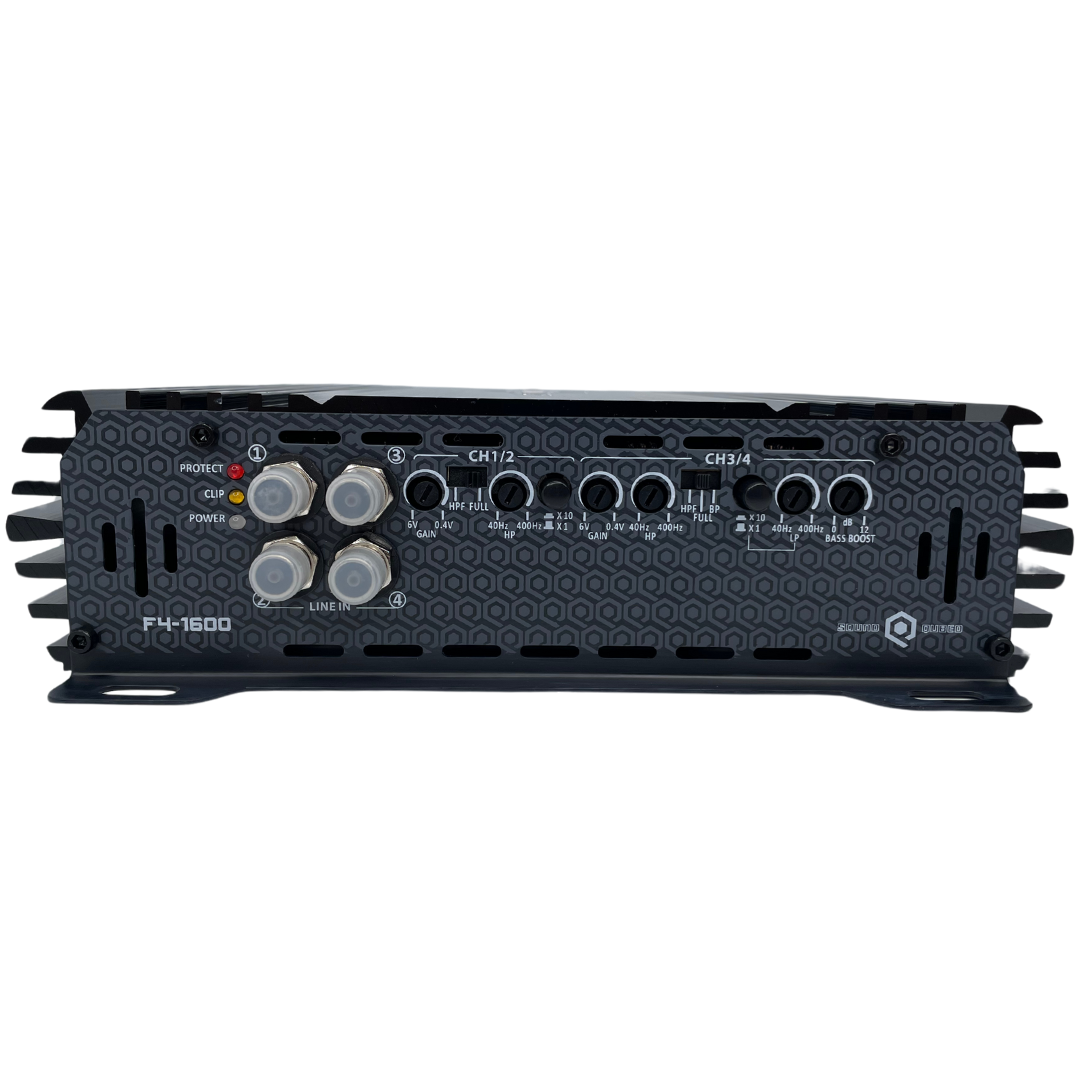

Selectable X-Over (CH 1/2): HPF / FULL
X-Over Filter Range (CH 1/2): 40Hz-400Hz (X1/X10)
Selectable X-Over (CH 3/4): HPF / FULL / BPF
X-Over Filter Range (CH 3/4): HPF: 40Hz-400Hz / LPF: 40Hz-400Hz (X1/X10)
Bass Boost Range: 0~12dB (CH 3/4)
Bass Boost Frequency: 45Hz
