SoundQubed BG1-750 750W Bagger Series Monoblock Amplifier

SoundQubed 1 Channel, 750w Bagger Series Amp (Ultra Compact)

When the brains at SoundQubed sat down to evaluate the direction of the markets they were interested in, they identified a need to focus on the Motorcycle, Bagger, and Micro amplifier market. After 12 months of testing, SoundQubed developed the BG series amplifiers. These amplifiers were engineered with space constraints as the top priority. The BG series comes in an ultra-compact chassis, starting as small as 8.3" long by 3.8" wide and only 1.7" tall. The largest model in the series, the BG4-1400, still maintains a compact footprint at just 9.92" long by 3.8" wide by 1.7" tall. Currently, the lineup includes three models: the BG4-700, BG4-1400, and BG1-750.

SoundQubed is confident the BG series will influence many enthusiasts in the bagger industry, as well as those building side-by-sides, boats, golf carts, sports cars - you name it. SoundQubed has an amplifier that can fit the space and boost sound output for your customers. Like all of SoundQubed’s amplifiers, the BG series maintains a sleek, professional appearance with a black case and machined logos. Each amplifier features laser-etched end caps that include a pattern of the SoundQubed logo along with clearly marked input and output identifications.

Now, onto the specifics of the BG1-750. This amplifier features an ultra-compact design, measuring just 9.84" long by 3.8" wide and 1.7" tall. Despite its small size, it delivers a powerful output of 750W x 1 channel at 1 ohm. The versatility of this amplifier makes it the ideal solution when space limits the options available to your customers.

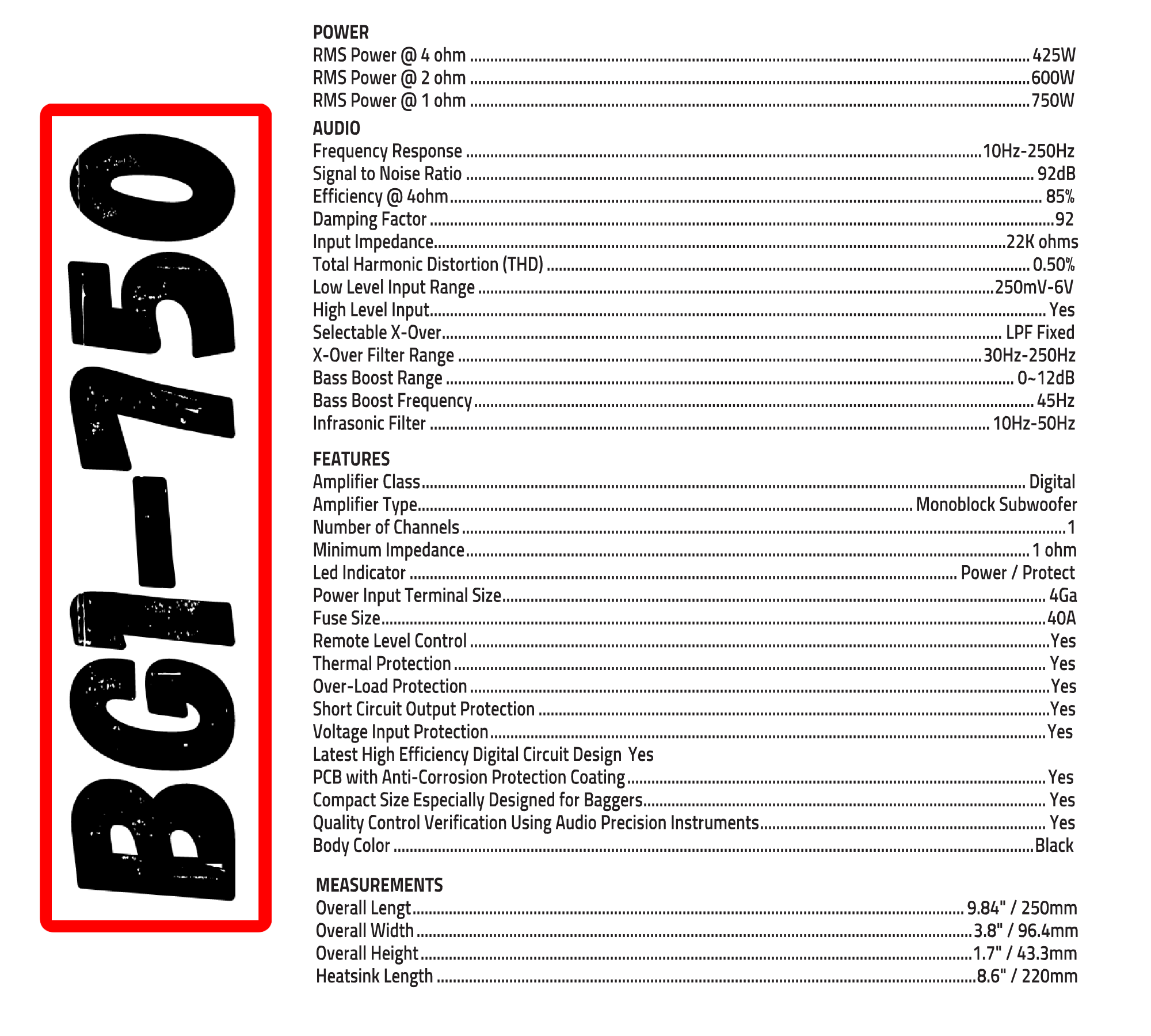

Power
RMS Power @ 4ohm: 425W
RMS Power @ 2ohm: 600W
RMS Power @ 1ohm: 750W
Audio
Frequency Response: 10Hz-250Hz
Signal to Noise Ratio: 92dB
Efficiency @ 4ohm: 85%
Damping Factor: 92
Input Impedance: 22K ohms
Total Harmonic Distortion (THD): 0.50%
Low Level Input Range: 250mV-6V
High Level Input
Selectable X-Over: LPF Fixed
X-Over Filter Range: 30Hz-250Hz
Bass Boost Range: 0~12dB
Bass Boost Frequency: 45Hz
Infrasonic Filter: 10Hz-50Hz
Features:
Amplifier Class: Digital
Amplifier Type: Monoblock Subwoofer
Number of Channels: 1
Minimum Impedance: 1 ohm
LED Indicator: Power / Protect
Power Input Terminal Size: 4Ga
Fuse Size: 40A
Remote Level Control
Thermal Protection
Overload Protection
Short Circuit Output Protection
Voltage Input Protection
Latest High Efficiency Digital Circuit Design
PCB with Anti-Corrosion Protection Coating
Compact Size Especially Designed for Baggers
Quality Control Verification Using Audio Precision Instruments
Body Color: Black
Measurements:
Overall Length: 9.84" / 250mm
Overall Width: 3.8" / 96.4mm
Overall Height: 1.7" / 43.3mm
Heatsink Length: 8.6" / 220mm
