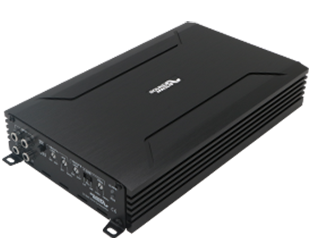

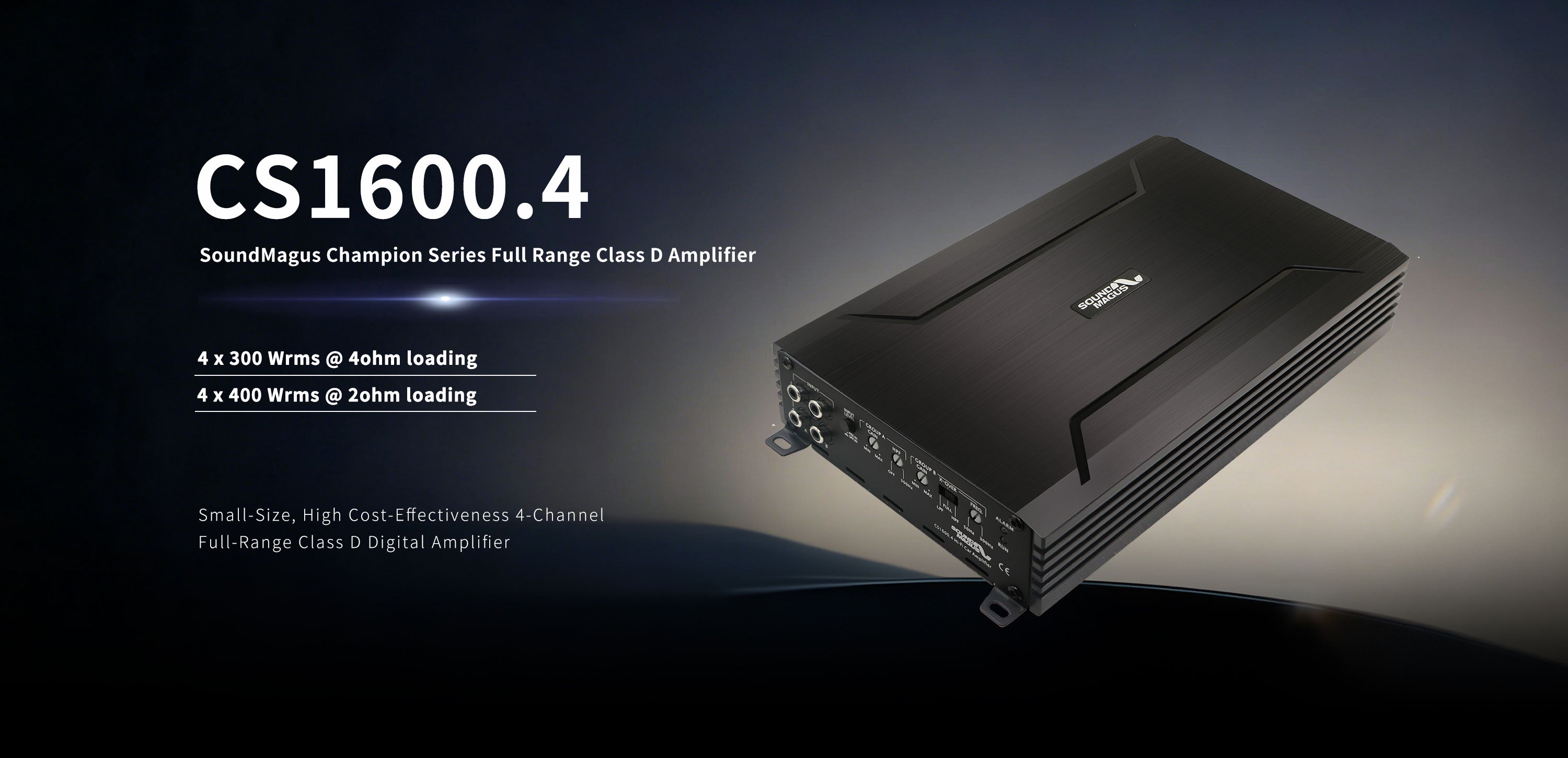

Drive a demanding four-channel system with the SoundMagus CS1600.4. This Champion Series full-range Class D amplifier delivers 300 watts RMS per channel at 4 ohms, with bridgeable output, adjustable crossovers, and a compact aluminum chassis.
RMS ratings: 14.4 V, THD < 1%, 1 kHz.
| RMS power, 2 ohm | 400 W × 4 |
|---|---|
| RMS power, 4 ohm | 300 W × 4 |
| RMS power, bridged 4 ohm | 800 W × 2 |
| Peak Power 4 ohm Load | 800 W × 4 |

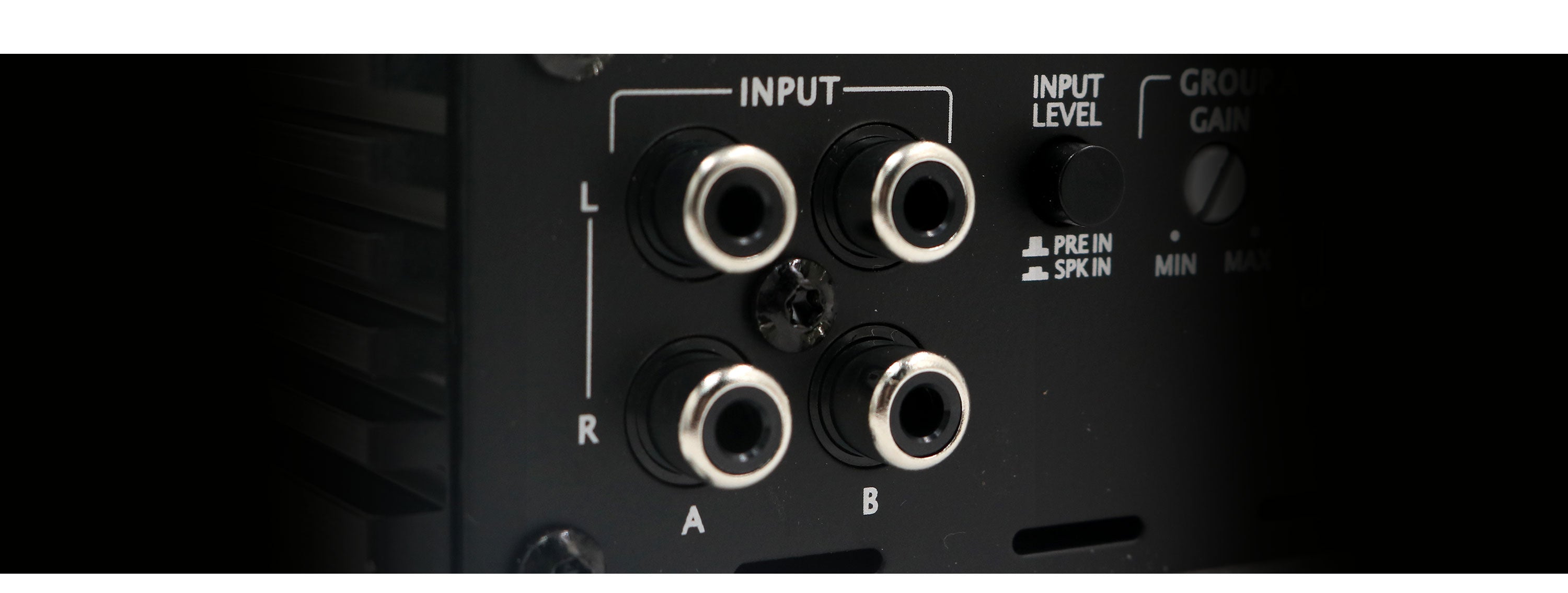

| Input sensitivity | RCA: 0.35~3.5V/Speaker-level: 0.7~7V |
| Frequency Response | 10Hz~30KHz |

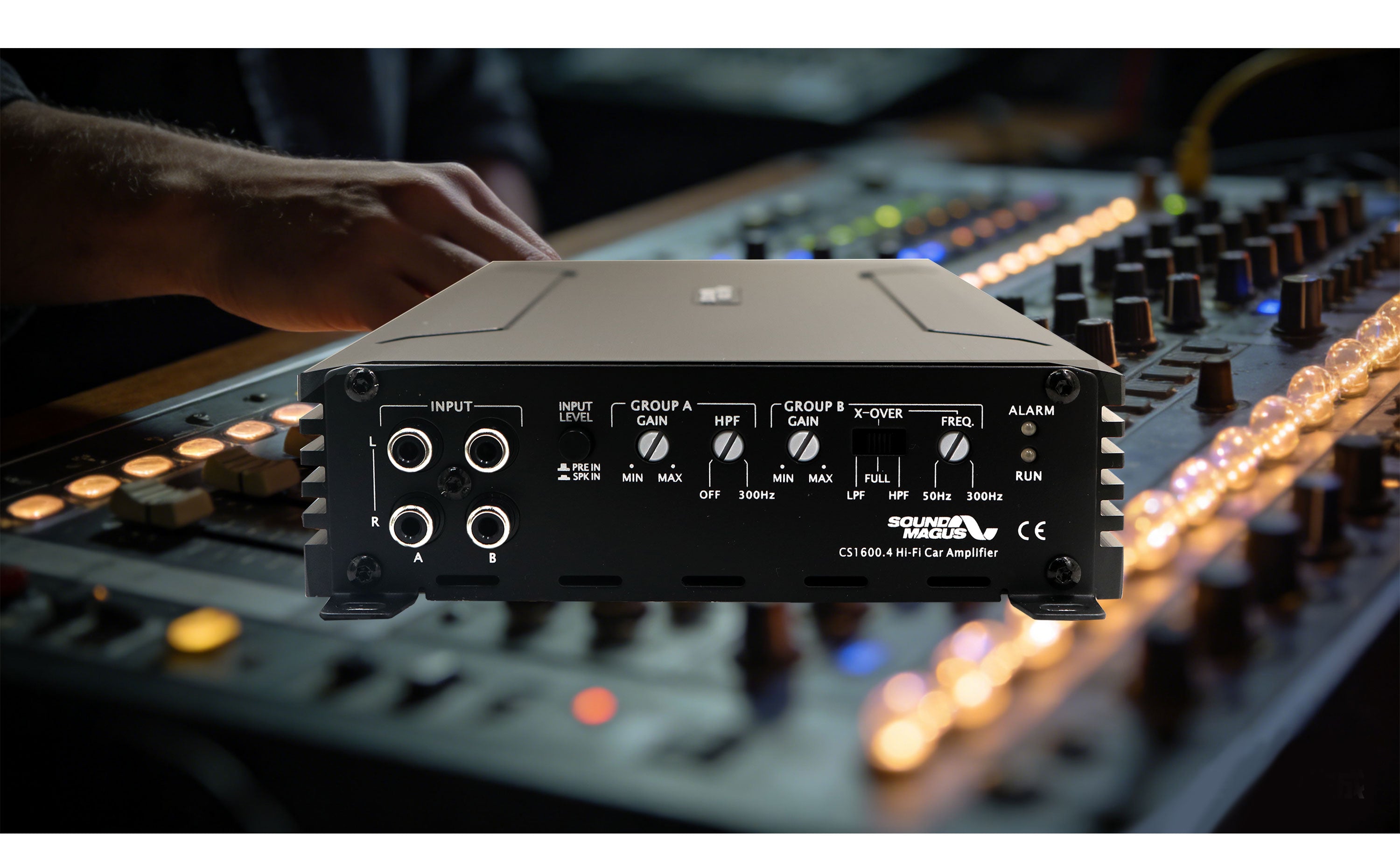

| Crossover modes | LPF/FULL/HPF |
| Low-pass filter | GROUP A: 0~300Hz GROUP B: 50Hz~300Hz |
| High-pass / subsonic filter | 50Hz~300Hz |
| Bass Boost Frequency | Not applicable |
| Bass Boost Level | Not applicable |
| Protection | Overload, short circuit, overheating, undervoltage, overvoltage |
| Signal-to-noise ratio | >93dB |
| Minimum Load | 2 ohms |
| Voltage Range | 7.5V-16V |
| Optional Bass Remote | Not applicable |
| Components & PCB | SMT Parts/Double-Sided FR-4 PCB |
| Height (mm) | 46 |
| Width (mm) | 155 |
| Length (mm) | 256 |
