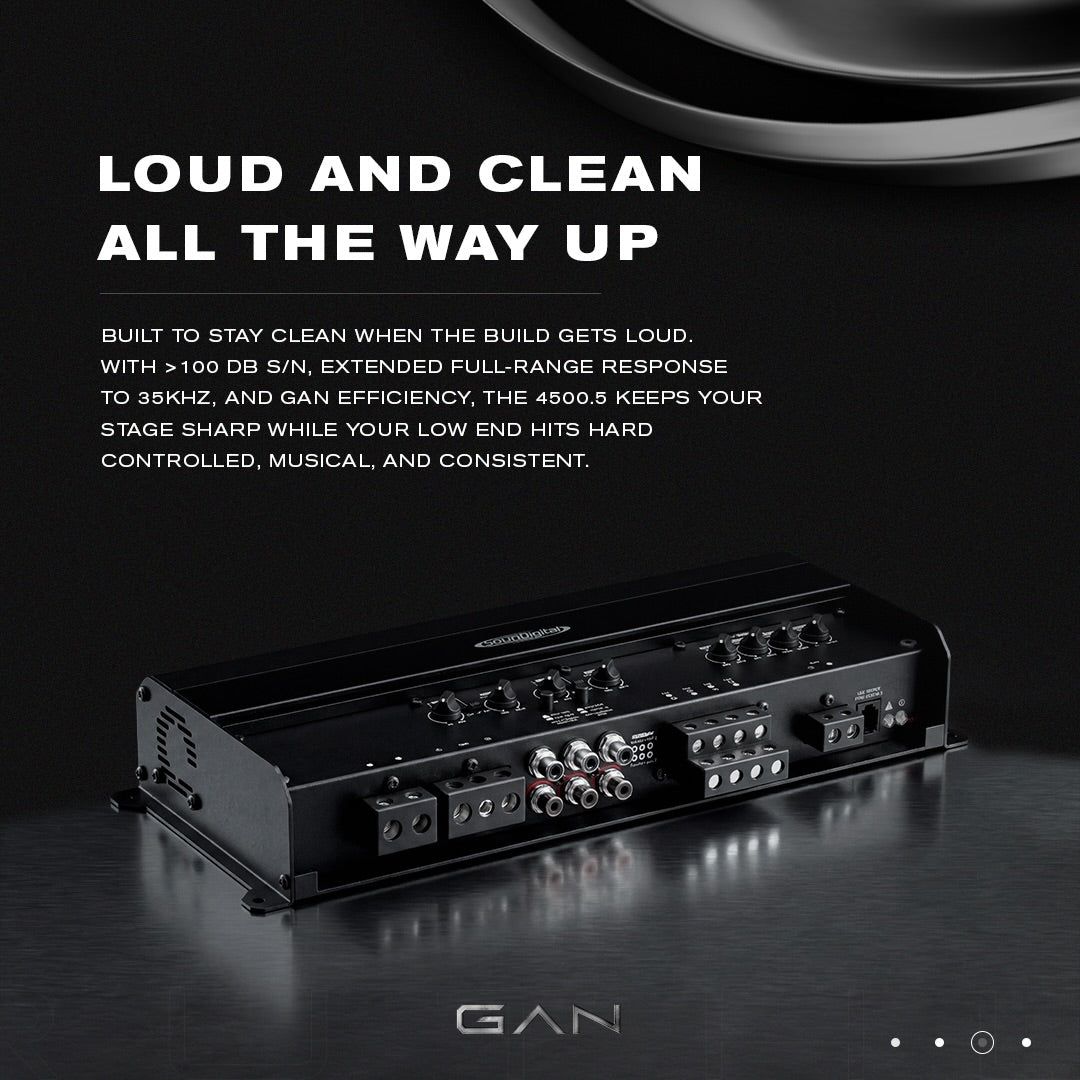

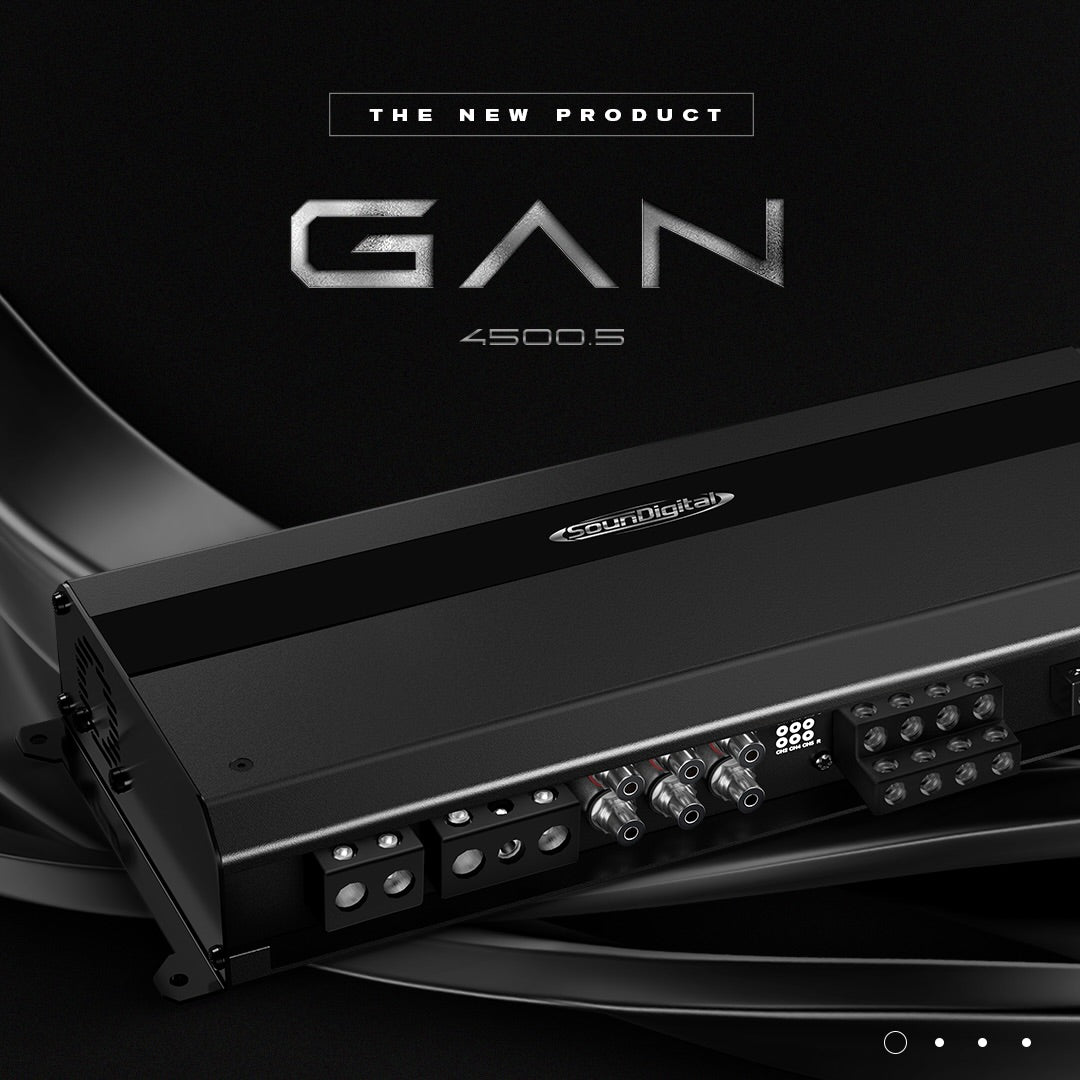

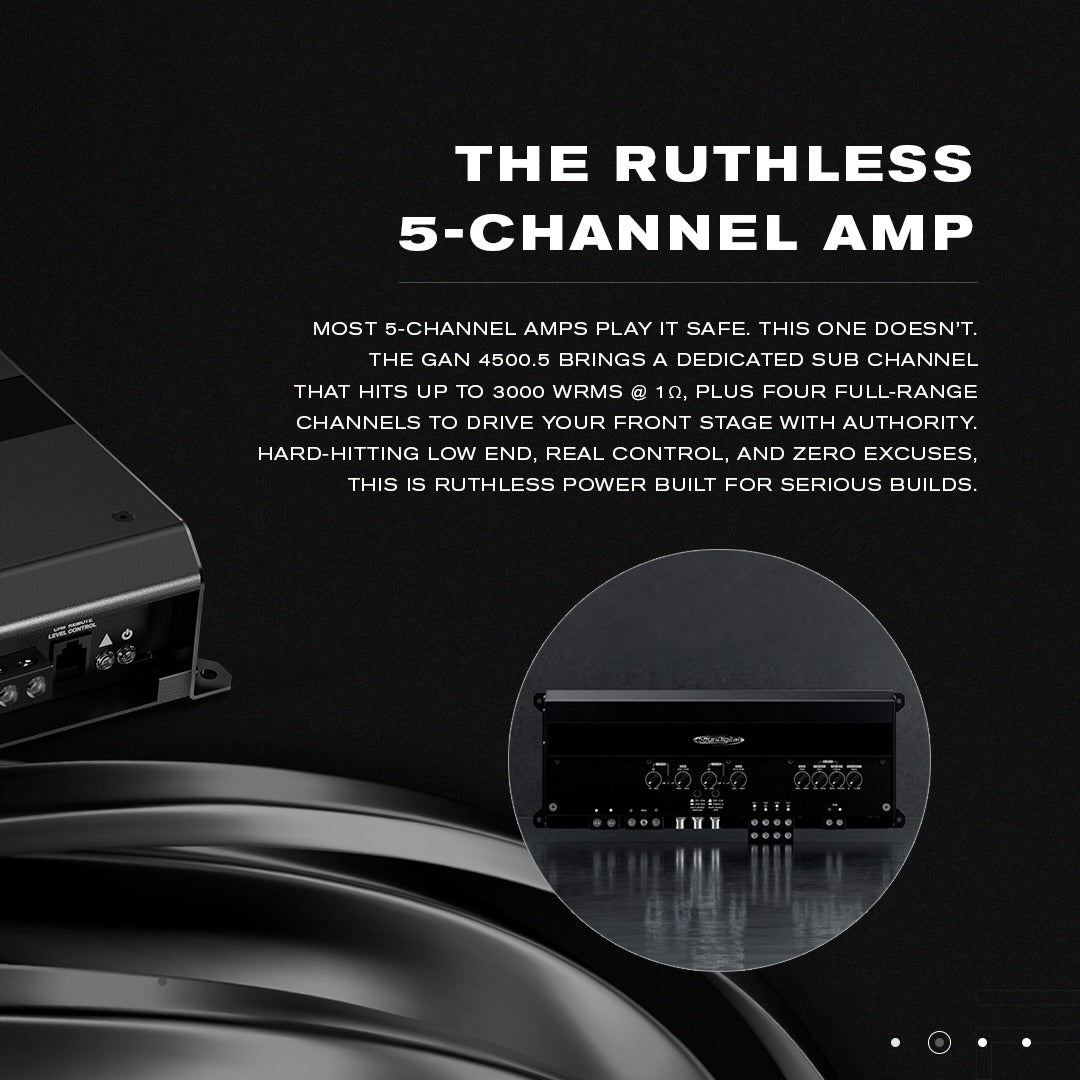

SounDigital GAN 4500.5 5 Channel Amplifier

!! Only ONE and that is it  !!

There are maybe 20 total in the USA.  This is a rare moment.

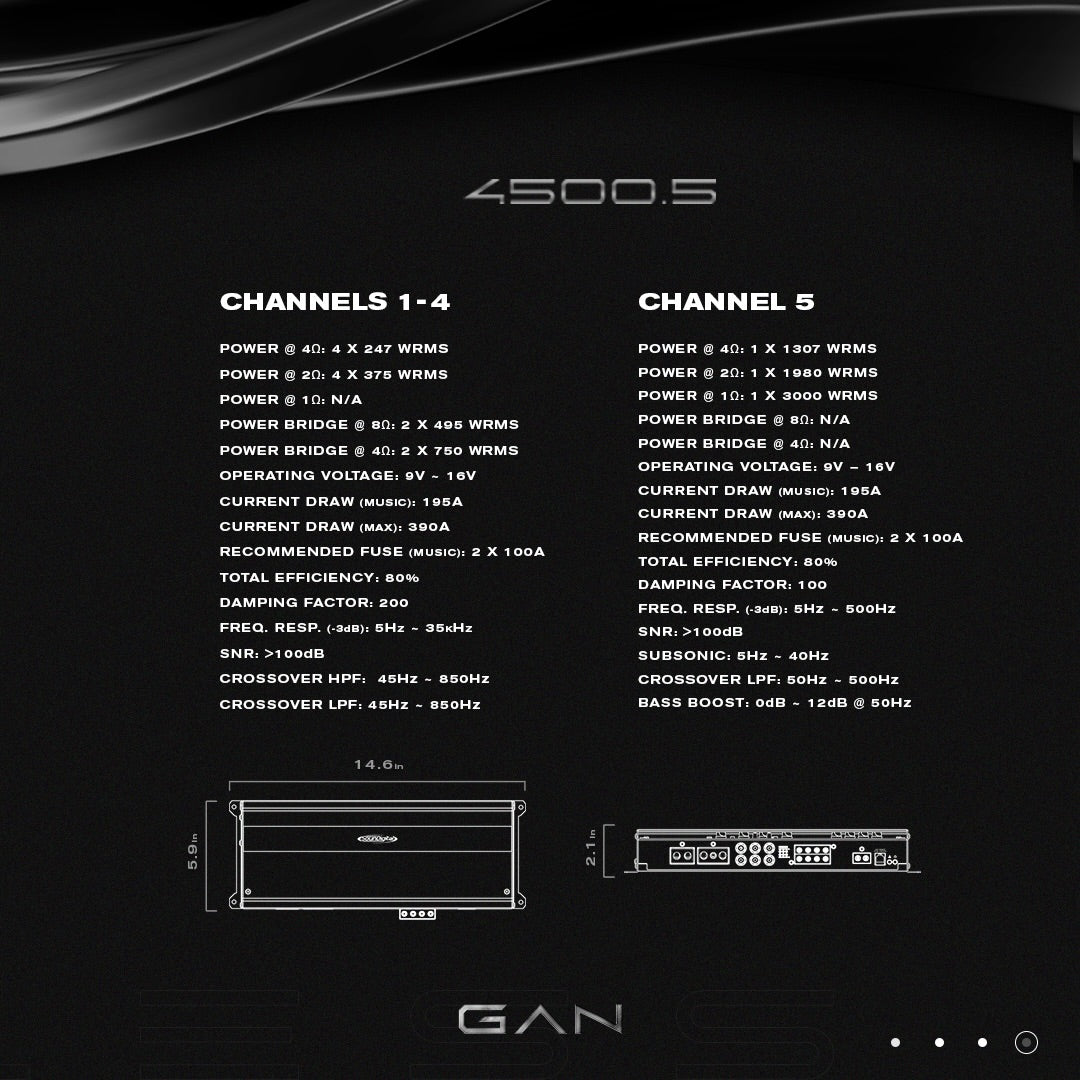

 GAN 4500.5

CHANNELS 1-4

• POWER @ 4Ω: 4 X 247 WRMS

• POWER @ 2Ω: 4 X 375 WRMS

• POWER @ 1Ω: N/A

• POWER BRIDGE @ 8Ω: 2 X 495 WRMS

• POWER BRIDGE @ 4Ω: 2 X 750 WRMS

• OPERATING VOLTAGE: 9V ~ 16V

• CURRENT DRAW (MUSIC): 195A

• CURRENT DRAW (MAX): 390A

• RECOMMENDED FUSE (MUSIC): 2 X 100A

• TOTAL EFFICIENCY: 80%

• DAMPING FACTOR: 200

• FREQ. RESP. (-3dB): 5Hz ~ 35kHz

• SNR: >100dB

• CROSSOVER HPF: 45Hz ~ 850Hz

• CROSSOVER LPF: 45Hz ~ 850Hz

CHANNEL 5

• POWER @ 4Ω: 1 X 1307 WRMS

• POWER @ 2Ω: 1 X 1980 WRMS

• POWER @ 1Ω: 1 X 3000 WRMS

• POWER BRIDGE @ 8Ω: N/A

• POWER BRIDGE @ 4Ω: N/A

• OPERATING VOLTAGE: 9V ~ 16V

• CURRENT DRAW (MUSIC): 195A

• CURRENT DRAW (MAX): 390A

• RECOMMENDED FUSE (MUSIC): 2 X 100A

• TOTAL EFFICIENCY: 80%

• DAMPING FACTOR: 100

• FREQ. RESP. (-3dB): 5Hz ~ 500Hz

• SNR: >100dB

• SUBSONIC: 5Hz ~ 40Hz

• CROSSOVER LPF: 50Hz ~ 500Hz

• BASS BOOST: 0dB ~ 12dB @ 50Hz

Dimensions & Branding

• Width: 14.6 in

• Height/Depth: 5.9 in

• Profile Height: 2.1 in
