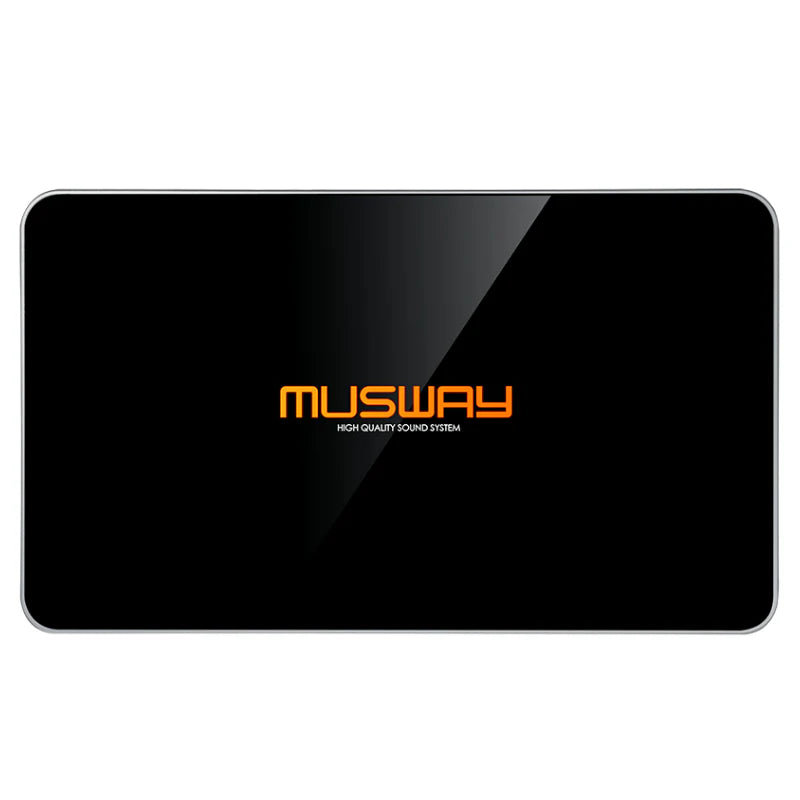

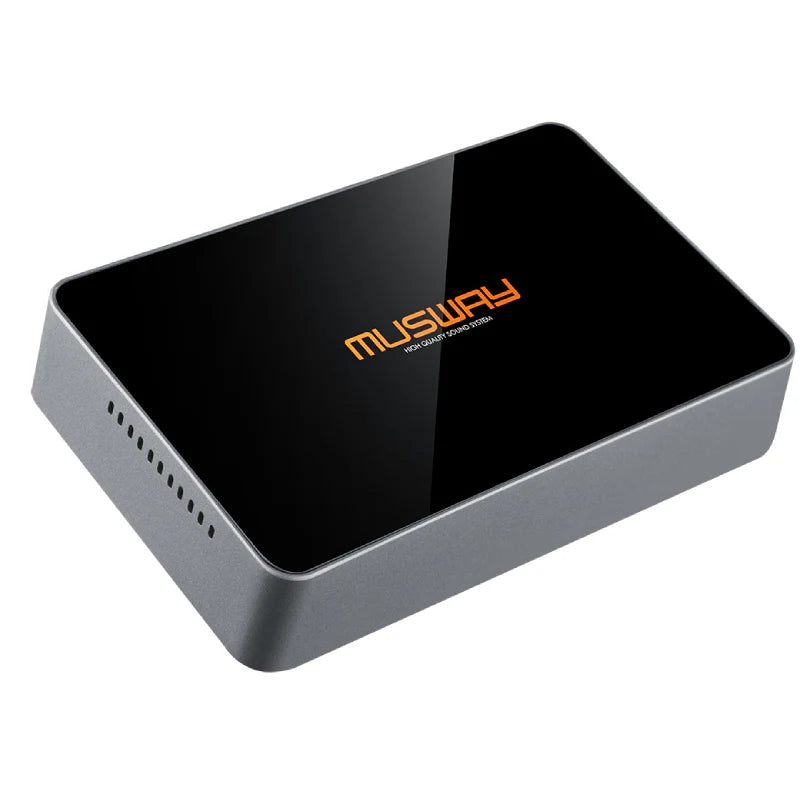

Musway D1S 4-Channel Class-AB Amplifier with 6-Channel Digital Sound Processor

Specifications:

• 4-Channel Full Range Class-AB Amplifier with 6-Channel DSP

• Power Output: 4 x 25 W@4

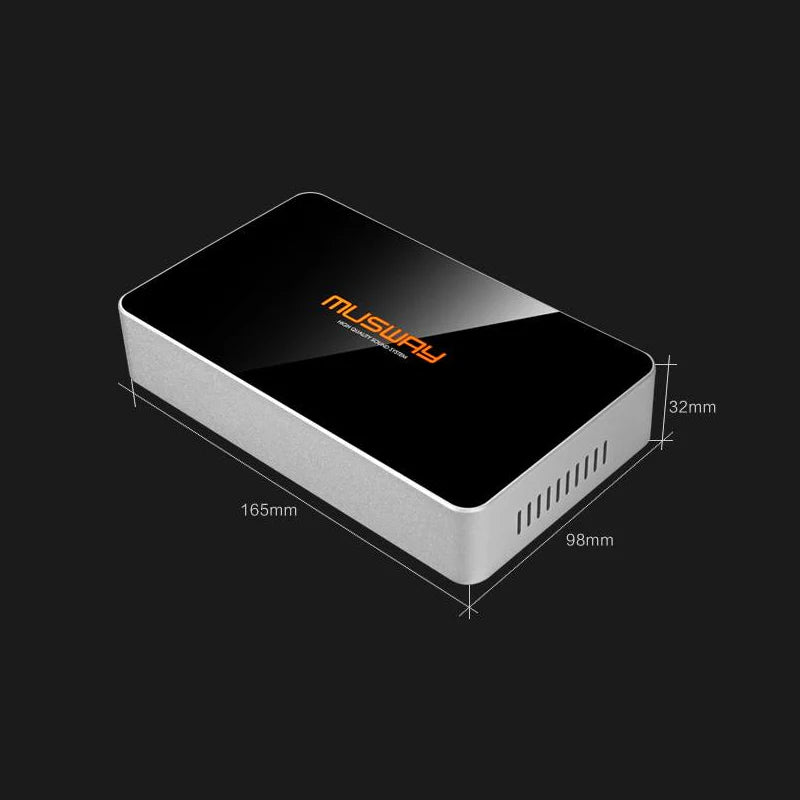

• Dimensions: 6.50"(L) x 3.86" (W) x 1.26"(H) (165 x 98 × 32 mm)

• THD: 0.022 % (1 kHz @4 N, 90% power)

• S/N Ratio: 95 dB (A-weighted, 1 V, Max Power)

• Input Sensitivity: 2 V RMS (High-Level)

• Gain Range: Mute, -59 dB to 0 dB

• DSP: 28-bit main chip with 10-band parametric EQ, digital crossovers, and time correction

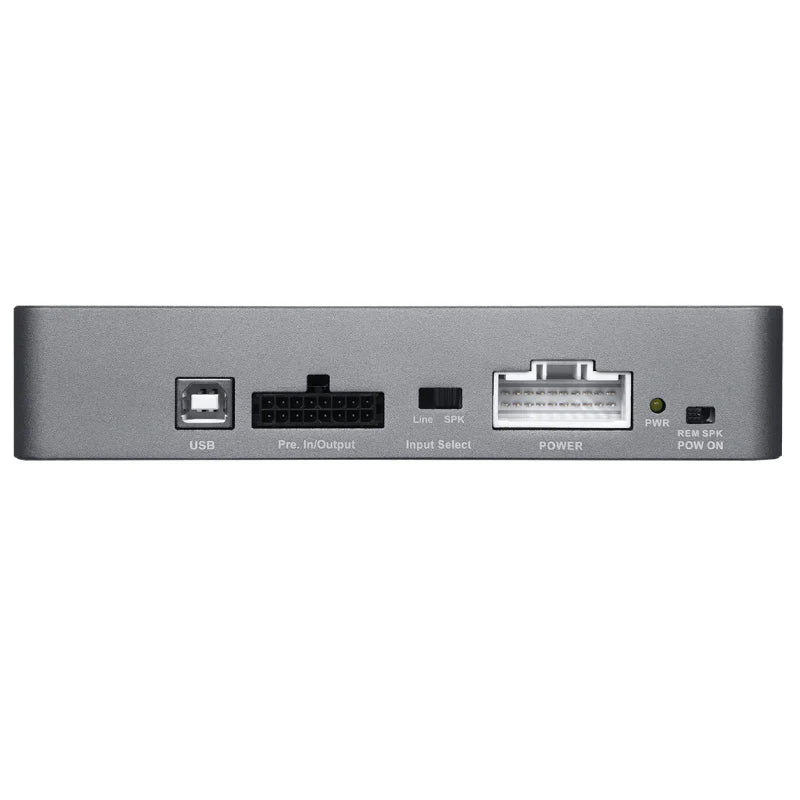

• Inputs:

• High-Level 4

• AUX/RCA 2

• Outputs: High-Level 4

• Low-Level RCA 6 (DSP configurable)

Features:

• EPS (Intelligent High-Level Input-Error Protection System)

• Start-Stop ready

• Easy-to-use MUSWAY PC software- the D1S can be configured perfectly and in real time via PC

• Built in 4-Channel high performance high to low converter, Hi-Fi sound quality and low noise

• Internal Bluetooth Module: Hi-Fi Bluetooth for Audio Streaming.

• For cars without ACC wire, signal sense can be used turn on/off amplifier

• 28-bit DSP main chip supports the 10-band parametric EQ, digital crossovers and time correction.

• Input: 4 x High-Level, 2 x AUX/RCA

• Output: 4 x High-Level, 6 x Low-Level (RCA) (Configurable via DSP Software)

All New D1S Amplifier with DSP

The new D1S is a remarkable value for the new to DSP user or the budget conscious audiophile. The D1S features 4 x 38 watts @ 2 Ohms with 6 channels of Digital Sound Processing. The 28 bit DSP main chip supports the 10 band parametric EQ, digital crossovers and time correction. The D1S can also be used as a stand alone DSP processor via the 6 low-level RCA outputs. The new entry level D1S is loaded with features and is an undeniable value.
