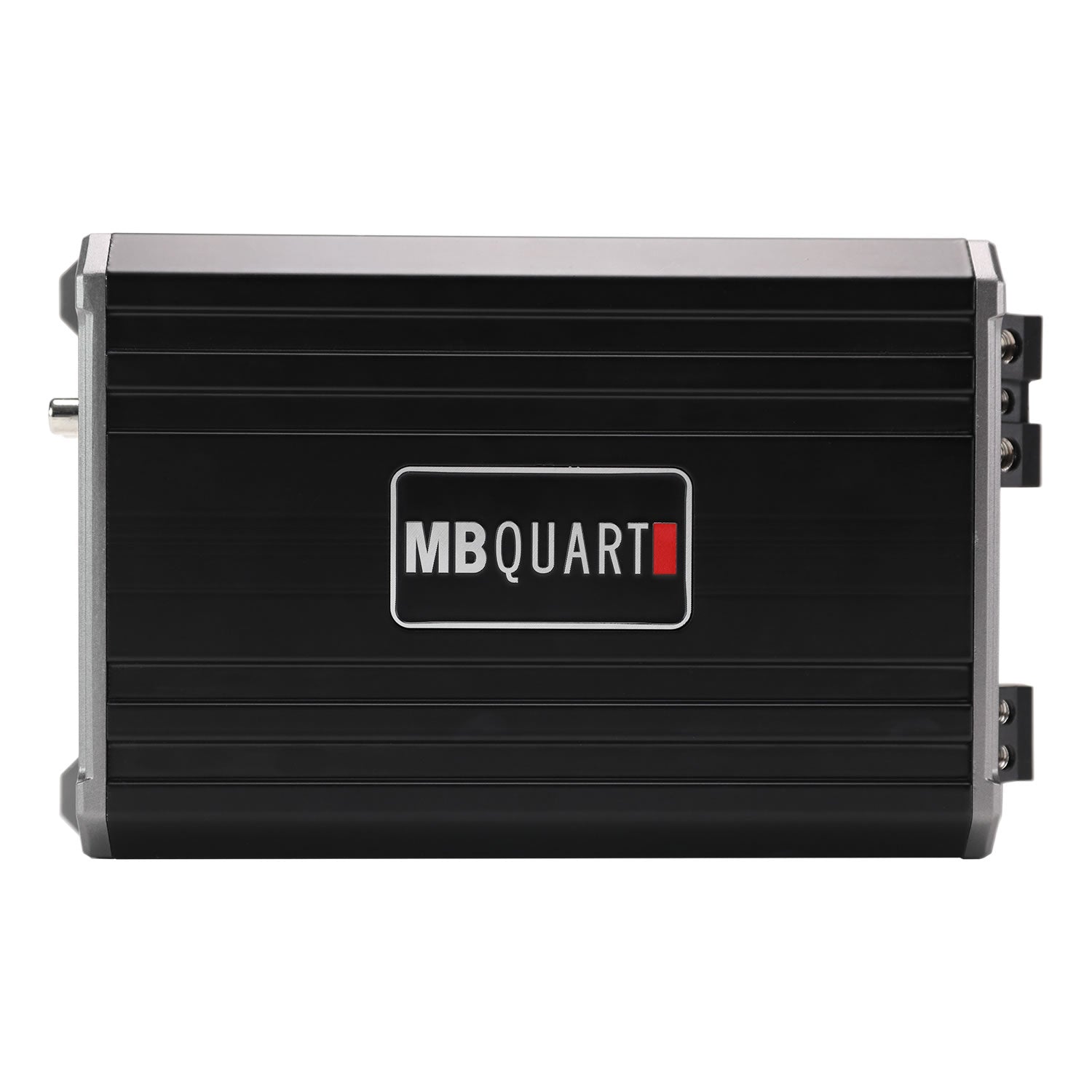

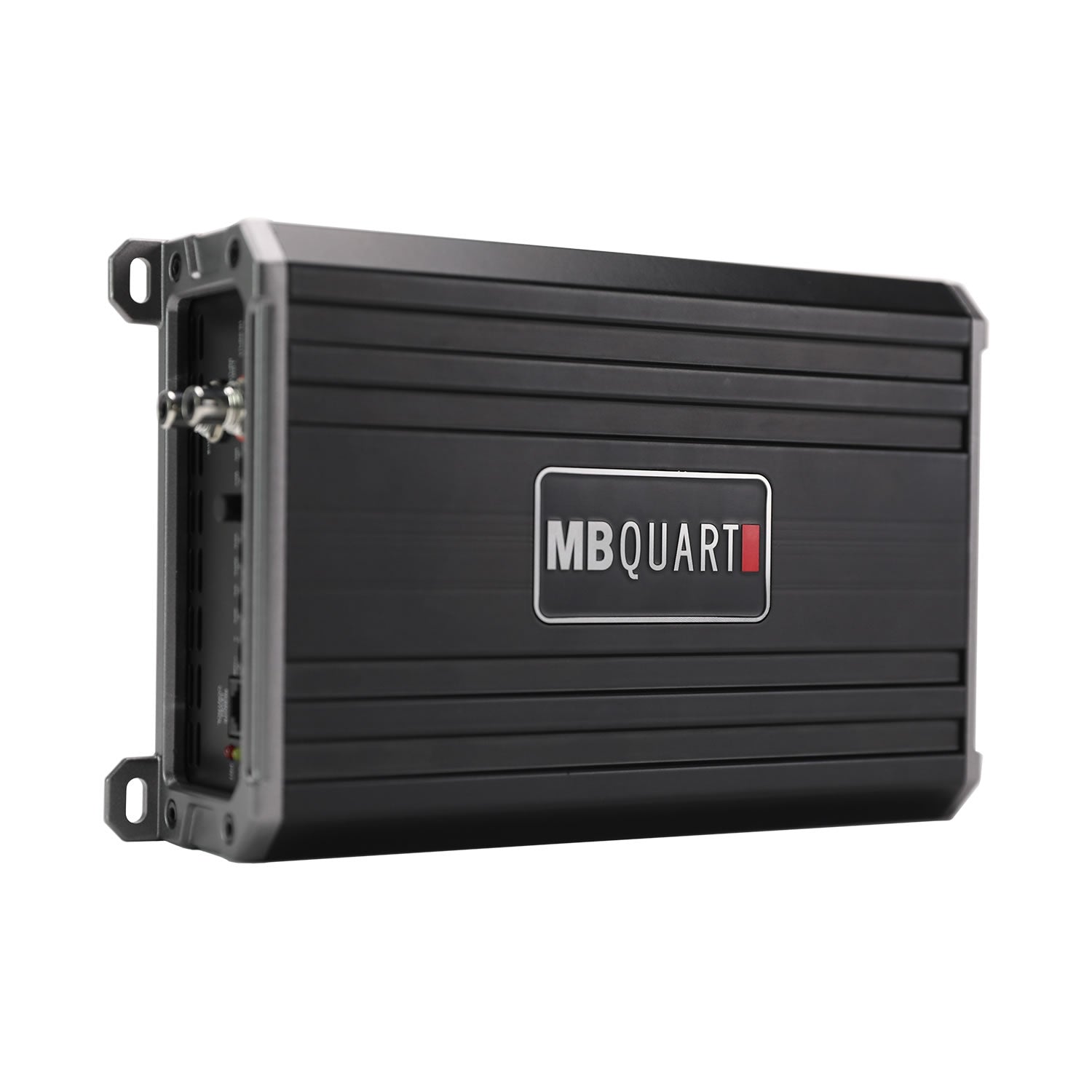

MB Quart PA1-3000.1 Premium Pro 3000 watts RMS continuous at 1 ohm mono-block subwoofer amplifier designed to produce higher power output in an efficient form factor. Bass remote included.
| Item Weight (lbs) |
4.41 |
|---|---|
| Item Length (in) |
8.76 |
| Item Width (in) |
5.35 |
| Item Height (in) |
2.17 |
| Type |
Amplifier |
| Brand |
MB Quart |
| Series |
Premium |
| Category |
Mobile |
| Condition |
New |
| Color |
Black |
| Warranty |
1 Year |
| Compatible Vehicles |
Universal |
| Amp Class |
Full Range Class D |
| Amp Total Channels |
Mono |
| Continuous RMS Power @ 1 Ohm (watts) |
3000 |
| Continuous RMS Power @ 1 Ohm (channels x watts) |
1 x 3000 |
| Amp Power @ 2 Ohms (ch x watts) |
1 x 1500 |
| Amp Power @ 4 Ohms (ch x watts) |
1 x 1000 |

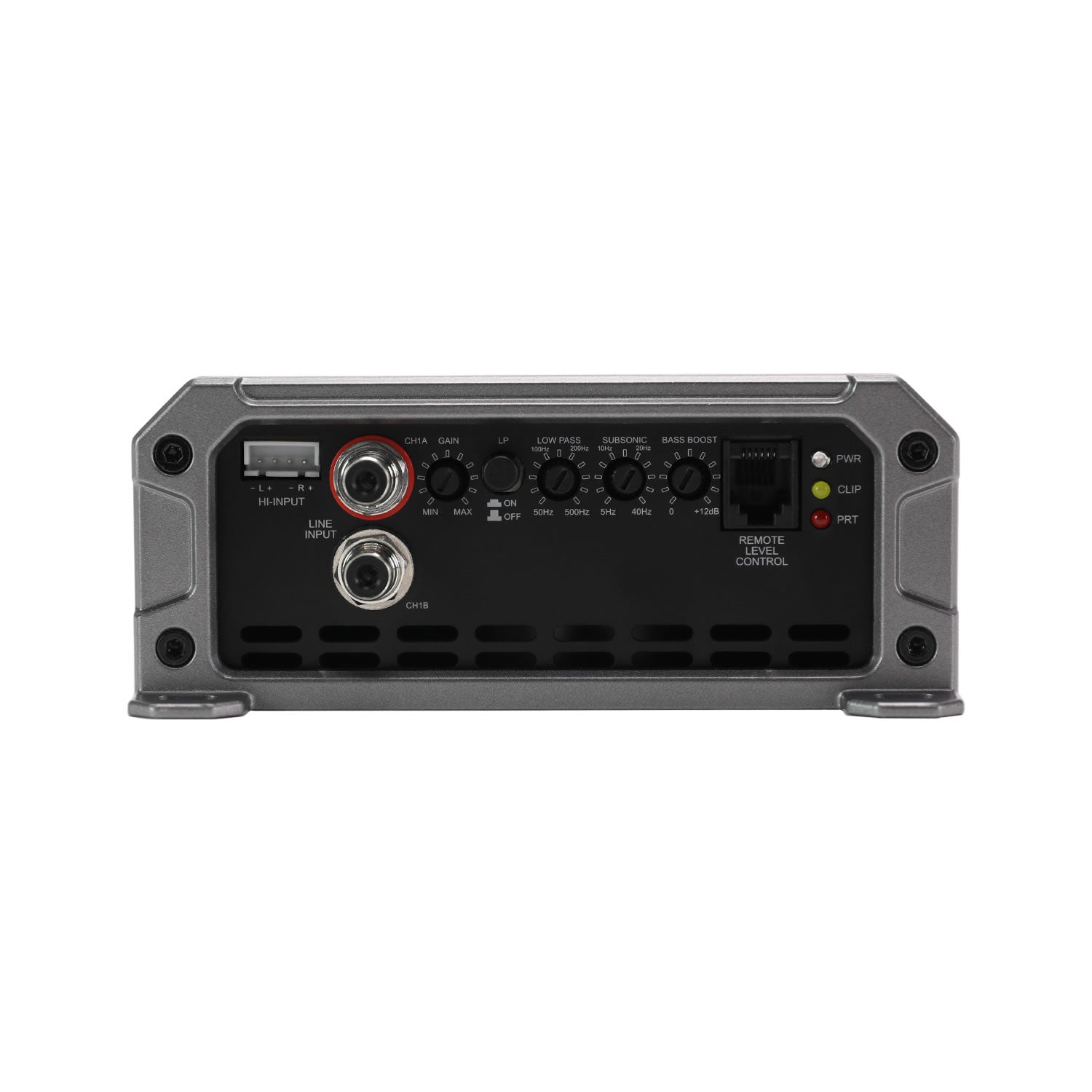

| Amp Crossover |
Variable Electronic 12dB Per Octave, Switched LPF On/Off |
| Amp Variable Low Pass Crossover 12dB per Octave |
50Hz-500Hz |
| Amp Tone Control / Parametric EQ |
Built-in Bass Control |
| Amp Bass Boost |
0-12dB |
| Amp Subsonic Filter |
5Hz-40Hz |
| Amp Variable Voltage |
High: 2.9-40V, Low: 0.3-5.5V |
| Amp Signal to Noise |
> 102dB |
| Amp Frequency Response |
10Hz-30kHz |
| Amp Total Harmonic Distortion (THD) |
1.0% |
| Amp Speaker Level Audio Inputs |
Yes |
| Amp Power Terminal 12v/GND |
4 AWG |
| Amp Speaker Terminal Wire Gauge |
8 AWG |
| Amp Fusing |
External 250A |
| Low Noise Preamplifier Circuit |
Engineered pre-amplifier stage reduces incoming noise from source units and dramatically improves sound quality. |
|---|---|
| RCA Inputs |

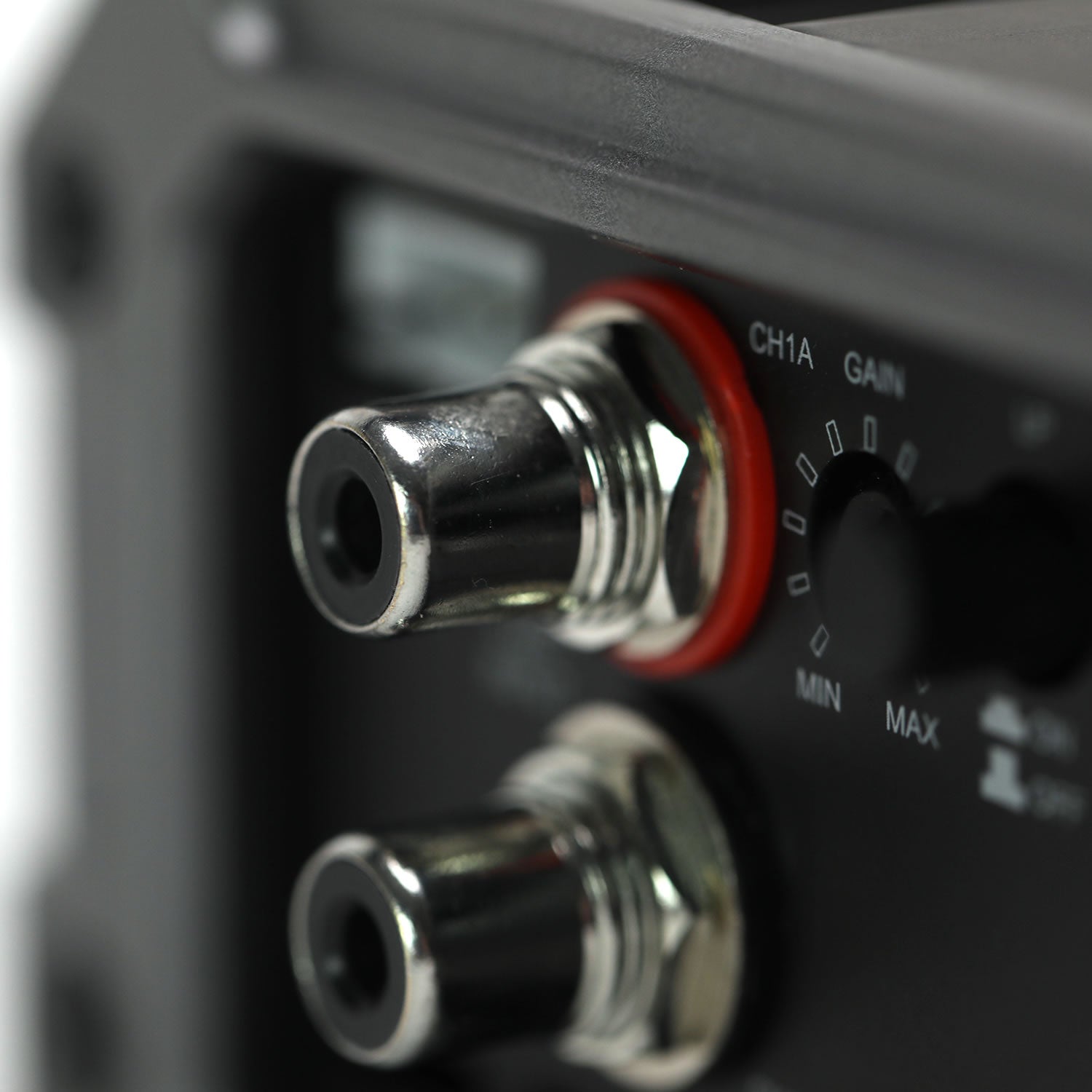

1 pair tiffany style nickel-plated RCA jacks create an efficient connection that is corrosion-resistant. |
| High Level Inputs |
Easily tie into OEM audio systems that do not offer RCA output to maximize after market amplifier power. |
| Operation Mode |
Mono operation: Designed to power 1 subwoofer or subwoofer system. |
| Crossover Type |
Switch LPF On / Off: Complete control of amplifier signal, essential when using two or more amplifiers. |
| Class / Topology |
Full Range Class D: Highly efficient circuit topology which helps the amplifier develop a lot of power in a very small heatsink. |
| Output Device Technology |
PWM MOSFET Power Supply: Stable power through the PC board with minimal heat generation. |
| Heat Sink |

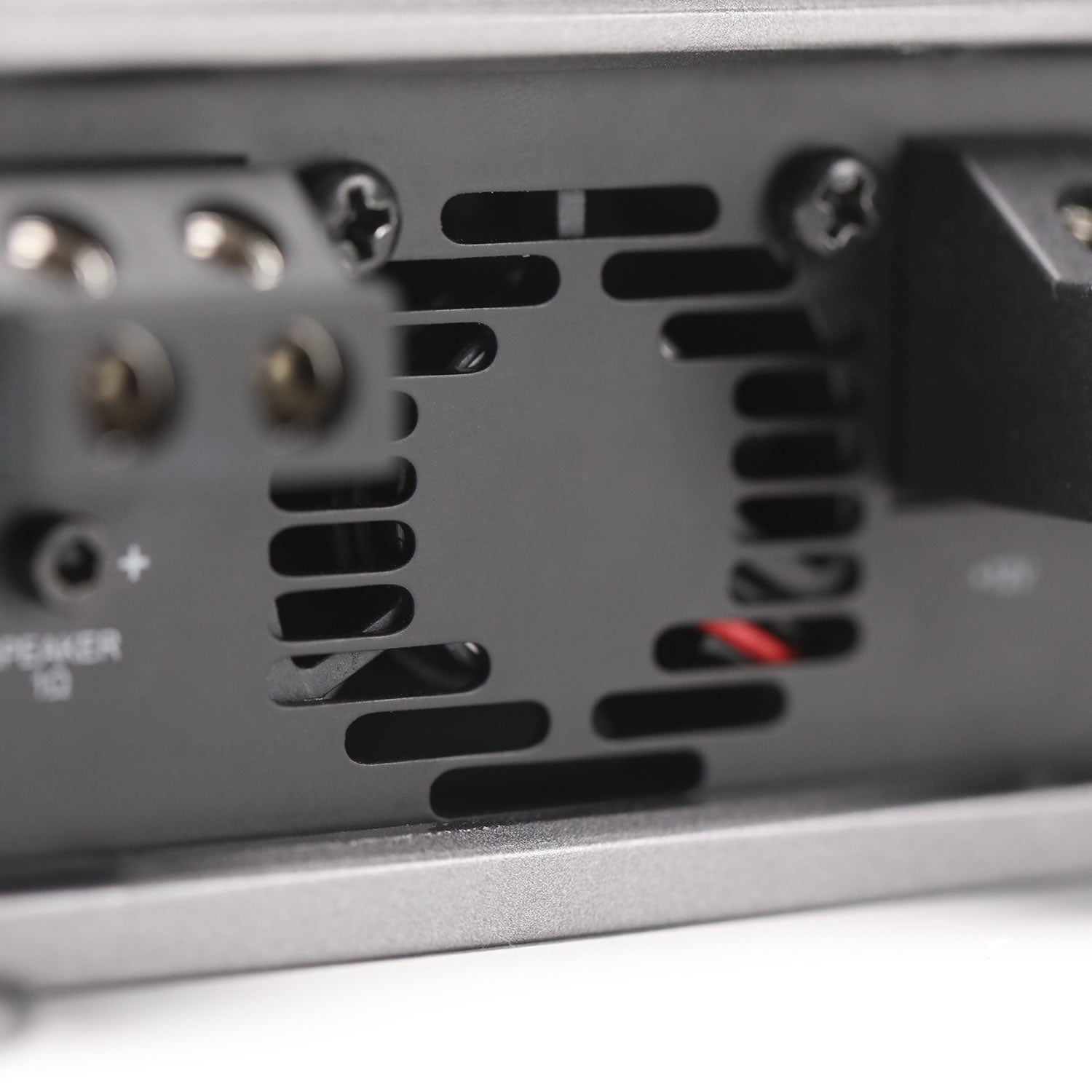

Extruded aluminum heat sink paired with built in fans quickly dissipates heat to allow the amplifier to run lower impedance for longer duration. |
| Power Supply |
MOSFET Pulse Width Modulation power supply that allows the amplifier to produce efficient power without taxing the electrical system. |

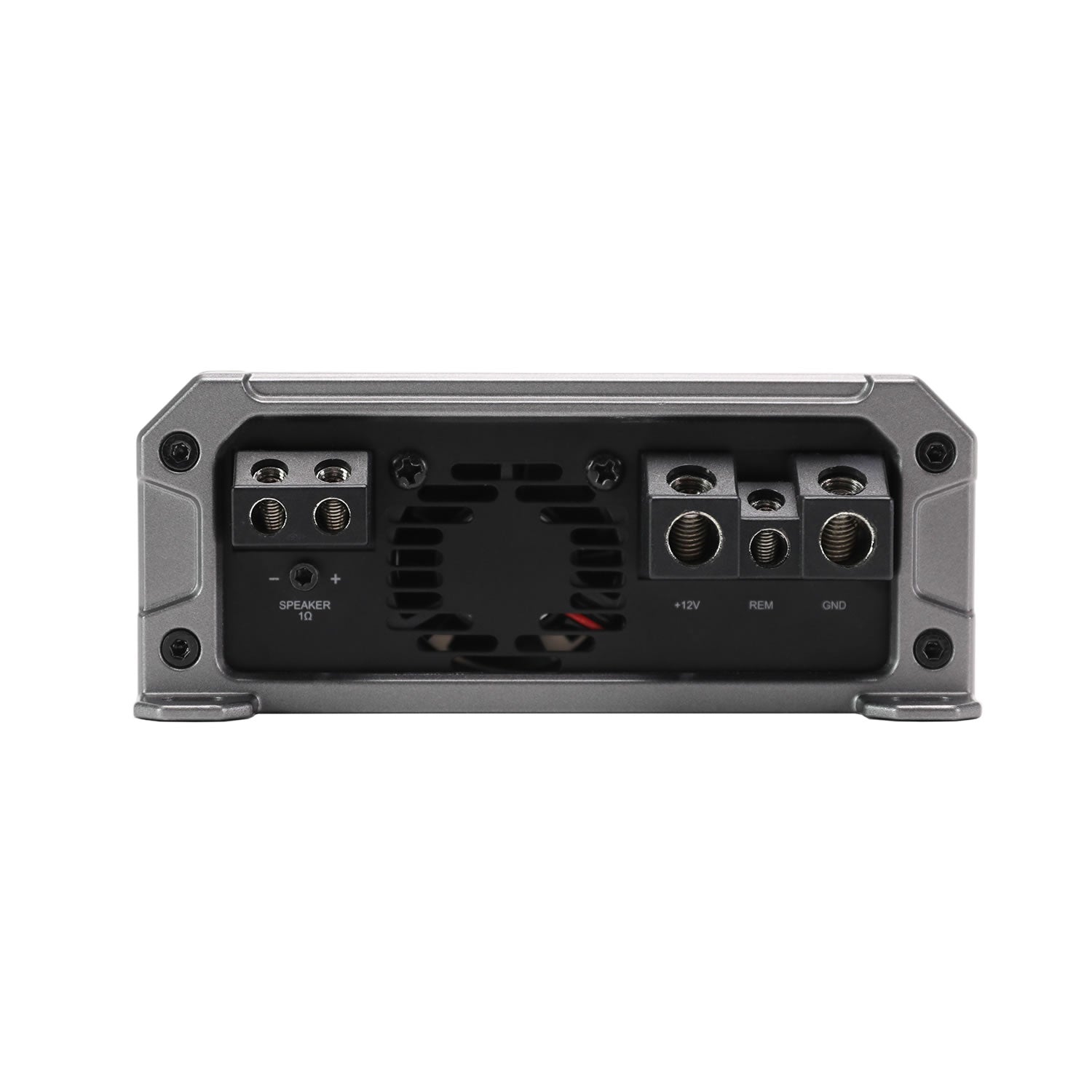

| Output Connections |
Heavy duty output terminals allows for secure connection so electrical signal can pass into wiring and resist corrosion. |
| Connection Type |
Nickel plated corrosion resistant connections. |
| LED System Protection Circuitry Diagnostics |
Three-stage protection circuits: Monitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel. |
| Bass Remote Included |

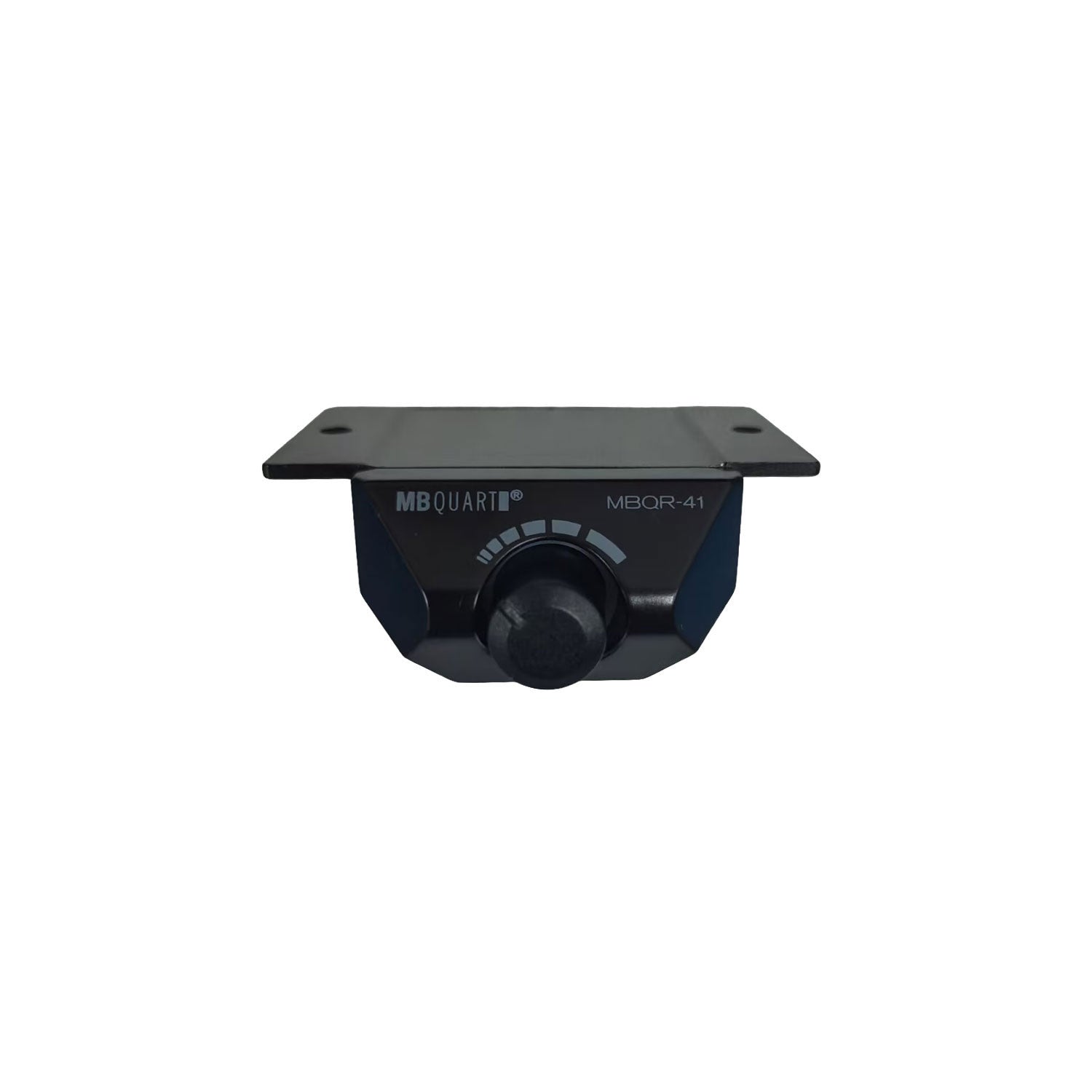

Included: Wired Bass Remote allows adjustments to gain level to be made from the control mounted anywhere in the vehicle. |
