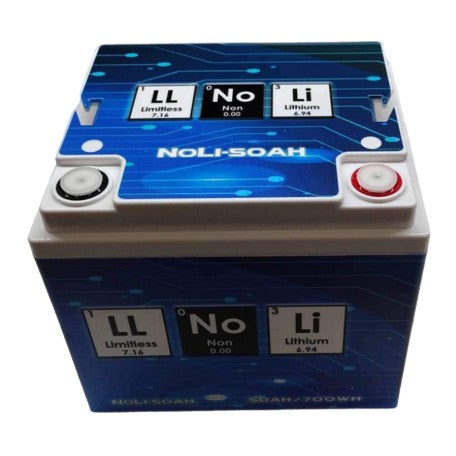

Limitless Lithium NoLi Sodium-ION 50AH Battery

NOLI-50AH Features:

Specifications:

• Resting Voltage (Charge Voltage Dependent) 12-16V
• Float/Maintenance Charging Voltage 14.2V
• Max Charging Voltage 16V
• Minimum Charging Voltage 10V
• Capacity (Ah) 50AH
• Capacity (Pb Eq) 180Pb Eq
• Cell Chemistry SIB
• Cell Life Cycles 4000 80% Depth of Discharge (DOD)
• Cranking Amps (CA) 3000
• Cold Cranking Amps (CCA) 2250
• Nominal Operating Temperature Range 14F-140F
• Terminal Bolt Size M6-1.0
• Terminal Orientation Right Positive
• Balance Board Installed Yes
• Battery Management System Installed (BMS) No

Performance 14.6V (Standard Voltage)

• RMS Wattage (Installed with 100A stock alternator) 6,500W-8,000W (14.6V Input Voltage)
• Max Burst Wattage (Installed with 100A Alternator) 8,500W (14.6V Input Voltage)
• RMS Amperage Output (Stand Alone for 30 seconds) 500A (Starting at 14.6V)
• Max Burst Amperage Output (Stand alone for 10 seconds) 600A (Starting at 14.6V)
• Recommended Charging/Input Current 300A
• Maximum Charging/Input Current 450A (Charging above 450A Shortens the Cycle Life)

Performance 16V (High Voltage)

• RMS Wattage (Installed with 100A stock alternator) 10,000W-13,000W (16V Input Voltage)
• Max Burst Wattage (Installed with 100A Alternator) 15,000W (16V Input Voltage)
• RMS Amperage (Stand Alone for 30 seconds) 750A (Starting at 16V)
• Max Burst Amperage (Stand alone for 10 seconds) 1,000A (Starting at 16V)
• Recommended Charging/Input Current 300A
• Maximum Charging/Input Current 450A (Charging above 450A Shortens the Cycle Life)

Measurements

• Overall Length 6.75"
• Overall Width 7.75"
• Overall Height 6.50"
• Overall Height (Without Terminals) 6.50"
• Weight 14.4 Lbs
• BCI Battery Group Model 86
