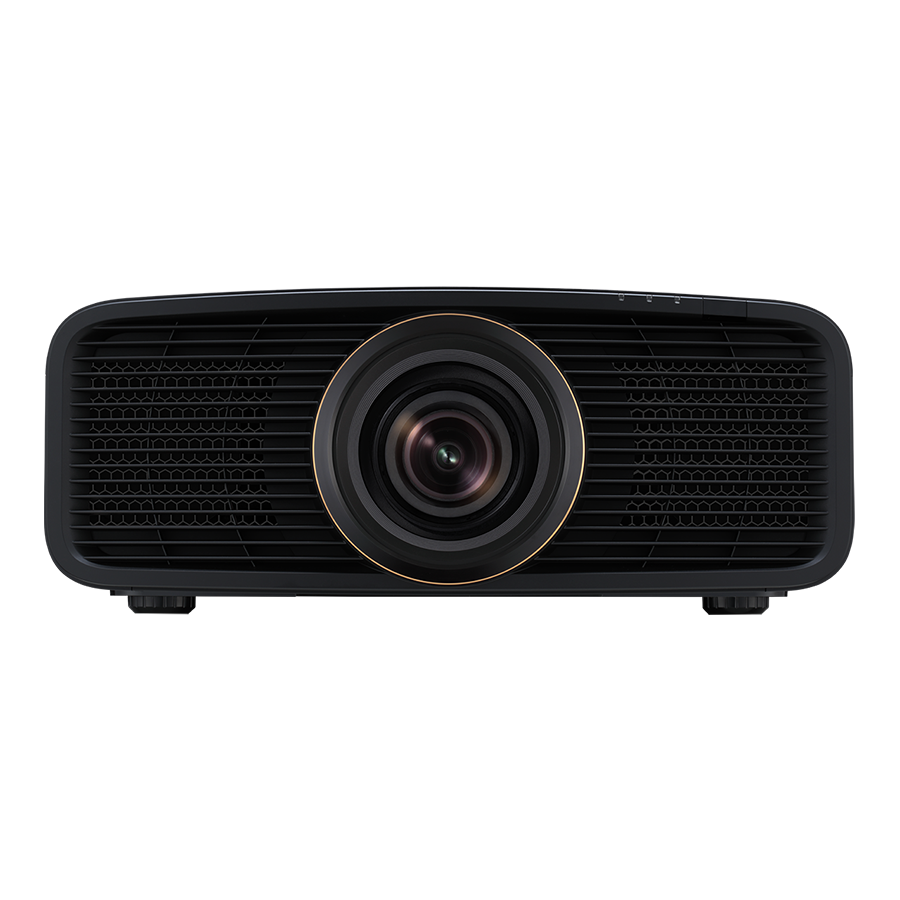

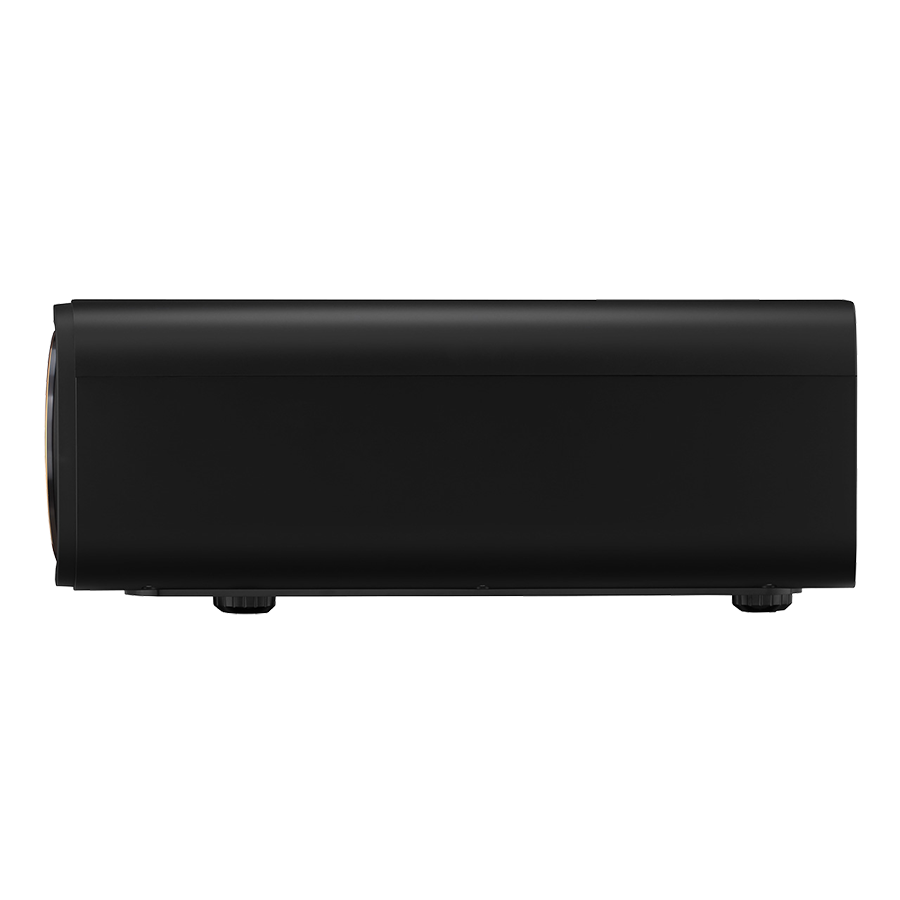

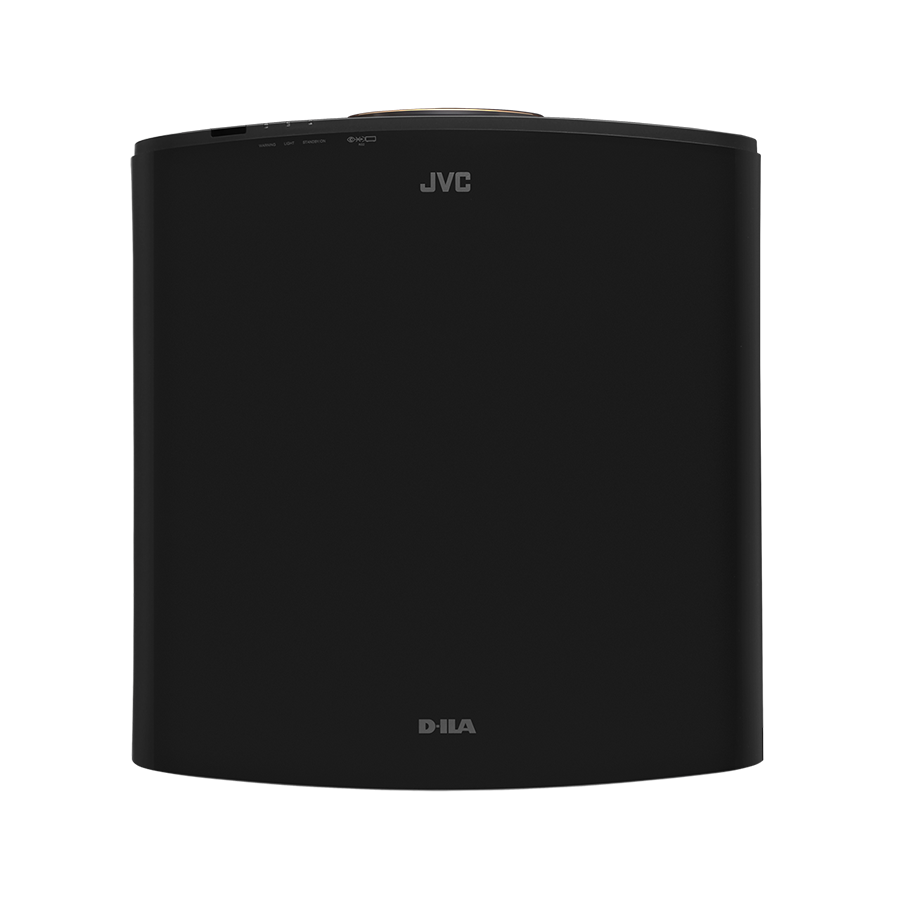

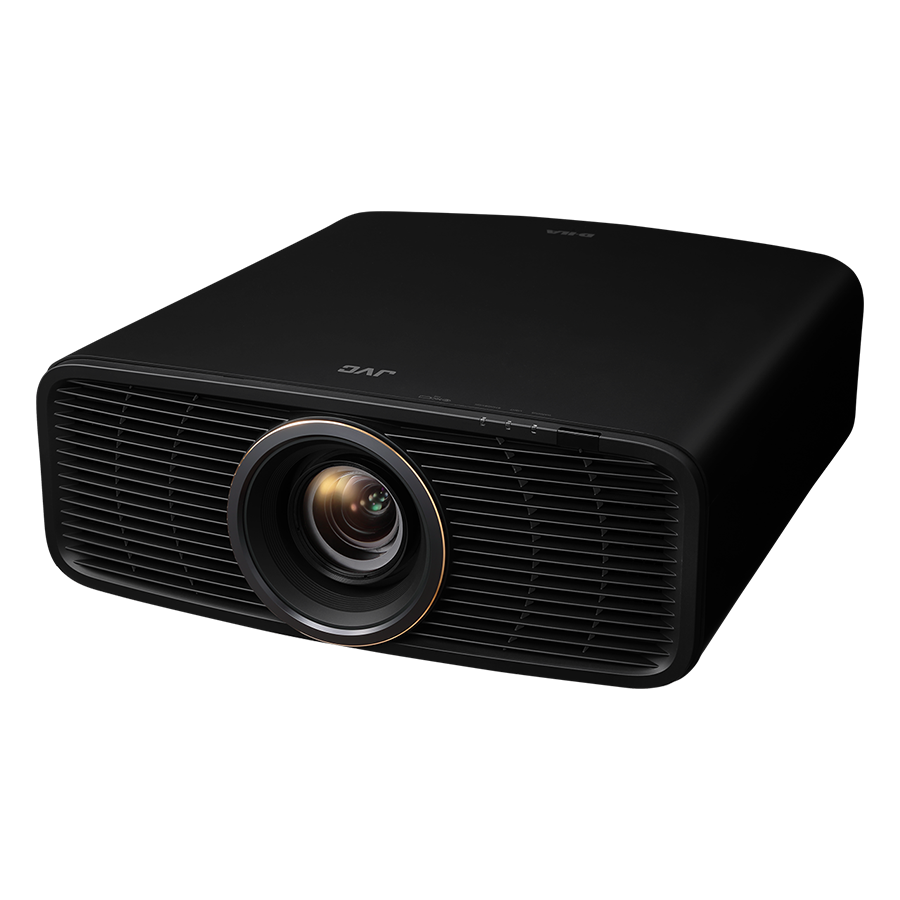

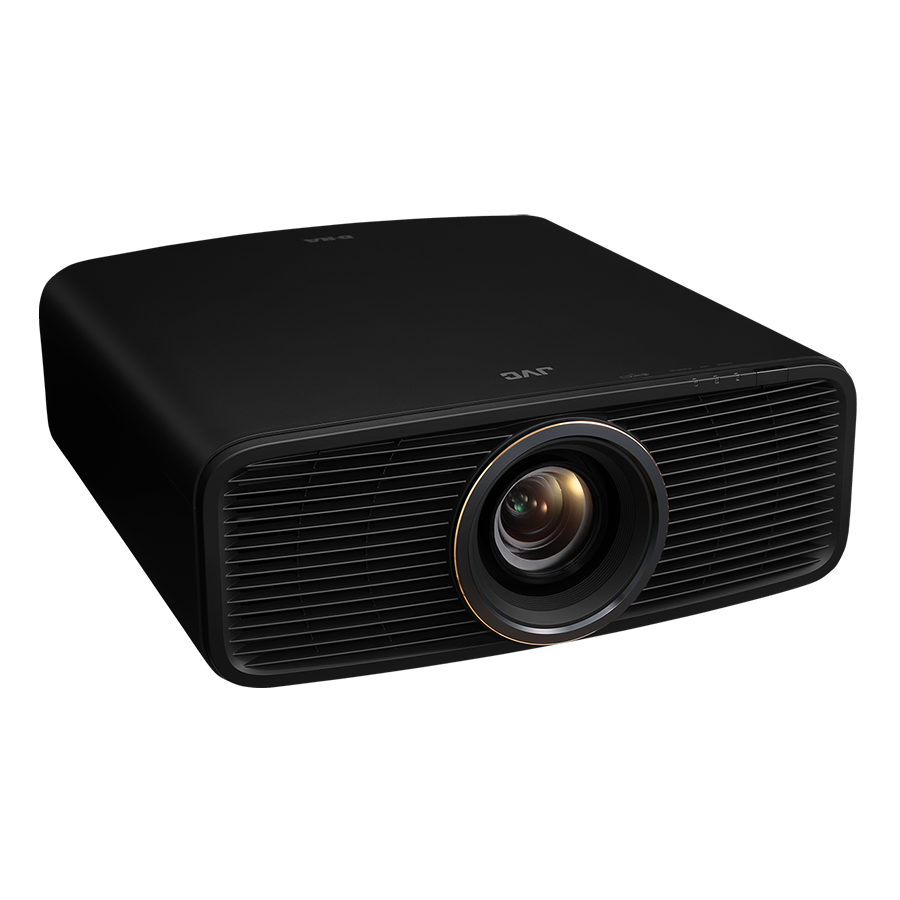

JVC DLA-RS2200 Reference Series 4K 2300 Lumen Projector

The DLA-RS2200 is the world’s smallest 4K D-ILA projector available today*. The projector has been completely redesigned and includes a new casing, optical unit, lens system, and circuit boards. Using JVC’s proprietary BLUEscent Laser light source with 2,300 lumens and third generation (Gen3) Native 4K D-ILA devices to display 4,096 x 2,160 pixel images and an 80,000:1 Native contrast ratio. This projector features Gen2 Frame Adapt HDR to get the most out of HDR content, and Vivid mode to display SDR content such as animations to satisfy a variety of users.

Features

• World’s Smallest Native 4K Projector* with Front Air Intake and Rear Exhaust Layout
• Proprietary, Gen3, 0.69-inch Native 4K D-ILA Devices (x3)
• 2,300-lumen BLU-Escent Laser phosphor light engine
• 80,000:1 native contrast, ∞ (infinite):1 dynamic contrast ratios delivers images brimming with reality
• 101-step Laser Light Control by slider adjustment
• 80 mm Fully Motorized 4K Lens with 1.6X zoom, 70% vertical and 28% horizontal shift ranges
• High-contrast Optical Block
• Two 32Gbps 4K/60p HDMI/HDCP 2.3 inputs
• Second-generation (Gen2) Frame Adapt HDR dynamic tone mapping
• Deep Black Tone Control extends dark tones with greater contrast
• HDR10+ compatibility
• DML (Display Mastering Luminance) adjusts/sets the dynamic range for better HDR experience
• Picture mode “Vivid” for projecting animated works and game CGs in SDR format
• Wide Color Gamut with Cinema Filter: BT.709 and DCI-P3
• Installation Mode with 5 customizable presets
• ISF Certified, plus JVC Auto Calibration
• Multiple Pixel Control (MPC) for increased sharpness and detail

Specs

• Display Resolution 4,096 x 2,160 (Native)
• Lens x1.6 motorized zoom & focus, 80 mm diameter
• Lens Shift Vertical: ±70%, Horizontal: ±28% (motorized in 16:9 aspect ratio)
• Projection Display Size 60 inch – 200 inch diagonal
• Light Source BLU-Escent Laser Diode
• Brightness 2,300 lm
• Contrast Ratio Native: 80,000:1, Dynamic: ∞:1
• Cinema Filter (Color Gamut) DCI 98%/BT.2020 73%
• Input Terminal HDMI 2 (32 Gbps/HDCP 2.3, no support for CEC)
• Control Terminal LAN 1 (RJ45)
• Service Terminal SERVICE 1 (USB Type A) for firmware update and backing up settings
• Power Consumption 280 W (Network standby: 1.5W, Eco-mode standby: 0.3W)
• Power Requirement AC 100-240V, 50/60Hz
• Dimensions (W x H x D, including feet) 17-23/32 in x 7-5/32 in x 18-7/8 in / 450 mm x 181 mm x 479 mm
• Weight (net) 32.6 lb. / 14.8 kg
