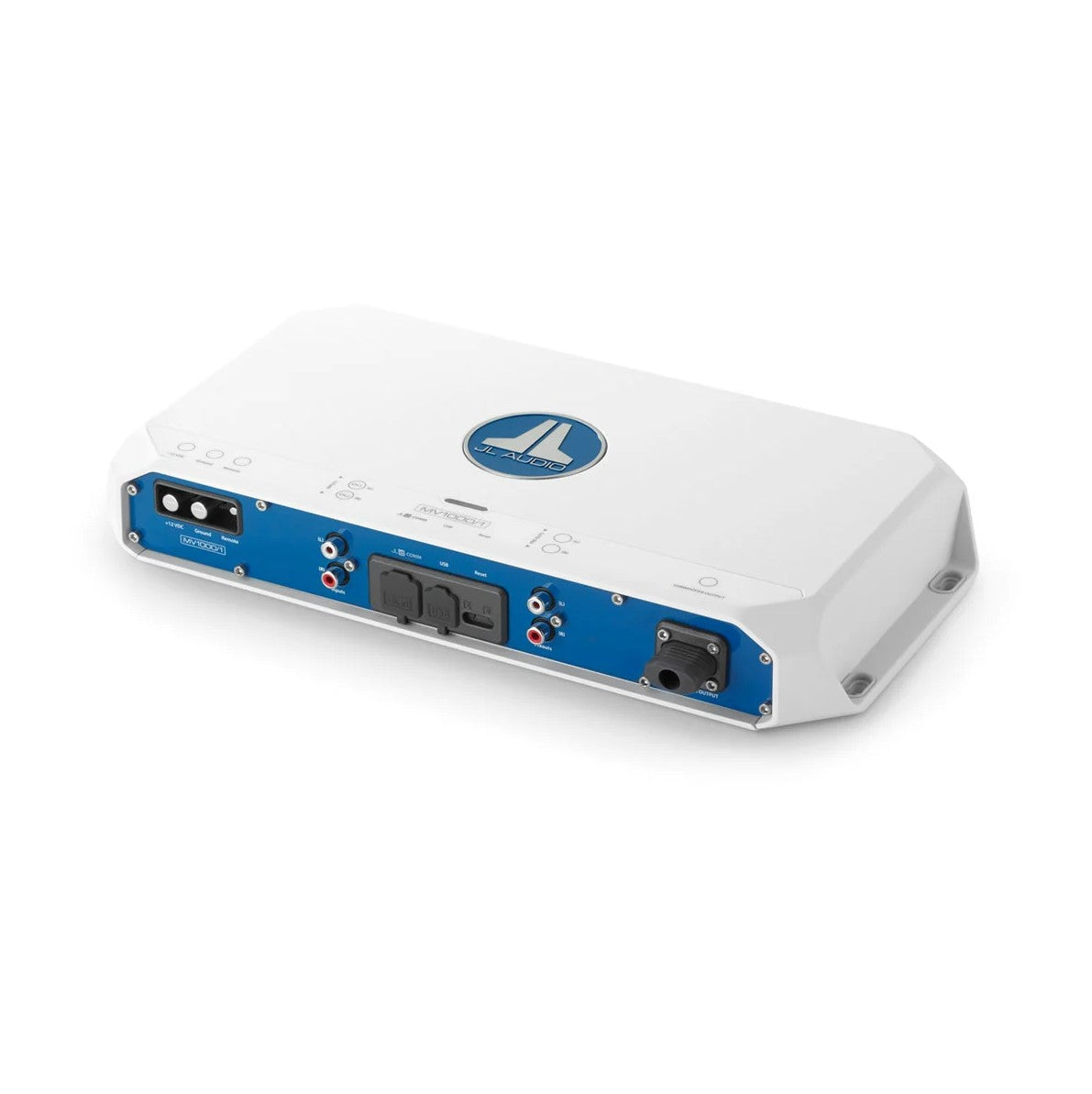

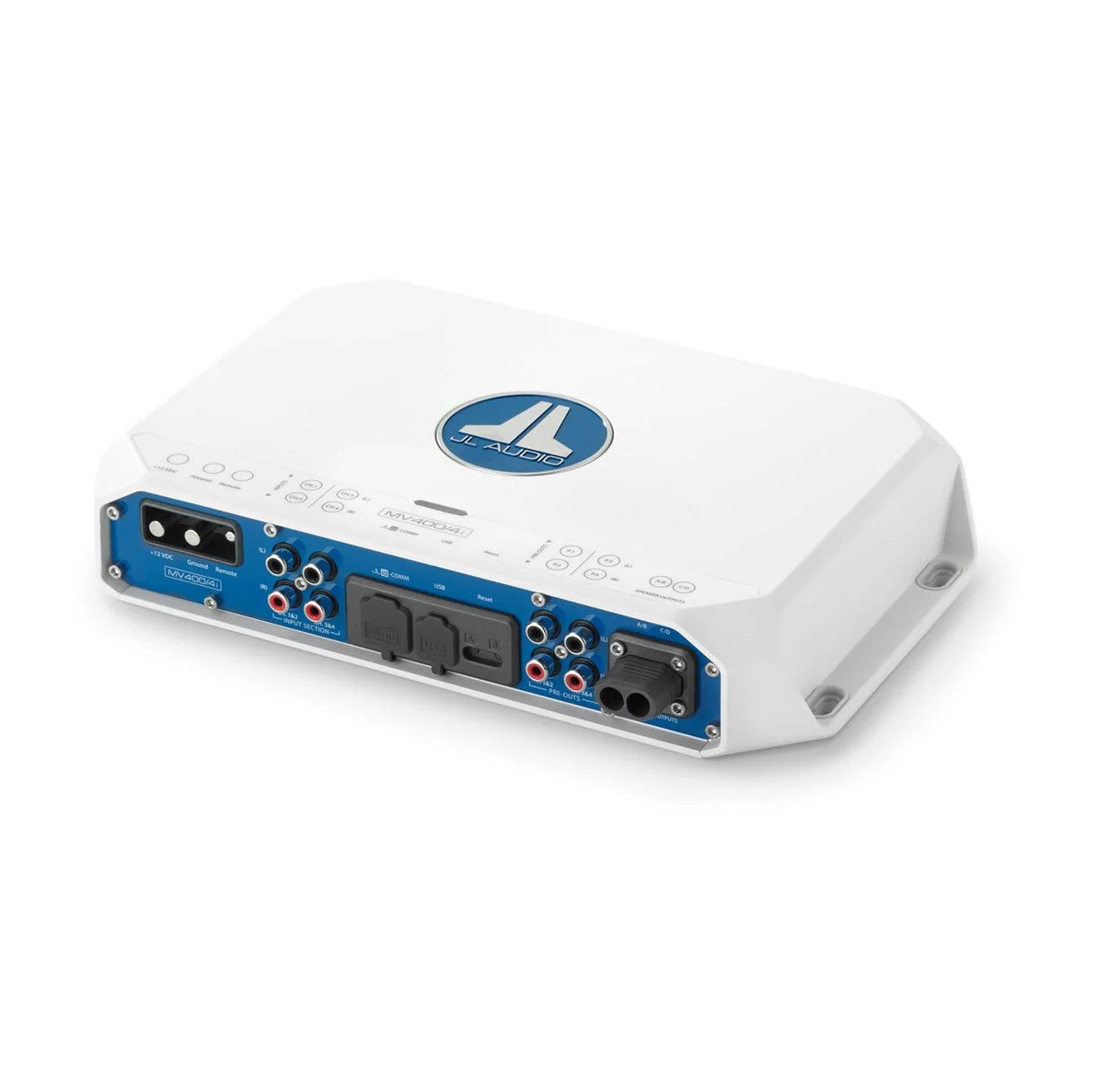

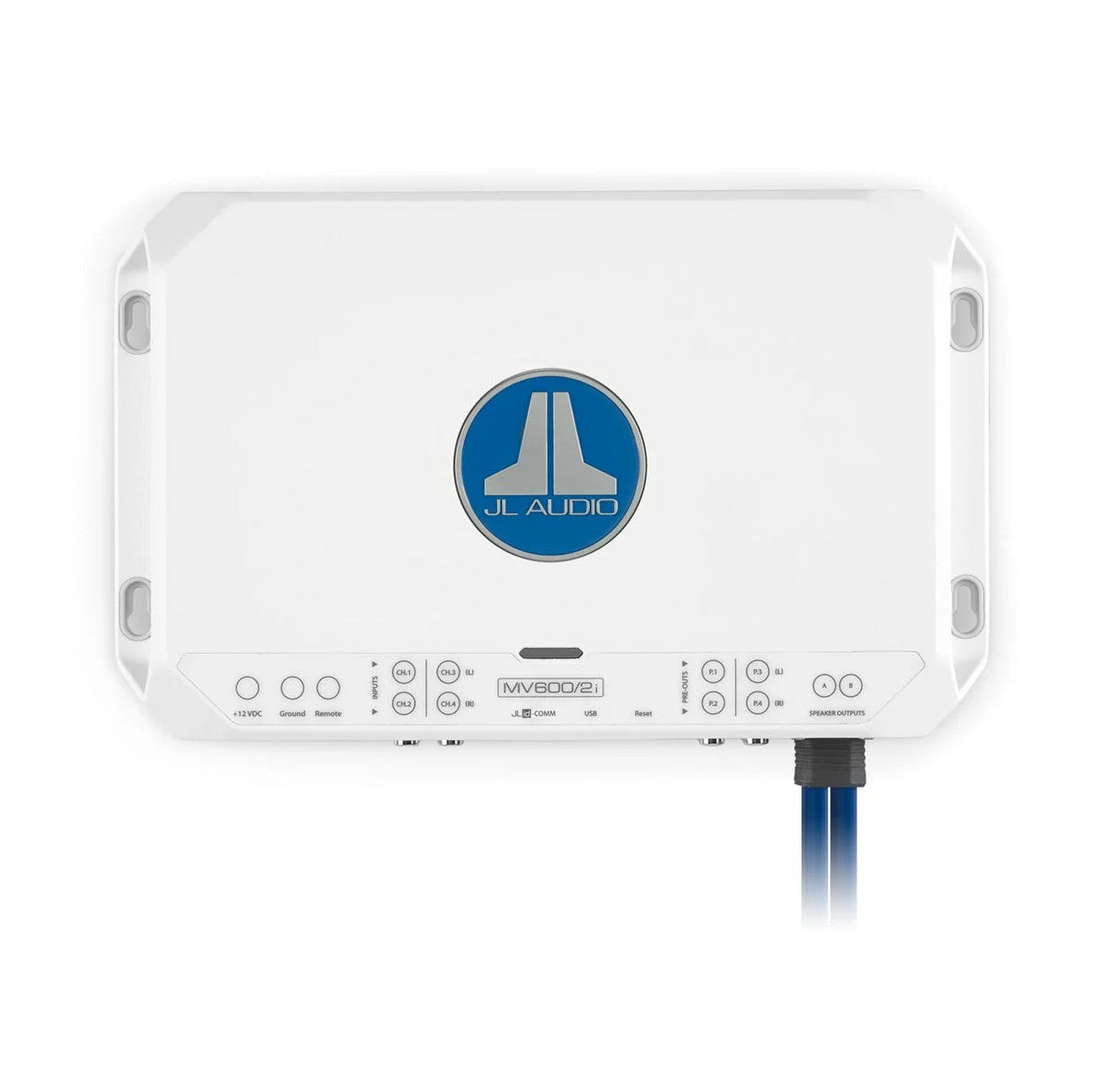

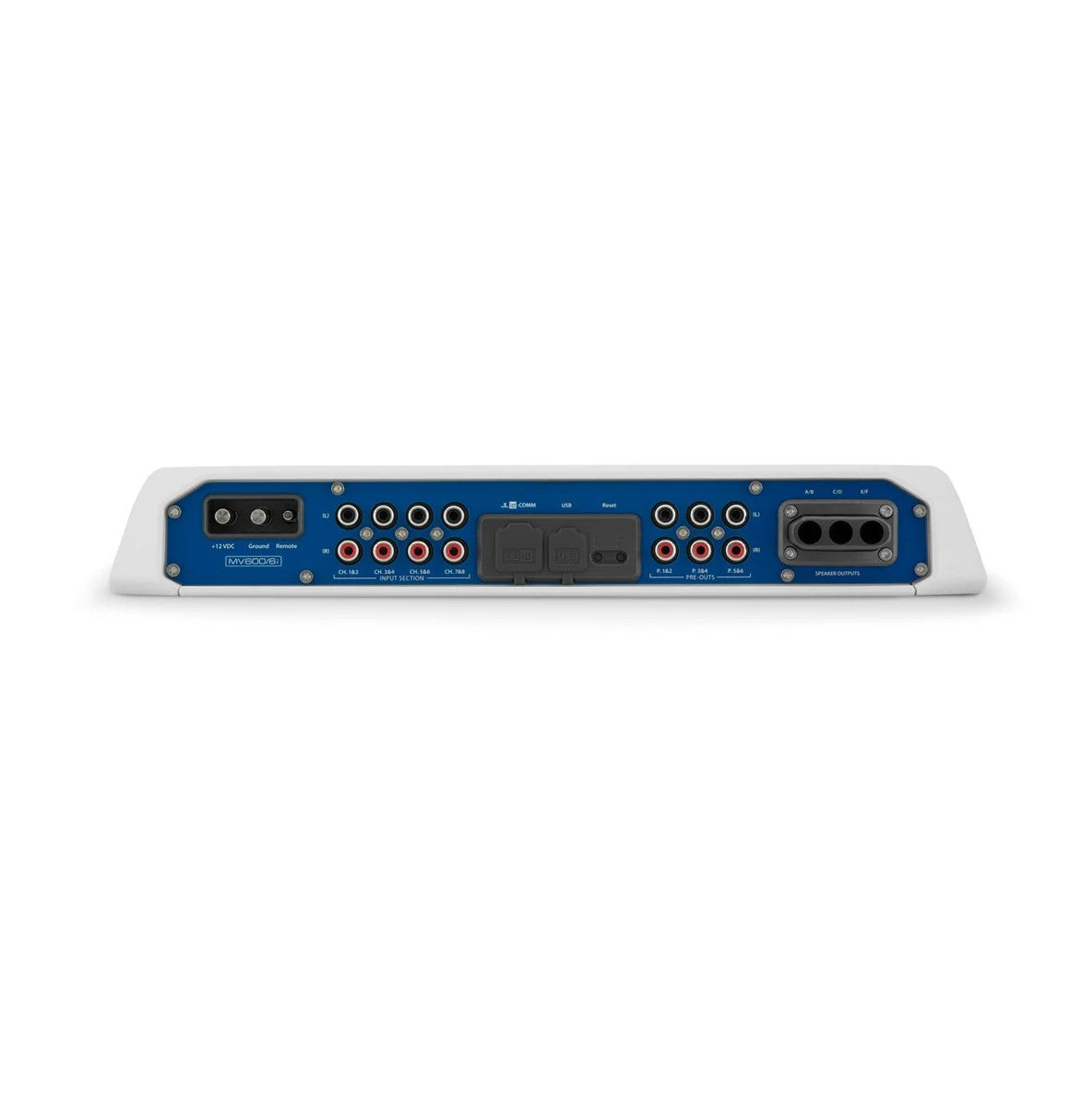

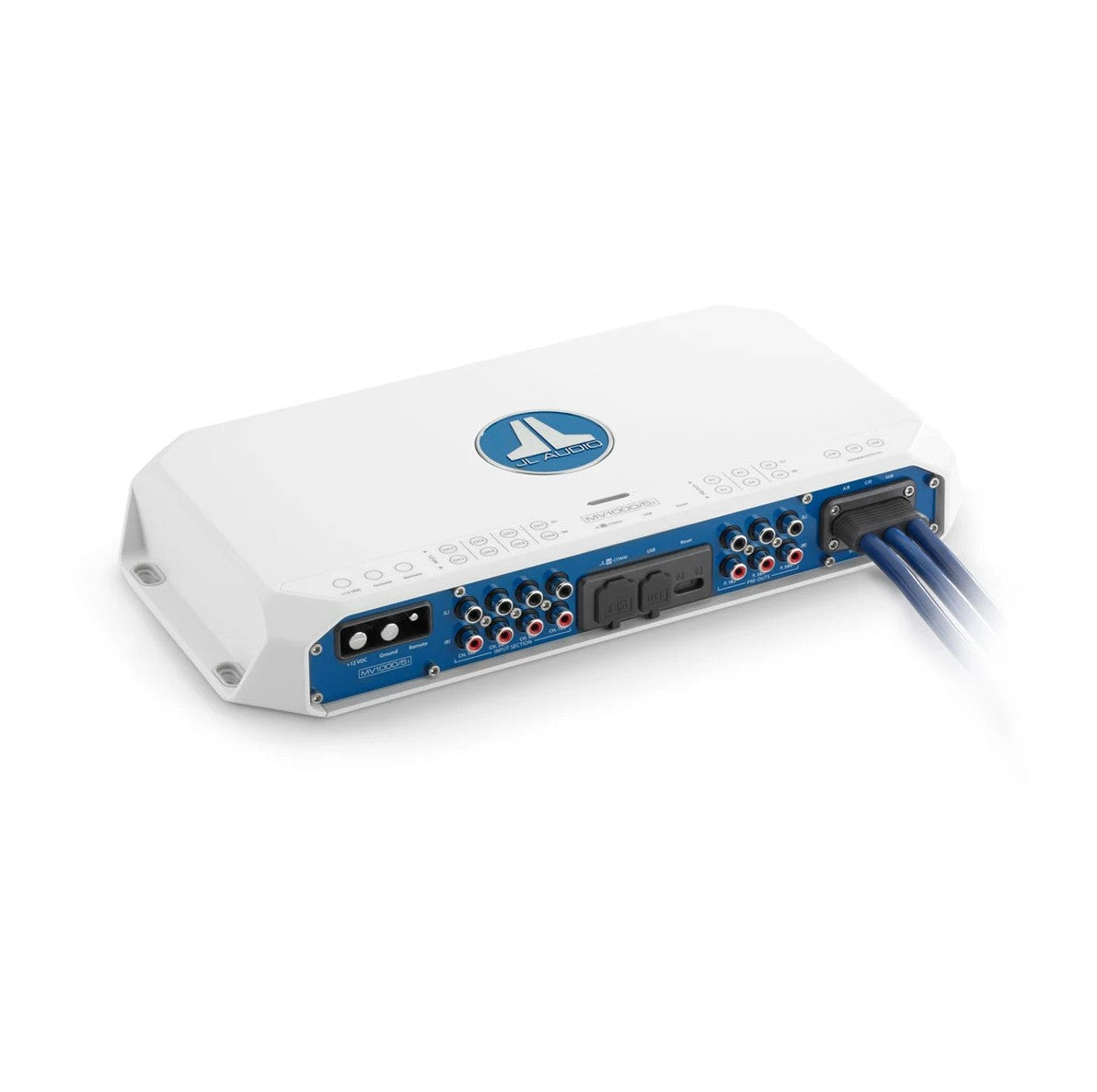

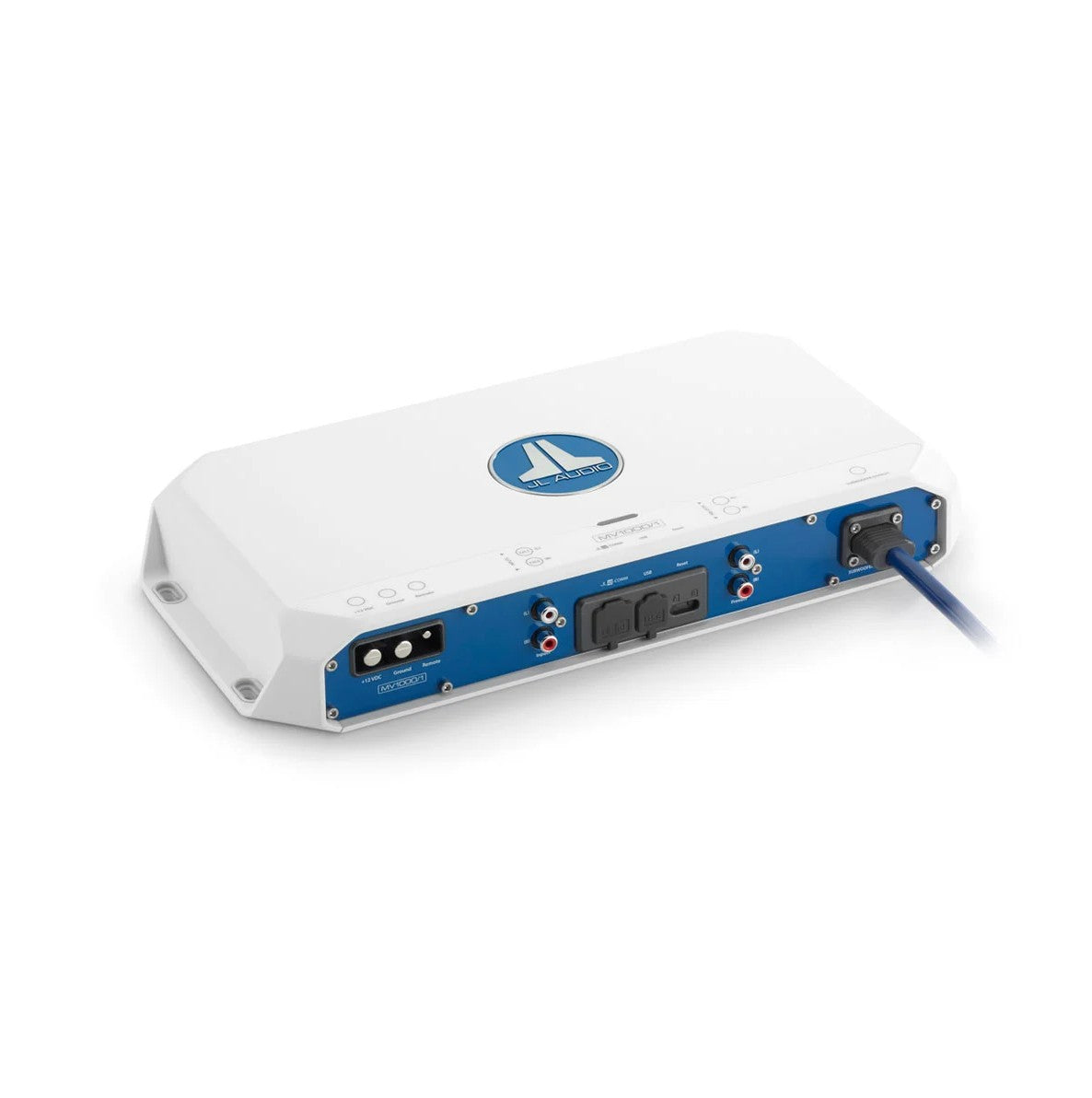

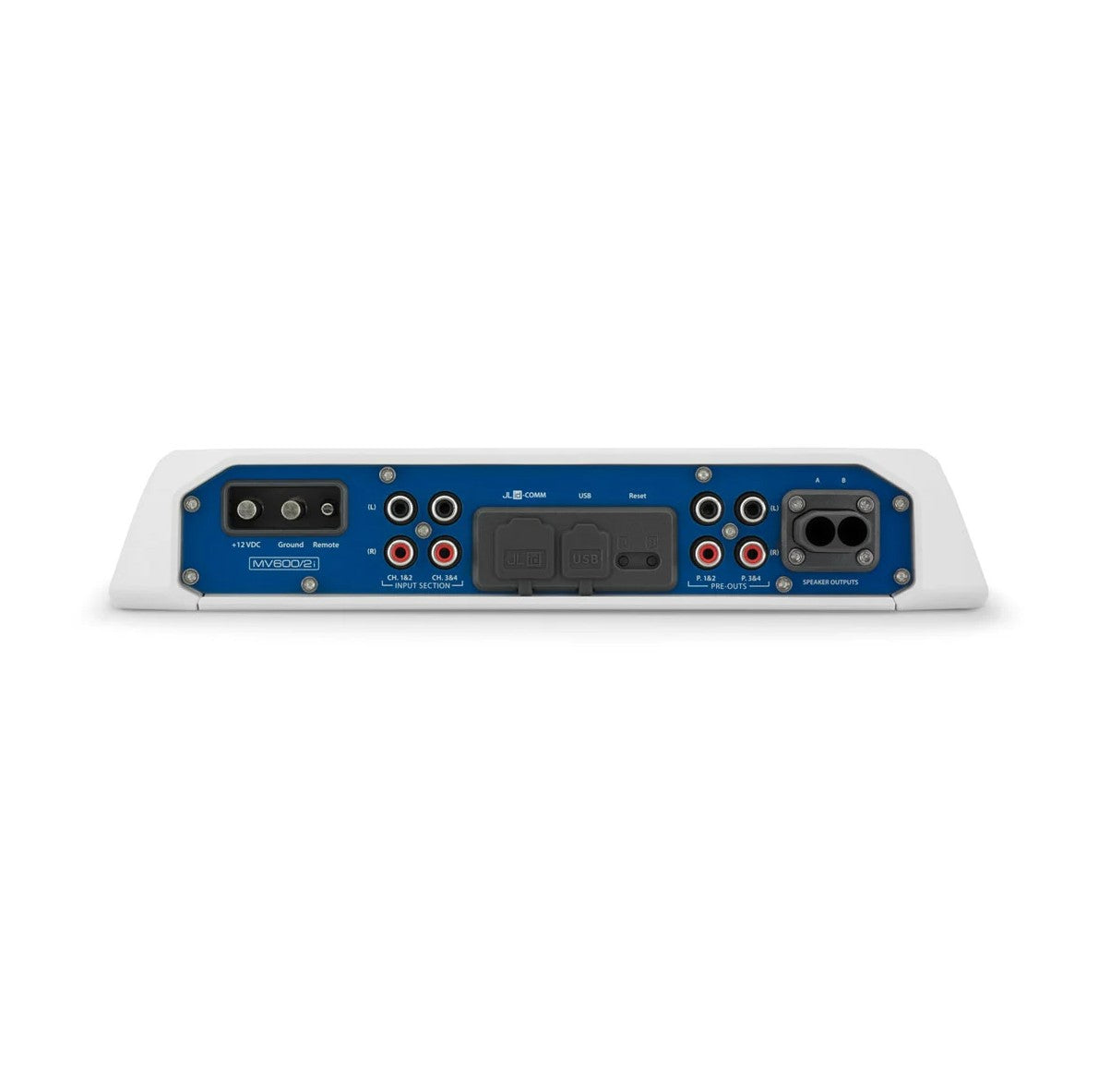

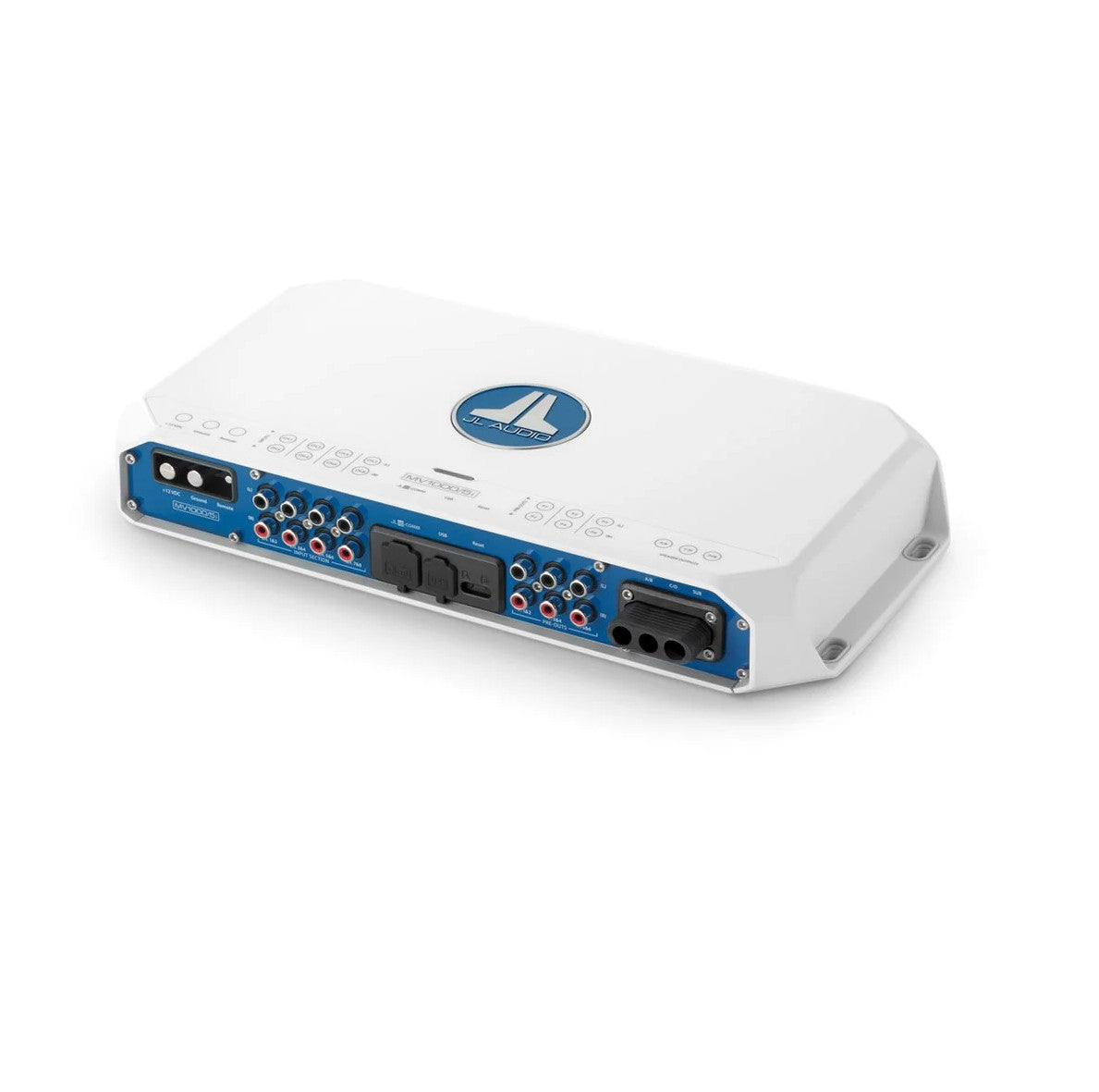

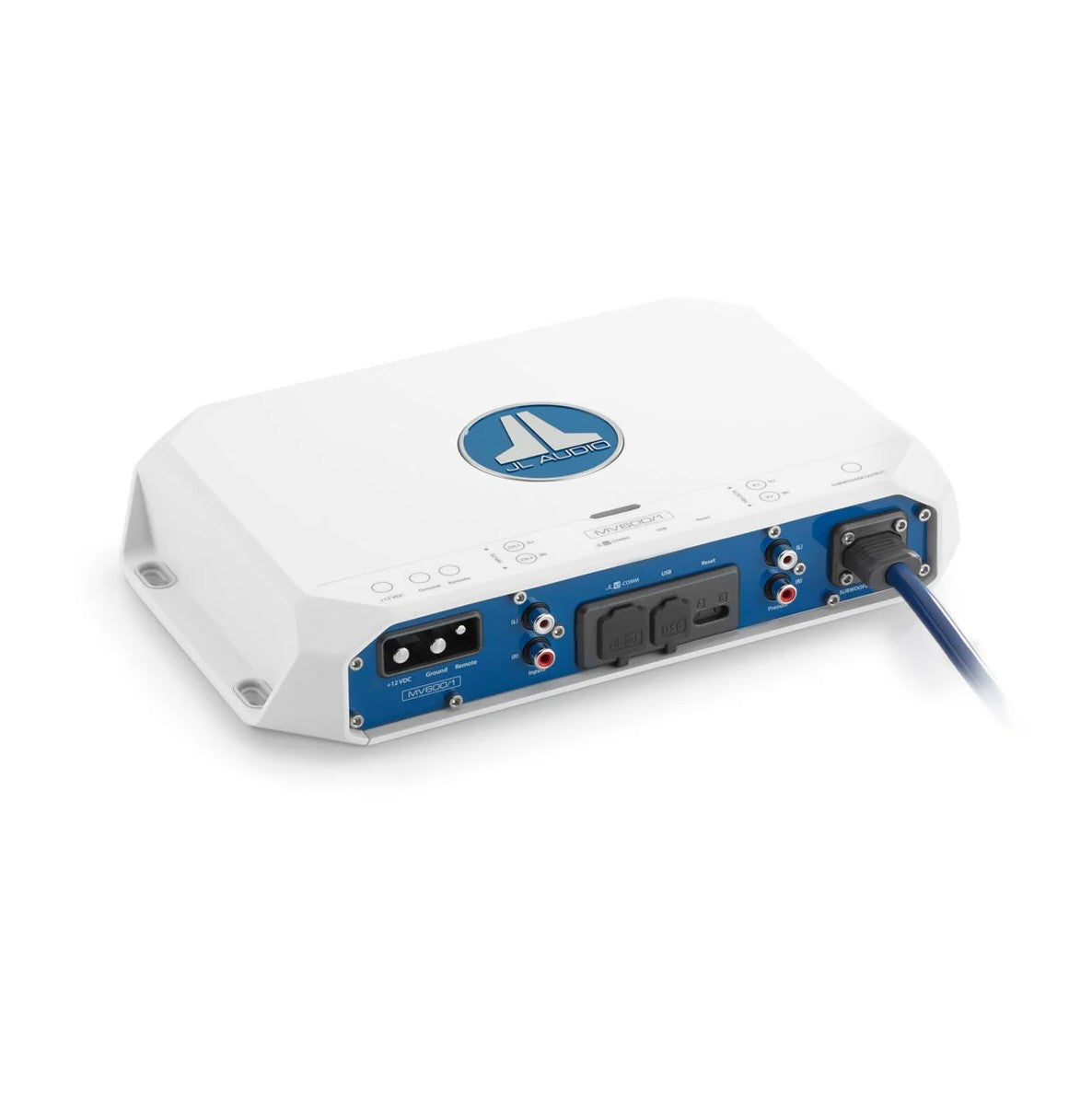

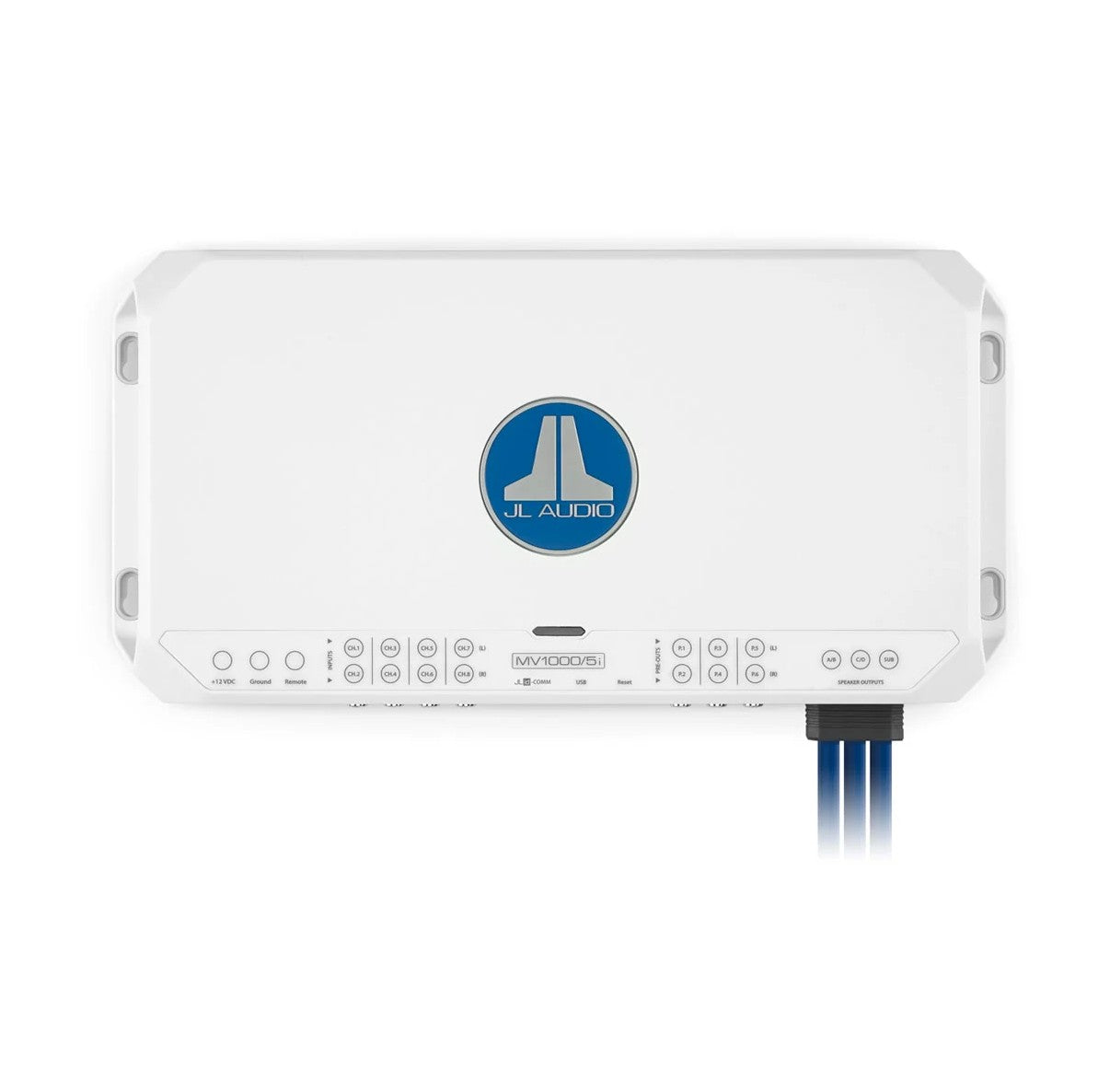

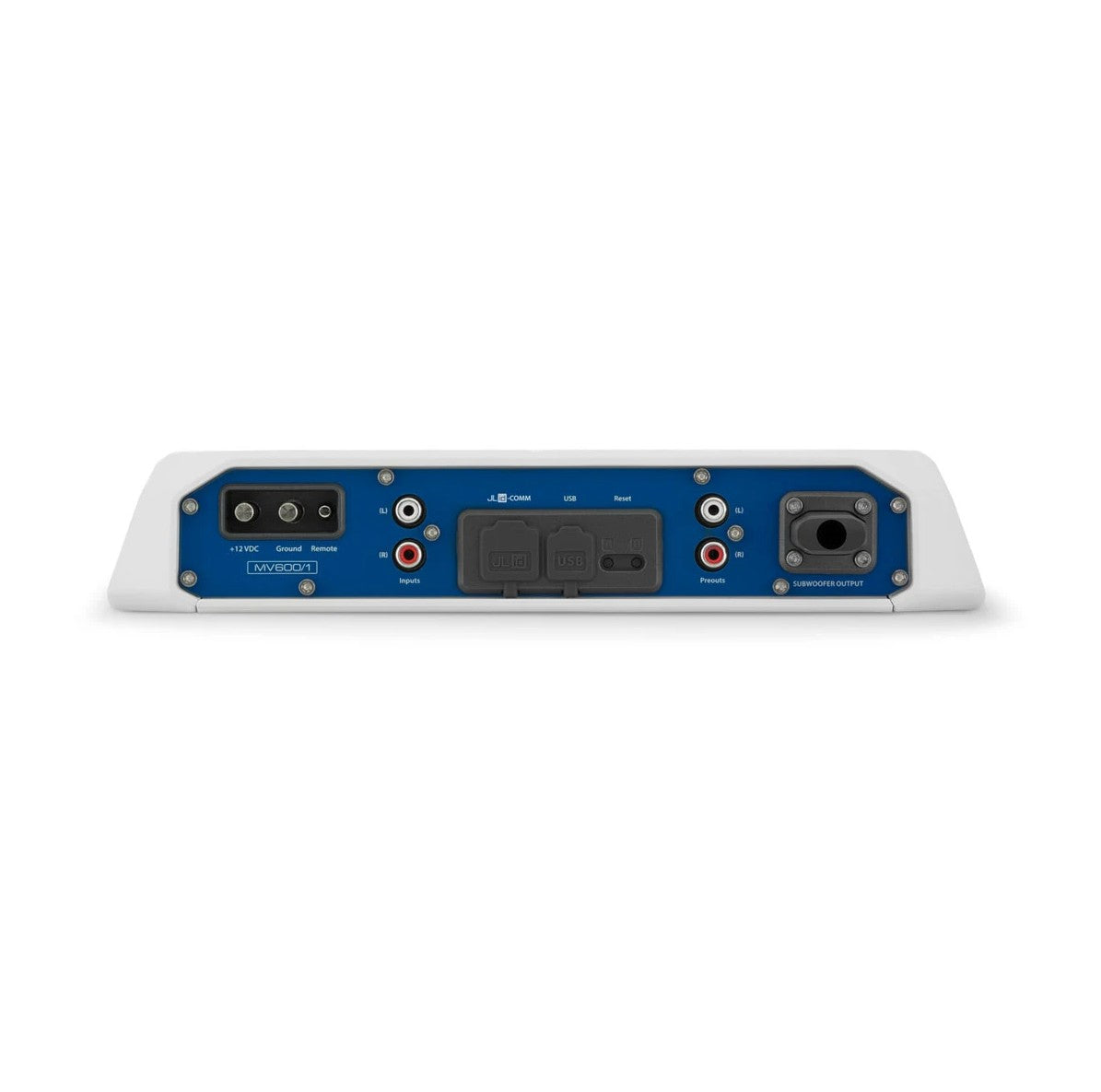

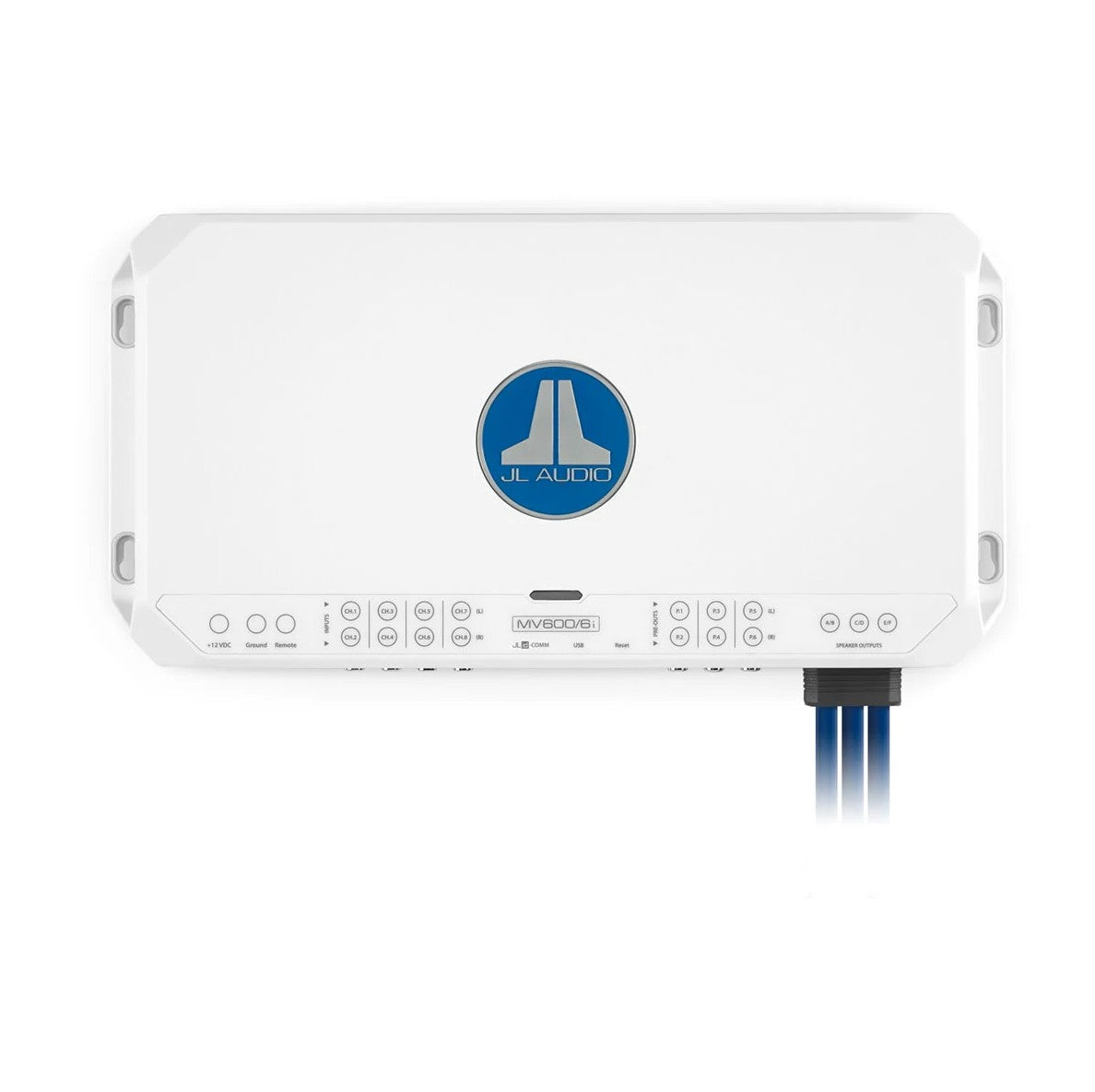

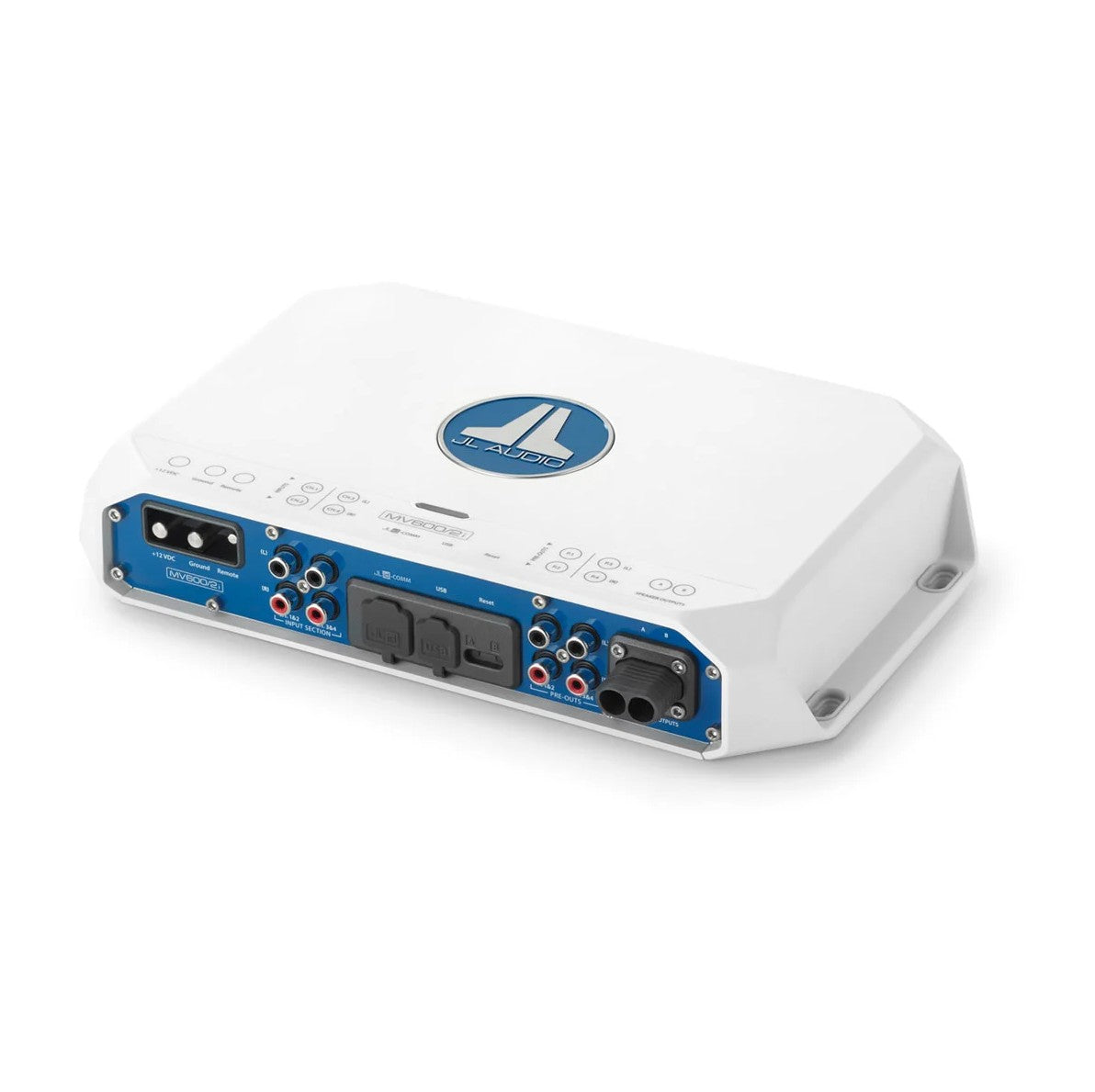

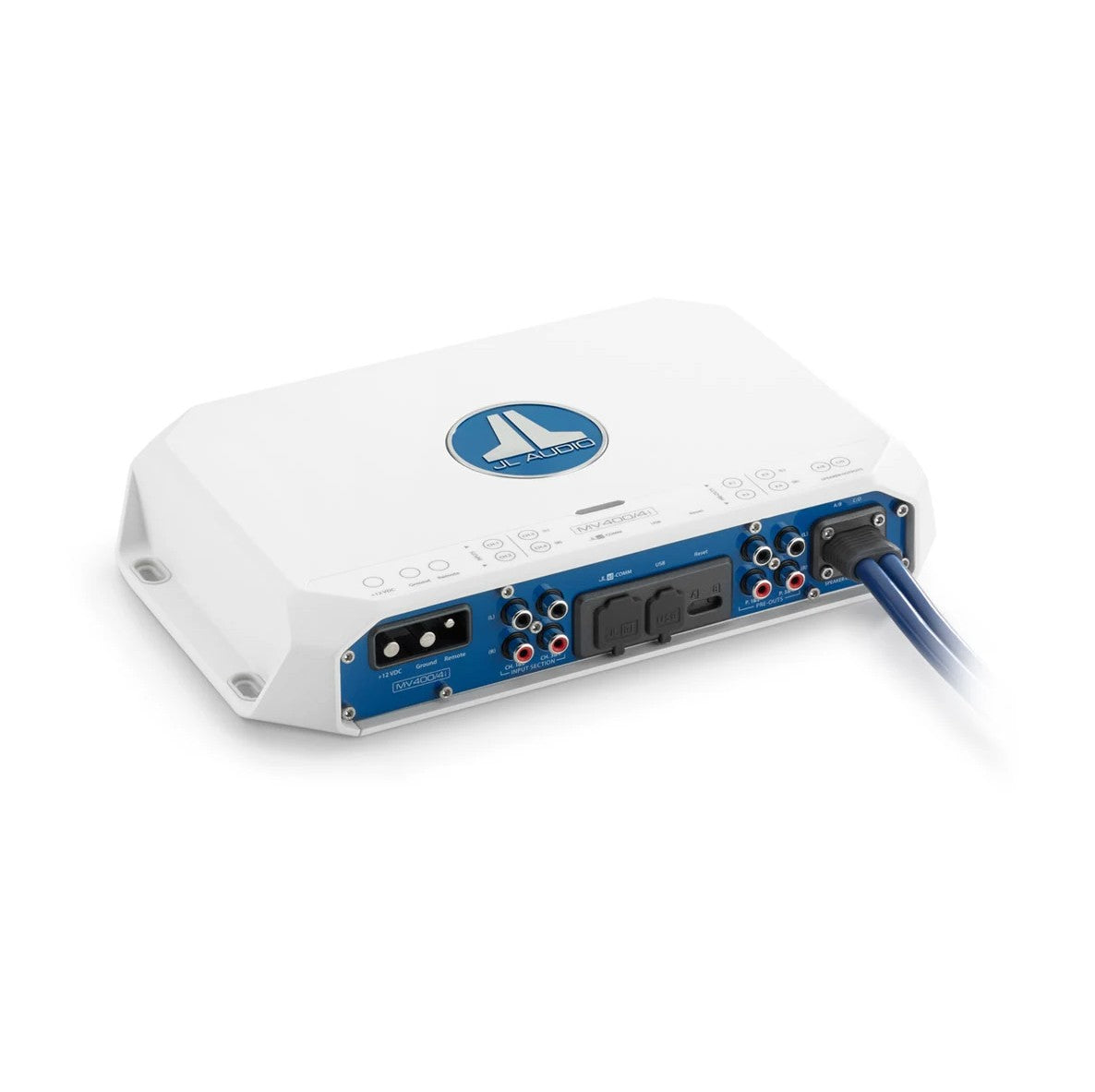

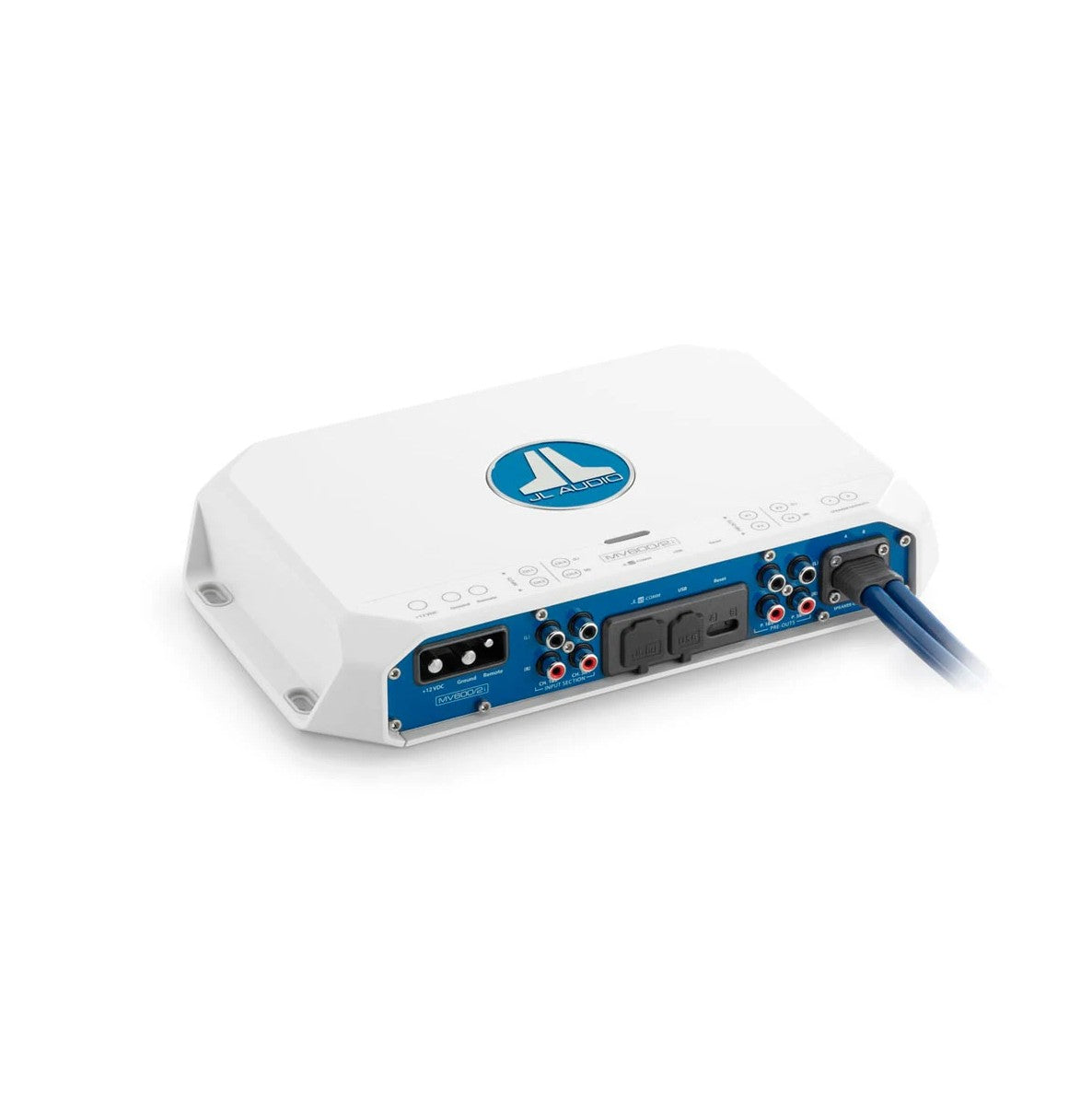

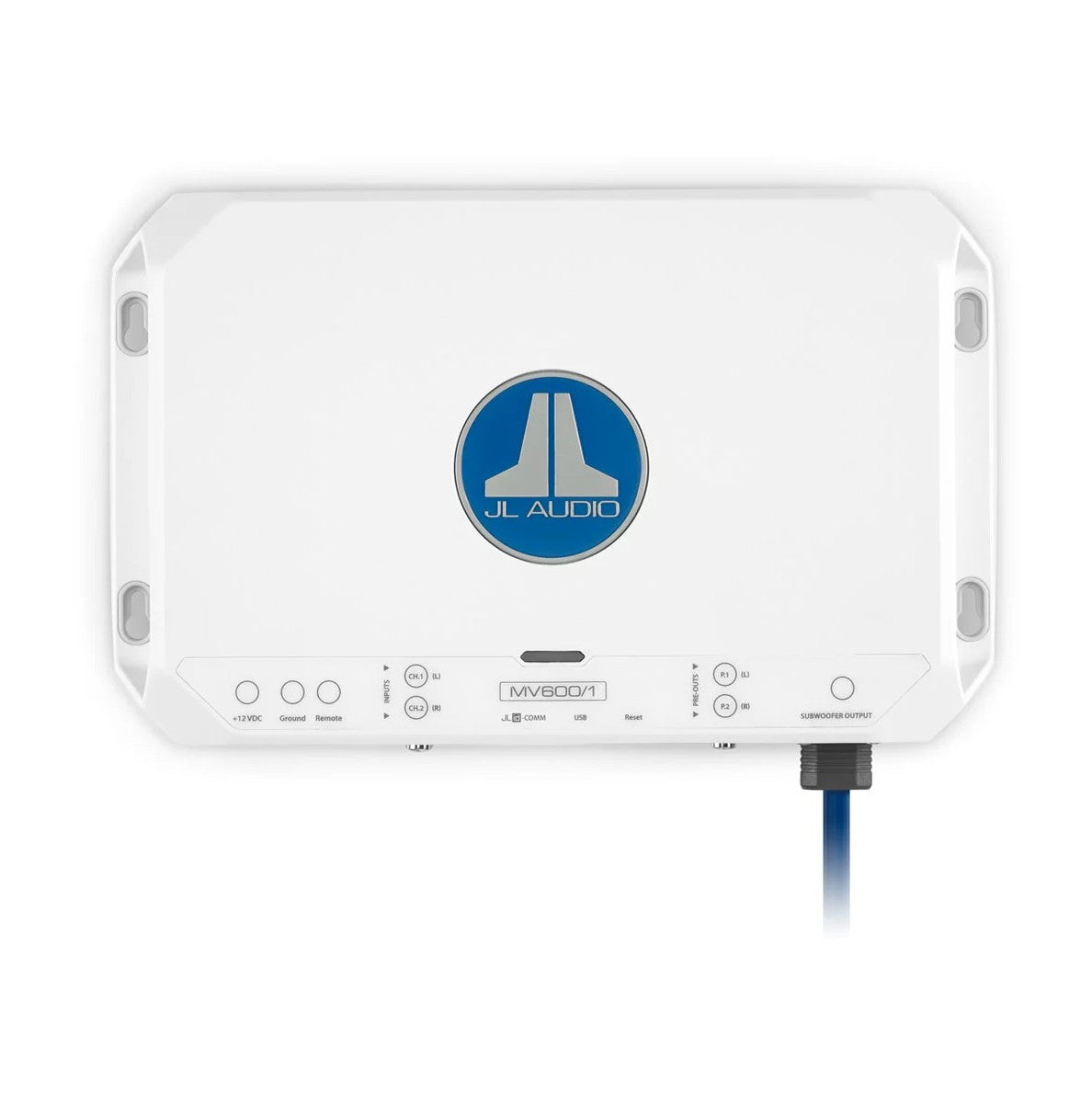

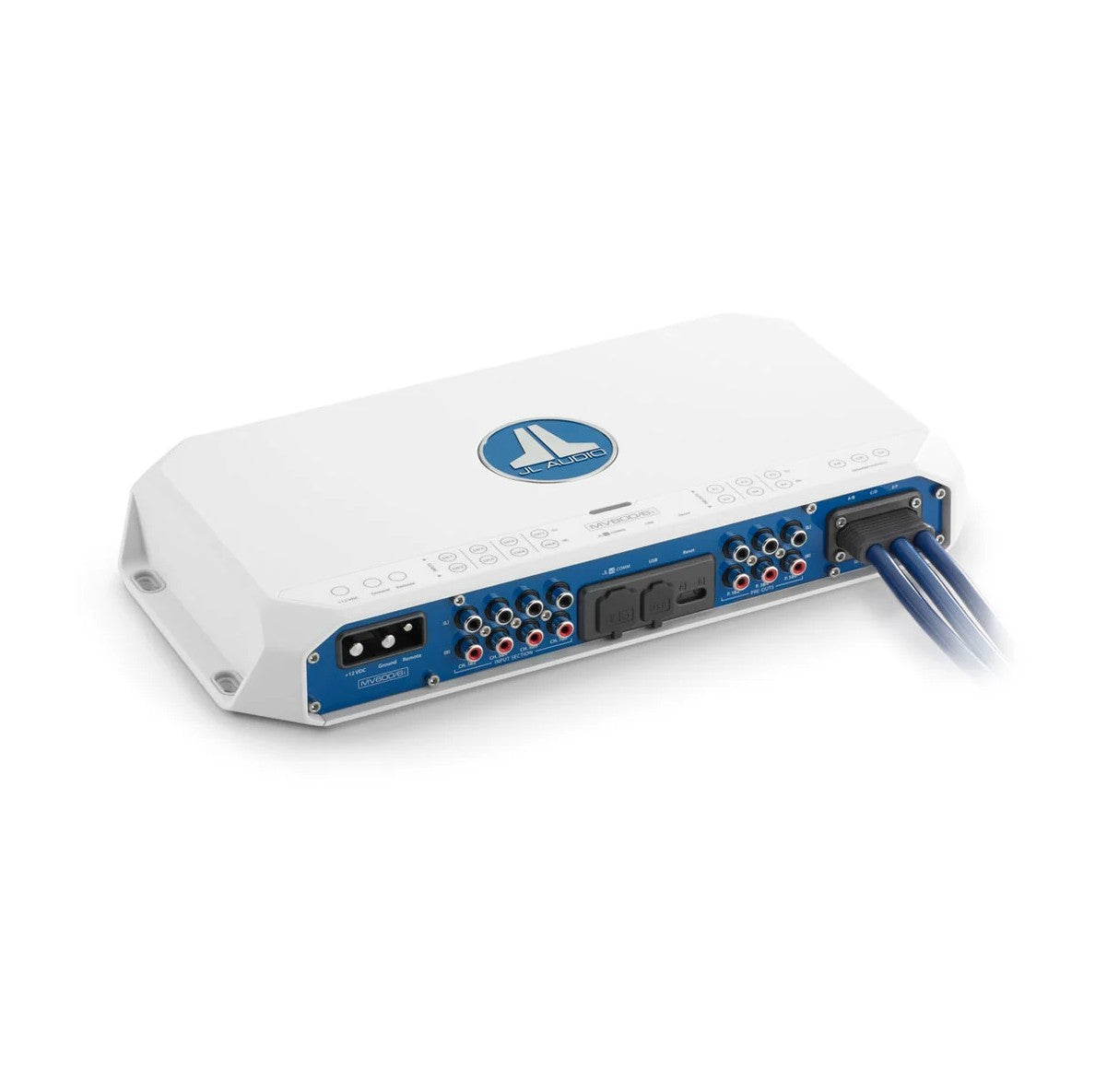

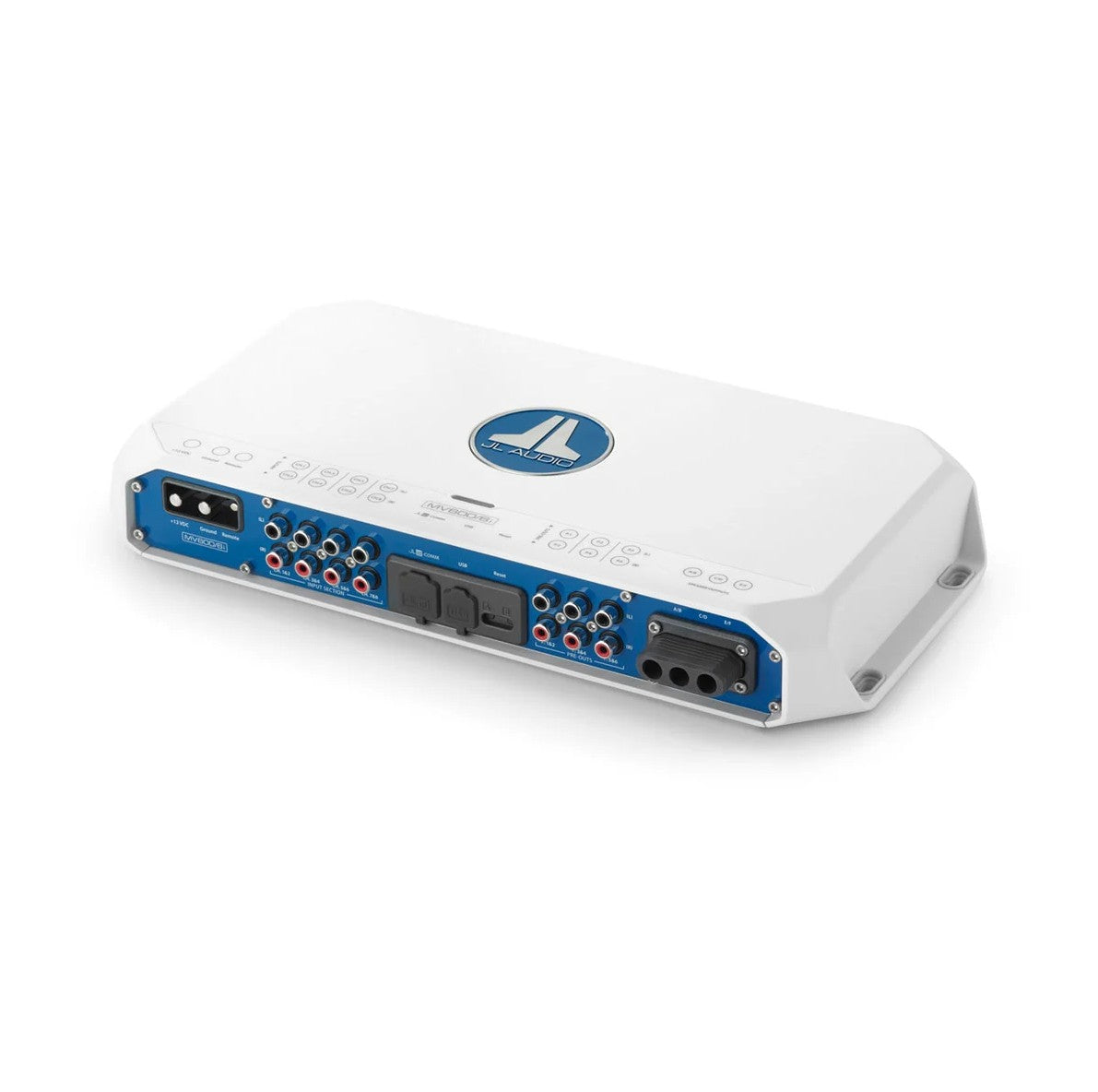

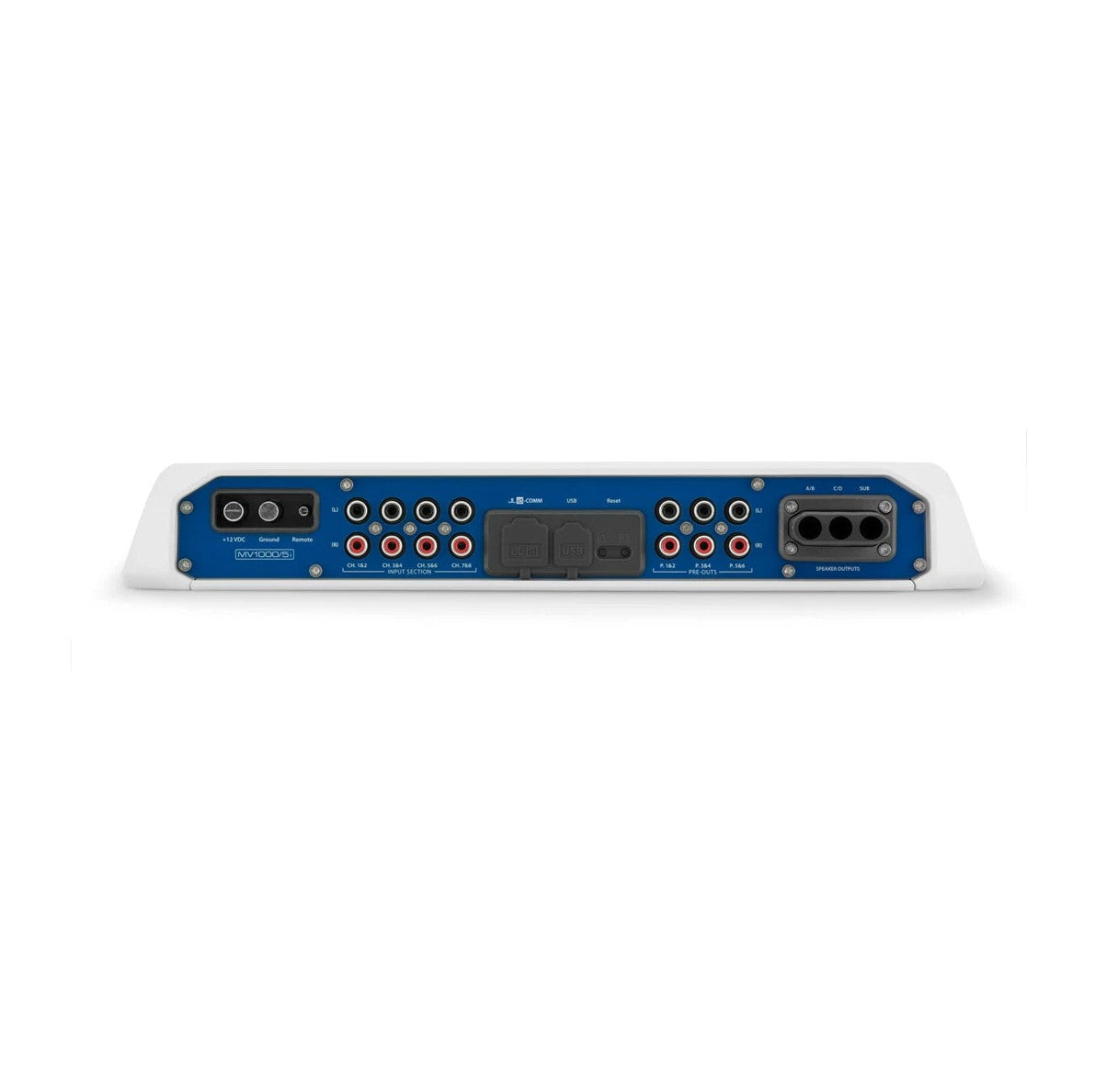

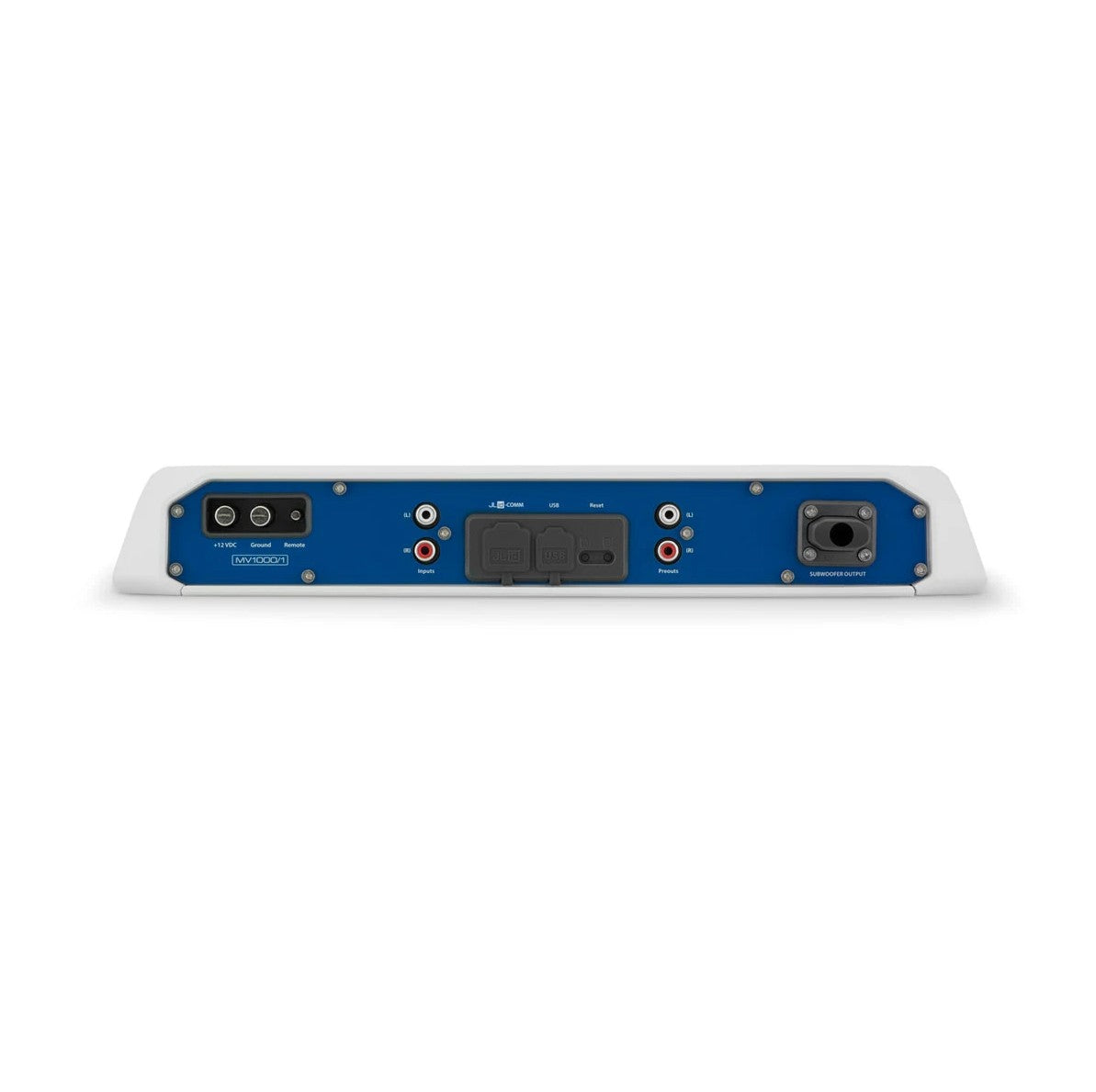

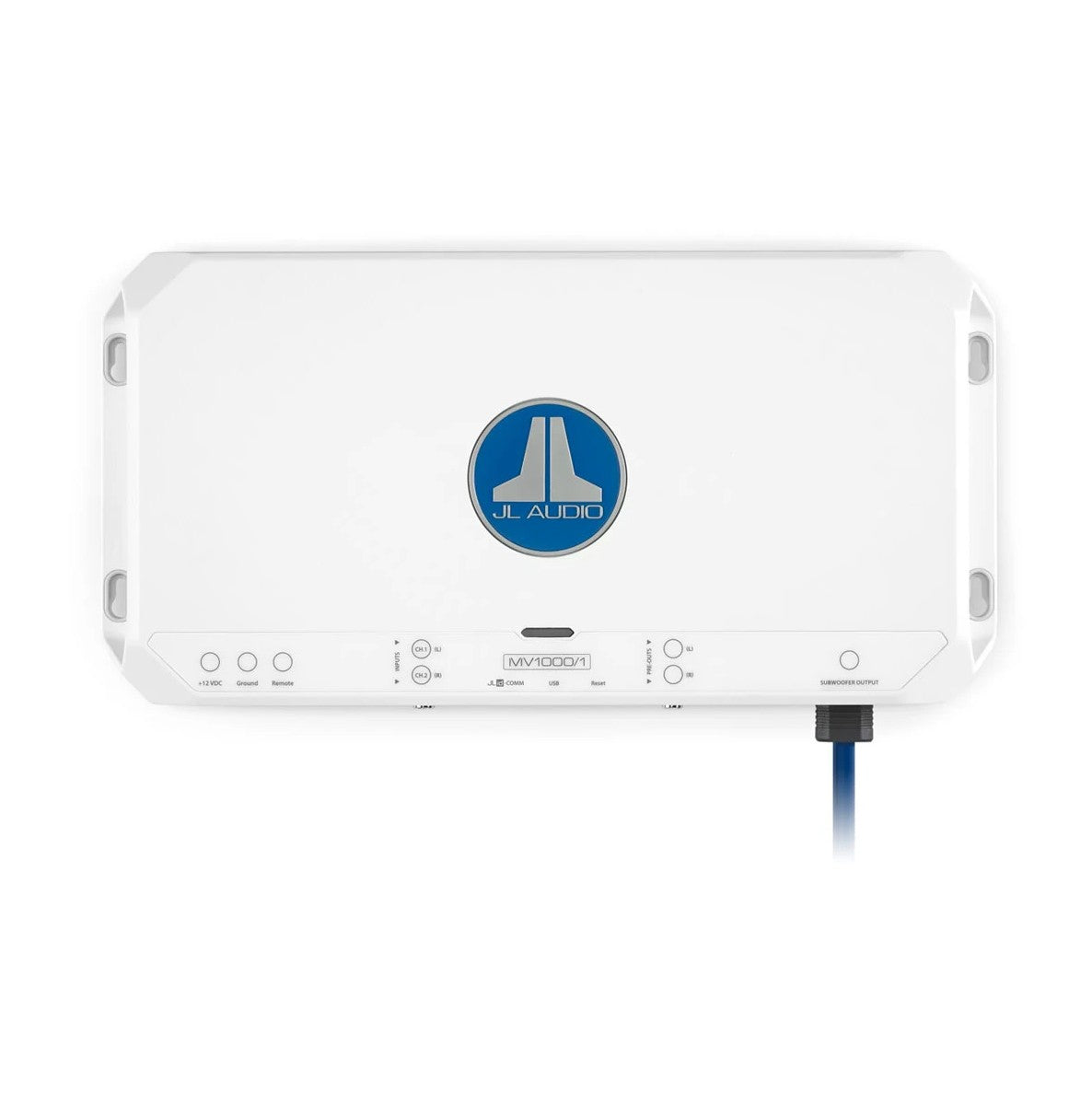

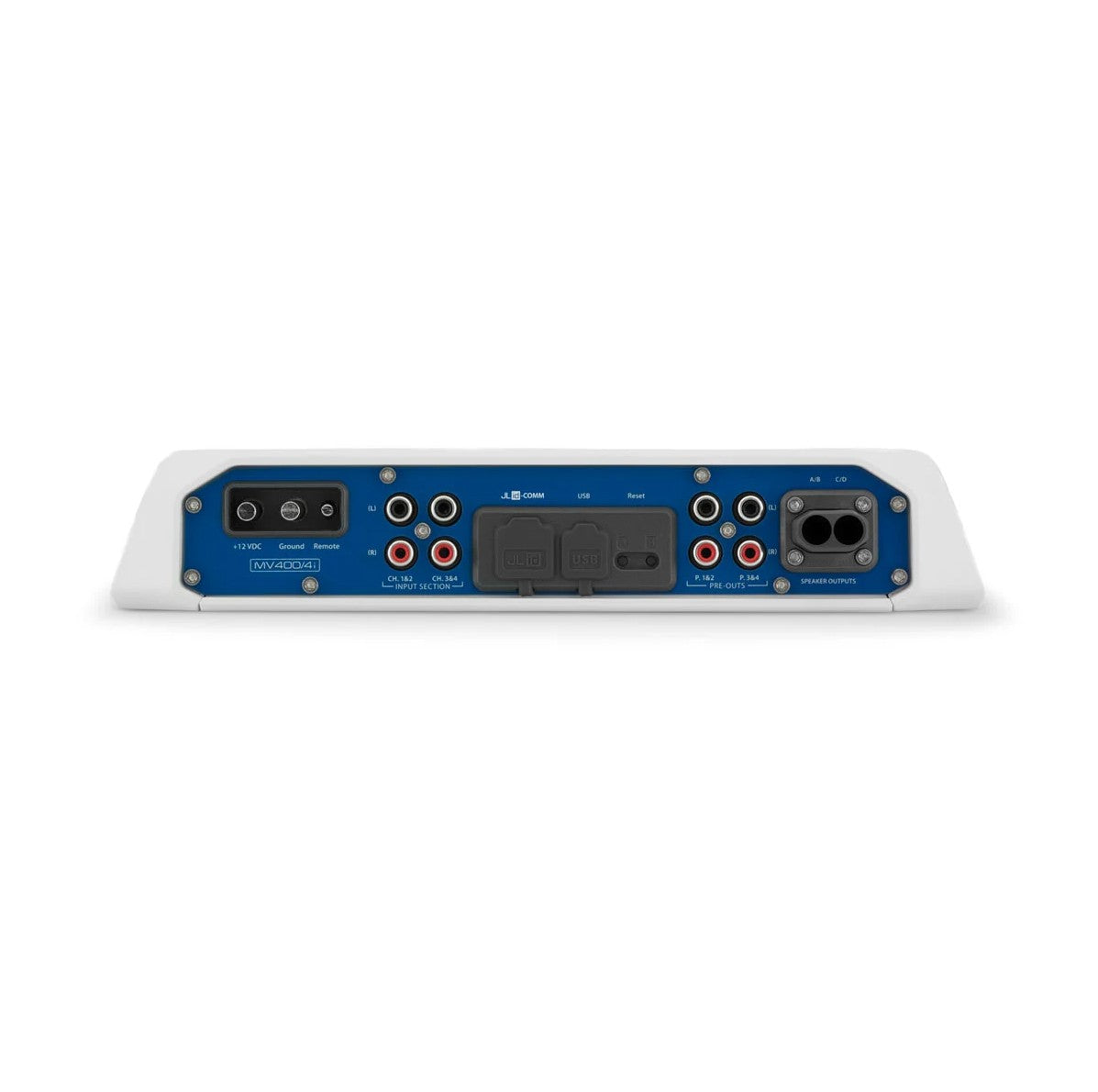

Featuring state-of-the-art amplifier circuits and built-in tuning capabilities, MVi amplifiers usher in a higher level of marine audio performance with unmatched fidelity and versatility.
COMPREHENSIVE ONBOARD TUNING FOR EXCEPTIONAL SOUND QUALITY
ADVANCED OUTPUT DESIGN FOR PRISTINE POWER AND EFFICIENCY
EASY SETUP AT YOUR FINGERTIPS WITH FREE TüN SOFTWARE
UNIQUE DESIGN ADJUSTS OPERATION TO AVOID THERMAL EVENTS
EXCEEDS INTERNATIONAL STANDARDS FOR SALT FOG AND UV EXPOSURE
3-YEAR WARRANTY
| Warranty | 3 years |
|---|---|
| Channels | Monoblock/2/4/5/6/8 |
| Physical dimensions (Height) | 2.05" (52 mm) |
| Physical dimensions (Width) | Monoblock (600 W)/2/4-Channel: 11.20" (285 mm) Monoblock (1000 W)/5 (700 W/1000 W)/6/8-Channel: 13.96" (355 mm) |
| Physical dimensions (Depth) | 6.93" (176 mm) |
| Weight |
Monoblock/2/4-Channel: 5.0 lbs (2.27 kg) |
| Operating voltage | 10-15 VDC |
| Water and dust rating | IPX2 (when mounted vertically with connections pointed downward) |
Audio |
|
| Amplifier class | Class D |
|---|---|
| Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD) |
Monoblock (600 W): 400 W x 1 |
| Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD) |
Monoblock (600 W): 600 W x 1 |
| Rated continuous (RMS) power (12.5 V input @ 4 Ohm < 1% THD) |
Monoblock (600 W): 300 W x 1 |
| Rated continuous (RMS) power (12.5 V input @ 2 Ohm < 1% THD) |
Monoblock (600 W): 500 W x 1 |
| Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs | Monoblock (600 W): 90 dB Monoblock (1000 W): 87 dB 2/4/6/8-Channel: 99 dB |
| Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Main Channels | 5-Channel (700 W / 1000 W): 99 dB |
| Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Subwoofer Channel | 5-Channel (700 W / 1000 W): 99 dB |
| Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs | Monoblock (600 W): 64 dB Monoblock (1000 W): 60 dB 2-Channel: 76 dB 6-Channel: 80 dB |
| Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Main Channels | 5-Channel (700 W/1000 W) 80 dB |
| Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Subwoofer Channel | 5-Channel (700 W/1000 W): 72 dB |
| Damping factor @ 4 Ω | Monoblock (600 W): > 125/50 Hz Monoblock (1000 W): > 400/50 Hz 2/4/6/8-Channel: > 100/50 Hz 5-Channel (700 W/1000 W): > 150/50 Hz |
| Damping factor @ 2 Ω | Monoblock (600 W): > 125/50 Hz Monoblock (1000 W): > 300/50 Hz 2/4/ 5 (700 W/1000W)/6/8-Channel: > 50/50 Hz |
| THD+N @ Rated Power | Monoblock (600 W/1000 W)/2/4/6/8-Channel: <1% @ 2 Ω per Channel |
| THD+N @ Rated Power: Main Channels | 5-Channel (700 W/1000 W): <1% @ 2 Ω per Channel |
| THD+N @ Rated Power: Subwoofer Channel | 5-Channel (700 W/1000 W): <1% @ 2 Ω per Channel |
| Frequency response (+0, -1dB) | Monoblock (600 W/1000 W): 12 Hz-500 Hz 2/4/6-Channel: 12 Hz-24 kHz 8-Channel: 12 Hz-21 kHz |
| Frequency response (+0, -1dB): Main Channels | 5-Channel (700 W/1000 W): 12 Hz-24 kHz |
| Frequency response (+0, -1dB): Subwoofer Channel | 5-Channel (700 W/1000 W): 12 Hz-1 kHz |
| Input voltage range @ RCA inputs | Monoblock (600 W/1000 W): 250 mV-8 V RMS 2/4/6/8-Channel: 250 mV-16 V RMS |
| Fuse rating | Monoblock (600 W): 50 A Monoblock (1000 W): 80 A 2-Channel: 50 A 4-Channel: 40 A 5-Channel (700 W): 60 A 5-Channel (1000 W): 80 A 6-Channel: 50 A 8-Channel: 80 A |
| Recommended fuse type(s) | AFS, AGU or MaxiFuse™ |
| Min. copper power/Ground wire gauge | 4 AWG wire |
