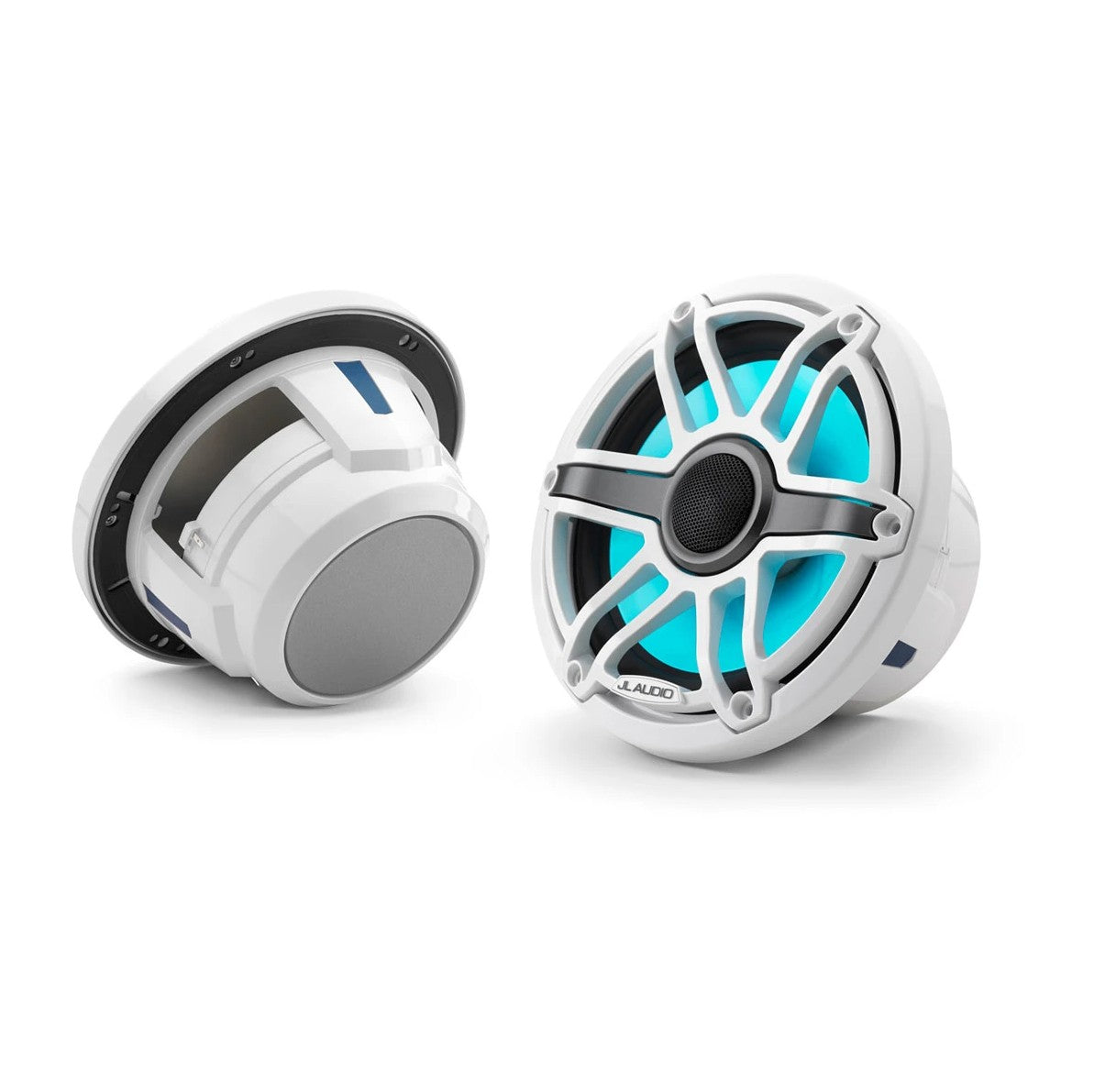

Featuring a long-excursion woofer design paired with a suspended tweeter, M6 marine speakers are designed to yield unmatched frequency response and linear performance at all listening levels.
SUPERIOR OUTPUT AND DETAIL AT ALL LISTENING LEVELS
OFFERED IN 3 SIZES AND 7 LOOKS TO FIT YOUR STYLE
GRILLE AND TRIM RING ARE EASILY REMOVABLE FOR PAINTING

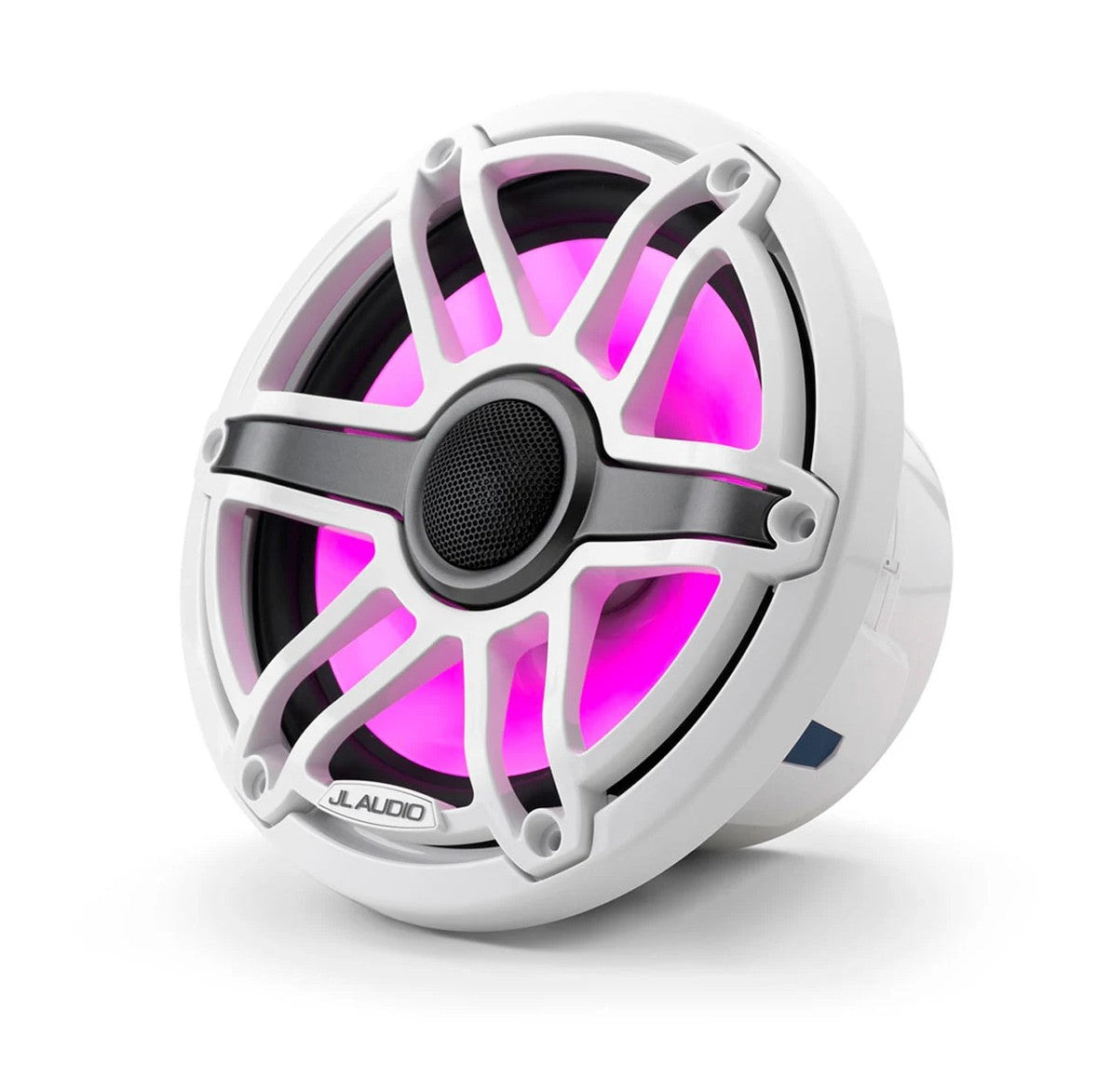

MODELS AVAILABLE WITH PATENTED LED ILLUMINATION
EXCEEDS INTERNATIONAL STANDARDS FOR SALT FOG AND UV EXPOSURE
3-YEAR WARRANTY
SOLD IN PAIRS
SPECS
| Warranty | 3 years |
|---|---|
| Sizes | 6.5"/7.7"/8.8" |
| Color | White Classic, White Sport or Titanium Sport or Luxe Satin Black or Luxe Satin White |
| Physical dimensions (Diameter) | 6.5" (Classic/Sport): 6.90" (175 mm) 6.5" (Luxe): 8.34" (212 mm) 7.7" (Classic/Sport): 7.70" (196 mm) 7.7" (Luxe): 9.13" (232 mm) 8.8" (Classic/Sport): 8.80" (224 mm) 8.8" (Luxe): 10.25" (260 mm) |
| Physical dimensions (Depth) | 6.5" (Classic): 3.94" (100 mm) 6.5" (Sport/Luxe): 4.02" (102 mm) 7.7" (Classic): 4.35" (110 mm) 7.7" (Sport/Luxe): 4.4" (112 mm) 8.8" (Classic): 6.37" (162 mm) 8.8" (Sport/Luxe): 6.45" (164 mm) |
| Speaker type | Coaxial |
| Continuous power handling (RMS) | 6.5": 75 W 7.7": 100 W 8.8": 125 W |
| Sensitivity (SPL @ 1 W/1 m) | 6.5": 89.5 dB 7.7": 91.0 dB 8.8": 90.5 dB |
| Frequency response (+/- 3 dB) | 6.5": 55 Hz-25 kHz 7.7": 45 Hz-25 kHz 8.8": 38 Hz-25 kHz |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 6.5": 25-150 W/Channel 7.7": 40-200 W/Channel 8.8": 50-250 W/Channel |
| LED lighting | yes - Transflective™ (selected Sport models only) |
| LED supply voltage | 10-14.4 VDC |
| LED Load Current @ 14.4 VDC (max) | 6.5"/7.7": 324 mA 8.8": 486 mA |
| Cone material | Injection-molded, mica-filled polypropylene |
| Tweeter type | Silk Dome |
| Tweeter size | 6.5": 0.8" (20 mm) 7.7": 1" (25 mm) 8.8": 1.25" (32 mm) |
Networking & Connections |
|

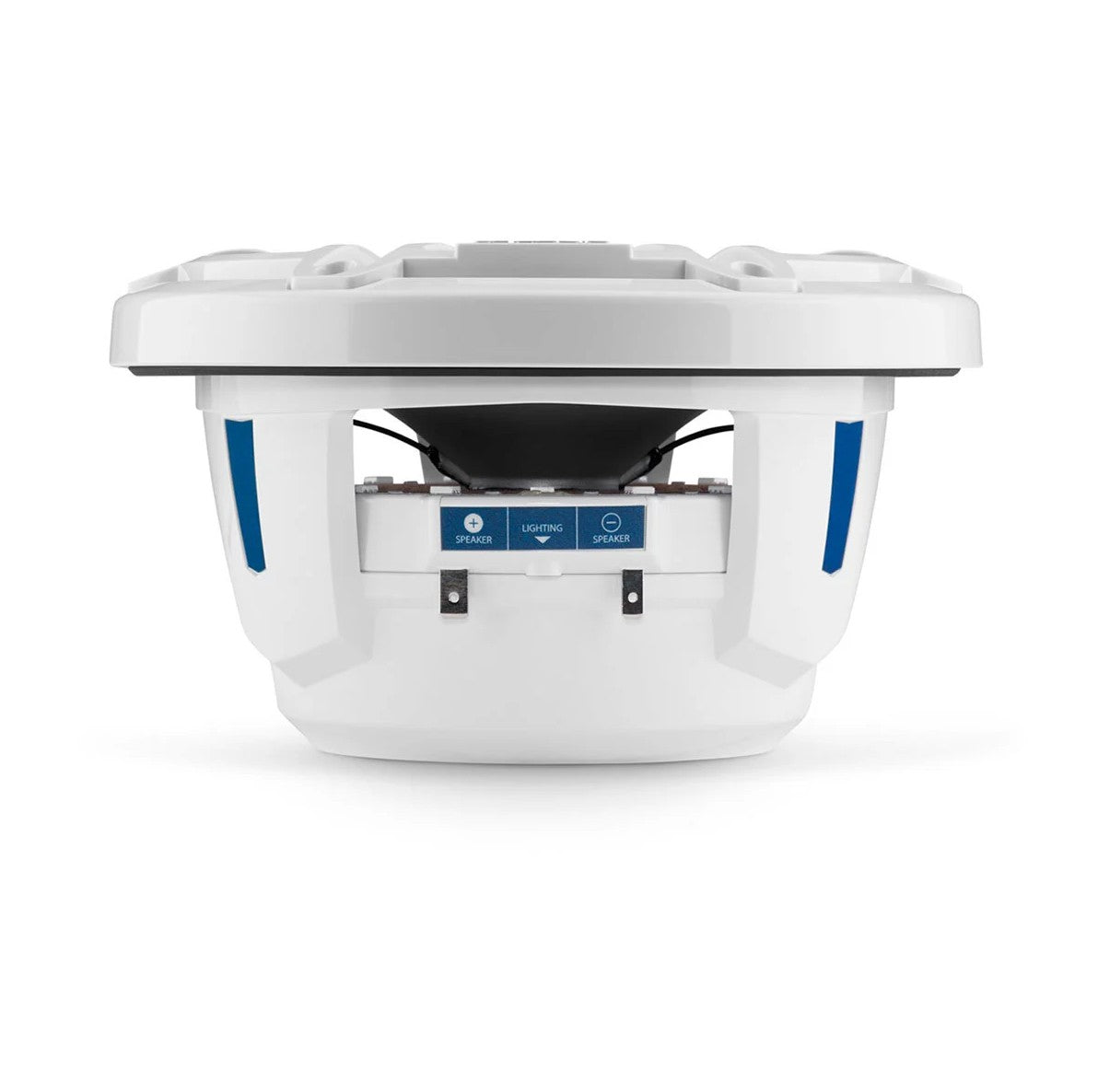

| Speaker connections | Spade Connectors |
|---|---|
| LED connection | Flying Lead with 4-conductor 20 AWG wire (selected Sport models only) |
Mounting Dimensions |
|
| Mounting depth clearance | 6.5" (Classic/Sport): 3" (76 mm) 6.5" (Luxe): 3.87" (98 mm) 7.7" (Classic/Sport): 3.32" (84 mm) 7.7" (Luxe): 4.26" (108 mm) 8.8" (Classic/Sport): 5" (127 mm) 8.8" (Luxe): 6.30" (160 mm) |
|---|---|
| Frontal grille protrusion | 6.5": 0.94" (24 mm) 6.5" (Sport): 1.02" (26 mm) 6.5" (Luxe): 0.37" (9 mm) 7.7": 1.03" (26 mm) 7.7" (Sport): 1.08" (27 mm) 7.7" (Luxe): 0.38" (10 mm) 8.8": 1.37" (35 mm) 8.8" (Sport): 1.45" (37 mm) 8.8" (Luxe): 0.48" (12 mm) |
| Mounting hole | 6.5" (Classic/Sport): 5"-5.25" (127-133 mm) 6.5" (Luxe): 6.75" (172 mm) 7.7" (Classic/Sport): 6.25" (159 mm) 7.7" (Luxe): 7.50" (191 mm) 8.8" (Classic/Sport): 7.375" (187 mm) 8.8" (Luxe): 8.625" (219 mm) |
| Bolt hole circle | 6.5" (Classic/Sport): 6.13" (156 mm) 6.5" (Luxe): 7.39" (188 mm) 7.7" (Classic/Sport): 6.92" (176 mm) 7.7" (Luxe): 8.18" (208 mm) 8.8" (Classic/Sport): 7.97" (202 mm) 8.8" (Luxe): 9.27" (235 mm) |
Additional |
|
| Additional |
The enclosure recommendations listed above are external dimensions which assume the use of 0.75" (19 mm) thick material. If you are using 0.625" (16 mm) thick material, subtract 0.25" (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625" (16 mm) as this may compromise the rigidity of the enclosure. All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account. When using multiples in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support. We recommend the use of this in a bi-amplified system using high-quality satellites and a high-quality amplifier. We do not recommend the use of this with a passive crossover (coil), as this type of device will adversely affect performance. |
|---|---|
