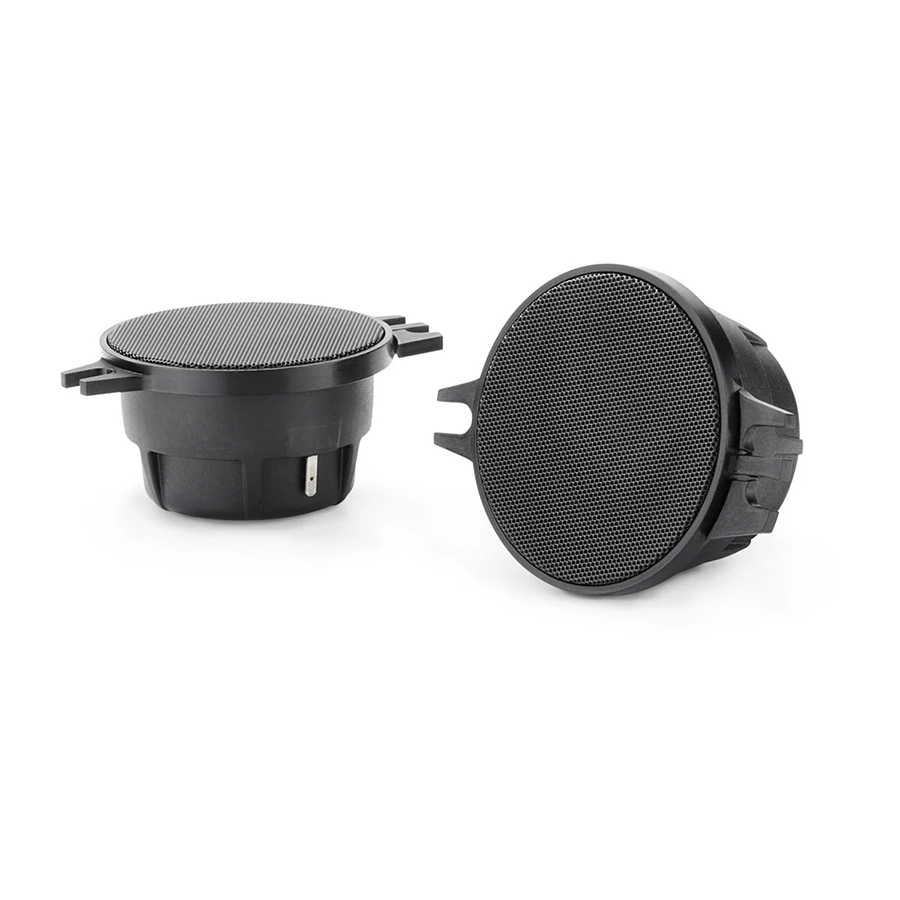

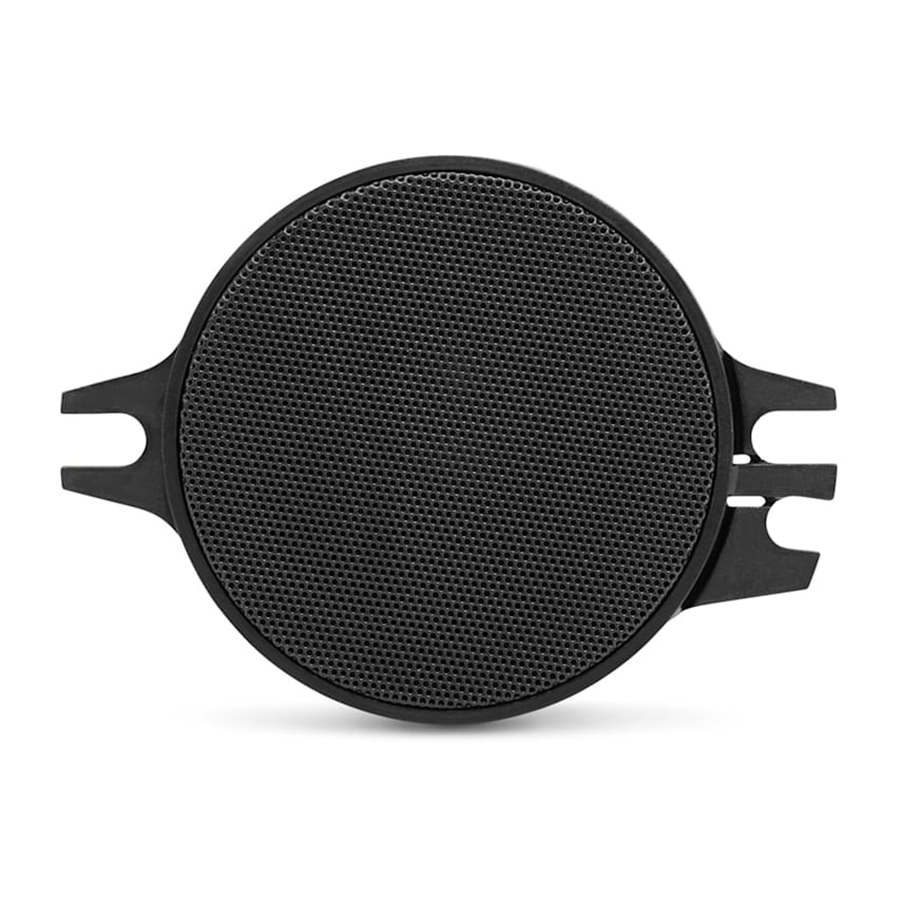

JL Audio CF275SMT 2.75" Component Mid-Tweeter For Ram/Toyota/GM (Single)

SOLD IN SINGLES

GREAT SOUND AND A PERFECT FIT

These custom-fit (CF) speakers from JL Audio are engineered to deliver incredible audio output with easy installation in some of the most popular vehicles, including many Ram, Toyota, Chevrolet and GMC models. The unique frame designs offer seamless, drop-in installation in existing factory speaker locations.

Part Number: 010-03890-00

Key Features

• Direct fit in popular vehicles
• Unique frames and adapter plates offer an easy fit
• Component drivers for active systems
• Sold individually for flexible system design

Features

• ENGINEERED FOR PERFORMANCE: For efficiency and extended high-frequency response, each driver in the CF series features a unique cone and surround material combination. The speakers can be used as individual drivers for flexible system design in active systems.
• DMA-OPTIMIZED SPEAKERS: Proprietary motor, suspension and cone modeling systems are used to achieve outstanding linearity, low distortion and stellar sound quality. A flat, linear profile spider promotes linear compliance, while a robust motor structure delivers superior power handling and better overall fidelity at high levels.
• ADVANCED FRAME DESIGN: Benefiting from years of design experience, all of the CF midtweeters feature glass-filled, high-temperature polymer frames outfitted with insert-molded terminals and unique frame designs for easy, drop-in installation.
• MADE TO FIT: CF component drivers are available in a 6-by-9-inch woofer or a 2.75-inch midtweeter to provide easy, direct installation in a variety of existing OEM interior configurations.
• POWERFULLY ADAPTABLE: When powered by an amplifier, the CF speaker system delivers superb sound in a wide range of car audio applications.

Specs

• Size 2.75"
• Continuous power handling (RMS) 2.75": 40 W
• Sensitivity (SPL @ 1 W/1 m) 2.75": 86.5 dB
• Frequency response (+/- 3 dB) 2.75": 410 Hz-20 kHz
• Nominal impedance 4
• Recommended amplifier power (RMS) 2.75": 25-75 W/Channel
• Cone material Mineral-filled polypropylene
• Grille(s) included Yes
• Frame outer diameter 2.75": 2.85" (72 mm)
• Mounting depth clearance 2.75": 1.45" (37 mm)
• Frontal grille protrusion 2.75": 0.28" (7 mm)
