JL Audio C6650 6.5" 2-Way Component C2 Car Speakers

PRECISE CAR AUDIO FIDELITY AND PERFORMANCE

Born from the same DNA as our flagship JL Audio C7 speakers, the C6 series component system combines the smoothness and transparency of a premium silk dome tweeter with a top-flight 6.5-inch woofer to create a loudspeaker system with exceptional refinement and dynamic capability.

Part Number: 010-03391-00

Key Features

• Enjoy crisp, powerful midbass impact with ultralow distortion
• Sold as two-way or three-way component systems

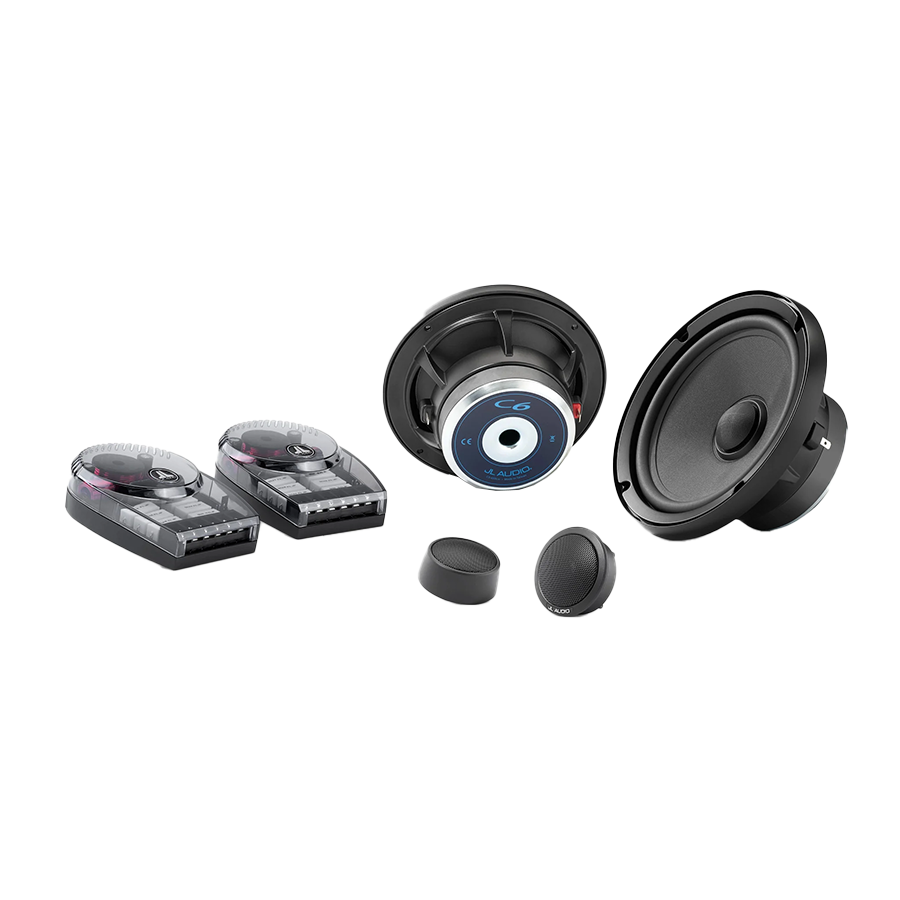

• C6 component systems include adjustable passive crossover networks
• Cast-alloy woofer design features elevated frame cooling™ technology

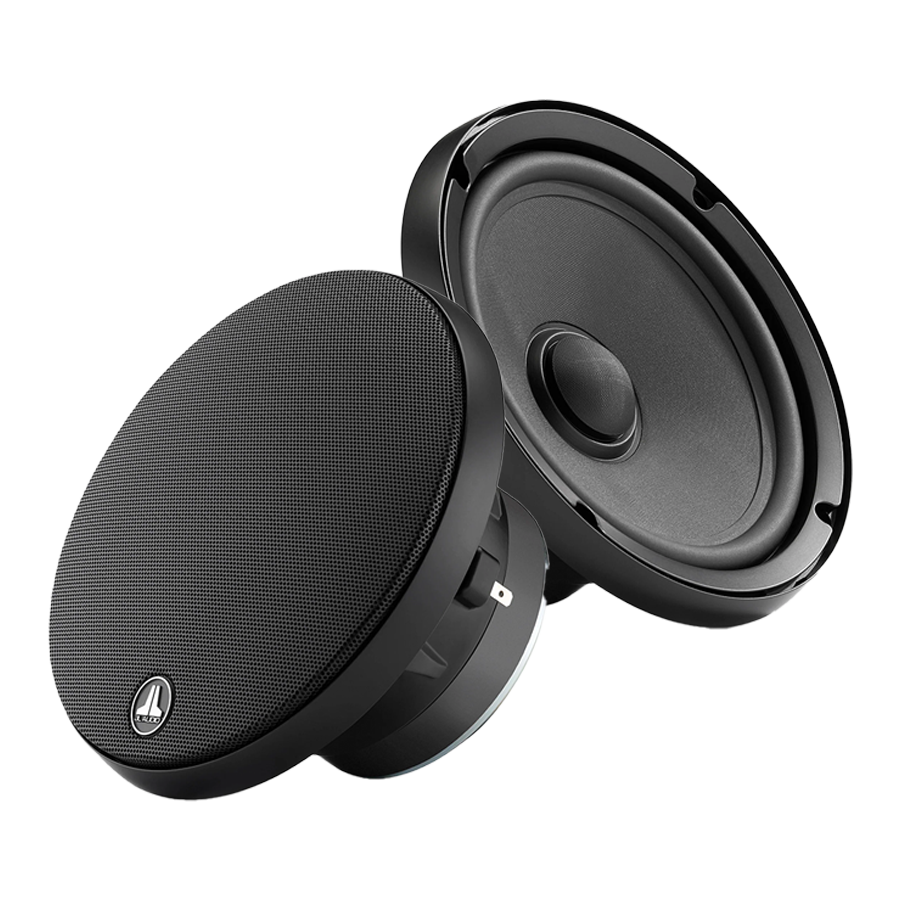

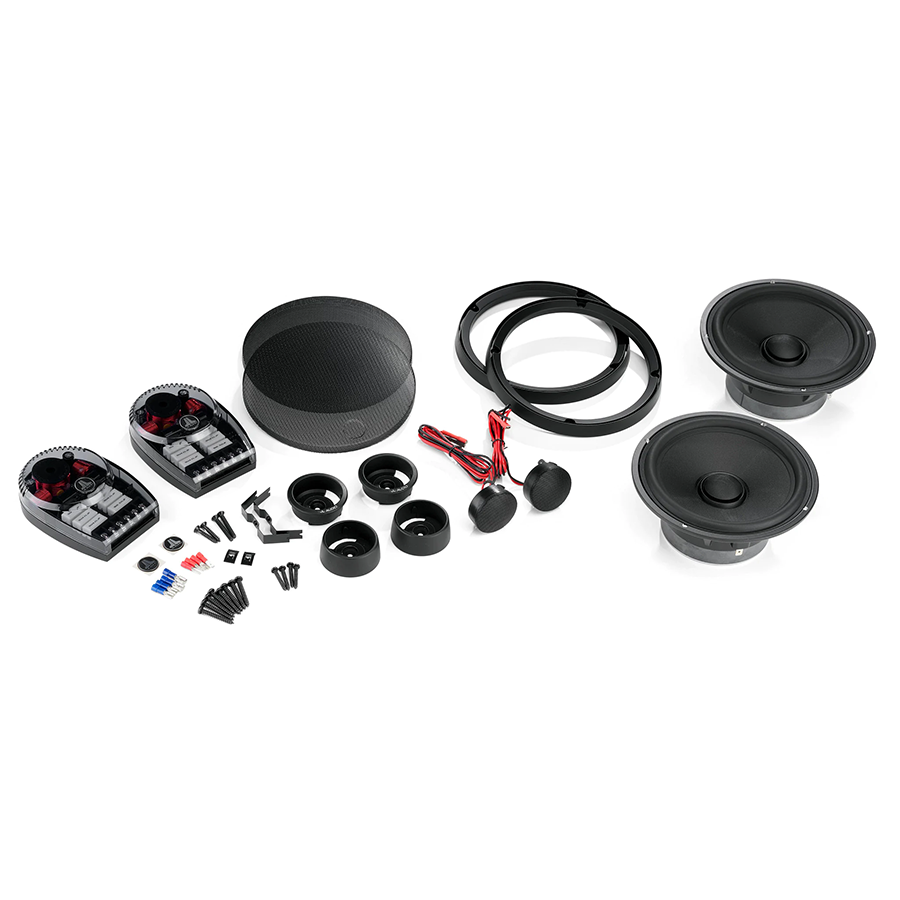

• Speaker system includes mesh grilles and mounting fixtures

Features

• PREMIUM AUDIO QUALITY Pairing a full-frame 6.5-inch woofer with a 1-inch silk dome tweeter, the C6 series offers advanced sound technology for an exceptional car audio listening experience. When purchased as a component system, premium passive crossover networks are included with the speakers.
• DMA-OPTIMIZED WOOFERS Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar sound quality. The woofer’s center cap is designed to optimize its high-frequency response for seamless tweeter transition.

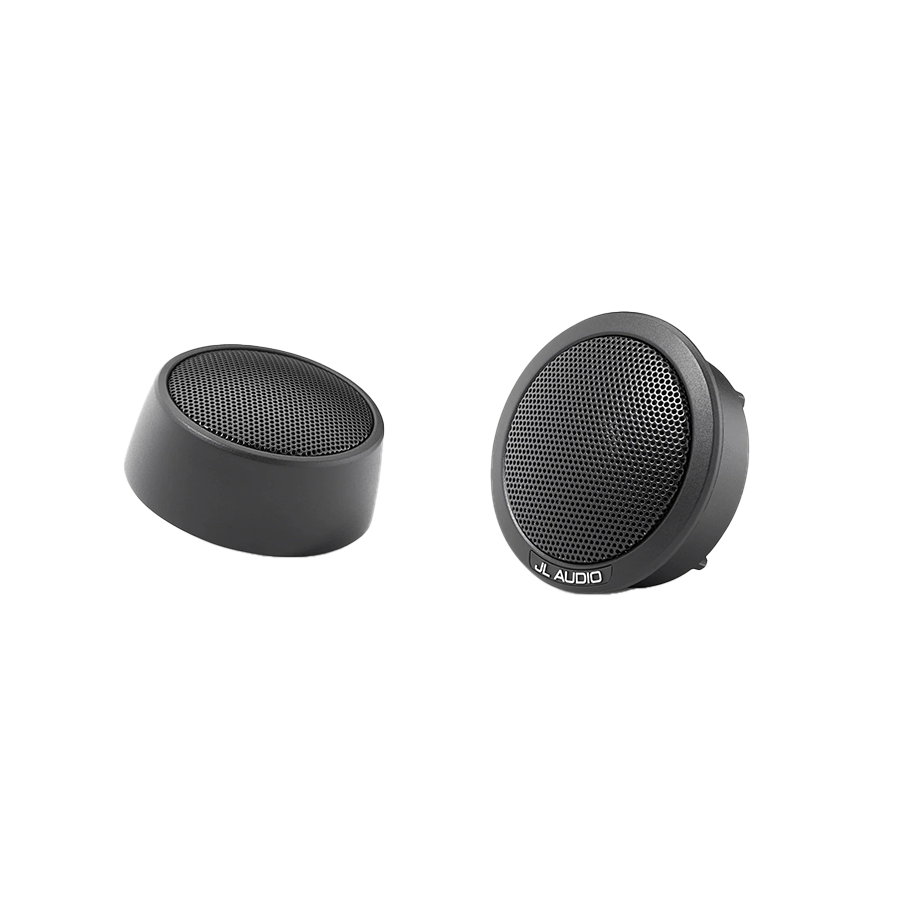

• SILK DOME TWEETERS An edge-driven pure silk dome tweeter design, when paired with the C6 woofer, produces sparkling detail with excellent off-axis response and damping for balanced coverage in your listening environment. An automatic, solid-state tweeter protection circuit minimizes the possibility of tweeter failure.
• PASSIVE CROSSOVER NETWORKS Included with each C6 component system, these premium filter networks offer 4 levels of tweeter adjustment. The three-way component system includes an additional 4 levels of midrange adjustment. All incorporate polyester film and electrolytic capacitors as well as low-loss air-core inductors — all accessible beneath a protective polycarbonate cover.

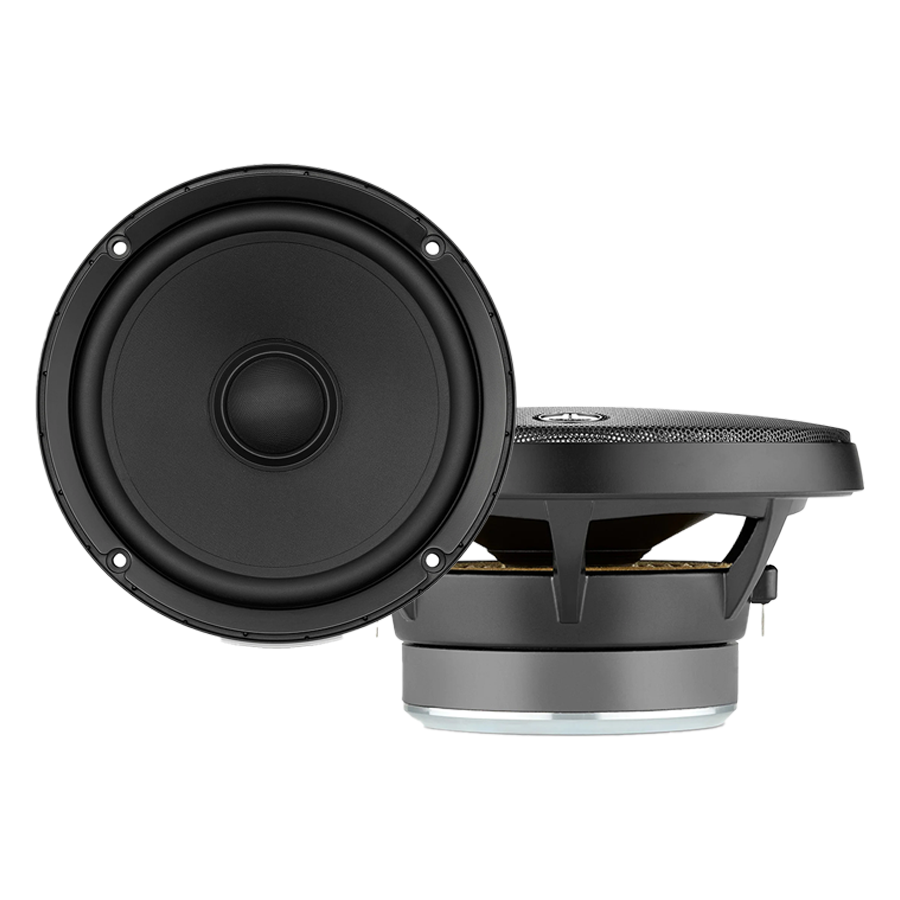

• ADVANCED FRAME DESIGN Benefiting from years of woofer design experience, the robust JL Audio 6.5-inch C6 component speakers feature purpose-engineered cast-alloy frames outfitted with our Elevated Frame Cooling technology.
• POWERFULLY ADAPTABLE On a wide range of car audio applications, the C6 speaker system delivers superb sound when powered by an amplifier in the 25- to 150-watt range. The woofer’s oversized voice coil offers extended power handling capability while minimizing thermal compression and distortion at higher volume levels.

Specs

• Size 6.5"
• Continuous power handling (RMS) 100 W
• Sensitivity (SPL @ 1 W/1 m) 87.37 dB
• Sensitivity (SPL @ 2.83 V/1 m) 90.33 dB
• Frequency response (+/- 3 dB) 53 Hz-21 KHz
• Nominal impedance 4
• Recommended amplifier power (RMS) 25-150 W/Channel
• Cone material Vacuum-formed, mineral-filled polypropylene
• Tweeter type Silk Dome
• Tweeter size 1" (25 mm)
• Grille Included
• Frame outer diameter 6.5" (165 mm)
• Mounting depth clearance 2.60" (66 mm)
• Frontal grille protrusion 1" (25 mm)
• Mounting hole 5.46" (139 mm)
• Grille tray outer diameter 6.76" (172 mm)
• Bolt hole circle 6.12" (156 mm)
• Motor outer diameter 3.54" (90 mm)
• Free Air Resonance (FS) 52.8Hz
• Electrical “Q” (Qes) 0.647
• Mechanical “Q” (Qms) 5.076
• Total “Q” (Qts) 0.574
• Equivalent Compliance (Vas) 0.532 cu ft (15.069 L)
• One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied) 0.148" (3.75 mm)
• Reference Efficiency (NO) 0.344%
• Moving mass (Mms) 16.42 g
• Mechanical compliance (Cms) 0.000581 m/N
• Magnetic strength (BL) 5.186 N/A
• Effective piston area (SD) 21.4 in² (0.013807 m²)
• DC resistance (RE) 3.58
