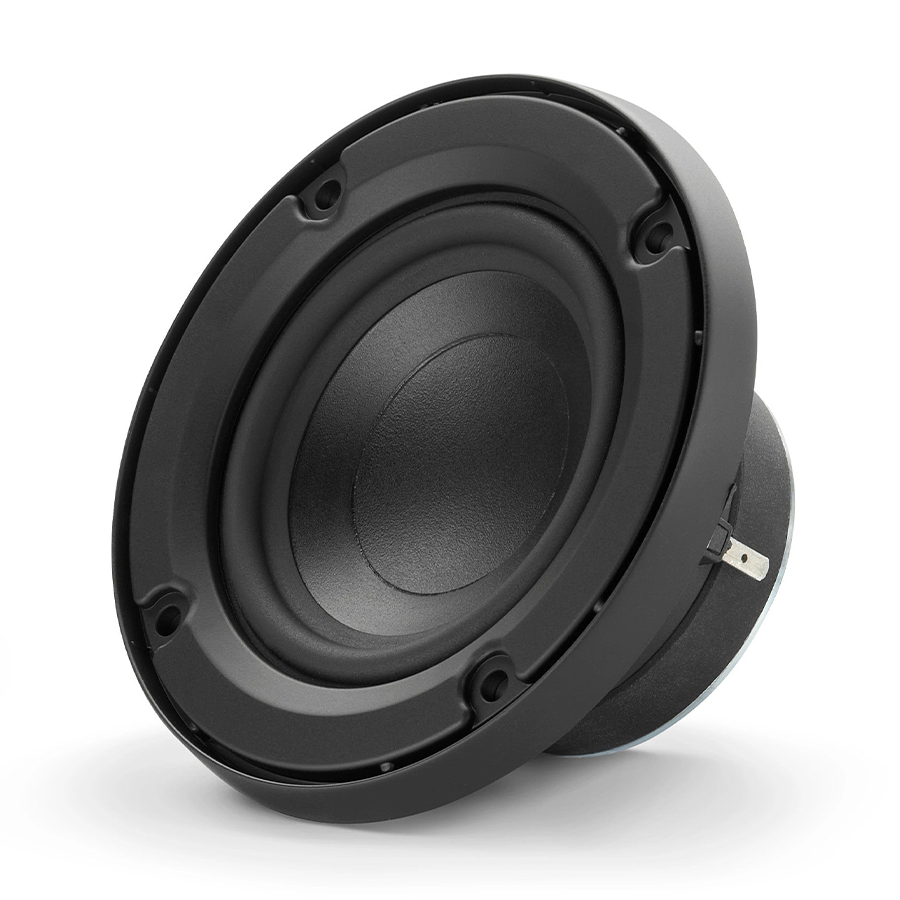

JL Audio C6275CM 2.75" 2-Way Component Midrange C6 Car Speaker - (Single)

BRING REFINED FIDELITY TO YOUR CAR AUDIO SYSTEM

Born from the same DNA as our flagship JL Audio C7 speakers, the C6 series component drivers let you team premium, pure silk dome tweeters with highly linear woofers to create a loudspeaker system of exceptional refinement, precision and dynamic capability.

Part Number: 010-03845-00

Key Features

• Premium component drivers for active systems
• Sold individually for flexible system design
• Available in 3 sizes: 6.5-inch woofer; 2.75-inch midrange; and 1-inch tweeter
• Cast-alloy woofer design features elevated frame cooling technology

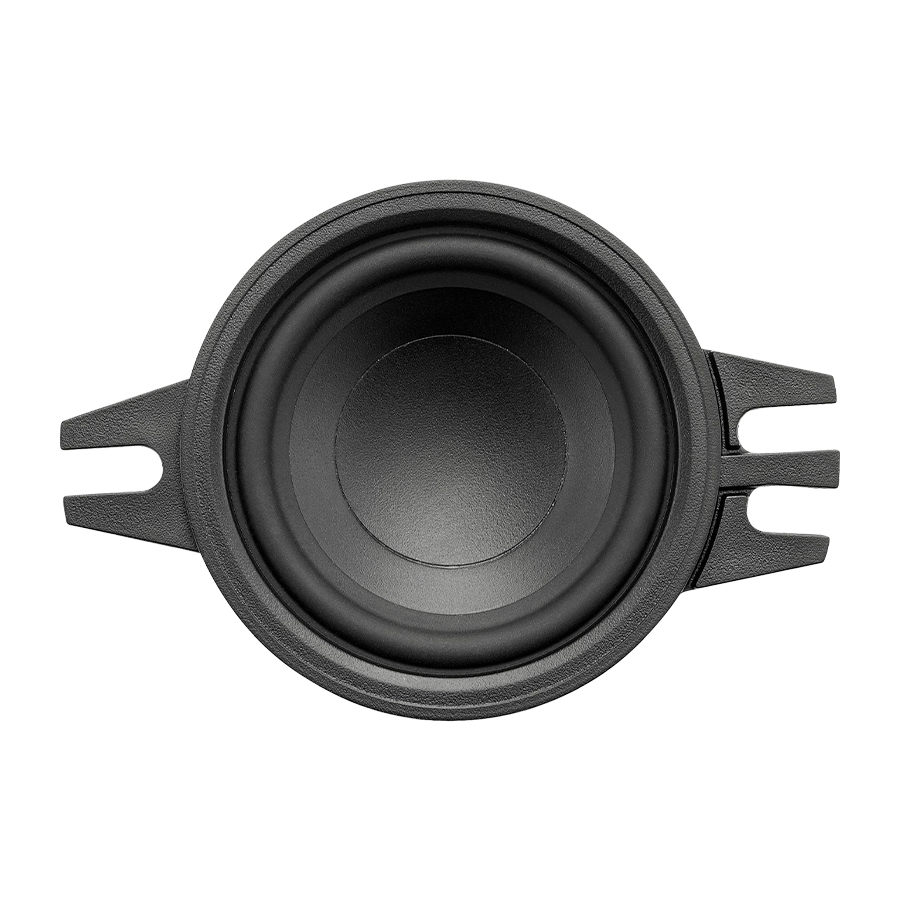

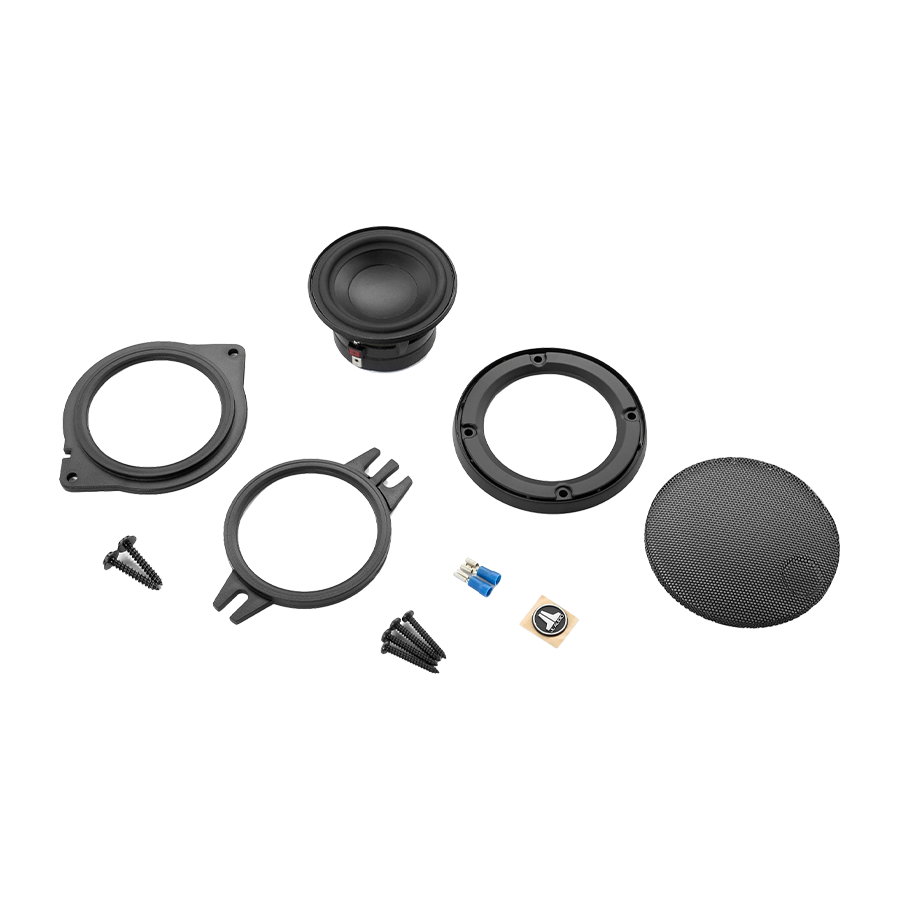

• Surface- and flush-mount fixtures are included

Features

• PREMIUM AUDIO QUALITY Pairing full-frame 6.5-inch or 2.75-inch woofers with 1-inch silk dome tweeters, the C6 series drivers offer advanced sound technology for an exceptional car audio listening experience. Passive crossover networks are not included with the C6 drivers, as they are designed for active systems.
• DMA-OPTIMIZED WOOFERS Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar sound quality. The woofer’s center cap is designed to optimize its high-frequency response for seamless tweeter transition.
• SILK DOME TWEETERS An edge-driven pure silk dome tweeter design, when paired with the C6 woofer, produces sparkling detail with excellent off-axis response and damping for balanced coverage in your listening environment. An automatic, solid-state tweeter protection circuit minimizes the possibility of tweeter failure.
• DESIGNED FOR ACTIVE CROSSOVERS A high-quality tuning Digital Signal Processor (DSP) — such as the TwK® DSP or a VXi amplifier with built-in DSP — is recommended. Using individual amplifier channels for each C6 speaker enables the system designer to achieve precise setup of equalization, delay and crossover filters for optimal in-vehicle performance.

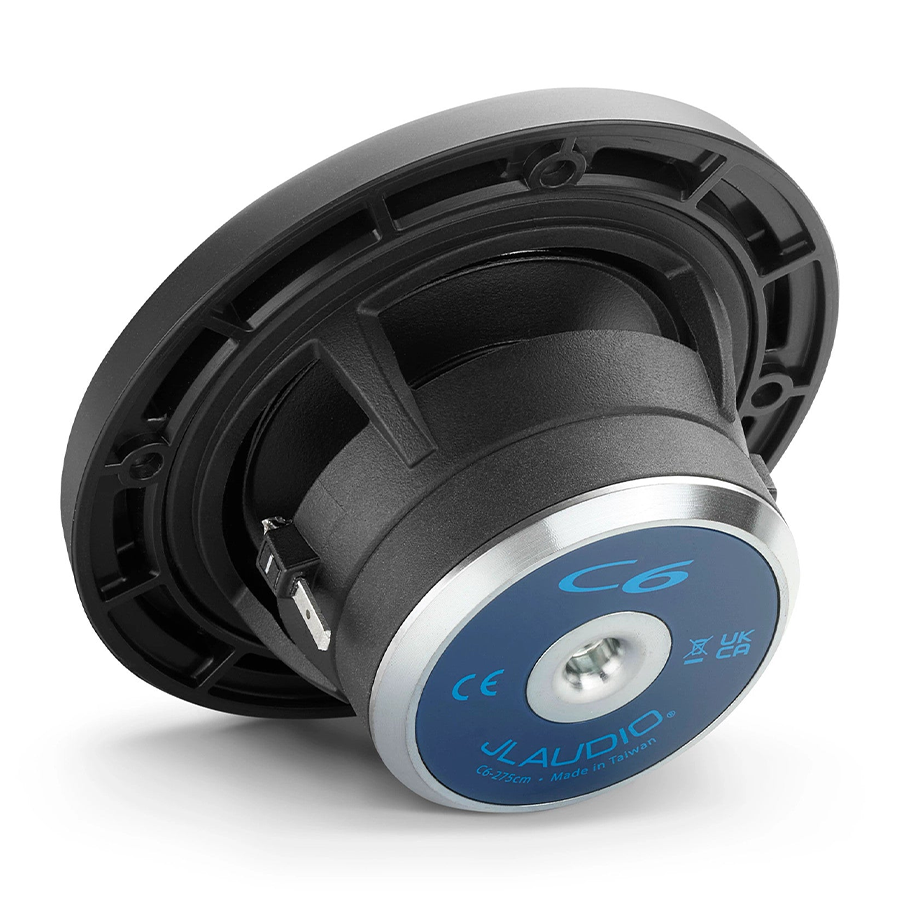

• ADVANCED FRAME DESIGN Benefiting from years of woofer design experience, the robust JL Audio C6 series component speakers feature purpose-engineered cast-alloy frames outfitted with our patented Elevated Frame Cooling technology to enhance airflow, power handling and audio quality.
• POWERFULLY ADAPTABLE On a wide range of car audio applications, the C6 series speakers deliver superb sound when powered by your amplifier in the 25- to 150-watt range. The woofer’s oversized voice coil offers extended power handling capability while minimizing thermal compression and distortion at higher volume levels.

Specs

• Size 2.75"
• Continuous power handling (RMS) 50 W
• Sensitivity (SPL @ 1 W/1 m) 83.50 dB
• Sensitivity (SPL @ 2.83 V/1 m) 86.50 dB
• Frequency response (+/- 3 dB) 350 Hz-4.8 KHz
• Nominal impedance 4
• Recommended amplifier power (RMS) 25-80 W/Channel
• Cone material Vacuum-formed, mineral-filled polypropylene
• Tweeter type Silk Dome
• Tweeter size 1" (25 mm)

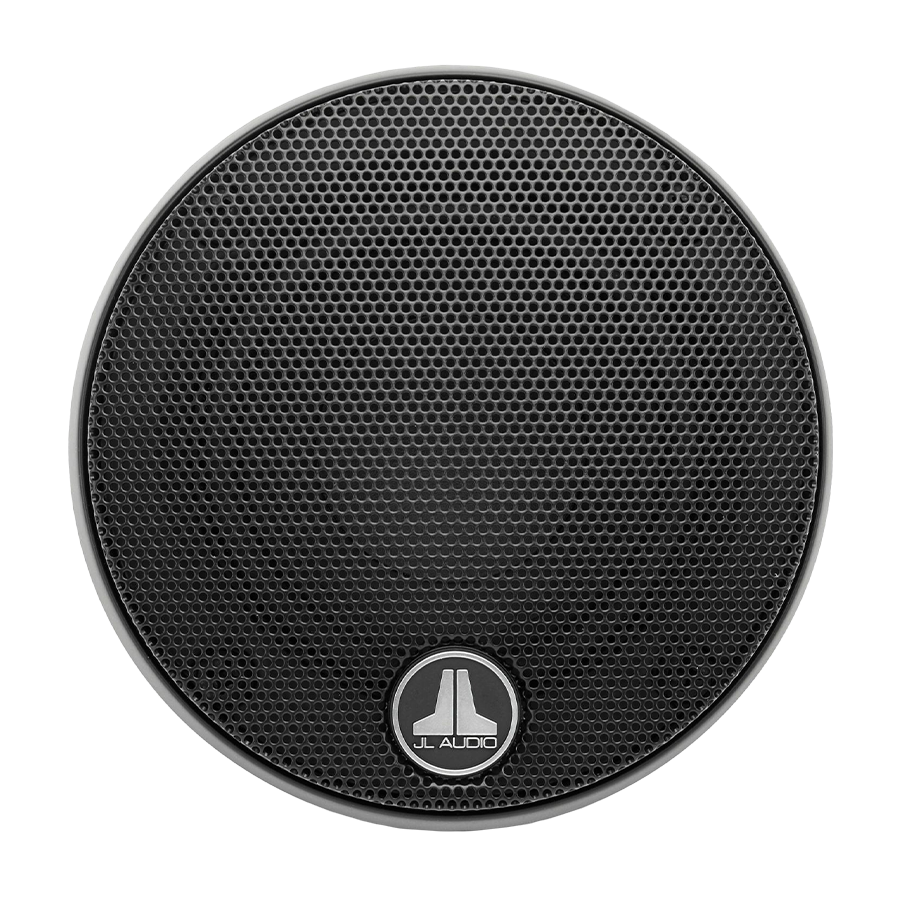

• Grille Included
• Frame outer diameter 2.52" (77 mm)
• Mounting depth clearance 1.42" (36 mm)
• Frontal grille protrusion 0.47" (12 mm)
• Mounting hole 2.52" (64 mm)
• Grille tray outer diameter 3.58" (91 mm)
• Bolt hole circle 3.03" (77 mm)
• Motor outer diameter 2.75" (69 mm)
• Free Air Resonance (FS) 185 Hz
• Electrical “Q” (Qes) 0.769
• Mechanical “Q” (Qms) 7.848
• Total “Q” (Qts) 0.700
• Equivalent Compliance (Vas) 0.0353 cu ft (0.125 L)
• One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied) 0.059" (1.50 mm)
• Reference Efficiency (NO) 0.1414%
• Moving mass (Mms) 4.65 g
• Mechanical compliance (Cms) 0.00031 m/N
• Magnetic strength (BL) 5.03
• Effective piston area (SD) 3.66 in² (0.00236 m²)
• DC resistance (RE) 3.58
