JL Audio C3-570 5 x 7 Two-way Coaxial/Component System

JL Audio • Sound System

$529.99

Free Shipping on Orders Above $199
Add to Cart to See Additional Discounts!

Price Matching

Fast Shipping

Live Support

Deep Discounts

OUTSTANDING PERFORMANCE. MAXIMUM VERSATILITY.

Get the perfect installation — whether it’s a separate woofer and tweeter or a coaxial system. With C3 convertible component systems, the same product can be deployed in either configuration while delivering amazing sound quality.

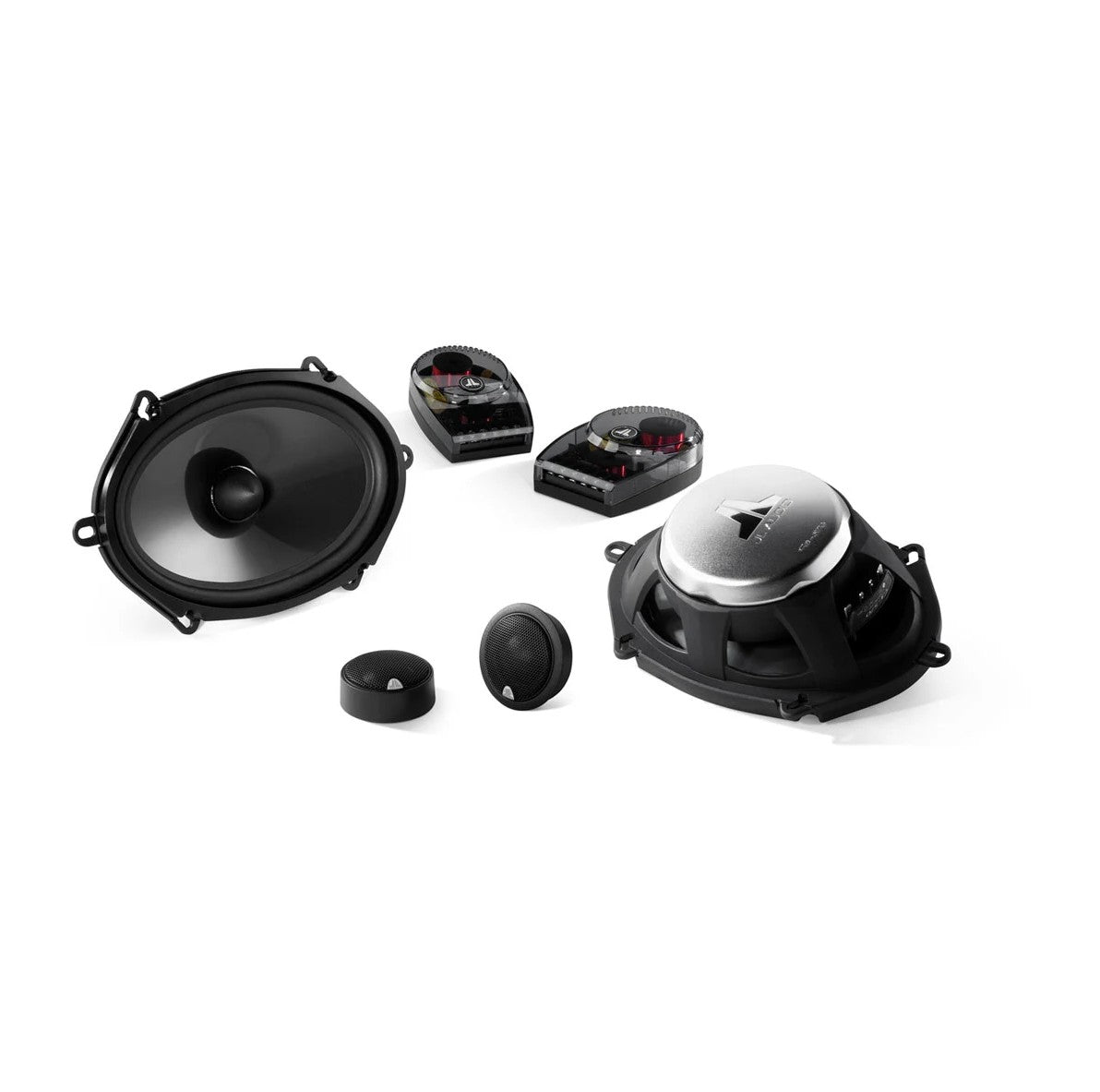

CONVERTIBLE COMPONENTS FOR MORE FLEXIBLE INSTALLATIONS

ELEVATED FRAME COOLING^™ SPEAKER DESIGN IMPROVES POWER HANDLING

DMA-OPTIMIZED WOOFERS FOR BETTER BASS RESPONSE

PURE SILK DOME TWEETERS FOR SMOOTHER, CLEANER SOUND

TRUE TWO-WAY OUTBOARD CROSSOVERS

1-YEAR WARRANTY

Warranty	1 year
Sizes	1"/5 x 7"/5.25"/6"/6.5"
Continuous power handling (RMS)	75 W
Sensitivity (SPL @ 1 W/1 m)	90 dB 6": 89.5 dB
Frequency response (+/- 3 dB)	5.25"/5 x 7"/6.5": 48 Hz-25 KHz ± 3 dB 6": 48 Hz-25 KHz 1": 4 kHz-25 KHz
Nominal impedance	4 Ω
Recommended amplifier power (RMS)	25-150 W/Channel
Voice coil diameter	1.2" (30 mm)
Cone material	Mineral-filled polypropylene
Tweeter type	Silk Dome
Tweeter size	1" (25 mm)
Grille(s) included	yes (5 x 7": no)

Networking & Connections
Speaker connections	Spade connectors

Mounting Dimensions
Frame outer diameter	5.25": 5.80" (147 mm) 5 x 7": 5.52 x 7.68" (140 x 195 mm) 6": 6.21" (157.7 mm) 6.5": 6.5" (165 mm)
Mounting depth clearance	5.25": 2.27" (58 mm) 5 x 7": 2.52" (64 mm) 6": 2.49" (63 mm) 6.5": 2.55" (65 mm)
Frontal grille protrusion	5.25": 1" (25 mm) 6"/6.5": 1.03" (26.2 mm)
Mounting hole	5.25": 4.56" (116 mm) 6": 5" (127 mm) 6.5": 5.56" (141 mm)
Grille tray outer diameter	5.25": 6" (152 mm) 6": 6.46" (164.1 mm) 6.5": 6.74" (171 mm)
Motor outer diameter	4.08" (104 mm) 5.25": 3.38" (86 mm)
Frontal coaxial tweeter protrusion (frontal grille protrusion measured from mounting surface)	5.25": 0.69" (18 mm) 5 x 7": 0.78" (20 mm) 6": 0.81" (20.6 mm) 6.5": 0.75" (19 mm)

Tweeter Specifications
Flush mount fixture diameter	2.12" (54 mm)
Surface mount fixture diameter	1.9" (49 mm)
Flush mount mounting hole diameter	1.875" (48 mm)
Flush mount mounting depth	0.71" (18 mm)
Flush mount tweeter frontal protrusion	0.32" (8 mm)
Surface mount tweeter frontal protrusion	0.95" (24 mm)

Crossover Specifications
Width	3.36" (85 mm)
Height	1.44" (37 mm)
Depth	4.72" (120 mm)
