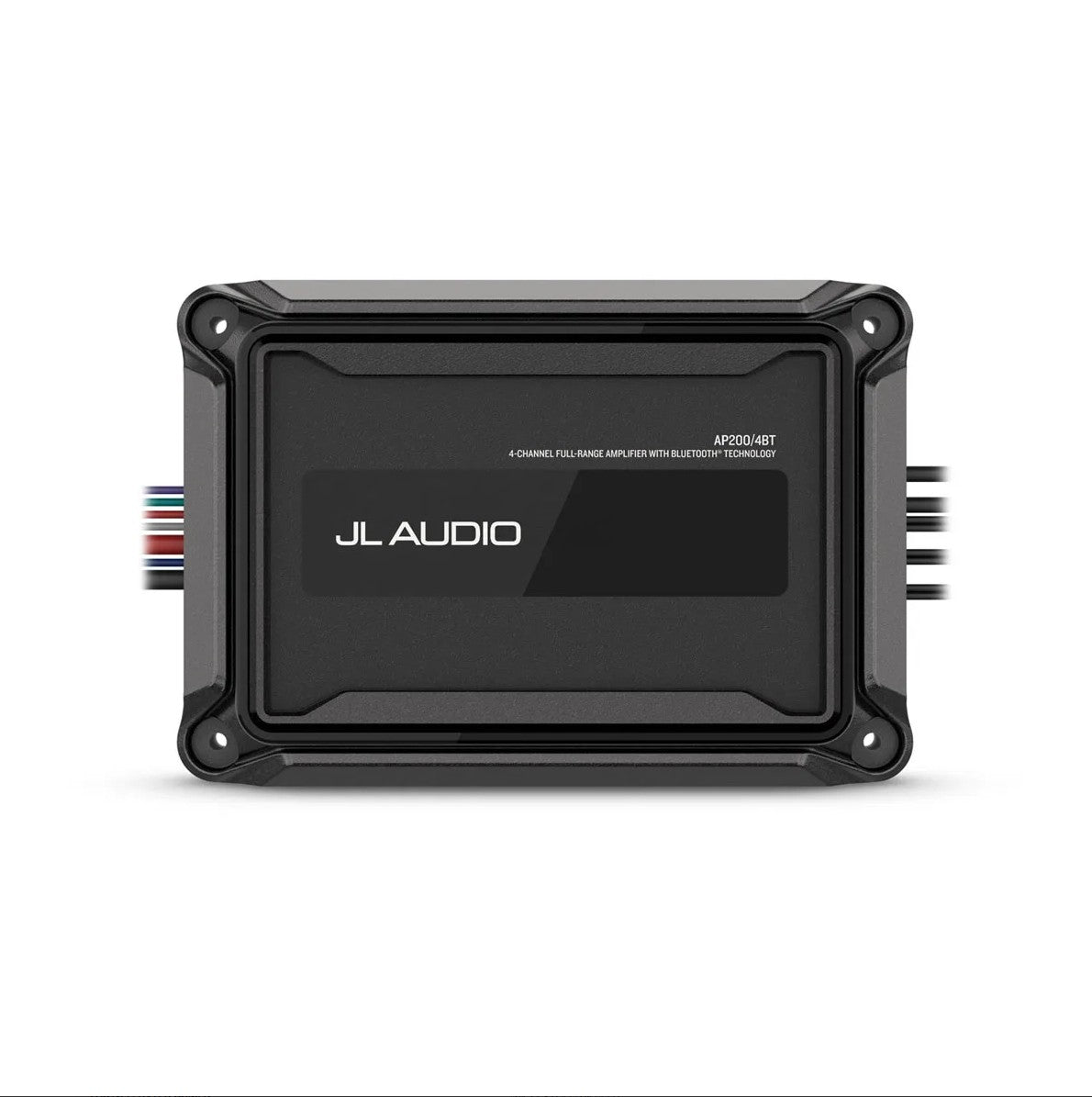

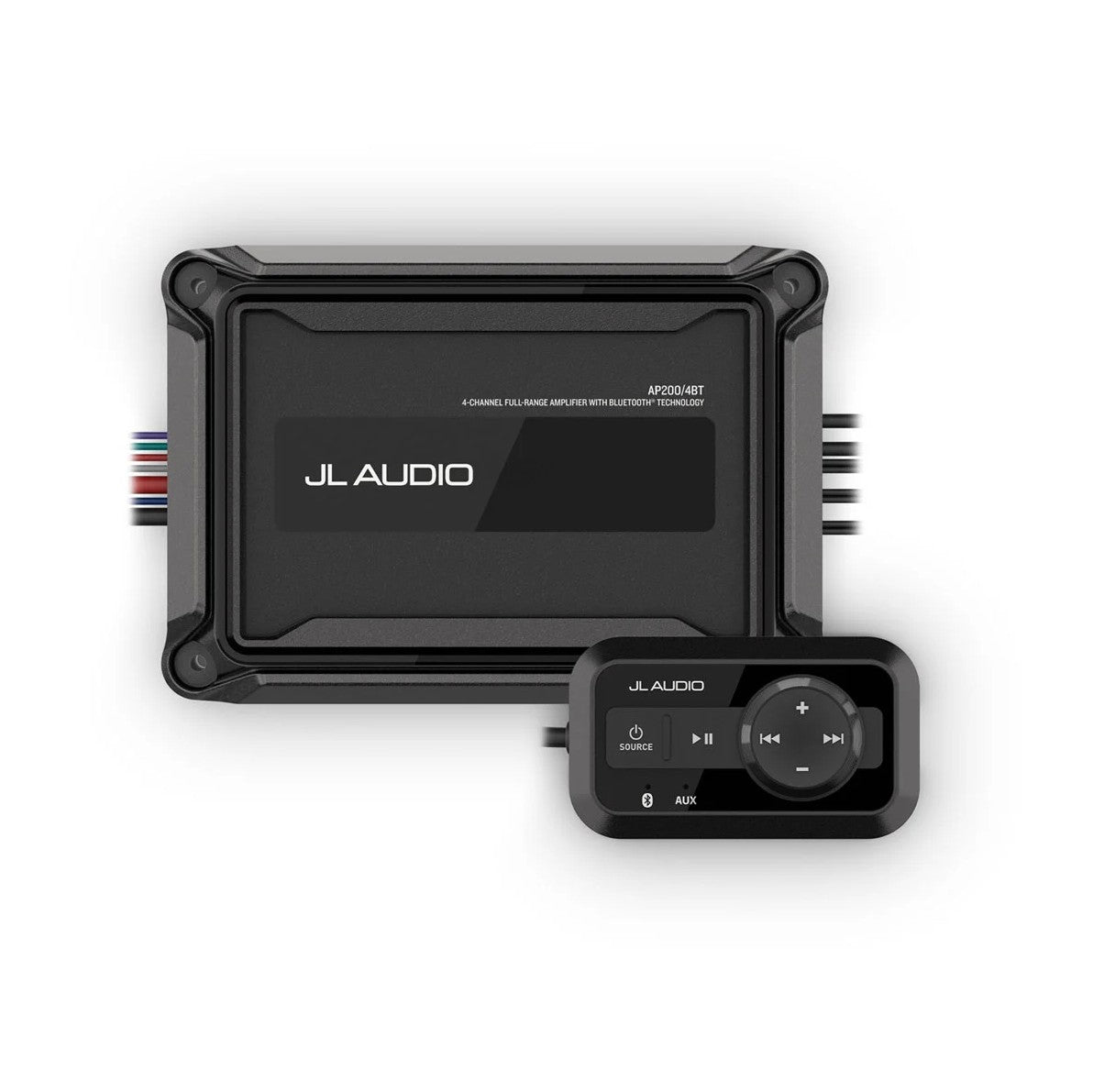

JL Audio AP200/BT 4 Channel Compact Marine Amplifier with Bluetooth Technology

EFFICIENT CLASS-D DESIGN

STREAM AUDIO WITH BLUETOOTH TECHNOLOGY

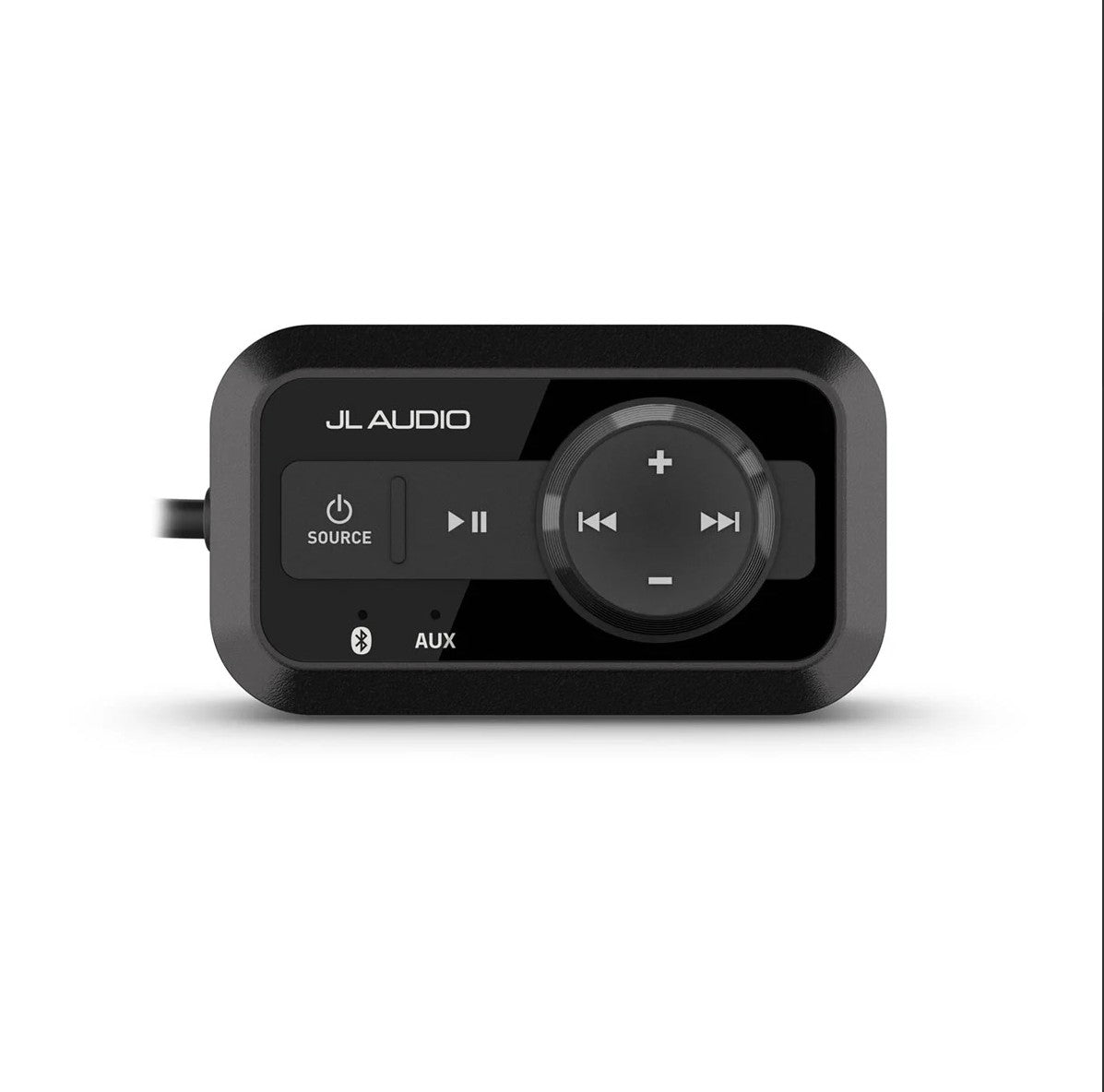

INCLUDES WIRED REMOTE

IGNITION PROTECTED AND IP67-RATED (EXCLUDING CABLES)

COMPACT BUILD

SPECS

General
Warranty    3 years
Channels    4 Channel
Physical dimensions (Height)    1.85" (47 mm)
Physical dimensions (Width)    7.28" (185 mm)
Physical dimensions (Depth)    4.90" (125 mm)
Operating voltage    9-16 VDC
Water and dust rating    IP67
Operating temperature range    4° to 149° F (-20° to 65° C)
Audio
Amplifier class    Class D
Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD)
40 W x 4/100 W x 2 (Bridged)

Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD)
50 W x 4

Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs    >70 dB
THD+N @ Rated Power    <1% @ 4 Ω per Channel
Frequency response (+0, -1dB)    20 Hz-20 kHz
Input voltage range @ RCA inputs    Switchable from 200 mV-2 V RMS (Low) to 800 mV-8 V RMS (High)
Input impedance    11 kΩ (High)
20 kΩ (Low)
Current consumption (Standby)    <1mA
Current consumption (Idle)    <700-750mA
Fuse rating    35A
Recommended fuse type(s)    AFS, AGU or MaxiFuse™
Min. copper power/Ground wire gauge    4 AWG wire

Protection circuits    Input under/over voltage
                                 Over temperature
                                 Output short circuit
                                 Signal Processing
Bass boost EQ (0 to +18 dB @ 37 Hz)
