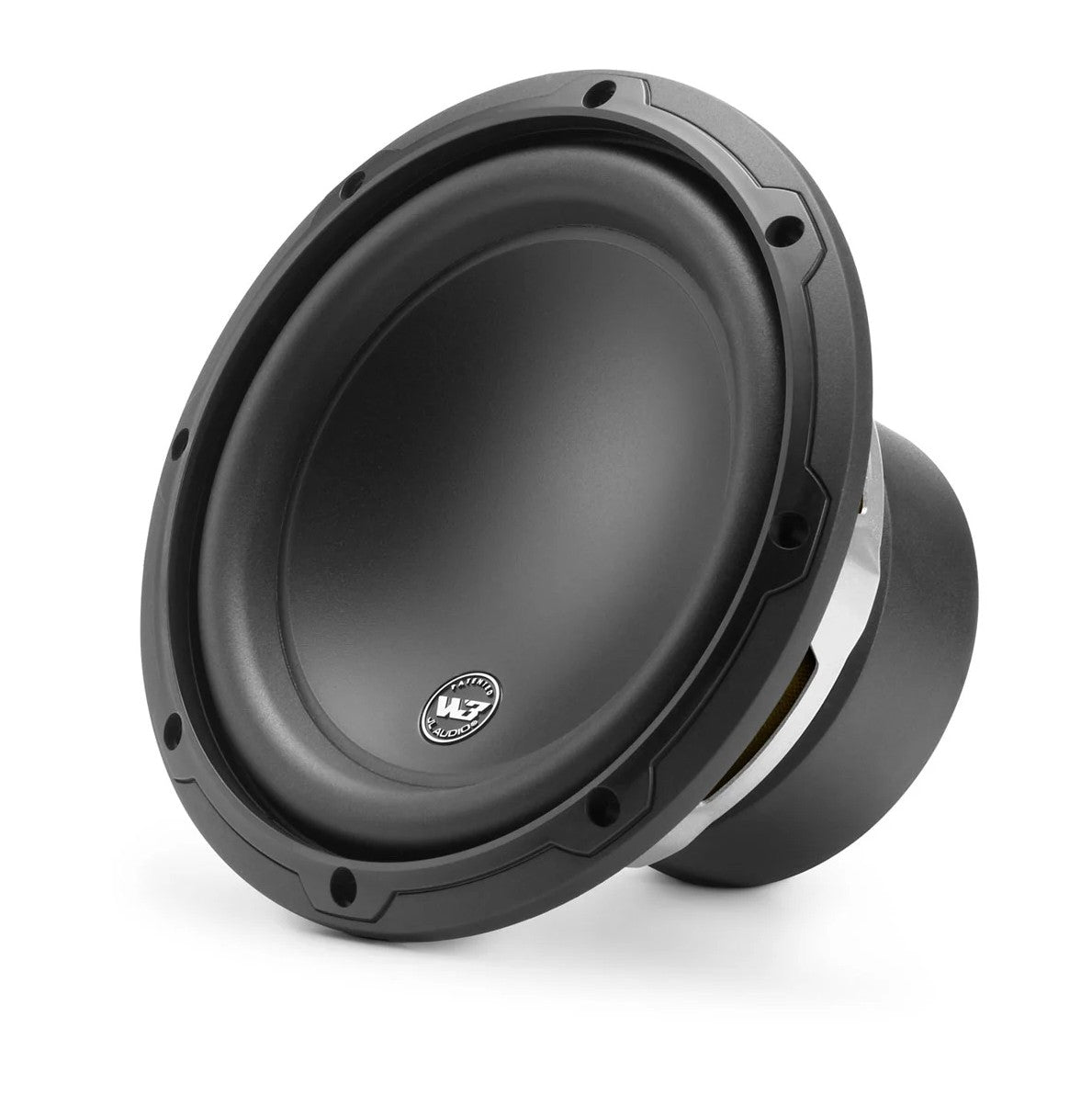

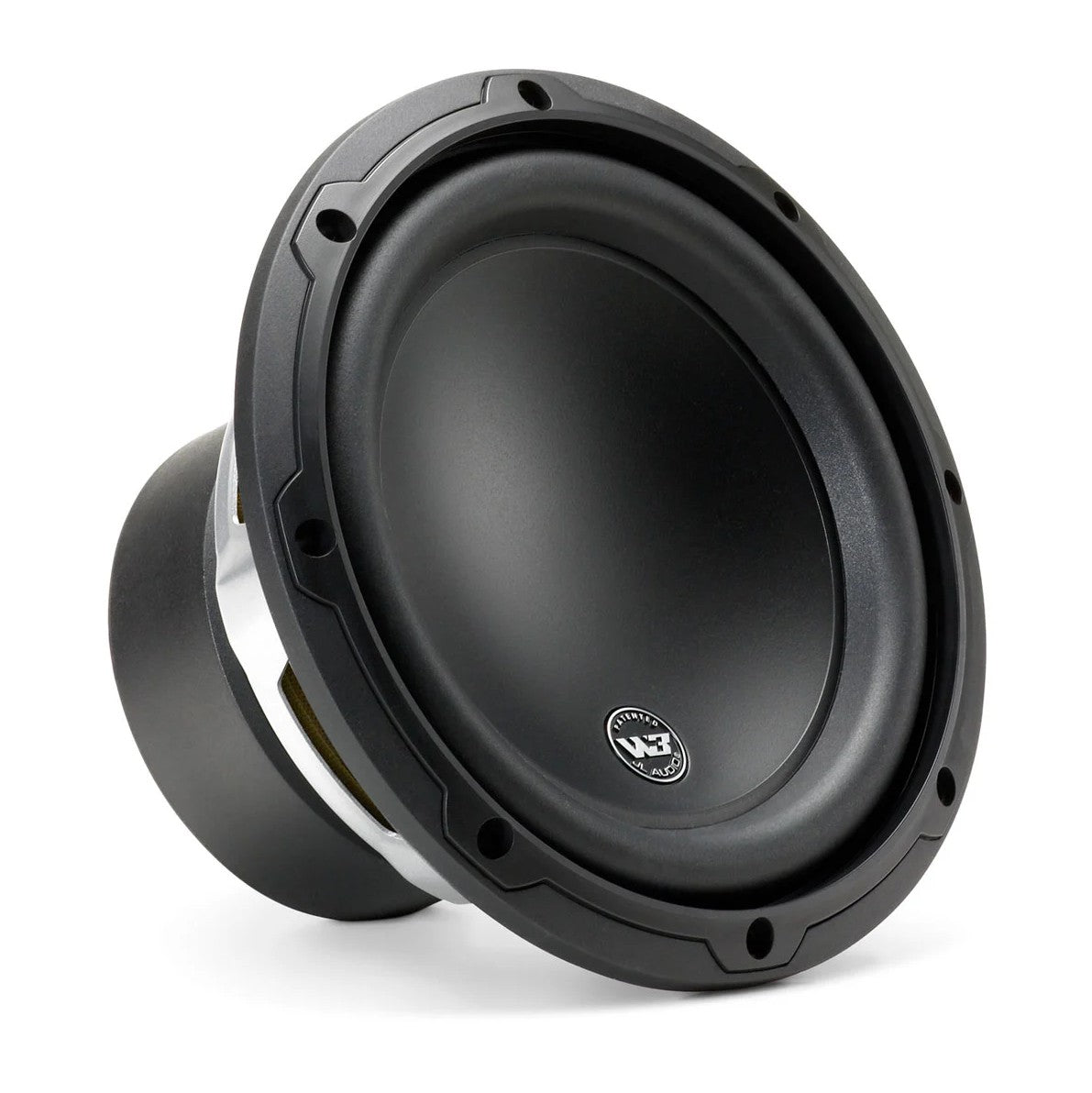

Benefiting from a whole suite of core technologies originally developed for the flagship W7 line, this latest generation of W3 drivers offers phenomenal performance and reliability in medium-power applications — without requiring a large enclosure. Offered in a wide range of sizes, these quality subwoofers deliver deep, articulate sub-bass output within their intended power envelope.
DELIVERS CRISP, ARTICULATE BASS PERFORMANCE IN SMALL-ENCLOSURE APPLICATIONS
5 SIZES, RANGING FROM 6.5- TO 13.5-INCH DIAMETERS
A DMA-OPTIMIZED MOTOR SYSTEM ASSURES PRECISE, LINEAR CONE MOVEMENT
ELEVATED FRAME COOLING™ TECHNOLOGY AIDS HEAT DISSIPATION AND POWER HANDLING
WOOFERS ARE OPTIMIZED FOR USE IN COMPACT SEALED OR PORTED ENCLOSURES
1-YEAR WARRANTY
SPECS
| Warranty | 1 year |
|---|---|
| Sizes | 6.5"/8"/10"/12"/13.5" |
| Weight | 6.5": 6.1 lbs (2.8 kg) 8": 8.2 lbs (3.7 kg) 10": 12.25 lbs (5.56 kg) 12": 14.50 lbs (6.58 kg) 13.5": 17.75 lbs (8.05 kg) |
| Continuous power handling (RMS) | 6.5": 150 W 8": 250 W 10": 500 W 12": 500 W 13.5": 600 W |
| Sensitivity (SPL @ 1 W/1 m) | 6.5": 80.49 dB 8": 83.24 dB 10" (2 Ω): 85.37 dB 10" (4 Ω): 84.87 dB 12" (2 Ω): 87.15 dB 12" (4 Ω): 87.15 dB 13.5" (2 Ω): 87.63 dB 13.5" (4 Ω): 87.90 dB |
| Nominal impedance | 2 Ω or 4 Ω |
| Recommended amplifier power (RMS) | 6.5": 50-150 W 8": 75-250 W 10": 150-500 W 12": 150-500 W 13.5": 150-600 W |
| Cone material | Mineral-filled polypropylene |
Networking & Connections |
|

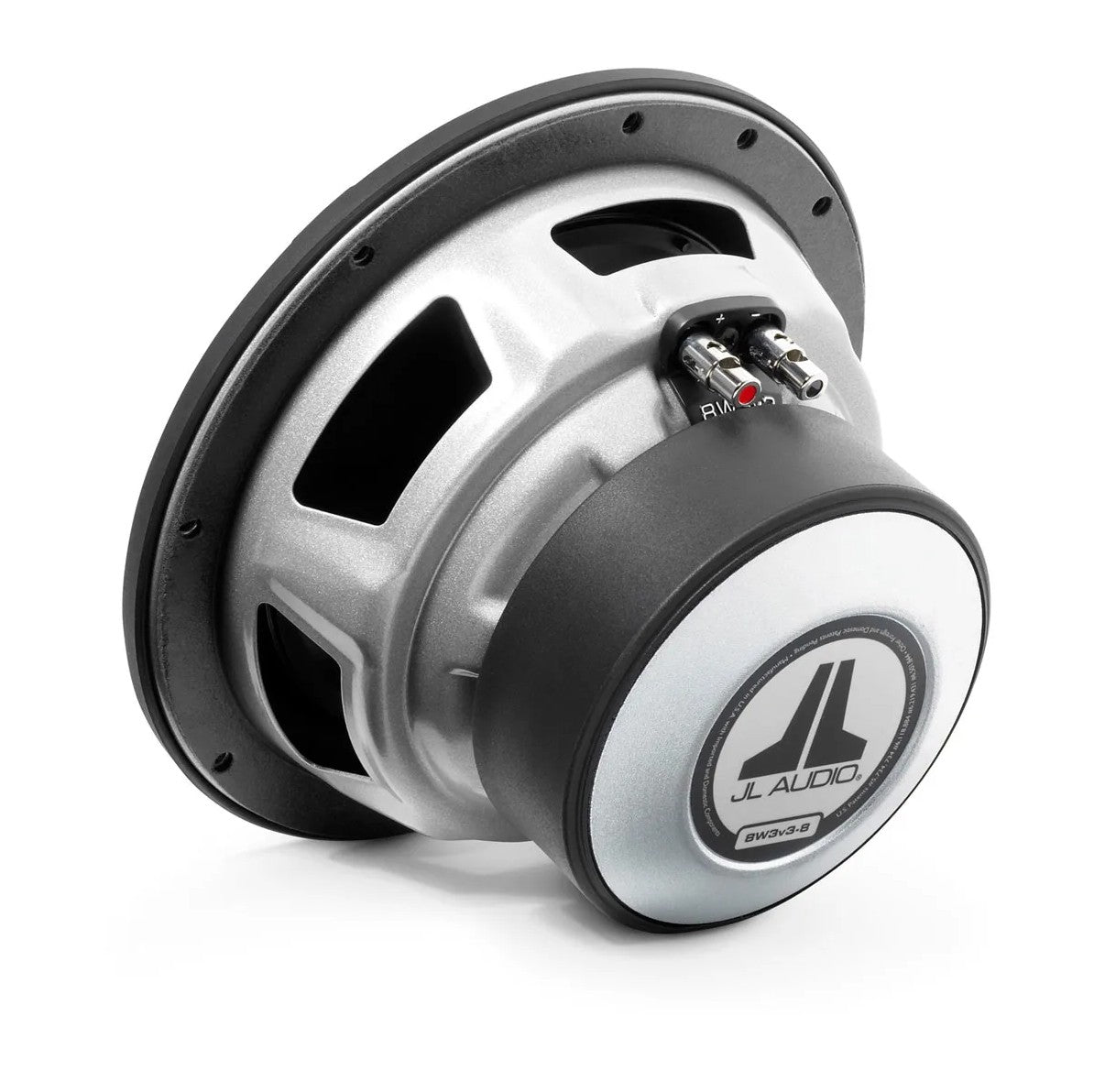

| Speaker connections | Push-button terminal |
|---|---|
Mounting Dimensions |
|
| Frame outer diameter | 6.5": 6.85" (174 mm) 8": 8.54" (217 mm) 10": 10.5" (267 mm) 12": 12.5" (318 mm) 13.5": 14.0" (356 mm) |
|---|---|
| Mounting depth clearance | 6.5": 4.25" (108 mm) 8": 4.63" (118 mm) 10": 5.93" (151 mm) 12": 6.65" (169 mm) 13.5": 7.63" (194 mm) |
| Mounting hole | 6.5": 5.5" (140 mm) 8": 7.09" (180 mm) 10": 9.0625" (230 mm) 12": 11.0625" (281 mm) 13.5": 12.5625" (319 mm) |
| Bolt hole circle | 6.5": 6.125" (156 mm) 8": 7.85" (199 mm) 10": 9.7" (246.5 mm) 12": 11.7" (297 mm) 13.5": 13.2" (335 mm) |
| Motor outer diameter | 6.5": 4.25" (108 mm) 8": 4.75" (121 mm) 10": 5.25" (133 mm) 12": 5.5" (140 mm) 13.5": 5.79" (147 mm) |
| Driver displacement | 6.5": 0.02 cu ft (0.57 L) 8": 0.03 cu ft (0.85 L) 10": 0.049 cu ft (1.39 L) 12": 0.071 cu ft (2.01 L) 13.5": 0.096 cu ft (2.72 L) |
Parameters |
|
| Free Air Resonance (FS) | 6.5": 41.80 Hz 8": 35.14 Hz 10" (2 Ω): 32.97 Hz 10" (4 Ω): 31.49 Hz 12" (2 Ω): 27.97 Hz 12" (4 Ω): 26.72 Hz 13.5" (2 Ω): 24.70 Hz 13.5" (4 Ω): 23.66 Hz |
|---|---|
| Electrical “Q” (Qes) | 6.5": 0.533 8": 0.501 10" (2 Ω): 0.533 10" (4 Ω): 0.523 12" (2 Ω): 0.534 12" (4 Ω): 0.472 13.5" (2 Ω): 0.544 13.5" (4 Ω): 0.465 |
| Mechanical “Q” (Qms) | 6.5": 11.027 8": 7.071 10" (2 Ω): 7.027 10" (4 Ω): 7.017 12" (2 Ω): 7.678 12" (4 Ω): 7.572 13.5" (2 Ω): 6.936 13.5" (4 Ω): 6.774 |
| Total “Q” (Qts) | 6.5": 0.508 8": 0.467 10" (2 Ω): 0.495 10" (4 Ω): 0.485 12" (2 Ω): 0.5 12" (4 Ω): 0.444 13.5" (2 Ω): 0.504 13.5" (4 Ω): 0.435 |
| Equivalent Compliance (Vas) | 6.5": 0.181 cu ft (5.13 L) 8": 0.54 cu ft (15.29 L) 10" (2 Ω): 1.136 cu ft (32.17 L) 10" (4 Ω): 1.138 cu ft (32.23 L) 12" (2 Ω): 2.806 cu ft (79.47 L) 12" (4 Ω): 2.844 cu ft (80.54 L) 13.5" (2 Ω): 4.635 cu ft (131.26 L) 13.5" (4 Ω): 4 |
| One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied) | 6.5": 0.35" (8.89 mm) 8": 0.375" (10.0 mm) 10": 0.550" (14.0 mm) 12": 0.510" (13.0 mm) 13.5": 0.610" (15.5 mm) |
| Reference Efficiency (NO) | 6.5": 0.07% 8": 0.13% 10" (2 Ω): 0.21% 10" (4 Ω): 0.19% 12" (2 Ω): 0.31% 12" (4 Ω): 0.31% 13.5" (2 Ω): 0.35% 13.5" (4 Ω): 0.37% |
| Effective piston area (SD) | 6.5": 17.36 in² (0.0112 m²) 8": 32.02 in² (0.021 m²) 10": 53.475 in² (0.0345 m²) 12": 80.600 in² (0.0520 m²) 13.5": 103.850 in² (0.0670 m²) |
| DC resistance (RE) | 6.5": 3.476 Ω 8": 3.77 Ω 10" (2 Ω): 1.70 Ω 10" (4 Ω): 3.567 Ω 12" (2 Ω): 1.658 Ω 12" (4 Ω): 3.563 Ω 13.5" (2 Ω): 1.659 Ω 13.5" (4 Ω): 3.569 Ω |
Sealed Enclosure Specifications |
|
| Wall thickness | 6.5": 0.5" (13 mm) 8"/10"/12"/13.5": 0.75" (19 mm) |
|---|---|
| Front baffle thickness | 6.5": 0.5" (13 mm) 8"/10"/12"/ 13.5": 0.75" (19 mm) |
| Volume (net int.) | 6.5": 0.15 cu ft (4.2 L) 8": 0.30 cu ft (8.5 L) 10" (2 Ω): 0.625 cu ft (17.7 L) 10" (4 Ω): 0.625 cu ft (17.7 L) 12" (2 Ω): 1.250 cu ft (35.4 L) 12" (4 Ω): 1.250 cu ft (35.4 L) 13.5" (2 Ω): 1.75 cu ft (49.6 L) 13.5" (4 Ω): 1.500 cu ft |
| External width (W) | 6.5": 8.5" (216 mm) 8": 10" (254 mm) 10" (2 Ω): 17.875" (454 mm) 10" (4 Ω): 17.875" (454 mm) 12" (2 Ω): 23" (584 mm) 12" (4 Ω): 21" (533 mm) 13.5" (2 Ω): 16.625" (422 mm) 13.5" (4 Ω): 16" (406 mm) |
| External height (H) | 6.5": 8.5" (216 mm) 8": 10" (254 mm) 10": 11" (279 mm) 12": 14" (356 mm) 13.5": 16" (406 mm) |
| External depth (D) | 6.5": 6.25" (159 mm) 8": 9.5" (241 mm) 10": 9" (229 mm) 12": 10" (254 mm) 13.5" (2 Ω): 16" (406 mm) 13.5" (4 Ω): 14.625" (371 mm) |
| -3 dB cutoff frequency (F3) | 6.5": 58.43 Hz 8": 54 Hz 10" (2 Ω): 48.3 Hz 10" (4 Ω): 46.9 Hz 12" (2 Ω): 41.8 Hz 12" (4 Ω): 43.7 Hz 13.5" (2 Ω): 37.7 Hz 13.5" (4 Ω): 40.4 Hz |
| System resonance (FC) | 6.5": 62.11 Hz 8": 58.8 Hz 10" (2 Ω): 55.3 Hz 10" (4 Ω): 52.9 Hz 12" (2 Ω): 50.4 Hz 12" (4 Ω): 50.2 Hz 13.5" (2 Ω): 47.2 Hz 13.5" (4 Ω): 48.5 Hz |
| System Q at resonance (QTC) | 6.5": 0.7548 8": 0.783 10" (2 Ω): 0.831 10" (4 Ω): 0.818 12" (2 Ω): 0.96 12" (4 Ω): 0.83 13.5" (2 Ω): 0.96 13.5" (4 Ω): 0.89 |
Ported Enclosure Specifications |
|
| Wall thickness | 6.5": 0.5" (13 mm) 8"/10"/12"/13.5": 0.75" (19 mm) |
|---|---|
| Front baffle thickness | 6.5": 0.5" (13 mm) 8"/10"/12"/13.5": 0.75" (19 mm) |
| Volume (net int.) | 6.5": 0.25 cu ft (7.1 L) 8": 0.35 cu ft (9.9 L) 10" (2 Ω): 1.25 cu ft (35.4 L) 10" (4 Ω): 1.125 cu ft (31.9 L) 12": 1.75 cu ft (49.6 L) 13.5" (2 Ω): 2.5 cu ft (70.8 L) 13.5" (4 Ω): 2.25 cu ft (63.7 L) |
| External width (W) | 6.5": 14.50" (368 mm) 8": 13.5" (330 mm) 10" (2 Ω): 25" (635 mm) 10" (4 Ω): 23" (584 mm) 12": 29" (737 mm) 13.5" (2 Ω): 23.625" (600 mm) 13.5" (4 Ω): 21.75" (552 mm) |
| External height (H) | 6.5": 10.125" (257 mm) 8": 10" (254 mm) 10": 12" (305 mm) 12": 14" (356 mm) 13.5": 17" (432 mm) |
| External depth (D) | 6.5": 5.25" (133 mm) 8": 9.25" (203 mm) 10" (2 Ω): 12.5" (318 mm) 10" (4 Ω): 13.5" (330 mm) 12": 12.625" (321 mm) 13.5": 18" (457 mm) |
| Internal slot port width | 6.5": 4.25" (108 mm) 10": 1.25" (32 mm) 12": 1.375" (35 mm) 13.5": 1.5" (38 mm) |
| Internal slot port height | 6.5": 0.5" (13 mm) 10": 10.5" (267 mm) 12": 12.5" (318 mm) 13.5": 15.5" (394 mm) |
| Internal slot port length | 6.5": 14.75" (374 mm) 10" (2 Ω): 24.75" (629 mm) 10" (4 Ω): 28.625" (727 mm) 12": 26.8125" (681 mm) 13.5" (2 Ω): 36.25" (921 mm) 13.5" (4 Ω): 34.375" (873 mm) |
| Port extension length | 6.5": 13.5" (330 mm) 10" (2 Ω): 11.625" (295 mm) 10" (4 Ω): 15" (381 mm) 12": 13.5" (343 mm) 13.5" (2 Ω): 17.5" (445 mm) 13.5" (4 Ω): 15.625" (397 mm) |
| Tuning frequency (FB) | 6.5": 38 Hz 8": 35 Hz 10" (2 Ω): 32 Hz 10" (4 Ω): 31.8 Hz 12": 30 Hz 13.5" (2 Ω): 25 Hz 13.5" (4 Ω): 27 Hz |
| -3 dB cutoff frequency (F3) | 6.5": 34.92 Hz 8": 41.0 Hz 10" (2 Ω): 31.4 Hz 10" (4 Ω): 31.7 Hz 12" (2 Ω): 36 Hz 12" (4 Ω): 35 Hz 13.5": 35 Hz |
| Internal round port length | 8": 18" (457 mm) - round port requires a 90º elbow to fit in the specified enclosure |
| Internal round port diameter | 8": 2" (51 mm) |
Additional |
|
| Additional |
The enclosure recommendations listed above are external dimensions which assume the use of 0.75 in (19 mm) thick material. If you are using 0.625 in (16 mm) thick material, subtract 0.25 in (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625 in (16 mm) as this may compromise the rigidity of the enclosure. All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account. When using multiples in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support. We recommend the use of this in a bi-amplified system using high-quality satellites and a high-quality amplifier. We do not recommend the use of this with a passive crossover (coil), as this type of device will adversely affect performance. All specifications are subject to change without notice. |
|---|---|
