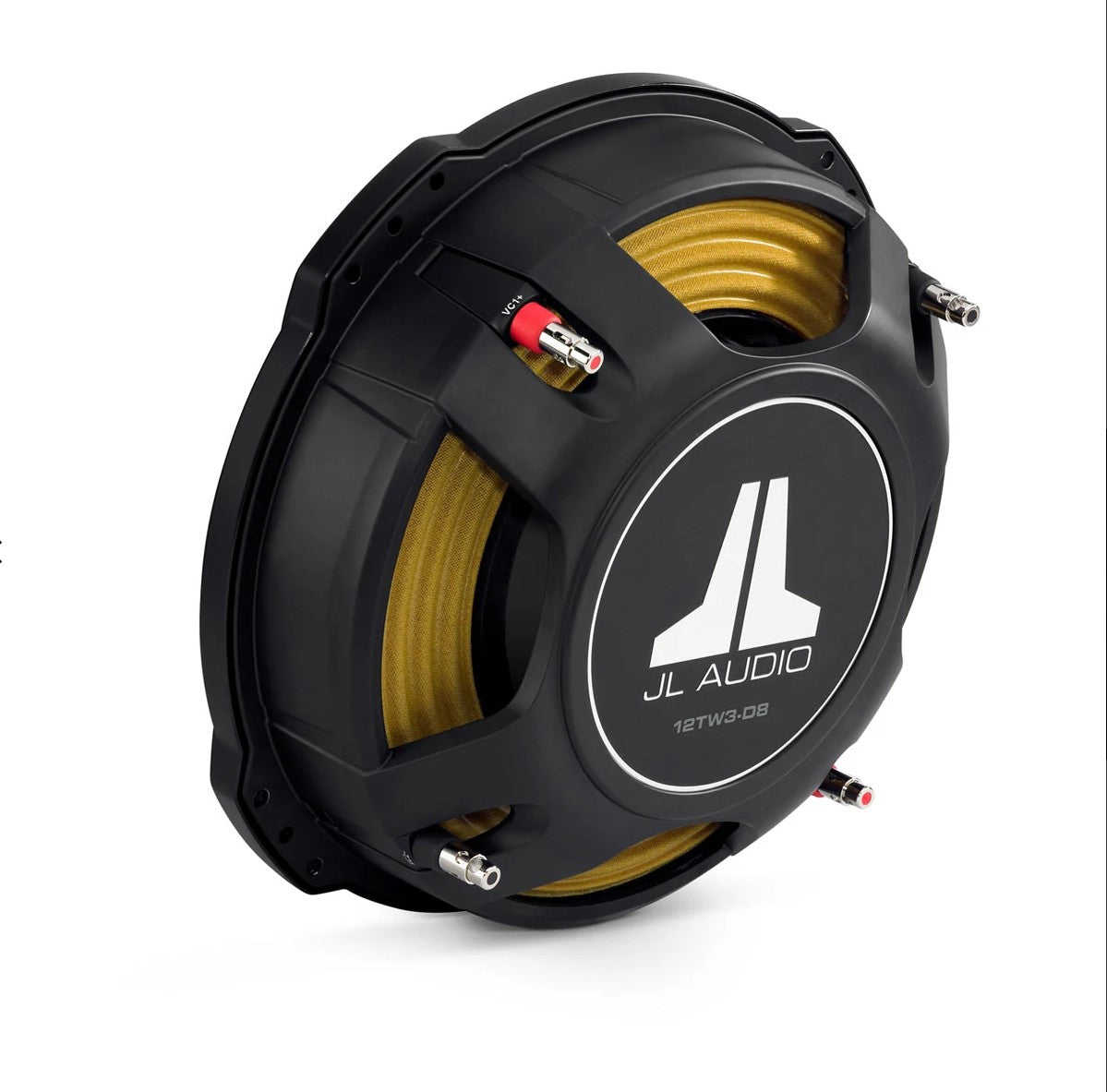

Building on the core technologies developed for the TW5 thin-line subwoofers, the TW3 series embodies a powerful combination of shallow mounting depth and long linear excursion capability. The result is a speaker that delivers big, impressive sub-bass performance in a compact form that works for those snug-fit installations.
DELIVERS DEEP, POWERFUL BASS PERFORMANCE IN TIGHT-SPACE INSTALLATIONS
CHOOSE FROM 10- OR 12-INCH TW3 THIN-LINE SUBWOOFERS
EXTREMELY SMALL (0.80 CUBIC FEET) ENCLOSURE VOLUME REQUIREMENTS
CAST-ALLOY FRAME PROVIDES A ROCK-SOLID SPEAKER PLATFORM WITH SHALLOW MOUNTING DEPTHS (3.25/3.50 INCHES)
PAIRS BEST WITH AMPLIFIER POWER IN THE 200- TO 400-WATT RANGE
1-YEAR WARRANTY
SPECS
| Warranty | 1 year |
|---|---|
| Sizes | 10"/12" |
| Weight | 10": 10.1 lbs (4.6 kg) 12": 14.9 lbs (6.8 kg) |
| Continuous power handling (RMS) | 400 W |
| Sensitivity (SPL @ 1 W/1 m) | 10" (Dual 4 Ω): 82.10 dB 10" (Dual 8 Ω): 82.27 dB 12" (Dual 4 Ω): 84.11 dB 12" (Dual 8 Ω): 84.23 dB |
| Nominal impedance | Dual 4 Ω or Dual 8 Ω |
| Recommended amplifier power (RMS) | 200-400 W |
| Cone material | Mineral-filled polypropylene |
Networking & Connections |
|
| Speaker connections | Push-button terminal |
|---|---|
Mounting Dimensions |
|
| Frame outer diameter | 10": Max: 11.2" (284 mm) Min: 10.5" (267 mm) 12": Max: 13.2" (335 mm) Min: 12.5" (318 mm) |
|---|---|
| Mounting depth clearance | 10": 3.25" (83 mm) 12": 3.5" (89 mm) |
| Mounting hole | 10": 9.625" (244 mm) 12": 11.625" (295 mm) |
| Bolt hole circle | 10": 10.5" (267 mm) 12": 12.5" (318 mm) |
| Motor outer diameter | 10": 5.1" (130 mm) 12": 6.125" (156 mm) |
| Driver displacement | 10": 0.019 cu ft (0.54 L) 12": 0.029 cu ft (0.82 L) |
Parameters |
|
| Free Air Resonance (FS) | 10" (Dual 4 Ω): 32.30 Hz 10" (Dual 8 Ω): 39.262 Hz 12" (Dual 4 Ω): 26.46 Hz 12" (Dual 8 Ω): 32.660 Hz |
|---|---|
| Electrical “Q” (Qes) | 10" (Dual 4 Ω): 0.656 10" (Dual 8 Ω): 0.825 12" (Dual 4 Ω): 0.558 12" (Dual 8 Ω): 0.715 |
| Mechanical “Q” (Qms) | 10" (Dual 4 Ω): 11.35 10" (Dual 8 Ω): 9.84 12" (Dual 4 Ω): 10.766 12" (Dual 8 Ω): 10.071 |
| Total “Q” (Qts) | 10" (Dual 4 Ω): 0.62 10" (Dual 8 Ω): 0.761 12" (Dual 4 Ω): 0.531 12" (Dual 8 Ω): 0.668 |
| Equivalent Compliance (Vas) | 10" (Dual 4 Ω): 0.700 cu ft (19.82 L) 10" (Dual 8 Ω): 0.510 cu ft (14.44 L) 12" (Dual 4 Ω): 1.72 cu ft (48.73 L) 12" (Dual 8 Ω): 1.205 cu ft (34.12 L) |
| One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied) | 0.6" (15.2 mm) |
| Reference Efficiency (NO) | 10" (Dual 4 Ω): 0.23% 10" (Dual 8 Ω): 0.23% |
| Effective piston area (SD) | 10": 56.532 in² (0.0365 m²) 12": 83.517 in² (0.0539 m²) |
| DC resistance (RE) | 10" (Dual 4 Ω): 9.036 Ω 10" (Dual 8 Ω): 15.008 Ω 12" (Dual 4 Ω): 9.280 Ω 12" (Dual 8 Ω): 14.800 Ω |
Sealed Enclosure Specifications |
|
| Wall thickness | 0.75" (19 mm) |
|---|---|
| Front baffle thickness | 0.75" (19 mm) |
| Volume (net int.) | 10" (Dual 4 Ω): 0.50 cu ft (14.16 L) 10" (Dual 8 Ω): 0.575 cu ft (16.3 L) 12" (Dual 4 Ω): 0.80 cu ft (22.7 L) 12" (Dual 8 Ω): 1 cu ft (28.3 L) |
| External width (W) | 10" (Dual 4 Ω): 16" (406 mm) 10" (Dual 8 Ω): 16.75" (425 mm) 12" (Dual 4 Ω): 21.25" (540 mm) 12" (Dual 8 Ω): 25" (635 mm) |
| External height (H) | 10" (Dual 4 Ω): 13.875" (352 mm) 10" (Dual 8 Ω): 15" (381 mm) 12" (Dual 4 Ω): 16" (406 mm) 12" (Dual 8 Ω): 16.625" (422 mm) |
| External depth (D) | 6.5" (165 mm) |
| -3 dB cutoff frequency (F3) | 10" (Dual 4 Ω): 40.09 Hz 10" (Dual 8 Ω): 41.61 Hz 12" (Dual 4 Ω): 37.99 Hz 12" (Dual 8 Ω): 38.27 Hz |
| System resonance (FC) | 10" (Dual 4 Ω): 40.09 Hz 10" (Dual 8 Ω): 41.61 Hz 12" (Dual 4 Ω): 37.99 Hz 12" (Dual 8 Ω): 38.27 Hz |
| System Q at resonance (QTC) | 10" (Dual 4 Ω): 0.96 10" (Dual 8 Ω): 1.0453 12" (Dual 4 Ω): 0.9426 12" (Dual 8 Ω): 0.9919 |
Ported Enclosure Specifications |
|
| Wall thickness | 0.75" (19 mm) |
|---|---|
| Front baffle thickness | 0.75" (19 mm) |
| Volume (net int.) | 10" (Dual 4 Ω): 0.60 cu ft (17 L) 10" (Dual 8 Ω): 0.75 cu ft (21.2 L) 12" (Dual 4 Ω): 0.95 cu ft (26.9 L) 12" (Dual 8 Ω): 1.3 cu ft (36.8 L) |
| External width (W) | 10": 30" (762 mm) 12" (Dual 4 Ω): 30" (762 mm) 12" (Dual 8 Ω): 34" (864 mm) |
| External height (H) | 10" (Dual 4 Ω): 14.625" (372 mm) 10" (Dual 8 Ω): 16.375" (416 mm) 12" (Dual 4 Ω): 16.625" (422 mm) 12" (Dual 8 Ω): 17" (432 mm) |
| External depth (D) | 10" (Dual 4 Ω): 5.125" (130 mm) 10" (Dual 8 Ω): 5.25" (133 mm) 12" (Dual 4 Ω): 6.50" (165 mm) 12" (Dual 8 Ω): 6.75" (171 mm) |
| Internal slot port width | 10" (Dual 4 Ω): 3.625" (92 mm) 10" (Dual 8 Ω): 3.75" (95 mm) 12" (Dual 4 Ω): 5" (127 mm) 12" (Dual 8 Ω): 5.25" (133 mm) |
| Internal slot port height | 10": 2.125" (54 mm) 12" (Dual 4 Ω): 2.50" (64 mm) 12" (Dual 8 Ω): 2.375" (60 mm) |
| Internal slot port length | 10" (Dual 4 Ω): 31.0625" (789 mm) 10" (Dual 8 Ω): 26.8125" (681 mm) 12" (Dual 4 Ω): 31.25" (794 mm) 12" (Dual 8 Ω): 24" (610 mm) |
| Port extension length | 10" (Dual 4 Ω): 26.375" (670 mm) 10" (Dual 8 Ω): 25" (635 mm) 12" (Dual 4 Ω): 26" (660 mm) 12" (Dual 8 Ω): 22.0625" (560 mm) |
| Tuning frequency (FB) | 10" (Dual 4 Ω): 32.14 Hz 10" (Dual 8 Ω): 31.33 Hz 12" (Dual 4 Ω): 32.14 Hz 12" (Dual 8 Ω): 32 Hz |
| -3 dB cutoff frequency (F3) | 10" (Dual 4 Ω): 32.11 Hz 10" (Dual 8 Ω): 29.54 Hz 12" (Dual 4 Ω): 32.52 Hz 12" (Dual 8 Ω): 29.79 Hz |
Additional |
|
| Additional |
The enclosure recommendations listed above are external dimensions which assume the use of 0.75 in (19 mm) thick material. If you are using 0.625 in (16 mm) thick material, subtract 0.25 in (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625 in (16 mm) as this may compromise the rigidity of the enclosure. All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account. When using multiples in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support. We recommend the use of this in a bi-amplified system using high-quality satellites and a high-quality amplifier. We do not recommend the use of this with a passive crossover (coil), as this type of device will adversely affect performance. All specifications are subject to change without notice. |
|---|---|
