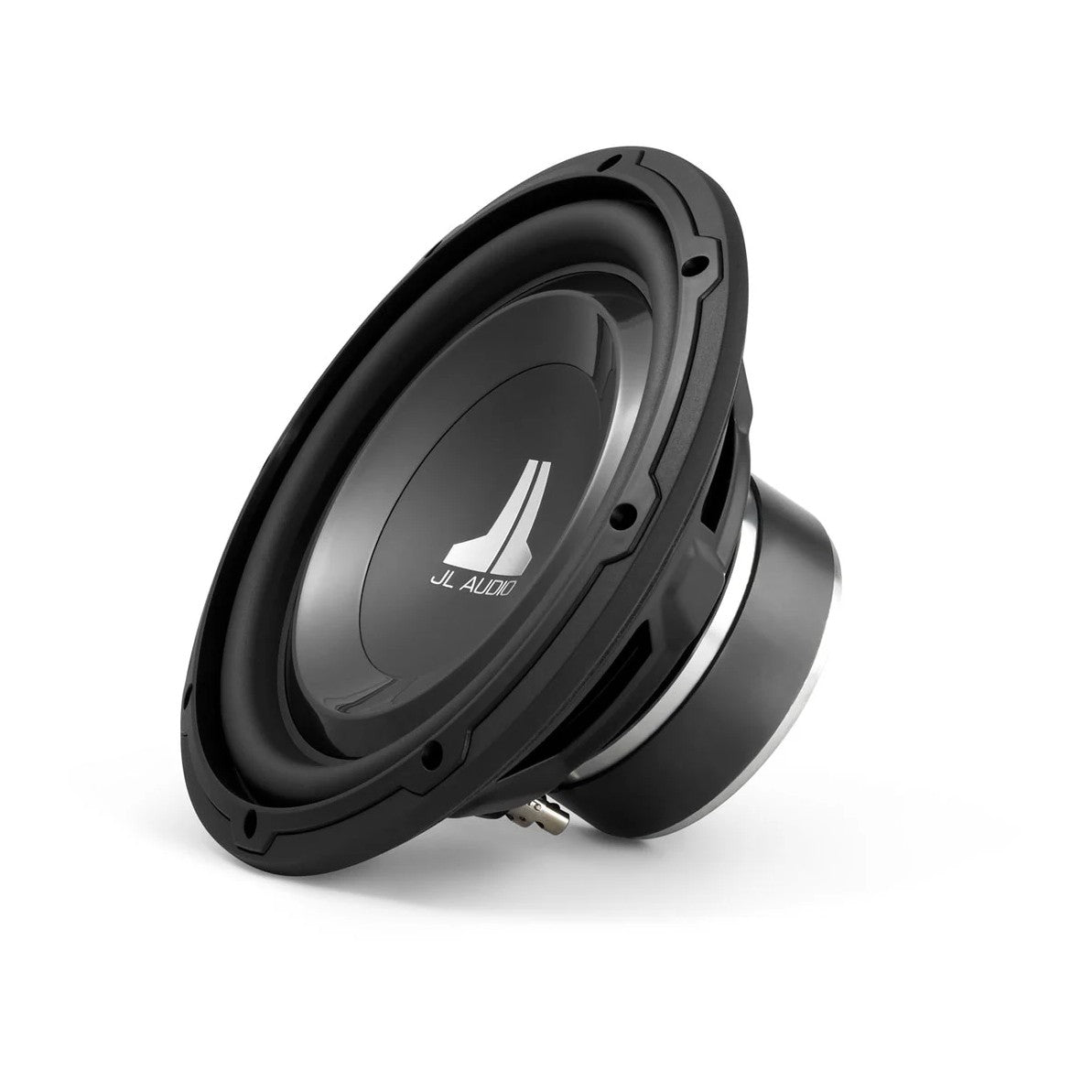

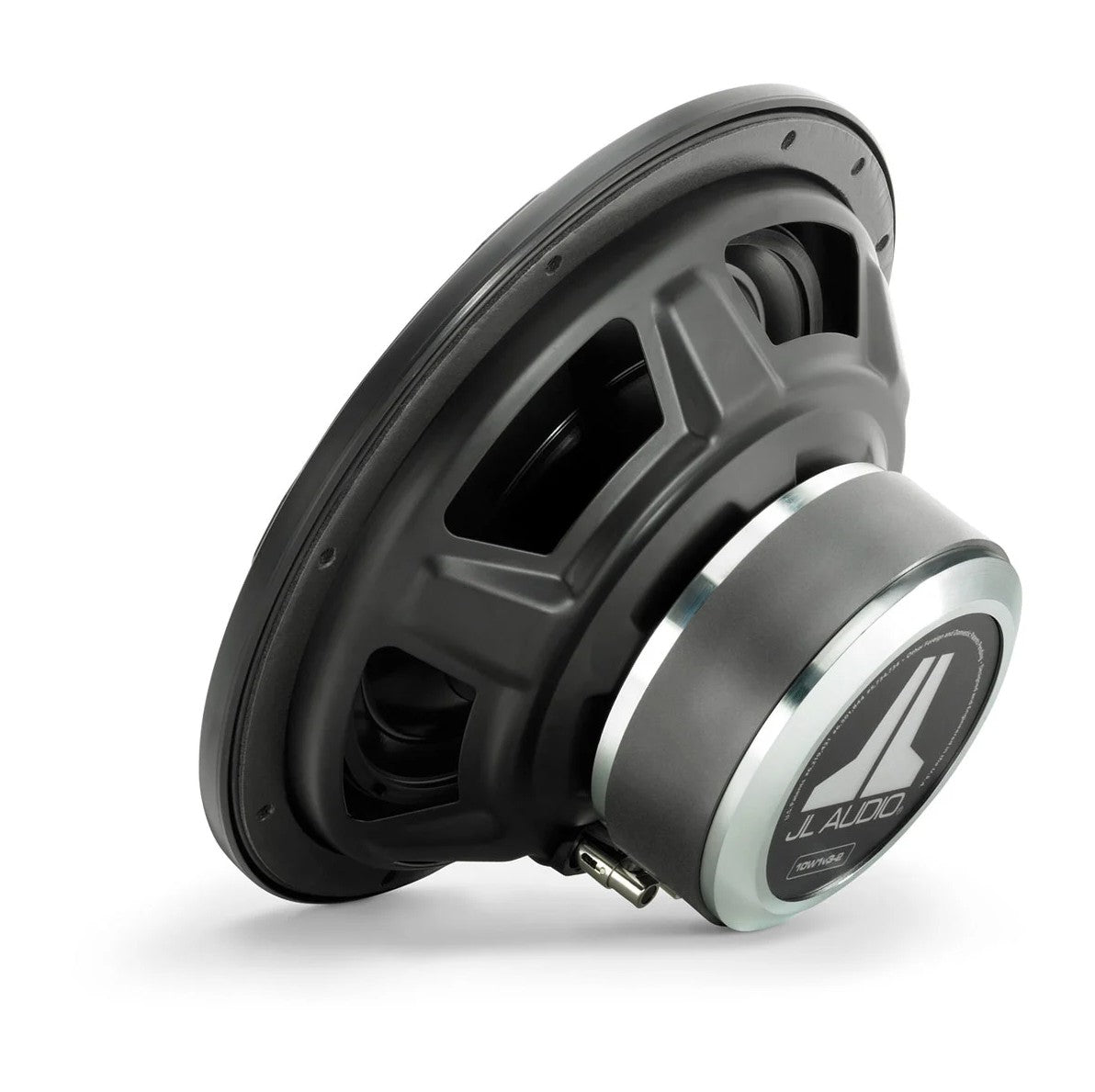

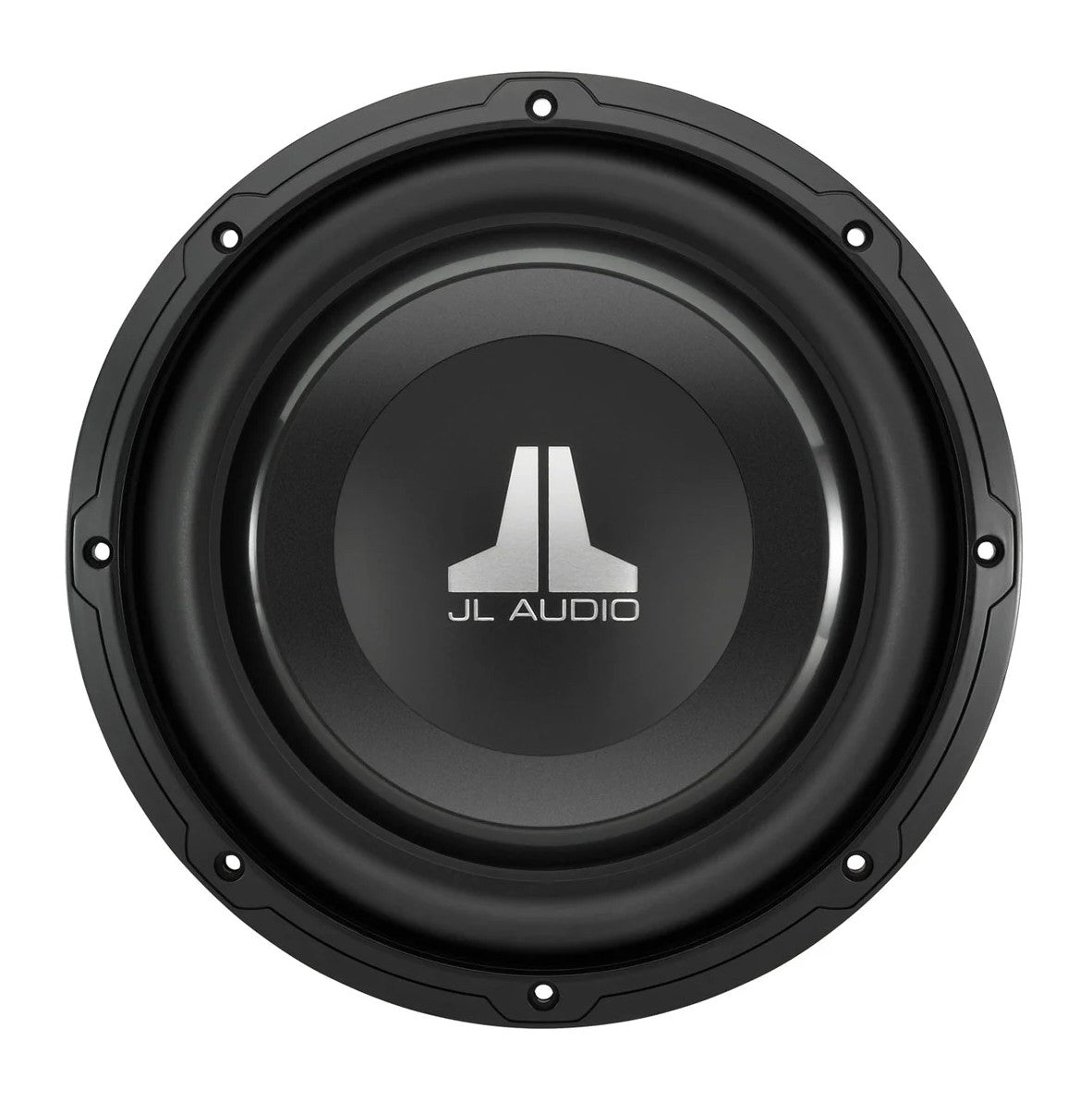

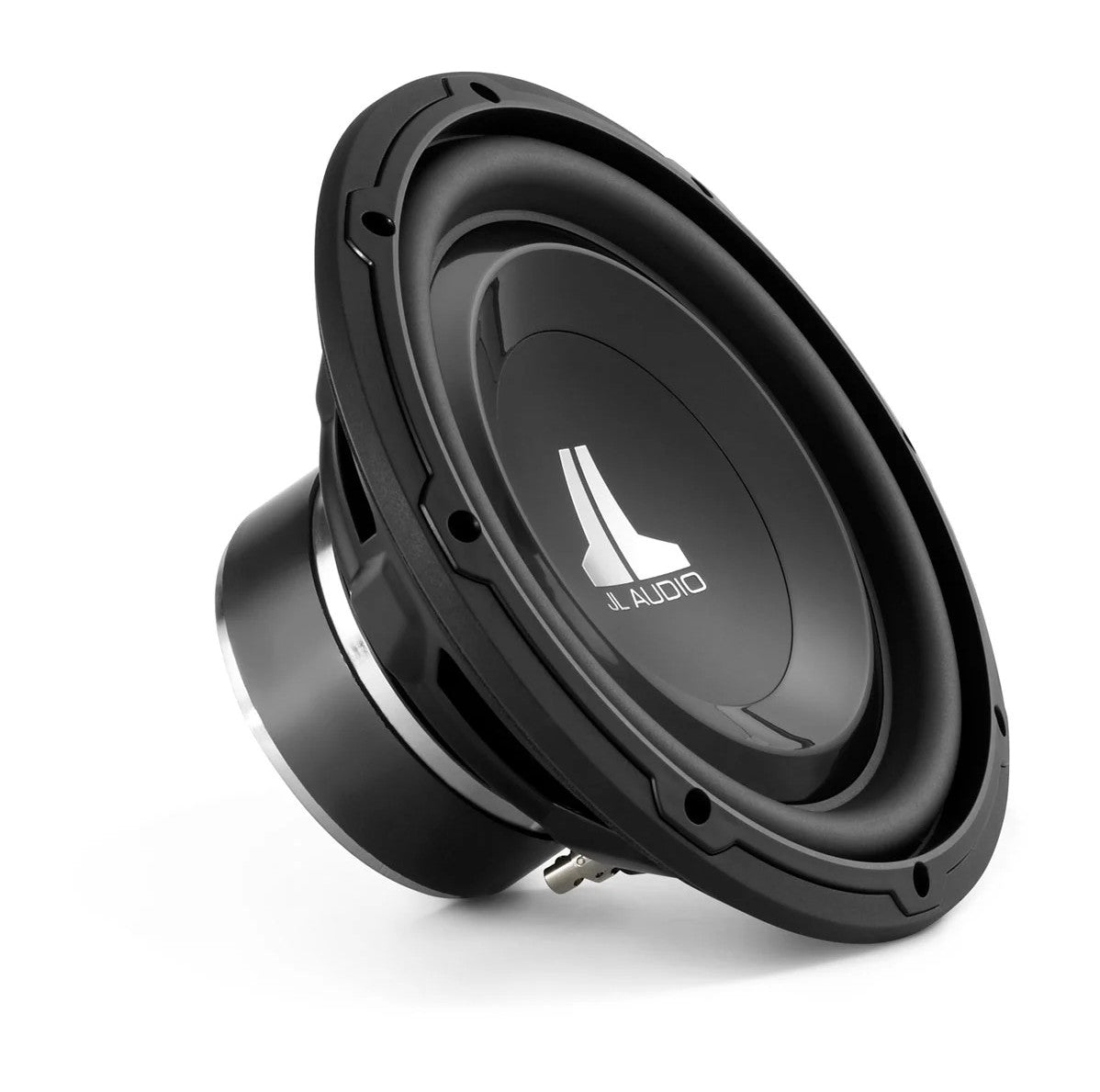

| Warranty | 1 year |
|---|---|
| Sizes | 8"/10"/12" |
| Weight | 8": 7.4 lbs (3.4 kg) 10": 9.9 lbs (4.5 kg) 12": 12.2 lbs (5.5 kg) |
| Continuous power handling (RMS) | 8": 150 W 10"/12": 300 W |
| Sensitivity (SPL @ 1 W/1 m) | 8": 84.8 dB 10" (2 Ω): 83.9 dB 10" (4 Ω): 84.2 dB 12" (2 Ω): 85.9 dB 12" (4 Ω): 86.1 dB |
| Nominal impedance | 2 Ω or 4 Ω |
| Recommended amplifier power (RMS) | 8": 50-150 W 10"/12": 75-300 W |
| Cone material | Mineral-filled polypropylene |
Networking & Connections |
|
| Speaker connections | Push-button terminal |
|---|---|
Mounting Dimensions |
|
| Frame outer diameter | 8": 8.5" (216 mm) 10": 10.5" (267 mm) 12": 12.5" (318 mm) |
|---|---|
| Mounting depth clearance | 8": 3.86" (98 mm) 10": 4.6" (117 mm) 12": 5.41" (137 mm) |
| Mounting hole | 8": 7.09" (180 mm) 10": 9.0625" (230 mm) 12": 11.0625" (281 mm) |
| Bolt hole circle | 8": 7.85" (199 mm) 10": 9.7" (246 mm) 12": 11.7" (297 mm) |
| Motor outer diameter | 8": 4.72" (120 mm) 10": 4.92" (125 mm) 12": 5.25" (133 mm) |
| Driver displacement | 8": 0.018 cu ft (0.51 L) 10": 0.037 cu ft (1.05 L) 12": 0.052 cu ft (1.47 L) |
Parameters |
|
| Free Air Resonance (FS) | 8": 35.40 Hz 10" (2 Ω): 25.23 Hz 10" (4 Ω): 26.15 Hz 12" (2 Ω): 26.55 Hz 12" (4 Ω): 26.21 Hz |
|---|---|
| Electrical “Q” (Qes) | 8": 0.451 10" (2 Ω): 0.463 10" (4 Ω): 0.475 12" (2 Ω): 0.554 12" (4 Ω): 0.535 |
| Mechanical “Q” (Qms) | 8": 5.791 10" (2 Ω): 7.246 10" (4 Ω): 7.243 12" (2 Ω): 8.731 12" (4 Ω): 8.2 |
| Total “Q” (Qts) | 8": 0.418 10" (2 Ω): 0.436 10" (4 Ω): 0.446 12" (2 Ω): 0.521 12" (4 Ω): 0.502 |
| Equivalent Compliance (Vas) | 8": 0.68 cu ft (19.26 L) 10" (2 Ω): 1.559 cu ft (44.15 L) 10" (4 Ω): 1.533 cu ft (43.41 L) 12" (2 Ω): 2.544 cu ft (72.04 L) 12" (4 Ω): 2.706 cu ft (76.63 L) |
| One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied) | 8": 0.3" (8 mm) 10"/12": 0.45" (11 mm) |
| Reference Efficiency (NO) | 8": 0.18% 10" (2 Ω): 0.15% 10" (4 Ω): 0.16% 12" (2 Ω): 0.23% 12" (4 Ω): 0.25% |
| Effective piston area (SD) | 8": 32.67 in² (0.0211 m²) 10": 53.584 in² (0.0346 m²) 12": 81.426 in² (0.0525 m²) |
| DC resistance (RE) | 8": 4.06 Ω 10" (2 Ω): 2.233 Ω 10" (4 Ω): 3.902 Ω 12" (2 Ω): 2.210 Ω 12" (4 Ω): 3.915 Ω |
Sealed Enclosure Specifications |
|
| Wall thickness | 0.75" (19 mm) |
|---|---|
| Front baffle thickness | 0.75" (19 mm) |
| Volume (net int.) | 8": 0.350 cu ft (9.90 L) 10": 0.55 cu ft (15.57 L) 12": 1.10 cu ft (31.5 L) |
| External width (W) | 8": 12" (305 mm) 10": 16.5" (419 mm) 12": 16" (406 mm) |
| External height (H) | 8": 12" (305 mm) 10": 16.5" (419 mm) 12": 16" (406 mm) |
| External depth (D) | 8": 8.625" (219 mm) 10": 7" (178 mm) 12": 11" (279 mm) |
| -3 dB cutoff frequency (F3) | 8": 59.9 Hz 10" (2 Ω): 42.3 Hz 10" (4 Ω): 43.1 Hz 12" (2 Ω): 38.99 Hz 12" (4 Ω): 39.63 Hz |
| System resonance (FC) | 8": 60.7 Hz 10" (2 Ω): 49.4 Hz 10" (4 Ω): 50.9 Hz 12" (2 Ω): 48.39 Hz 12" (4 Ω): 48.75 Hz |
| System Q at resonance (QTC) | 8": 0.717 10" (2 Ω): 0.853 10" (4 Ω): 0.868 12" (2 Ω): 0.9496 12" (4 Ω): 0.9338 |
Ported Enclosure Specifications |
|
| Wall thickness | 0.75" (19 mm) |
|---|---|
| Front baffle thickness | 0.75" (19 mm) |
| Volume (net int.) | 8": 0.50 cu ft (14.2 L) 10": 0.9 cu ft (25.5 L) 12": 1.6 cu ft (45.3 L) |
| External width (W) | 8": 13.0" (330 mm) 10": 17.0" (432 mm) 12": 25" (635 mm) |
| External height (H) | 8": 10" (254 mm) 10": 11.5" (292 mm) 12": 15.5" (394 mm) |
| External depth (D) | 8": 11.125" (283 mm) 10": 15.25" (387 mm) 12": 13" (330 mm) |
| Internal slot port width | 10": 1.125" (28.6 mm) 12": 1.5" (38 mm) |
| Internal slot port height | 10": 10.0" (254 mm) 12": 14" (356 mm) |
| Internal slot port length | 10": 30.1875" (767 mm) 12": 30.75" (781 mm) |
| Port extension length | 10": 12.50" (318 mm) 12": 17" (432 mm) |
| Tuning frequency (FB) | 8": 38 Hz 10": 32.17 Hz 12": 31.79 Hz |
| -3 dB cutoff frequency (F3) | 8": 39.10 Hz 10" (2 Ω): 31.36 Hz 10" (4 Ω): 31.92 Hz 12" (2 Ω): 31 Hz 12" (4 Ω): 31.41 Hz |
| Internal round port length | 8": 10" (254 mm) |
| Internal round port diameter | 8": 2" (51 mm) |
Additional |
|
| Additional |
The enclosure recommendations listed above are external dimensions which assume the use of 0.75 in (19 mm) thick material. If you are using 0.625 in (16 mm) thick material, subtract 0.25 in (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625 in (16 mm) as this may compromise the rigidity of the enclosure. All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account. When using multiples in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support. We recommend the use of this in a bi-amplified system using high-quality satellites and a high-quality amplifier. We do not recommend the use of this with a passive crossover (coil), as this type of device will adversely affect performance. All specifications are subject to change without notice. |
|---|---|
