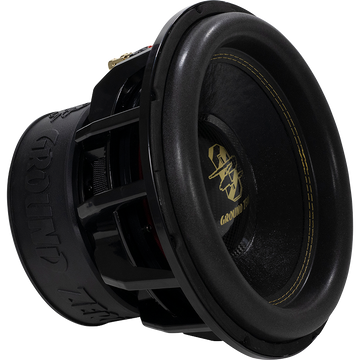

GZW 12-30A

30 cm / 12″ high quality SPL subwoofer

3500 Watts SPL

12″ high-power SPL subwoofer with alumiunum cast basket and reinforced paper cone

• 12″ high quality SPL subwoofer
• Klippel® optimized
• Reinforced paper cone
• Long stroke U-surround
• Solid aluminum cast basket
• 75 mm / 3″ copper voice coil
• 2-layer Polycot spider
• Carbon dust cap

• Model	High-Quality SPL subwoofer
  Diameter	30 cm / 12″
  Power handling (RMS/SPL)	1500 / 3500 Watts
  Impedance	2x 2 Ohm
  Efficiency	85 dB
  Power recommendation	1000 – 3500 Watts
  Voice coil	75 mm / 3″ Copper
  Cone	Reinforced paper
  Max. Excursion (Xmax)	45 mm / 1.77″
  Mounting Ø	284 mm / 11.18″
  Mounting depth	198 mm / 7.80″
  Resonance frequency (Fs)	26.5 Hz
  Damping ratio (Qts)	0.52
  Equiv. air volume (Vas)	30,6 L / 1.08 cu.ft.
