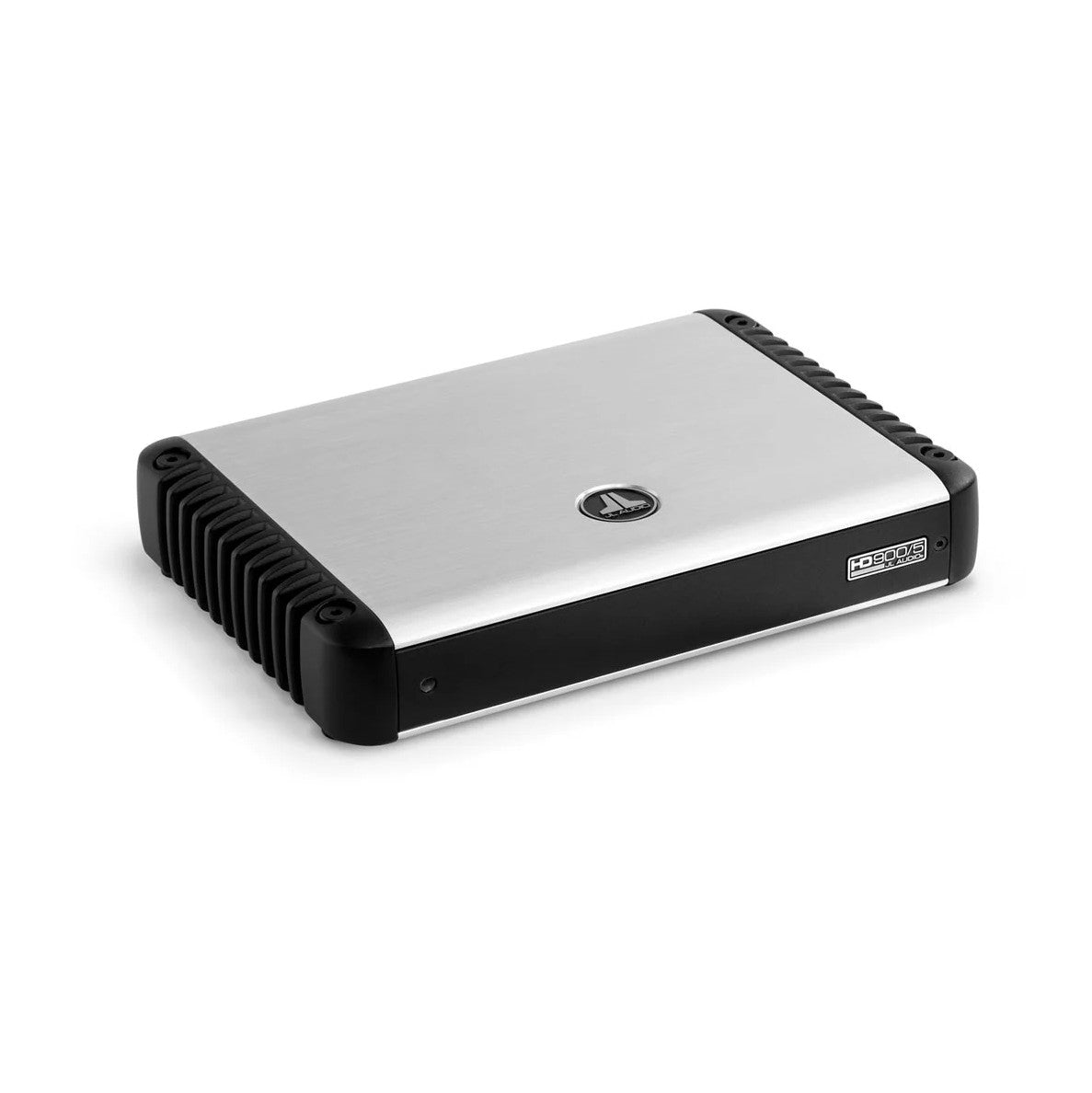

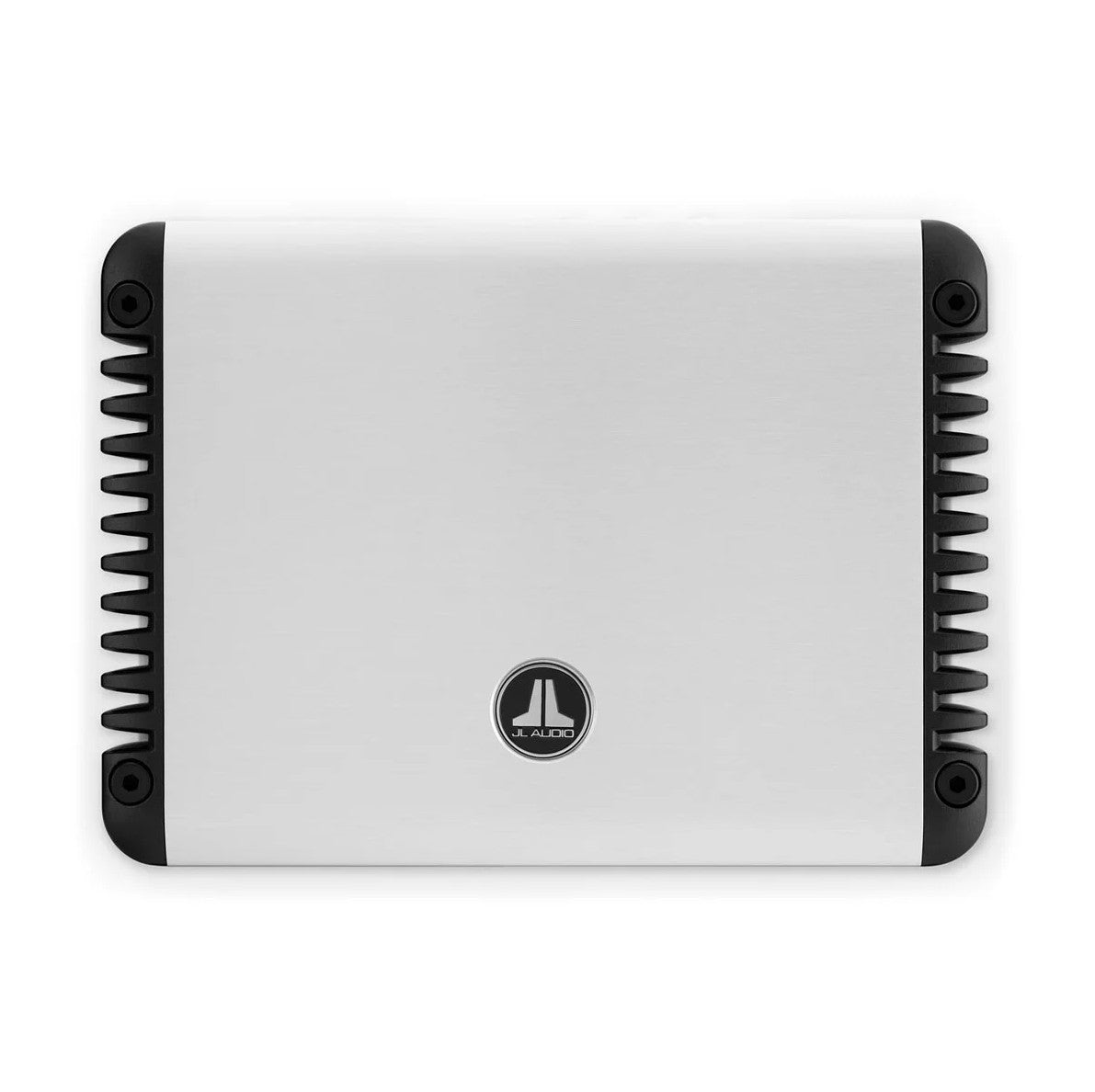

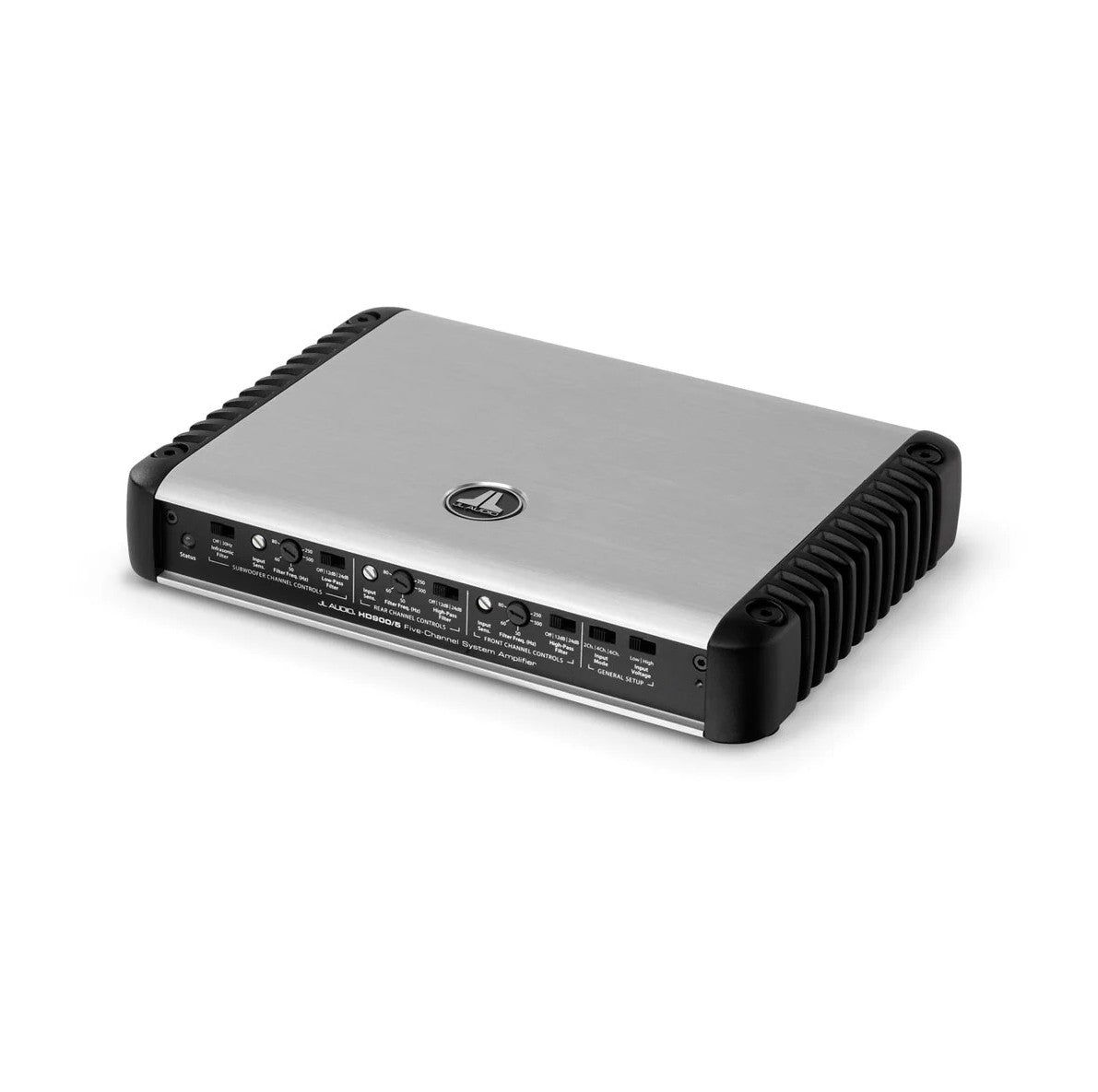

Combining groundbreaking JL Audio Single Cycle Control™ switching along with Regulated, Intelligent Power Supply (R.I.P.S.™) technologies, these HD stereo amplifiers deliver world-class, full-range fidelity and ultrapowerful output from a surprisingly small package.
SELECTABLE 12- OR 24-DECIBEL/ OCTAVE FILTER SLOPE

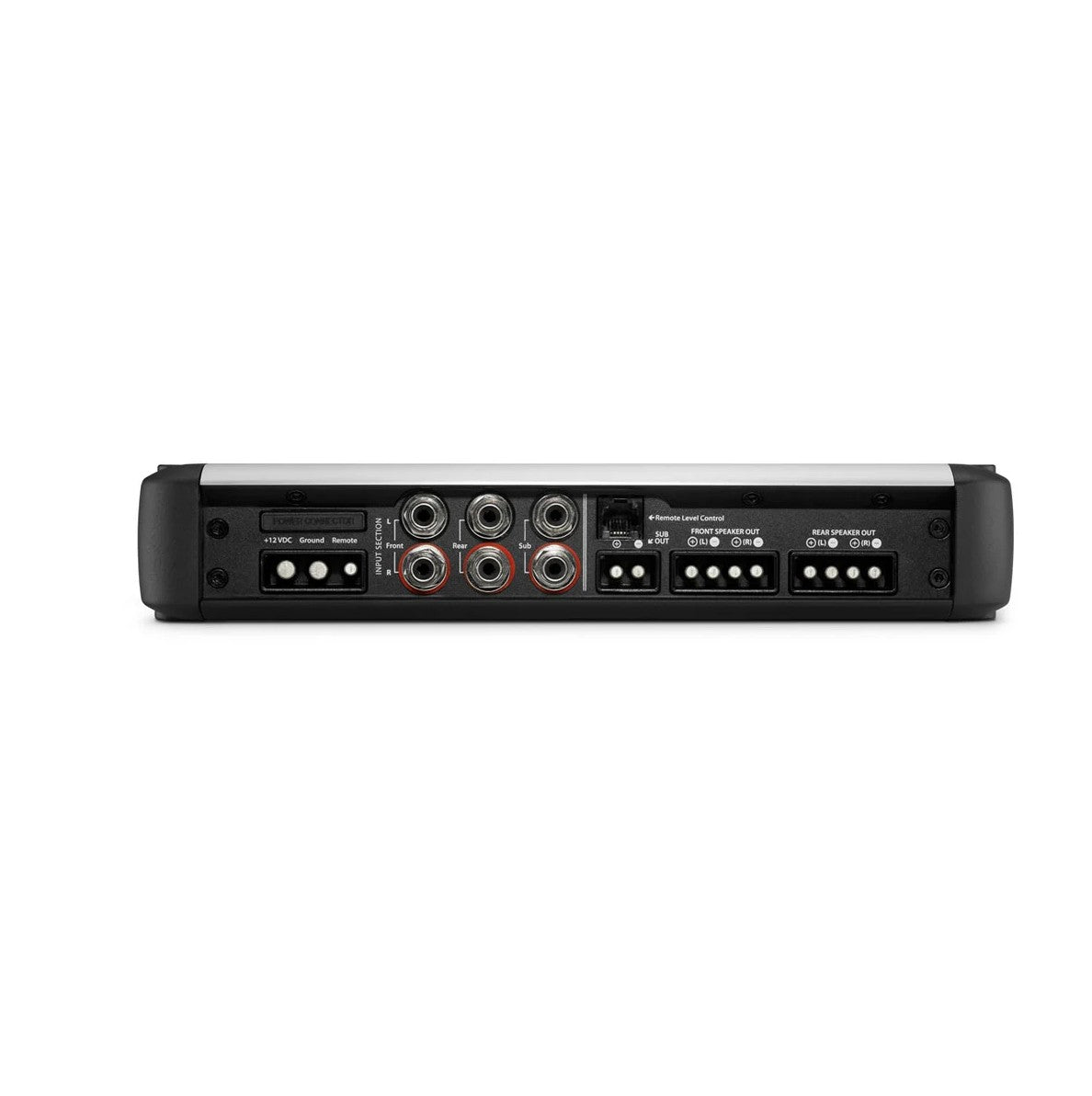

REMOVABLE POWER AND SPEAKER CONNECTORS
SELECTABLE INPUT VOLTAGE: LOW (200 MV TO 2-VOLT RMS) TO HIGH (800 MV TO 8-VOLT RMS)
2- OR 4-CHANNEL INPUT MODE AND SELECTABLE PREAMP OUTPUT MODE
2 MOUNTING OPTIONS PLUS A SPACE-SAVING STACKING FEATURE
2-YEAR WARRANTY
General |
|
| Warranty | 2 years |
|---|---|
| Channels | 5 |
| Physical dimensions (Height) | 1.93" (49 mm) |
| Physical dimensions (Width) | 10.74" (273 mm) |
| Physical dimensions (Depth) | 7.85" (199 mm) |
| Weight |
6.85 lbs (3.11 kg) |
| Operating voltage | 11-14.5 VDC |
Audio |
|
| Amplifier class | Class D |
|---|---|
| Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD) | Main: 100 W x 4/Sub: 500 x 1 |
| Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD) | Main: 75 W x 4/Sub: 500 x 1 |
| Rated continuous (RMS) power (12.5 V input @ 4 Ohm < 1% THD) | Main: 100 W x 4/Sub: 500 x 1 |
| Rated continuous (RMS) power (12.5 V input @ 2 Ohm < 1% THD) | Main: 75 W x 4/Sub: 500 x 1 |
| Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Main Channels | 108 dB |
| Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Main Channels | 88 dB |
| Damping factor @ 4 Ω | >400/50 Hz |
| Damping factor @ 2 Ω | >200/50 Hz |
| THD+N @ Rated Power: Main Channels | <0.03% @ 4Ω |
| THD+N @ Rated Power: Subwoofer Channel | <0.05% @ 4Ω |
| Frequency response (+0, -1dB): Main Channels | 12 Hz-28 kHz |
| Frequency response (+0, -1dB): Subwoofer Channel | 12 Hz-10 kHz |
| Input voltage range @ RCA inputs | Switchable from 200 mV-2 V RMS (Low) to 800 mV-8 V RMS (High) |
| Fuse rating | 60 A |
| Recommended fuse type(s) | AFS, AGU or MaxiFuse™ |
| Min. copper power/Ground wire gauge | 4 AWG wire |
Signal Processing |
|
| Filter mode(s): Channels 1 & 2 | Off or High-pass only |
|---|---|
| Filter Slope(s): Channels 1 & 2 | 12/24 dB/octave |
| Filter frequency range: Channels 1 & 2 | 50 Hz-500 Hz |
| Filter mode(s): Channels 3 & 4 | Off or High-pass only |
| Filter Slope(s): Channels 3 & 4 | 12/24 dB/octave |
| Filter frequency range: Channels 3 & 4 | 50 Hz-500 Hz |
| Filter mode(s): Subwoofer Channel | Off or Low-pass only |
| Filter slope(s): Subwoofer Channel | 12/24 dB/octave |
| Filter frequency range: Subwoofer Channel | 50 Hz-500 Hz |
| Detented, calibrated filter frequent potentiometers | |
| Infrasonic filter: Subwoofer Channel | 30 Hz, Defeatable |
| Remote level control | Optional (HD-RLC) |
| Remote level modes | Sub Channels only |
| Channel input mode switch | yes (2/4/6 Channels) |
| Pass-through preamp output | Buffered |
