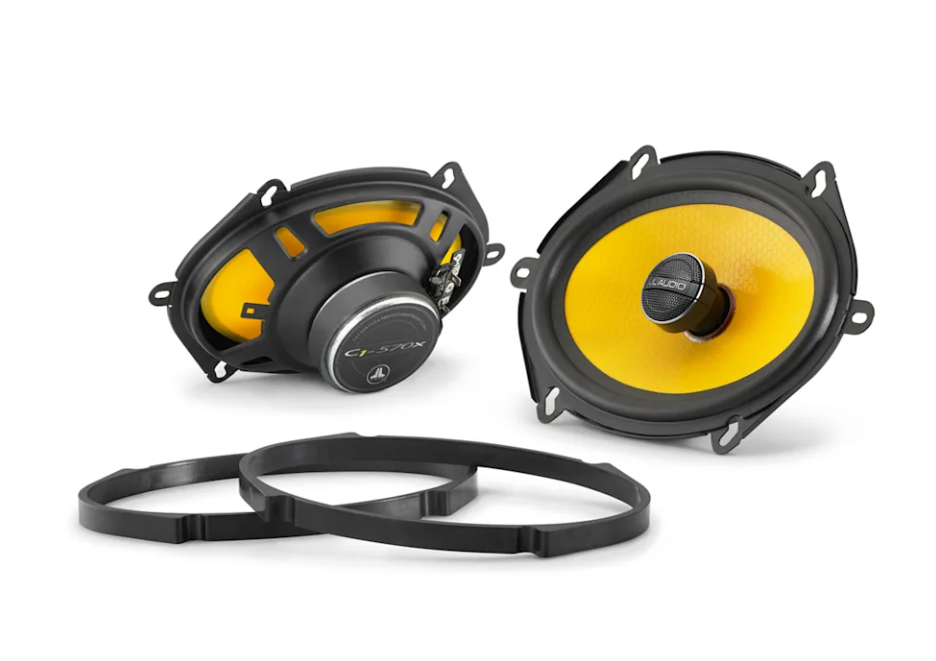

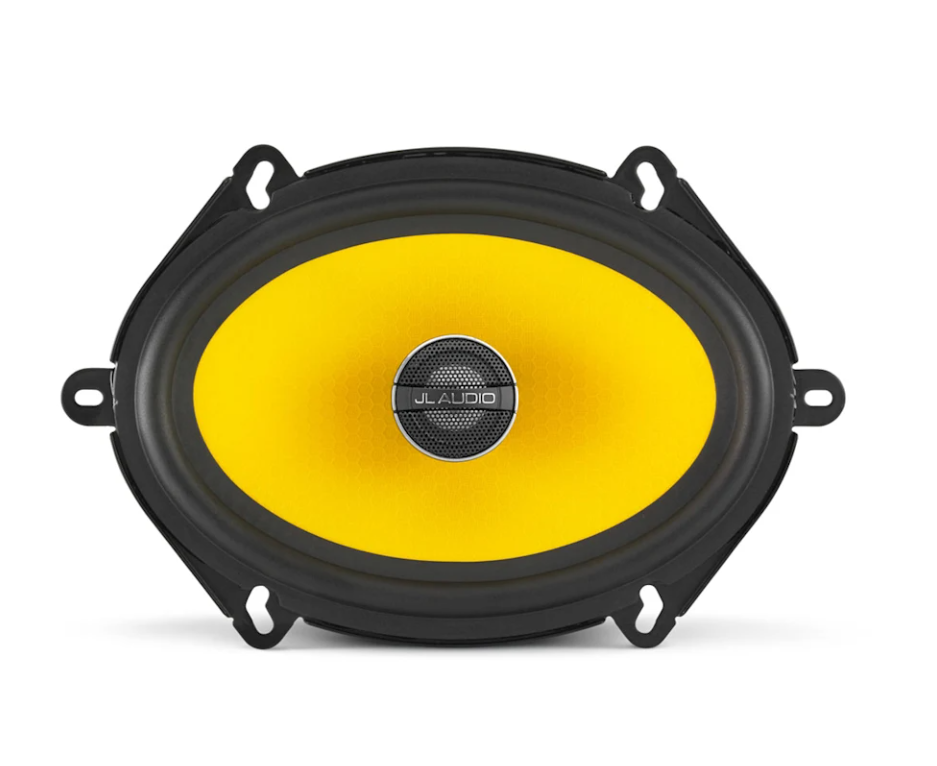

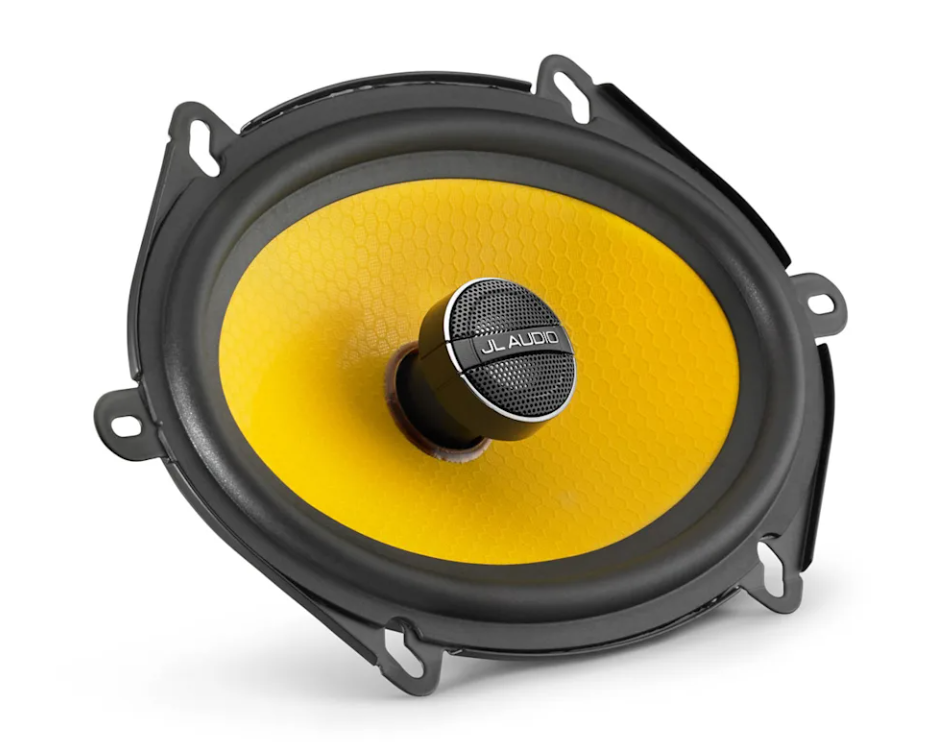

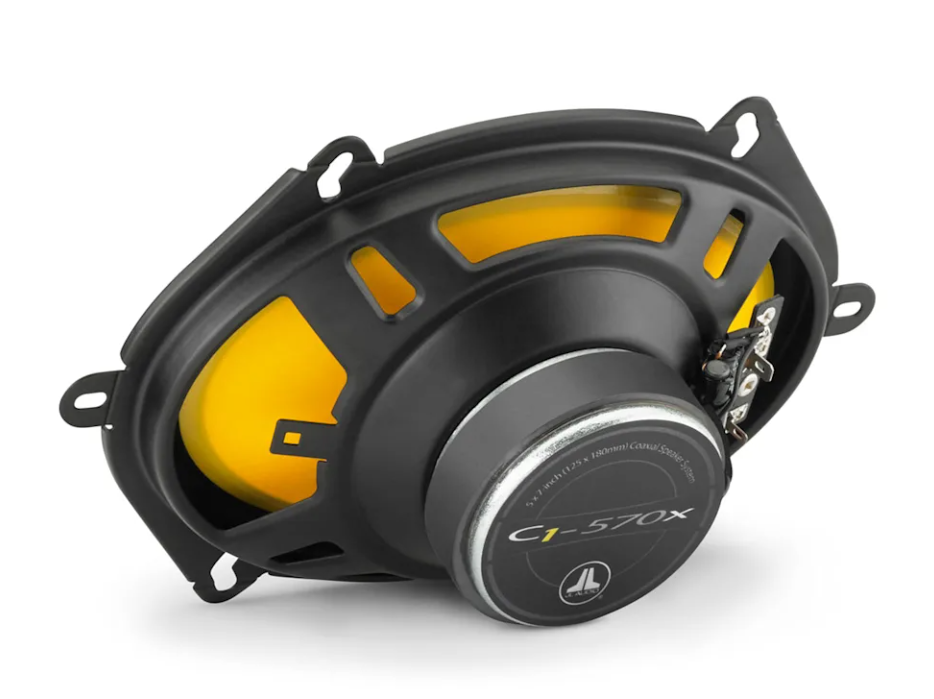

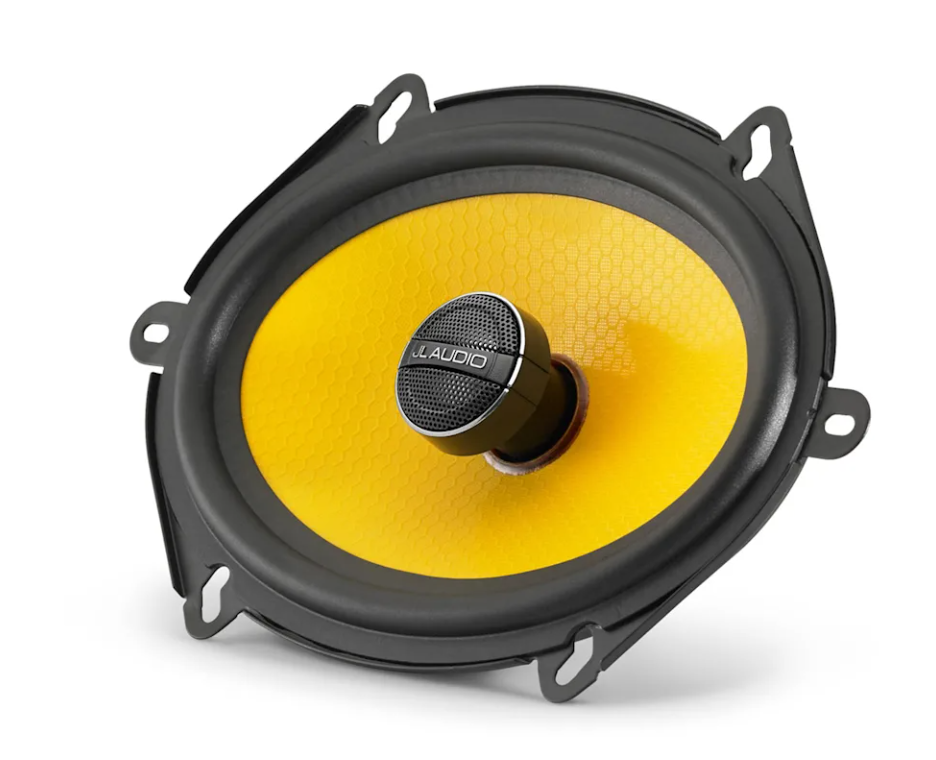

Get loud sound with minimal distortion. JL Audio C1 speakers are available in a wide variety of sizes, and fit easily behind the factory grilles of most vehicles.
COAXIAL SPEAKERS
EASILY INSTALL IN MOST FACTORY SPEAKER LOCATIONS
DMA-OPTIMIZED WOOFERS FOR BETTER BASS RESPONSE
ALUMINUM DOME TWEETERS
1-YEAR WARRANTY
General |
|
| Warranty | 1 year |
|---|---|
| Sizes | 4"/5 x 7"/5.25"/6 x 9" |
| Continuous power handling (RMS) | 4": 35 W 5 x 7"/5.25"/6.5": 50 W 6 x 9": 60 W |
| Sensitivity (SPL @ 1 W/1 m) | 4": 84.5 dB 5 x 7": 90.5 dB 5.25": 89 dB 6 x 9" (2-way): 91.5 dB 6 x 9" (3-way)/6.5": 90.5 dB |
| Frequency response (+/- 3 dB) | 4": 64 Hz-24 KHz 5 x 7": 40 Hz-24 KHz 5.25": 54 Hz-24 KHz 6 x 9" (2-way): 39 Hz-22 KHz 6 x 9" (3-way): 36 Hz-24 KHz 6.5": 48 Hz-24 KHz |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 4": 10-50 W/Channel 5 x 7"/5.25"/6.5": 10-75 W/Channel 6 x 9": 10-100 W/Channel |
| Voice coil diameter | 4"/5 x 7"/5.25"/6.5": 1" (25 mm) 6 x 9": 1.2" (30 mm) |
| Cone material | Mineral-filled polypropylene |
| Tweeter type | Aluminum Dome |
| Tweeter size | 4"/5 x 7"/5.25"/6.5": 0.75" (19 mm) 6 x 9" (2-way): 1" (25 mm) 6 x 9" (3-way): 1" (25 mm) and 0.75" (19 mm) |
Networking & Connections |
|
| Speaker connections | Spade connectors |
|---|---|
Mounting Dimensions |
|
| Frame outer diameter | 4": 4.03" (102 mm) 5 x 7": 5.50 x 7.63" (140 x 194 mm) 5.25": 5.83" (132 mm) 6 x 9" 6.38 x 9.33" (162 x 237 mm) 6.5": 6.25" (159 mm) |
|---|---|
| Mounting depth clearance | 4": 1.81" (46 mm) 5 x 7": 2.46" (63 mm) 5.25": 2.42" (62 mm) 6 x 9" (2-way): 2.75" (70 mm) 6 x 9" (3-way): 3.09" (79 mm) 6.5": 2.07" (53 mm) |
| Mounting hole | 4": 3.70" (94 mm) 5.25": 4.70 in (119 mm) 6.5": 5.02" (128 mm) |
| Motor outer diameter | 4": 2.33" (59 mm) 5 x 7"/5.25": 2.76" (70 mm) 6 x 9" (2-way): 3.54" (90 mm) 6 x 9" (3-way): 3.94" (100 mm) 6.5": 3.15" (80 mm) |
| Frontal coaxial tweeter protrusion (frontal grille protrusion measured from mounting surface) | 4": 0.61" (16 mm) 5 x 7": 0.46" (12 mm) 5.25": 0.54" (14 mm) 6 x 9" (2-way): 0.41" (10 mm) 6 x 9" (3-way)/6.5": 0.72" (18 mm) |
