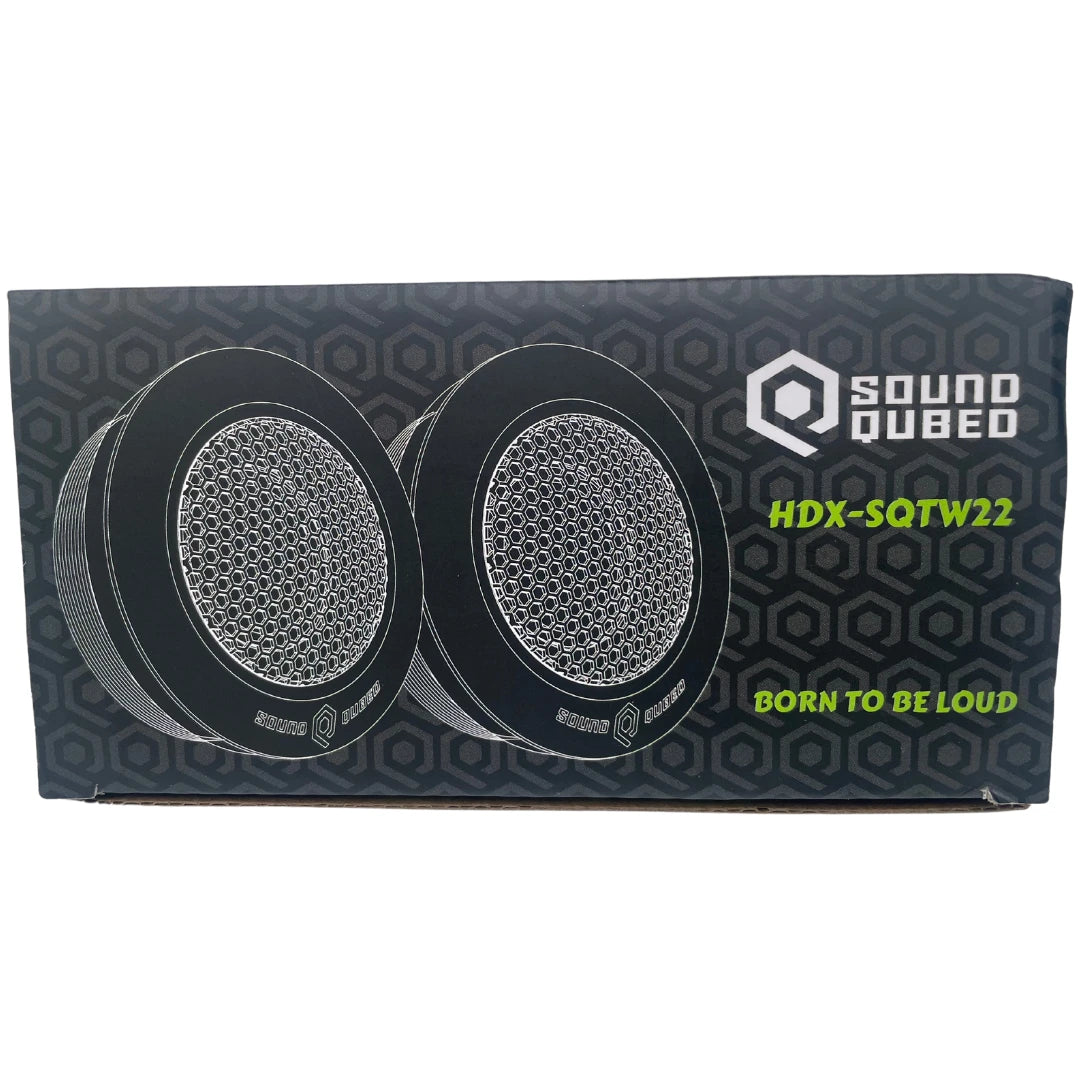

Model: HDX-TW22 Sold as: Pair

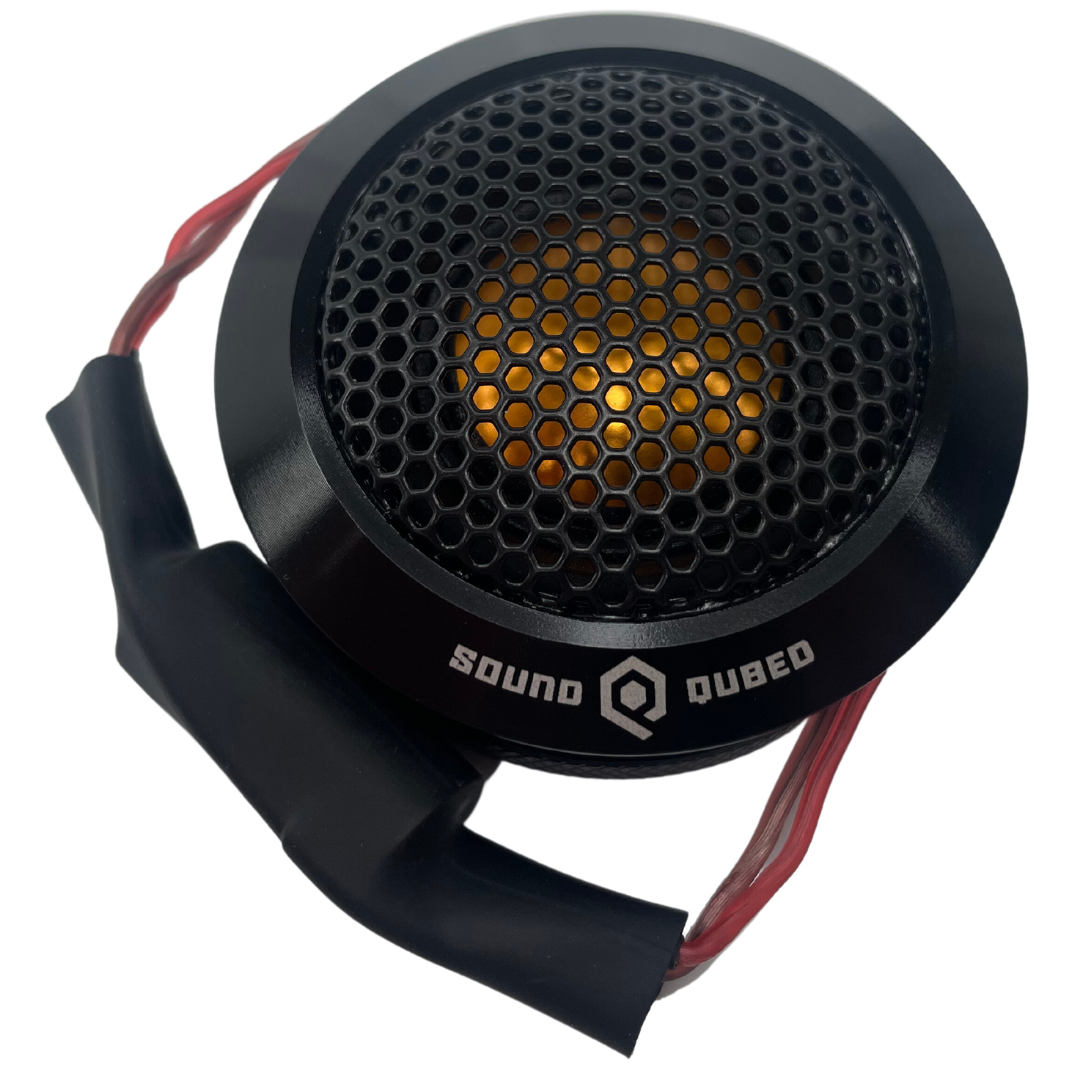

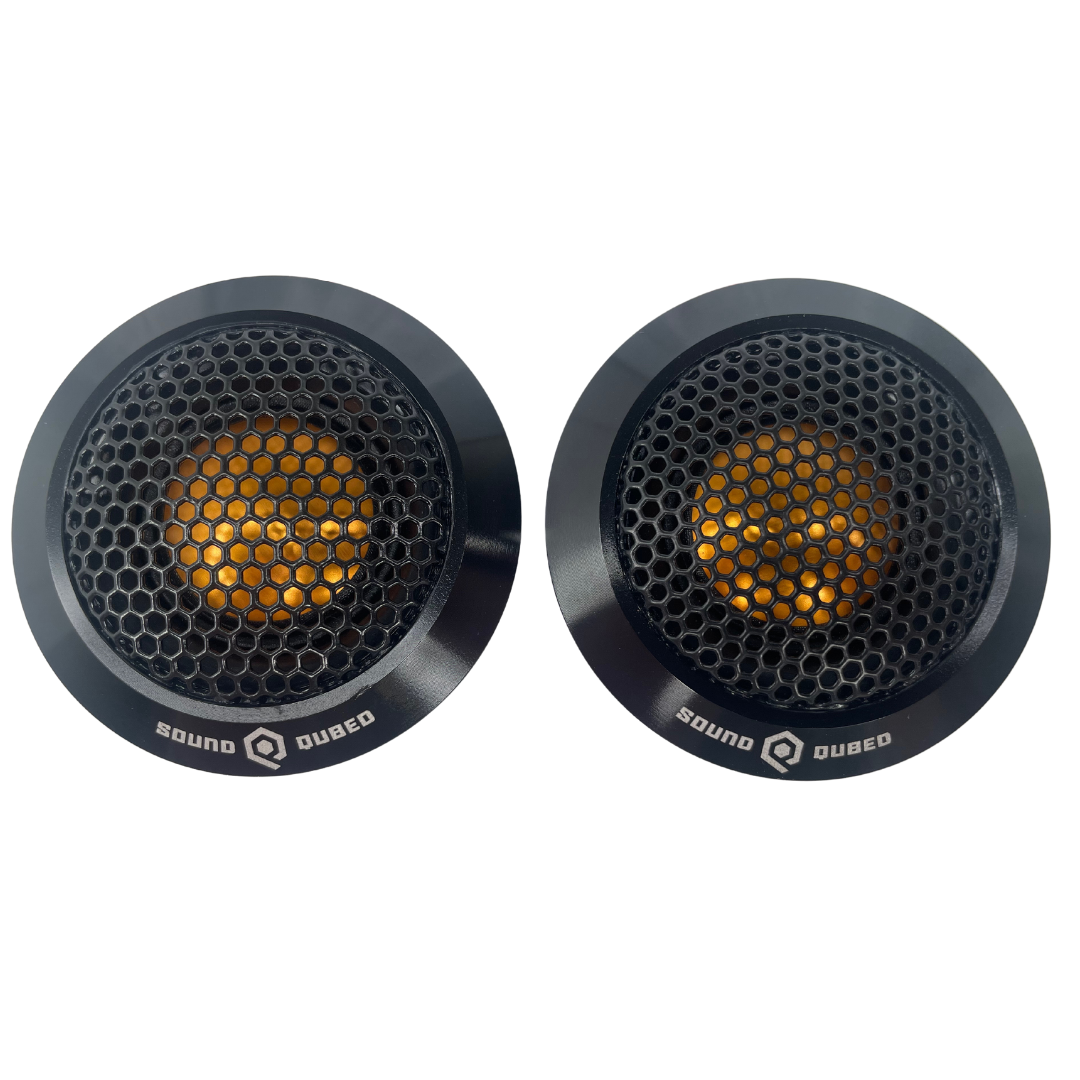

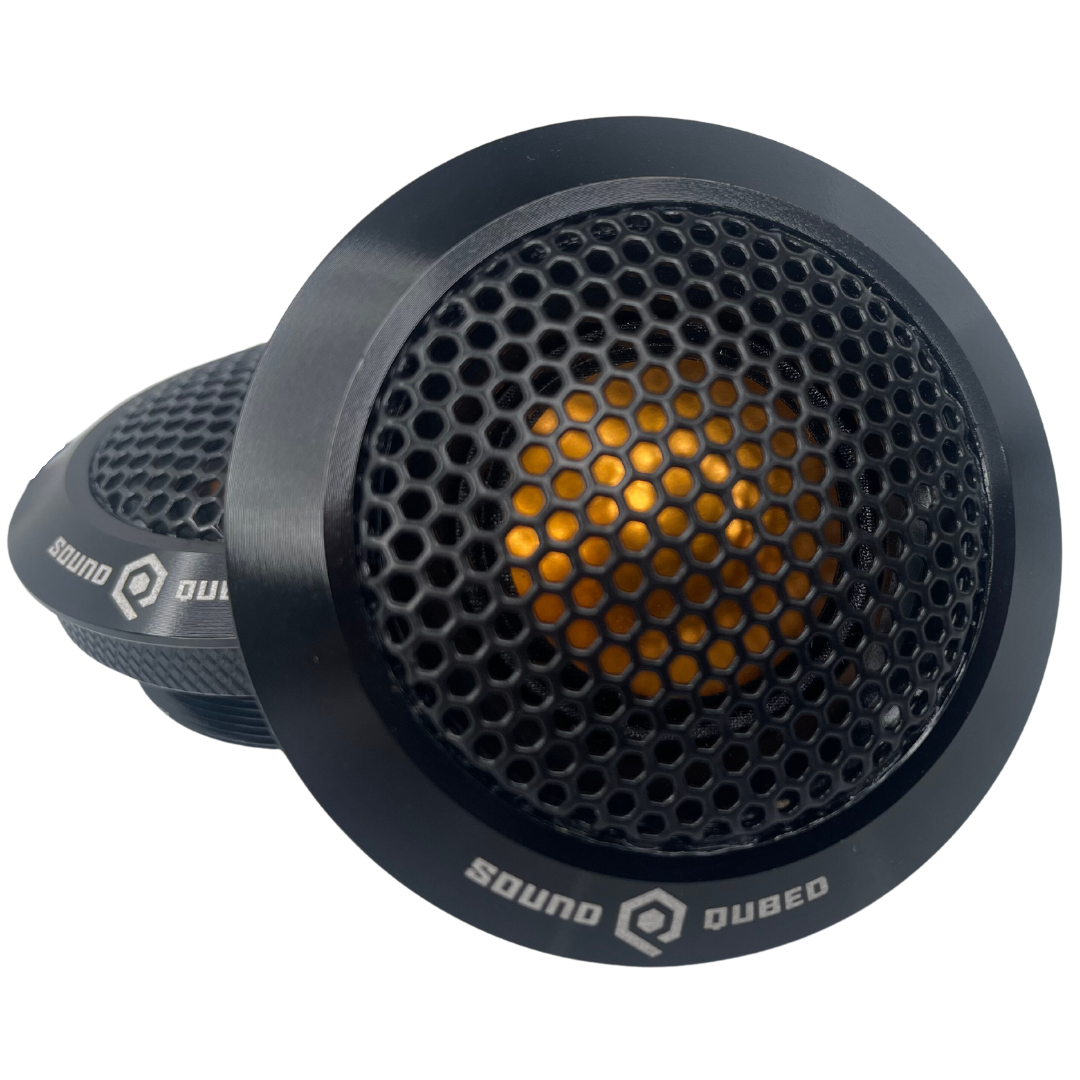

Soundqubed HDX series Premium 2.2" Tweeter. This tweeter was developed to provide the classy sound that your customers ride is looking for. With a sleek black aluminum casing and the ability to play from 920Hz to 20kHz. This tweeter has a mounting depth of .65" and a complete 2.28" Diameter and a cutout of 1.85". This tweeter brings the sound for a premium setup in your customers vehicle with the right support needed at high volume with clear sound. This tweeter only needs about 30 watts of power to really perform in the right atmosphere.

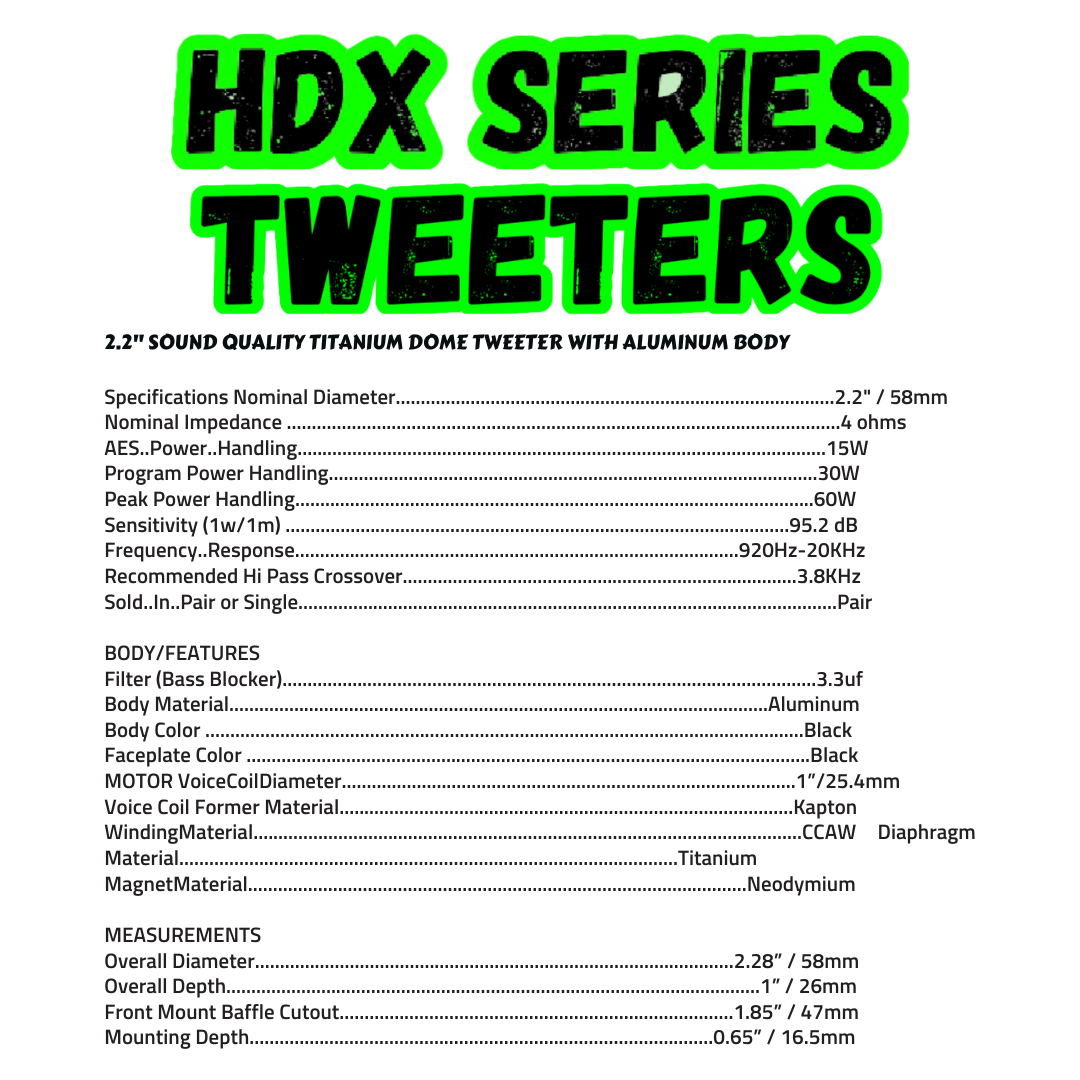

Specifications:
Nominal Diameter: 2.2" / 58mm
Nominal Impedance: 4 ohms
AES Power Handling: 15W
Program Power Handling: 30W
Peak Power Handling: 60W
Sensitivity (1w/1m): 95.2 dB
Frequency Response: 920Hz-20KHz
Recommended Hi Pass Crossover: 3.8KHz
Body Features:
Filter (Bass Blocker): 3.3uf
Body Material: Aluminum
Body Color: Black
Faceplate Color: Black
Voice Coil Diameter: 1" / 25.4mm
Voice Coil Former Material: Kapton
Winding Material: CCAW
Diaphragm Material: Titanium
Magnet Material: Neodymium

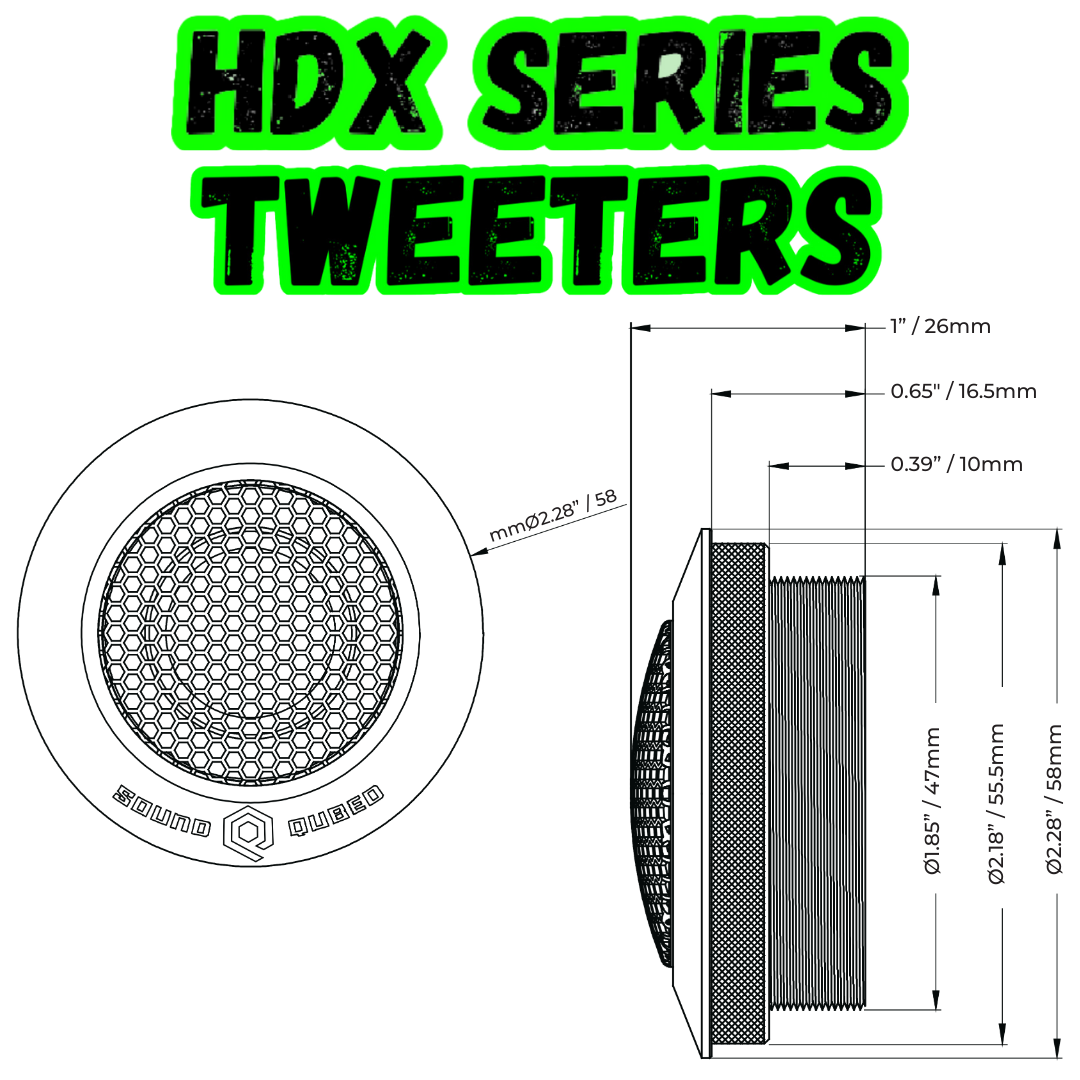

Measurements:
Overall Diameter: 2.28" / 58mm
Overall Depth: 1" / 26mm
Front Mount Baffle Cutout: 1.85" / 47mm
Mounting Depth: 0.65" / 16.5mm
