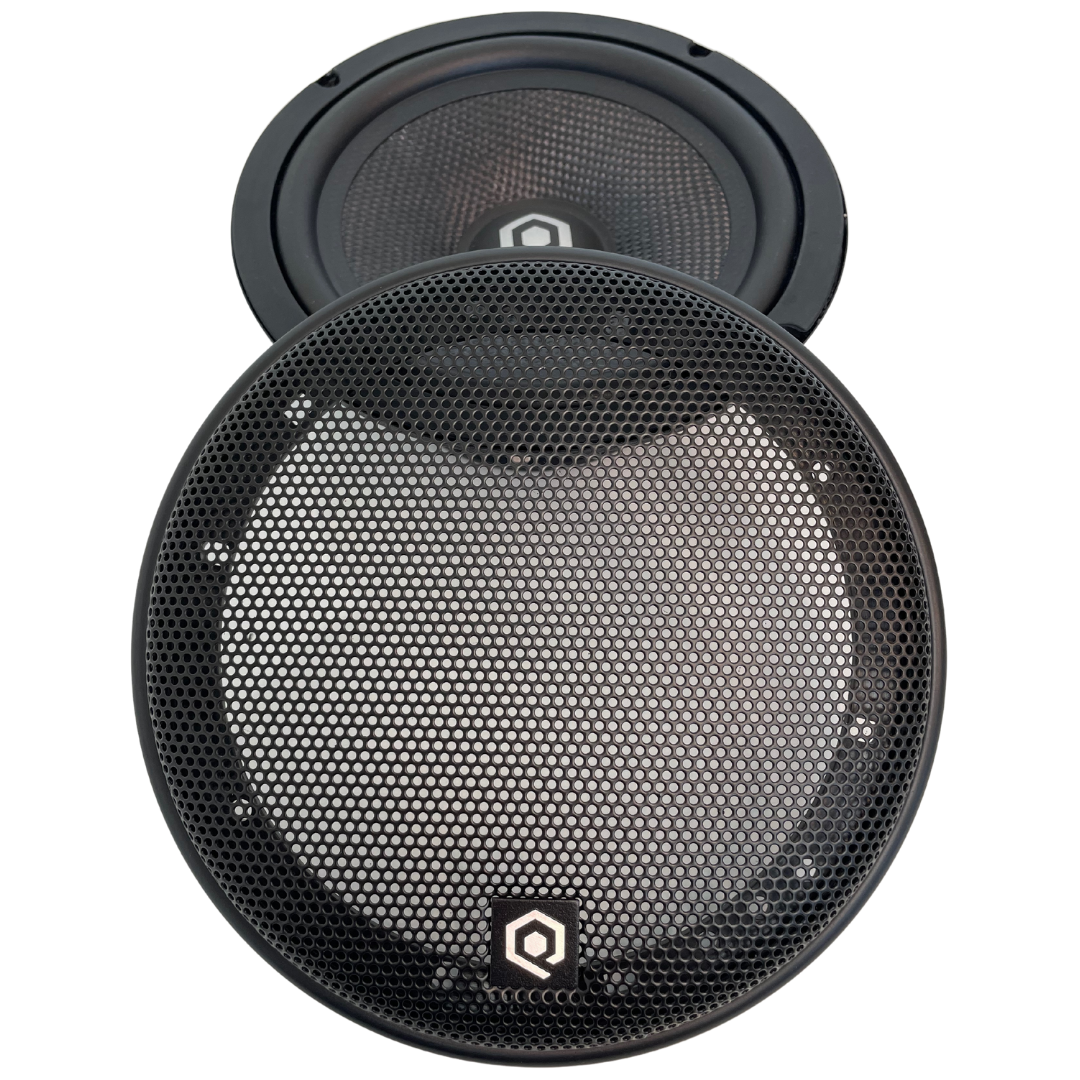

Model: HDX-CP65 Sold as: Pair
HDX Series Speakers – Built to Keep Up!
SoundQubed’s HDX Series has been such a game changer that we needed coaxials to keep up with the fantastic subwoofers SoundQubed has developed. With these HDX series speakers, SoundQubed achieved that. Featuring a 3.5" Midrange, 5.25" Coaxial, 5x7" Coaxial, 6.5" Coaxial, and the beefy 6x9" Coaxial, customers have a variety of options to achieve this upgraded sound.
During development, SoundQubed knew these speakers needed to look just as good as they sound while remaining affordable. When customers need confidence in installing new speakers in stock locations and want to send good power to them, the HDX Series is the way to go!

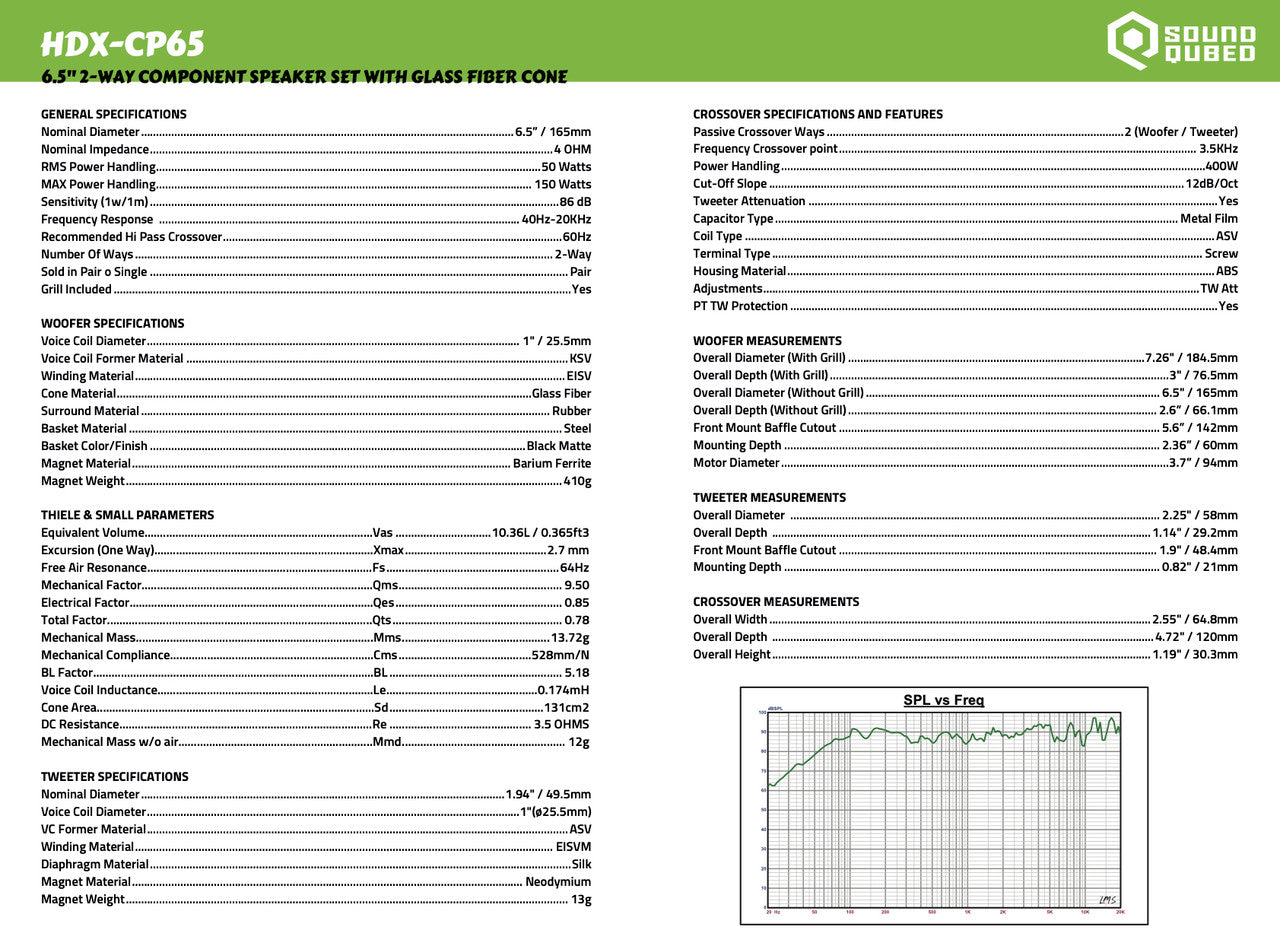

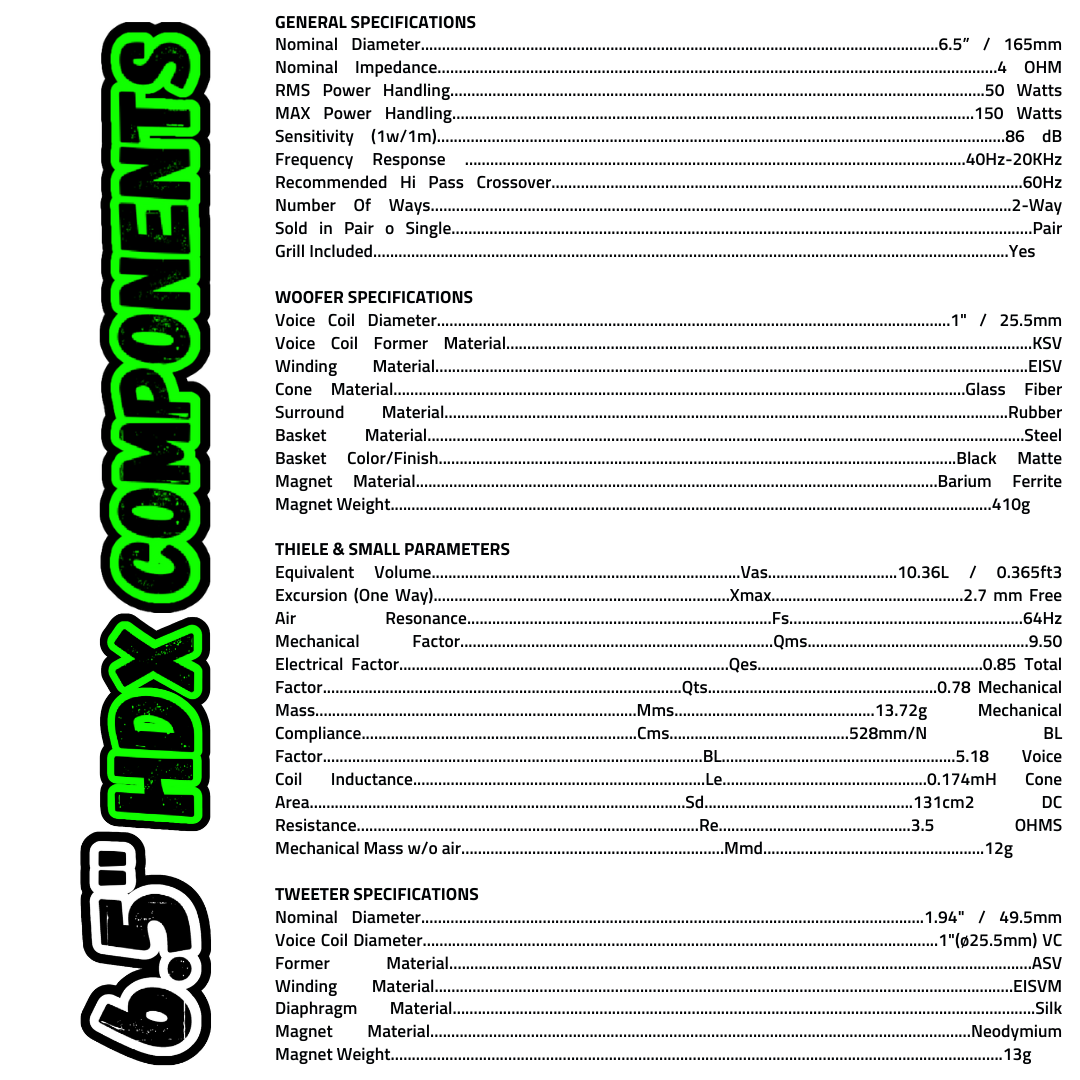

General Specifications:
Nominal Diameter: 6.5” / 165mm
Nominal Impedance: 4 OHM
RMS Power Handling: 50 Watts
MAX Power Handling: 150 Watts
Sensitivity (1w/1m): 86 dB
Frequency Response: 40Hz-20KHz
Recommended Hi Pass Crossover: 60Hz
Number Of Ways: 2-Way

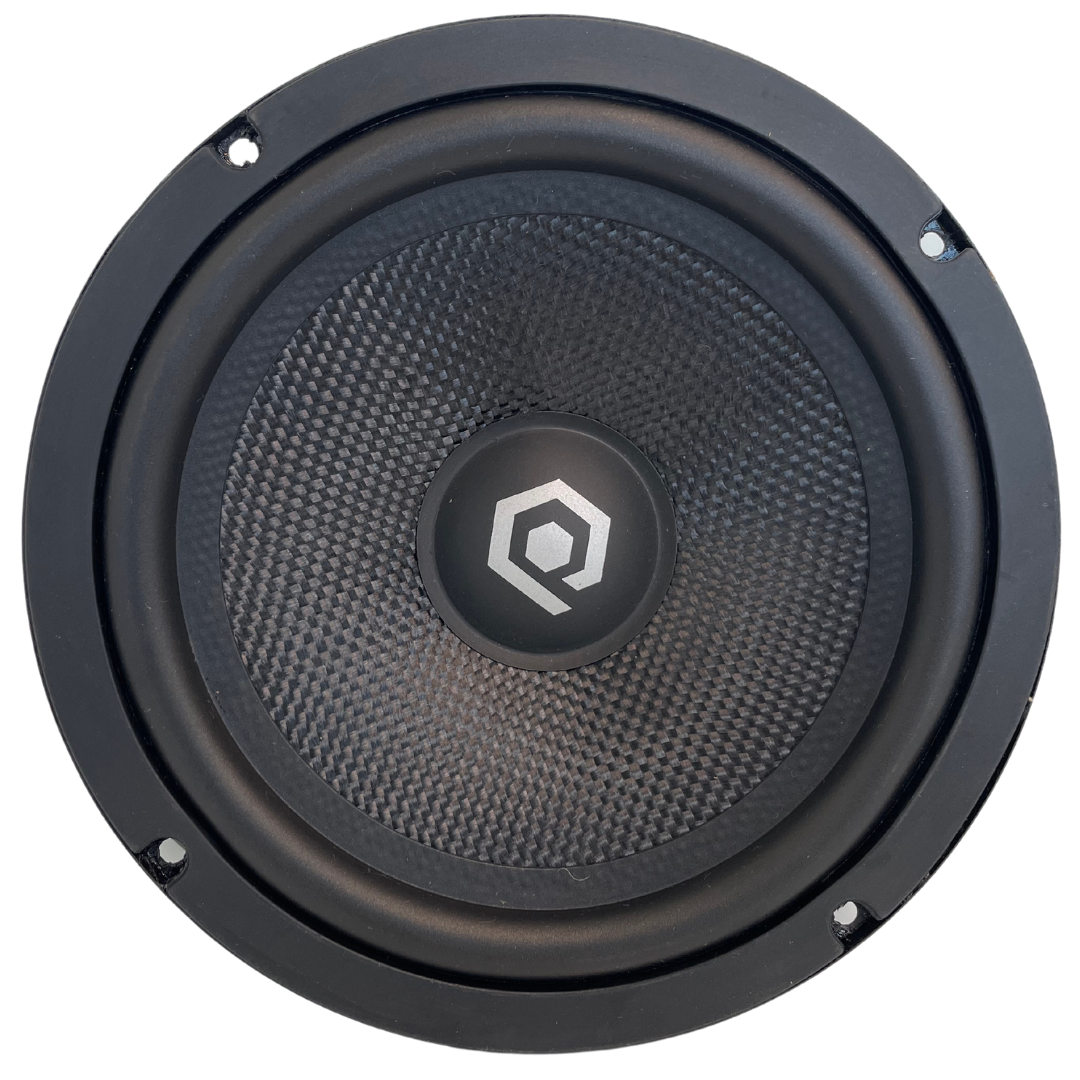

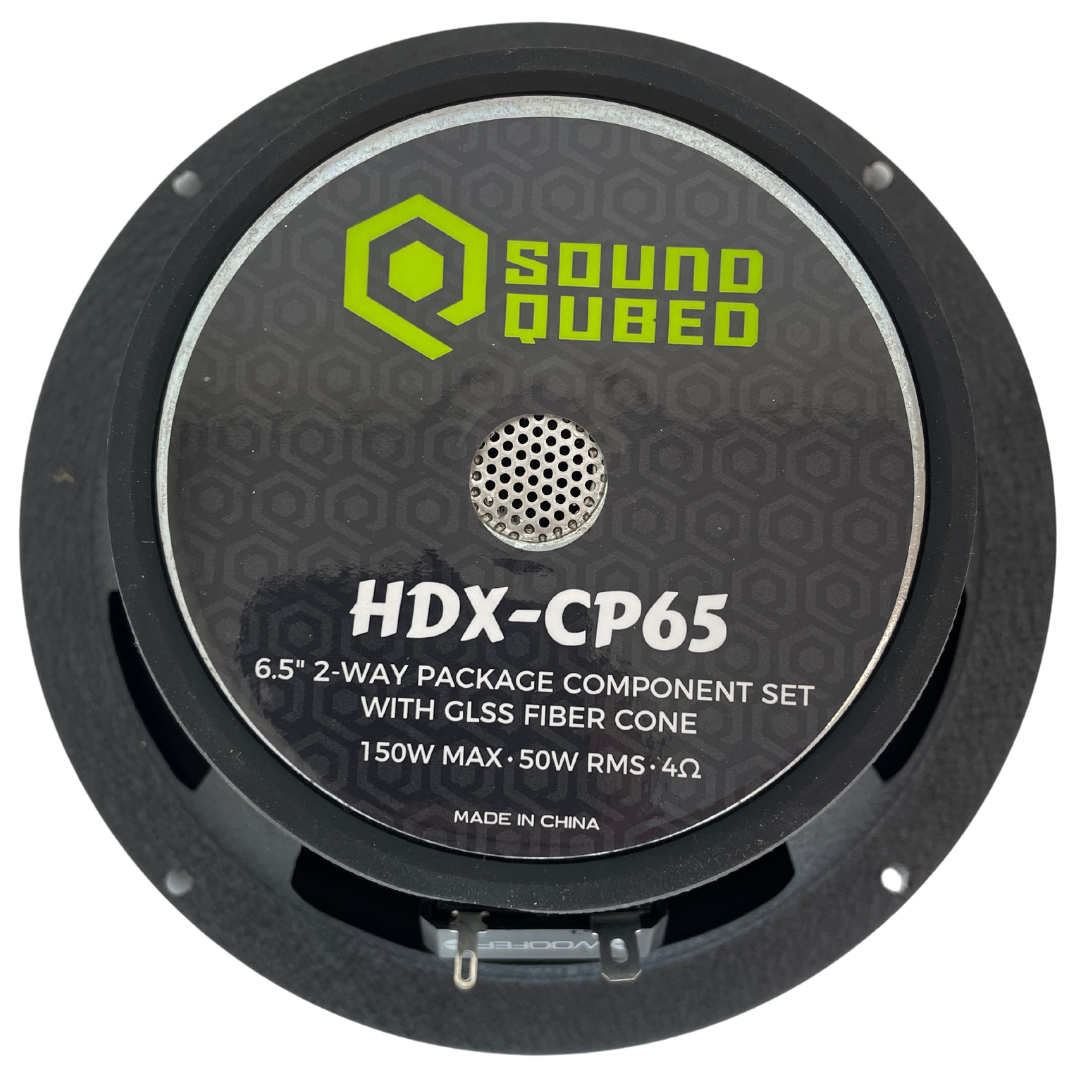

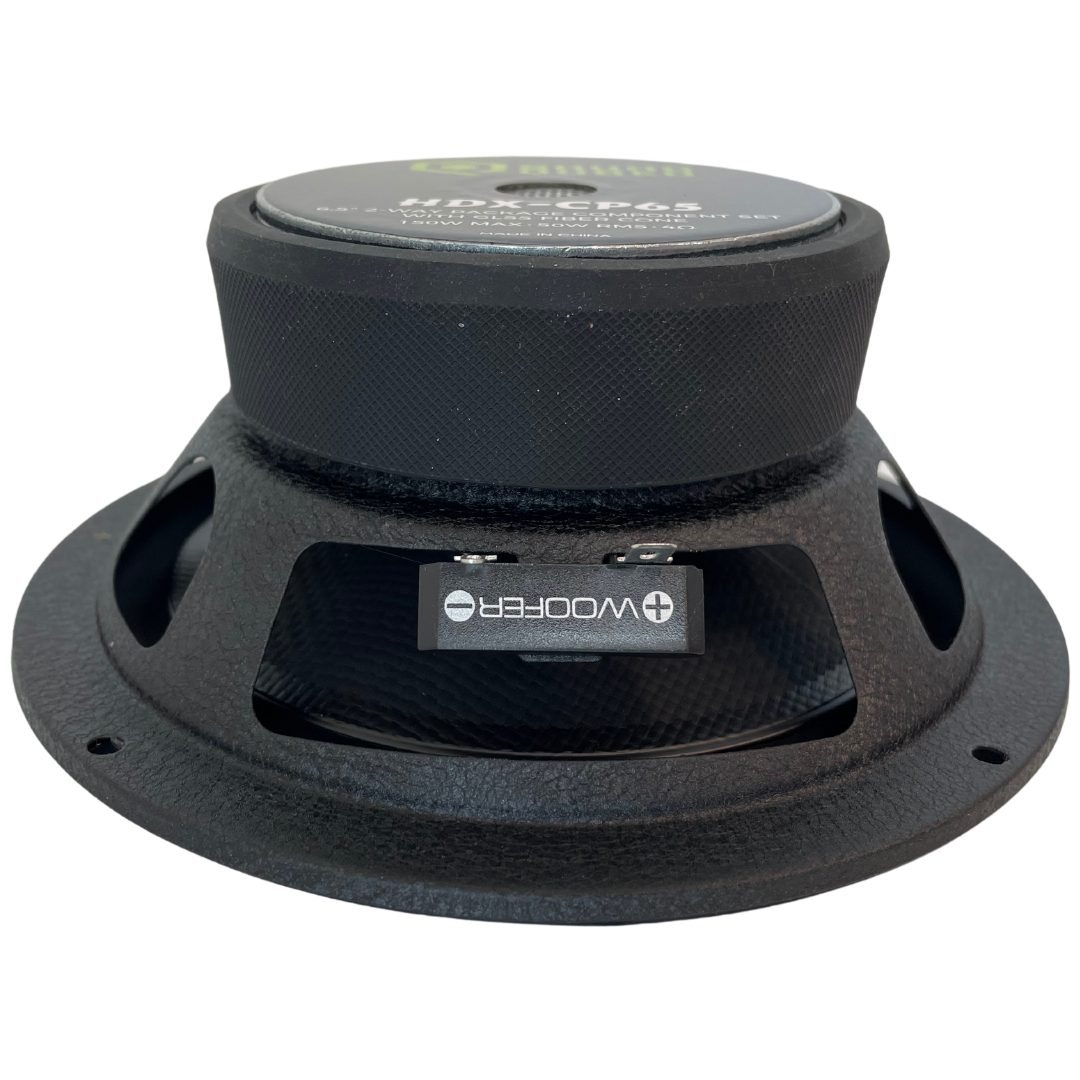

Woofer Specifications:
Voice Coil Diameter: 1" / 25.5mm
Voice Coil Former Material: KSV
Winding Material: EISV
Cone Material: Glass Fiber
Surround Material: Rubber
Basket Material: Steel
Basket Color/Finish: Black Matte
Magnet Material: Barium Ferrite
Magnet Weight: 410g

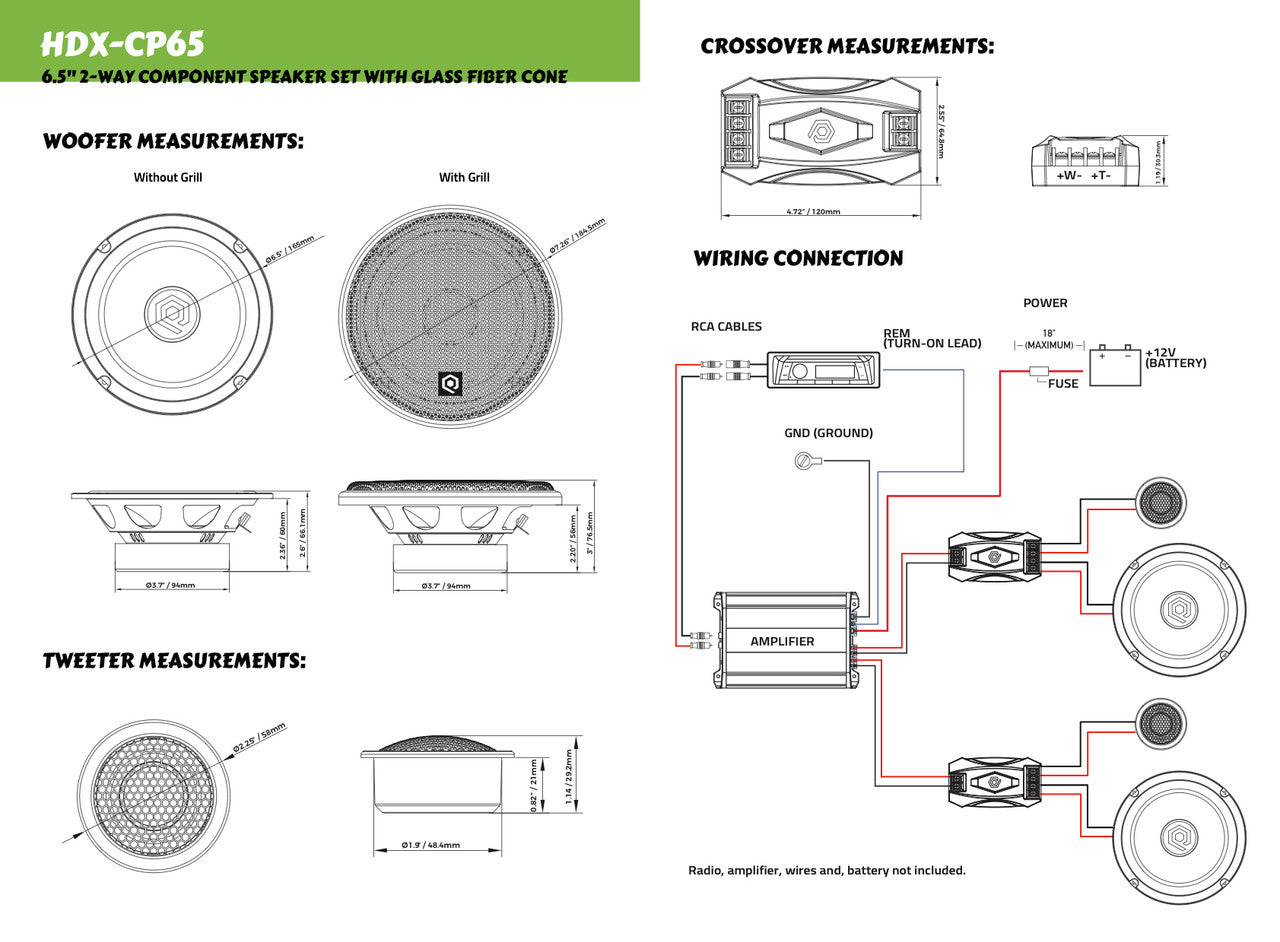

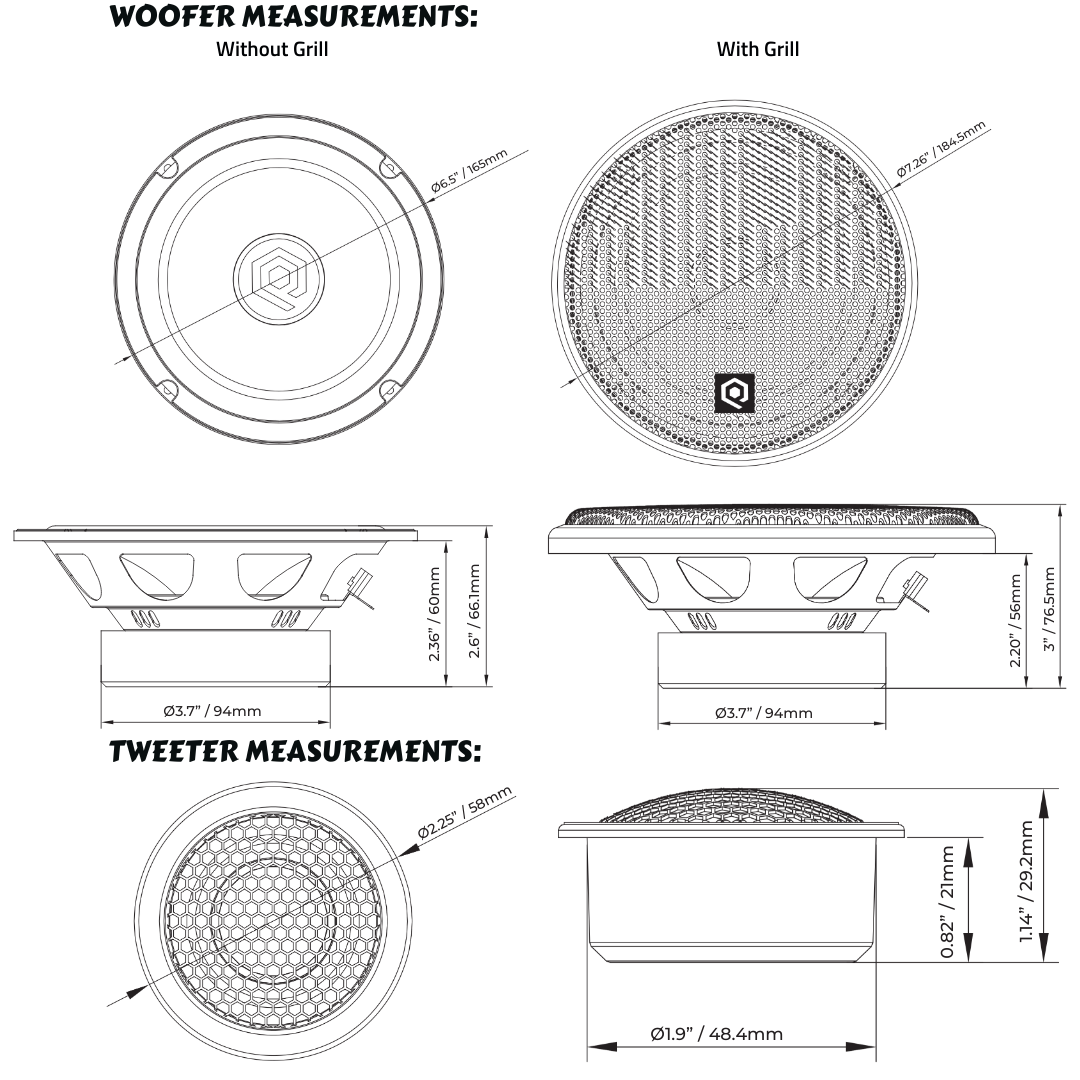

Woofer Measurements:
Overall Diameter (With Grill): 7.26" / 184.5mm
Overall Depth (With Grill): 3" / 76.5mm
Overall Diameter (Without Grill): 6.5" / 165mm
Overall Depth (Without Grill): 2.6" / 66.1mm
Front Mount Baffle Cutout: 5.6" / 142mm
Mounting Depth: 2.36" / 60mm
Motor Diameter: 3.7" / 94mm

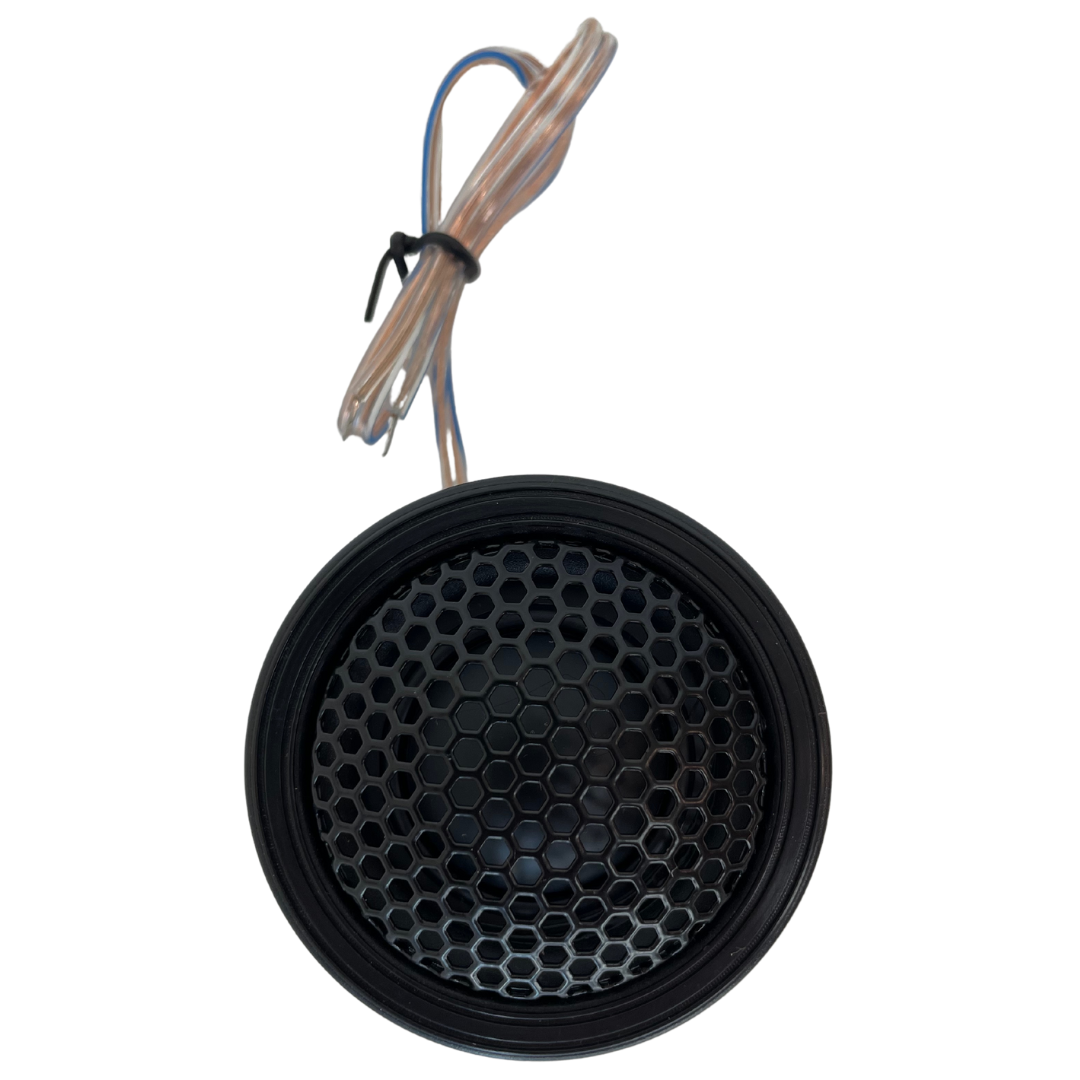

Tweeter Specifications:
Nominal Diameter: 1.94" / 49.5mm
Voice Coil Diameter: 1" (Ø25.5mm) VC
Former Material: ASV
Winding Material: EISVM
Diaphragm Material: Silk
Magnet Material: Neodymium
Magnet Weight: 13g
Tweeter Measurements:
Overall Diameter: 2.25" / 58mm
Overall Depth: 1.14" / 29.2mm Front
Mount Baffle Cutout: 1.9" / 48.4mm
Mounting Depth: 0.82" / 21mm

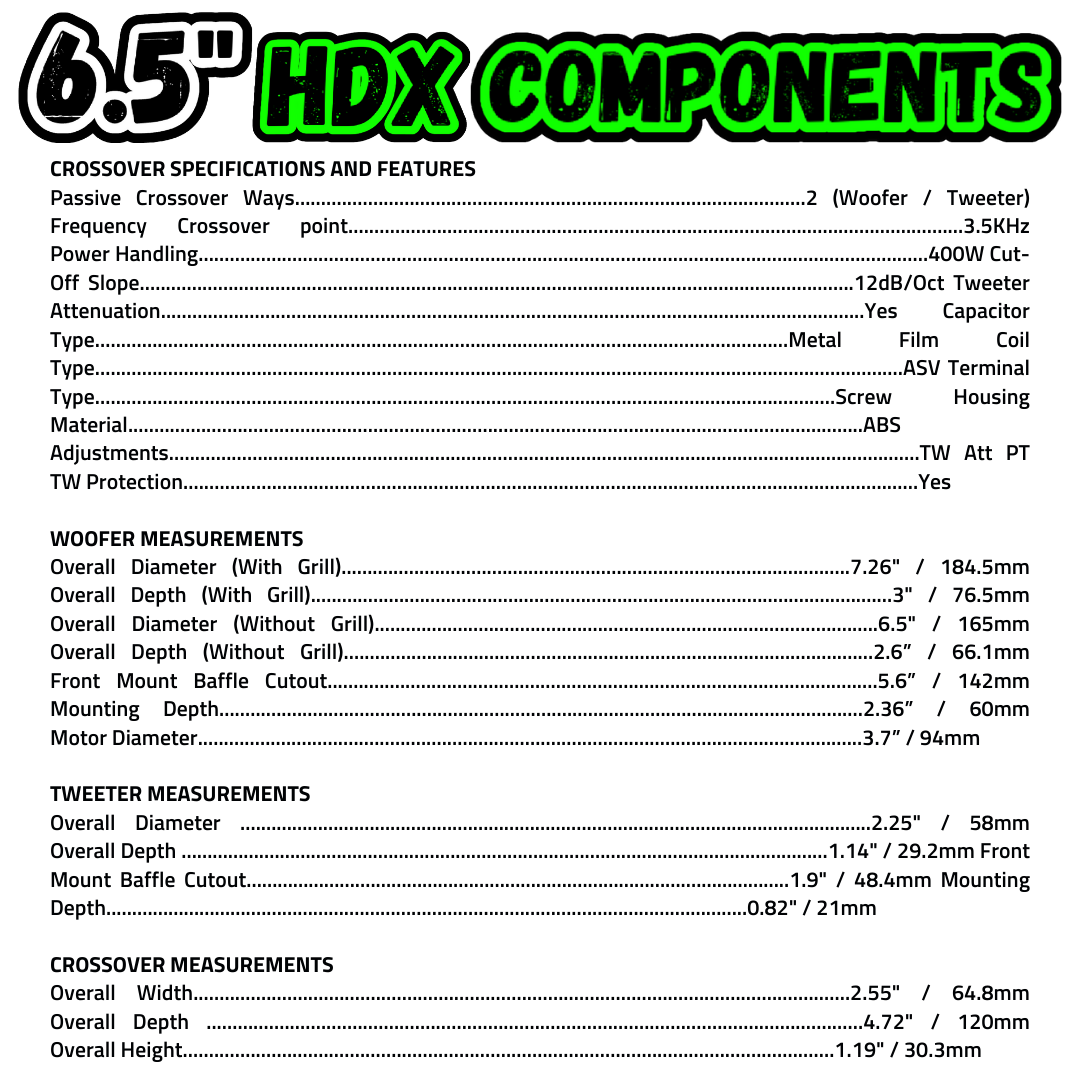

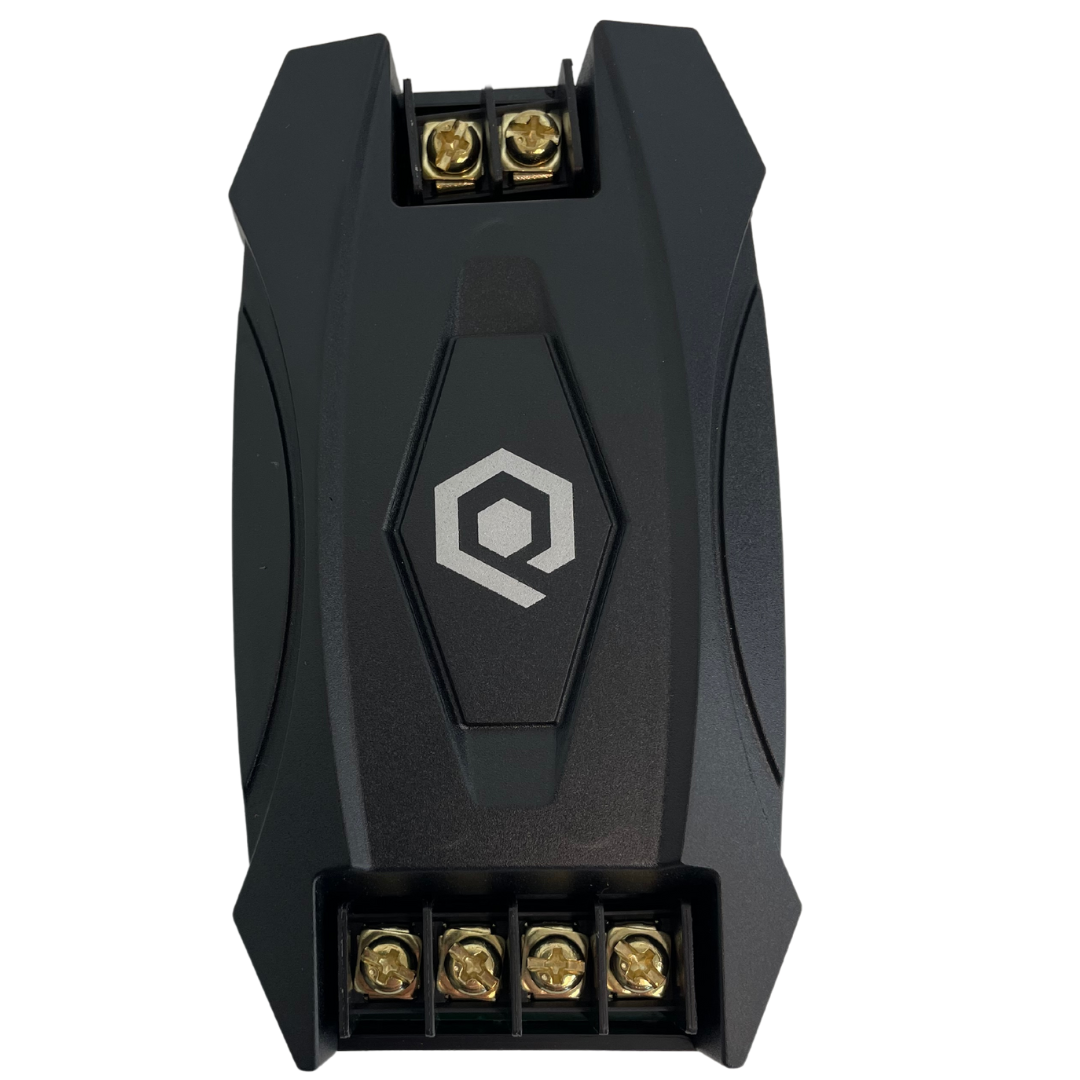

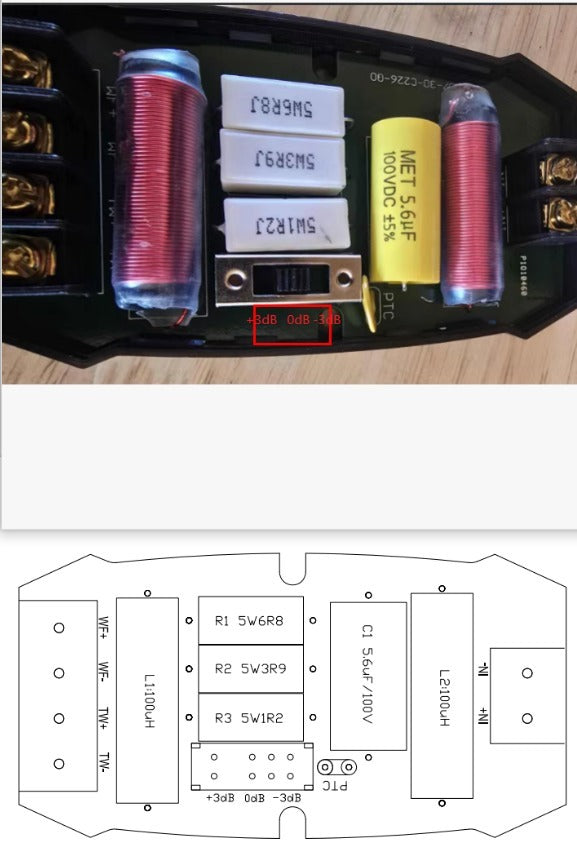

Crossover Specifications & Features:
Passive Crossover Ways: 2 (Woofer / Tweeter)
Frequency Crossover Point: 3.5KHz
Power Handling: 400W
Off Slope: 12dB/Oct Tweeter
Attenuation: Yes, Capacitor
Type: Metal Film Coil
Type: ASV Terminal
Type: Screw Housing
Material: ABS
Adjustments: TW Att PT
TW Protection

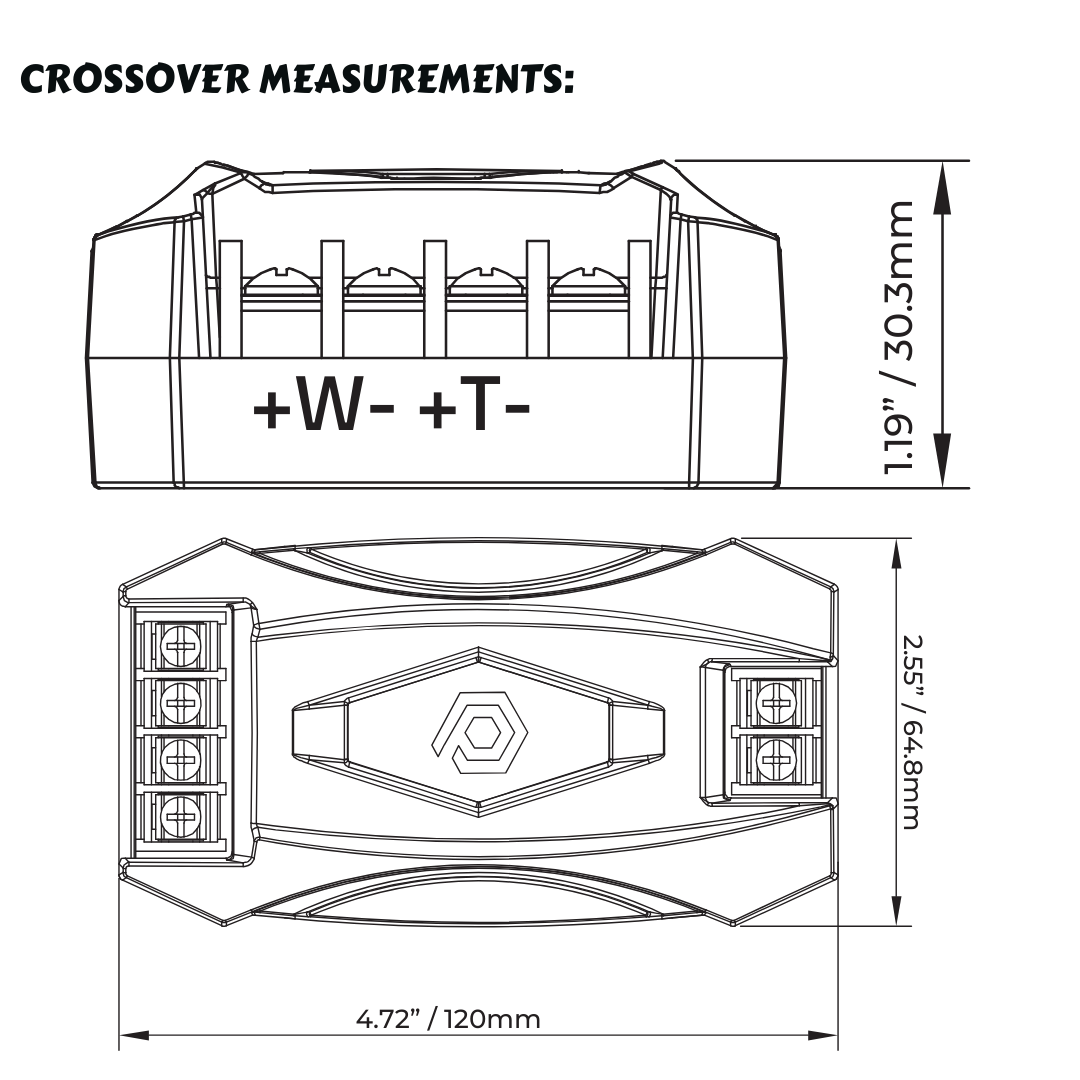

Crossover Measurements:
Overall Width: 2.55" / 64.8mm
Overall Depth: 4.72" / 120mm
Overall Height: 1.19" / 30.3mm
