Model: HDX-2HDT-8 Sold as: Each

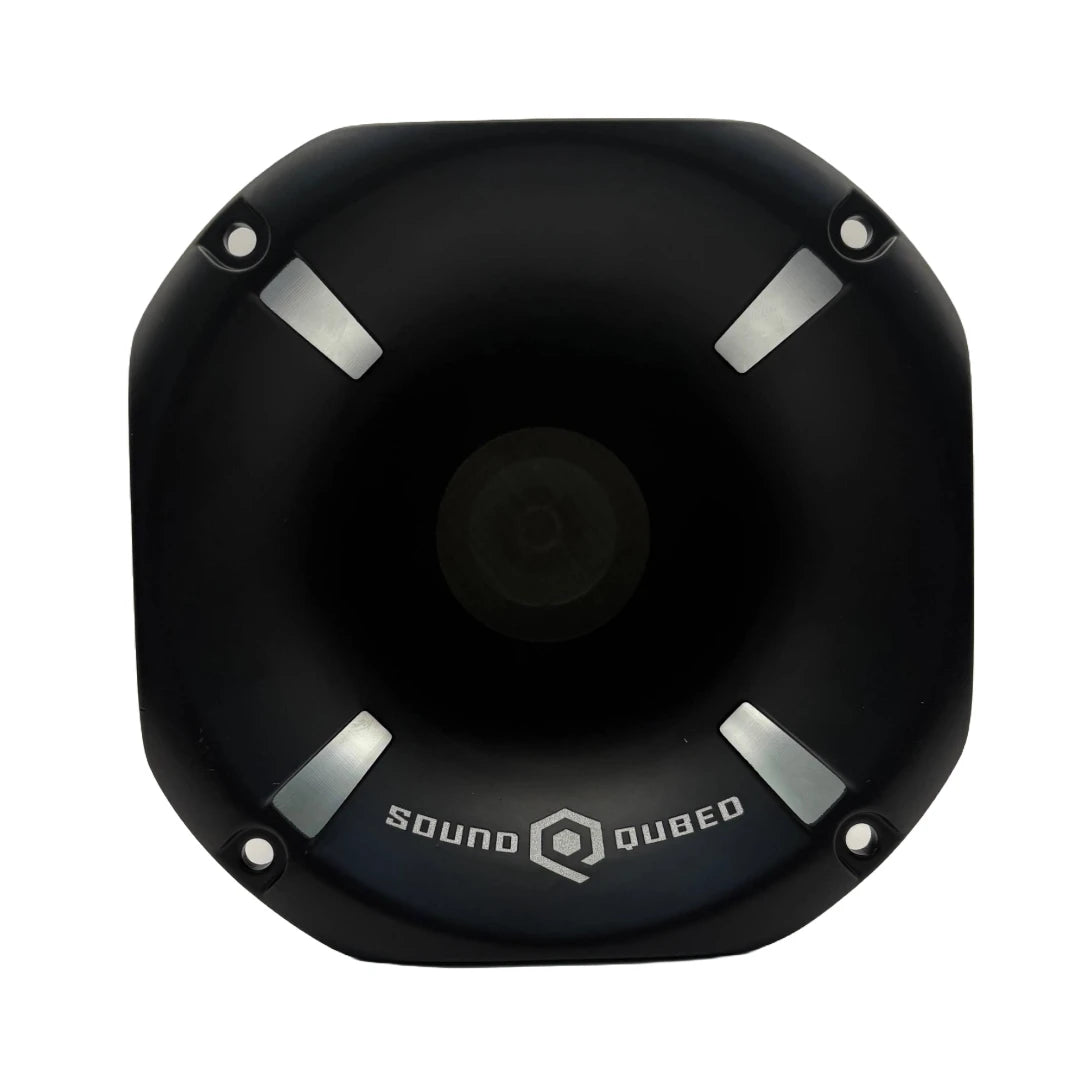

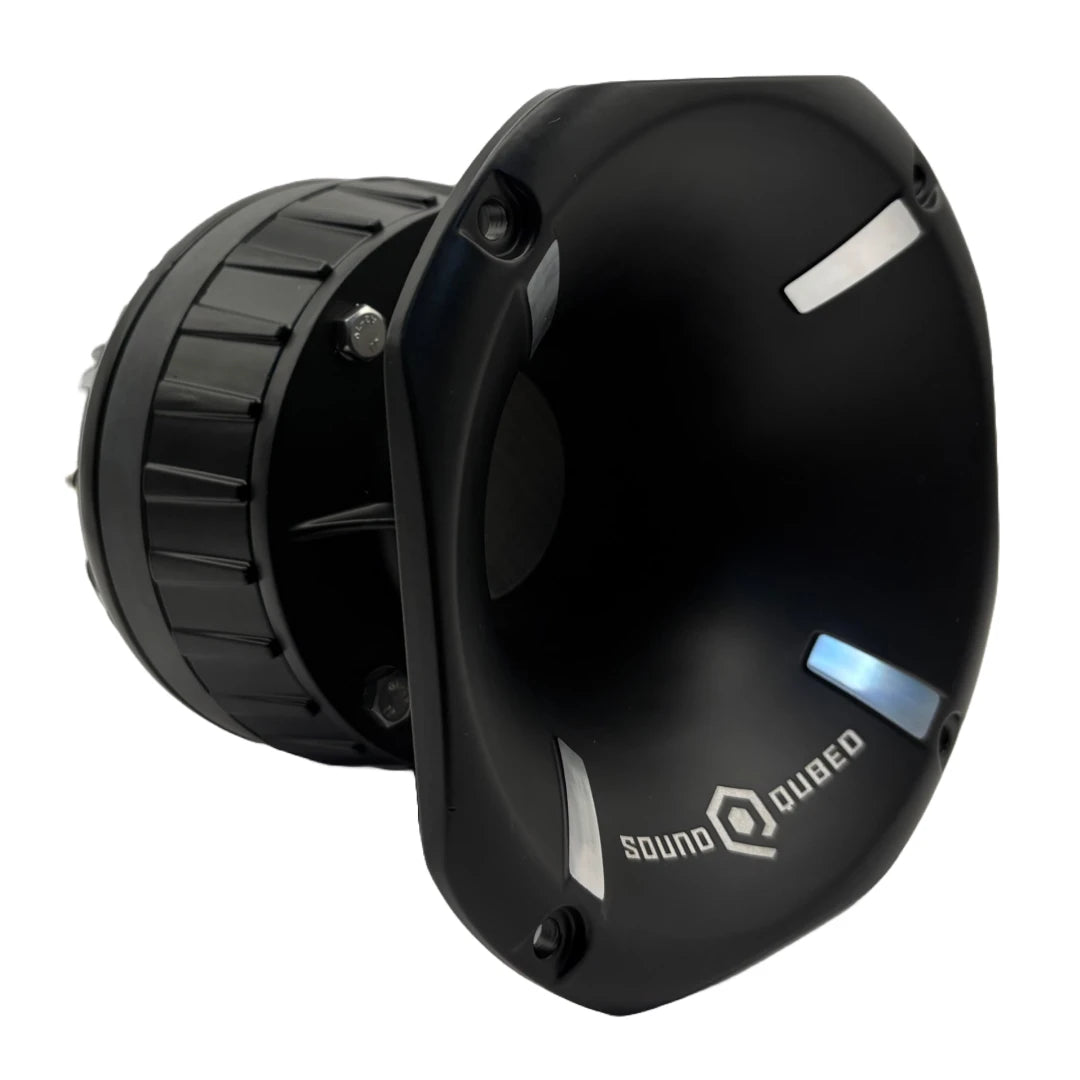

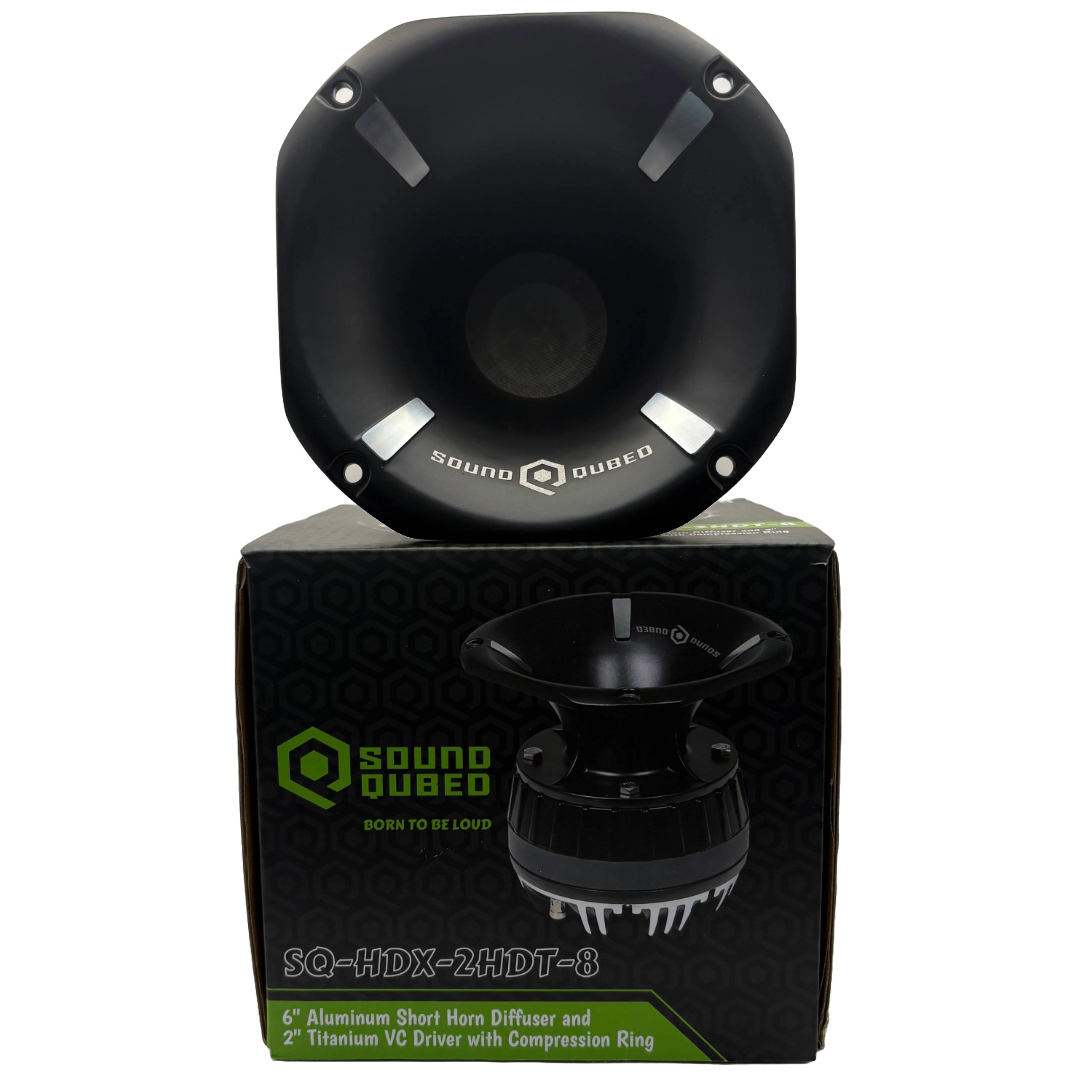

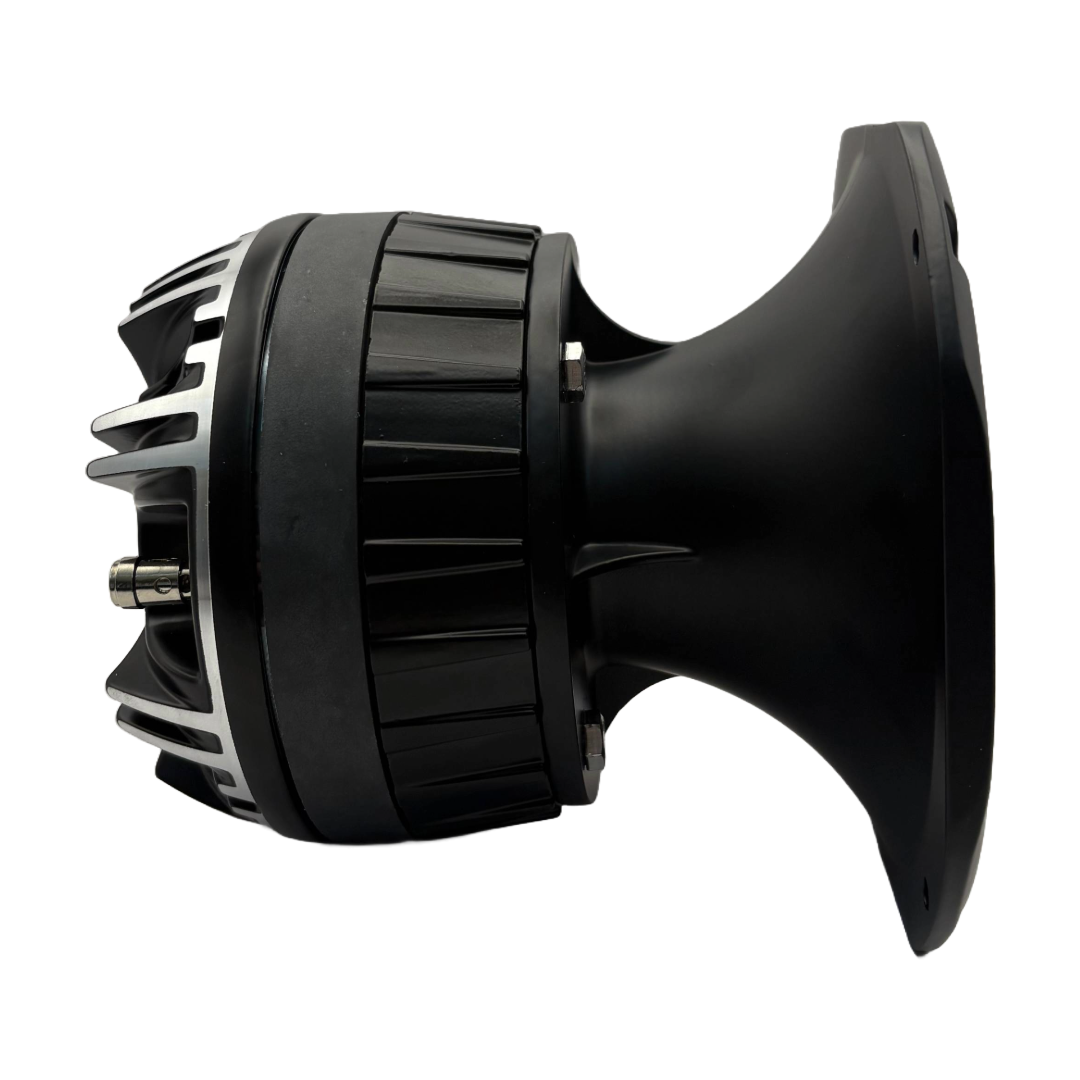

The SoundQubed SQ-HDX-2HDT-8 is a robust 6" aluminum short horn diffuser featuring a 2" titanium voice coil driver with a compression ring. Designed for powerful sound projection and high-fidelity audio, this driver is an excellent choice for demanding professional setups.

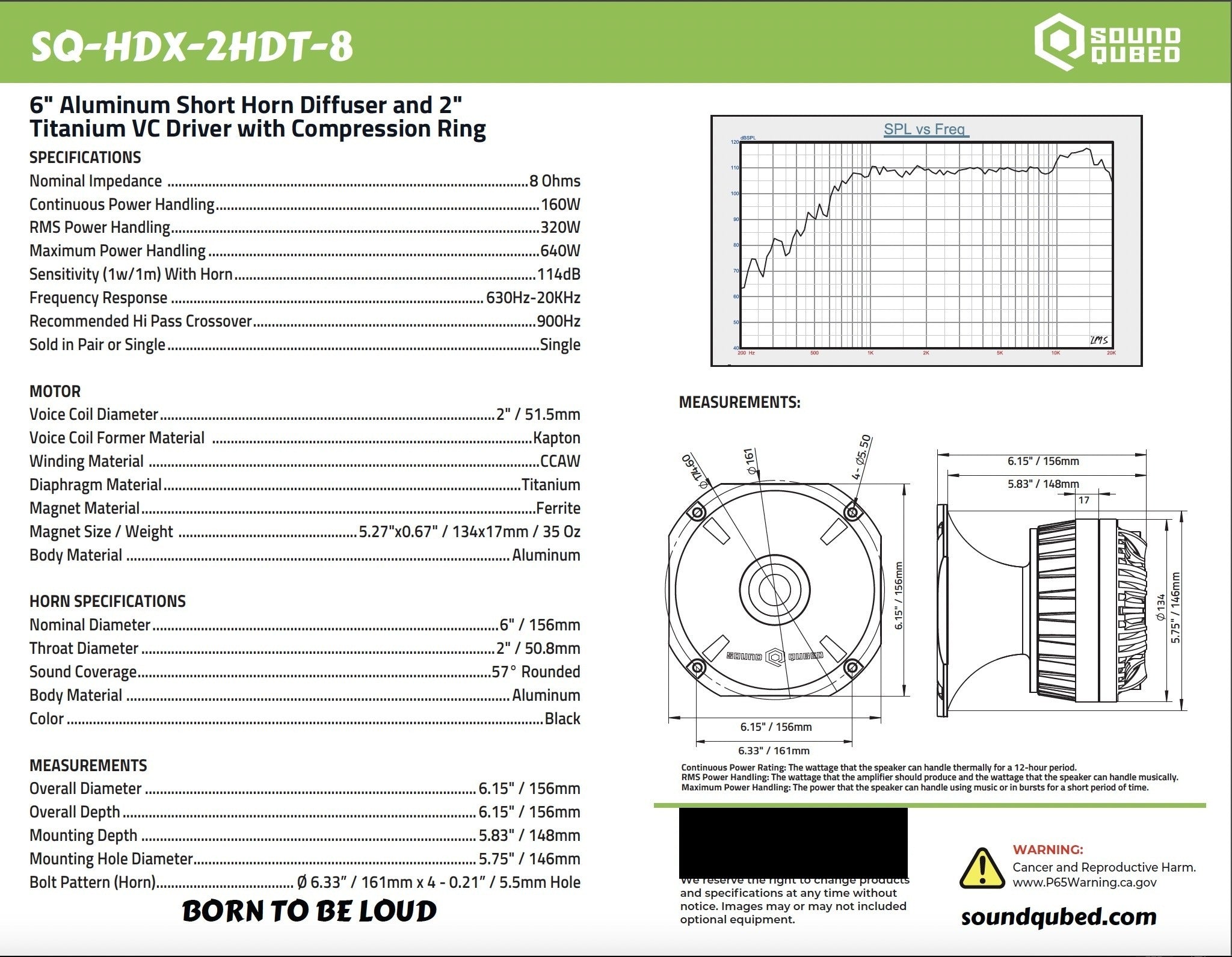

Specifications:
Nominal Impedance: 8 Ohms
Continuous Power Handling: 160W
RMS Power Handling: 320W
Maximum Power Handling: 640W
Sensitivity (1w/1m) With Horn: 114dB
Frequency Response: 630Hz-20KHz
Recommended Hi Pass Crossover: 900Hz
Motor:
Voice Coil Diameter: 2" / 51.5mm
Voice Coil Former Material: Kapton
Winding Material: CCAW
Diaphragm Material: Titanium
Magnet Material: Ferrite
Magnet Size/Weight: 5.27"x0.67" / 134x17mm / 35 Oz
Body Material: Aluminum
Horn Specifications:
Nominal Diameter: 6" / 156mm
Throat Diameter: 2" / 50.8mm
Sound Coverage: 57° Rounded
Body Material: Aluminum
Color: Black
Measurements:
Overall Diameter: 6.15" / 156mm
Overall Depth: 6.15" / 156mm
Mounting Depth: 5.83" / 148mm
Mounting Hole Diameter: 5.75" / 146mm
Bolt Pattern (Horn): Ø 6.33" / 161mm x 4 - 0.21" / 5.5mm Hole
