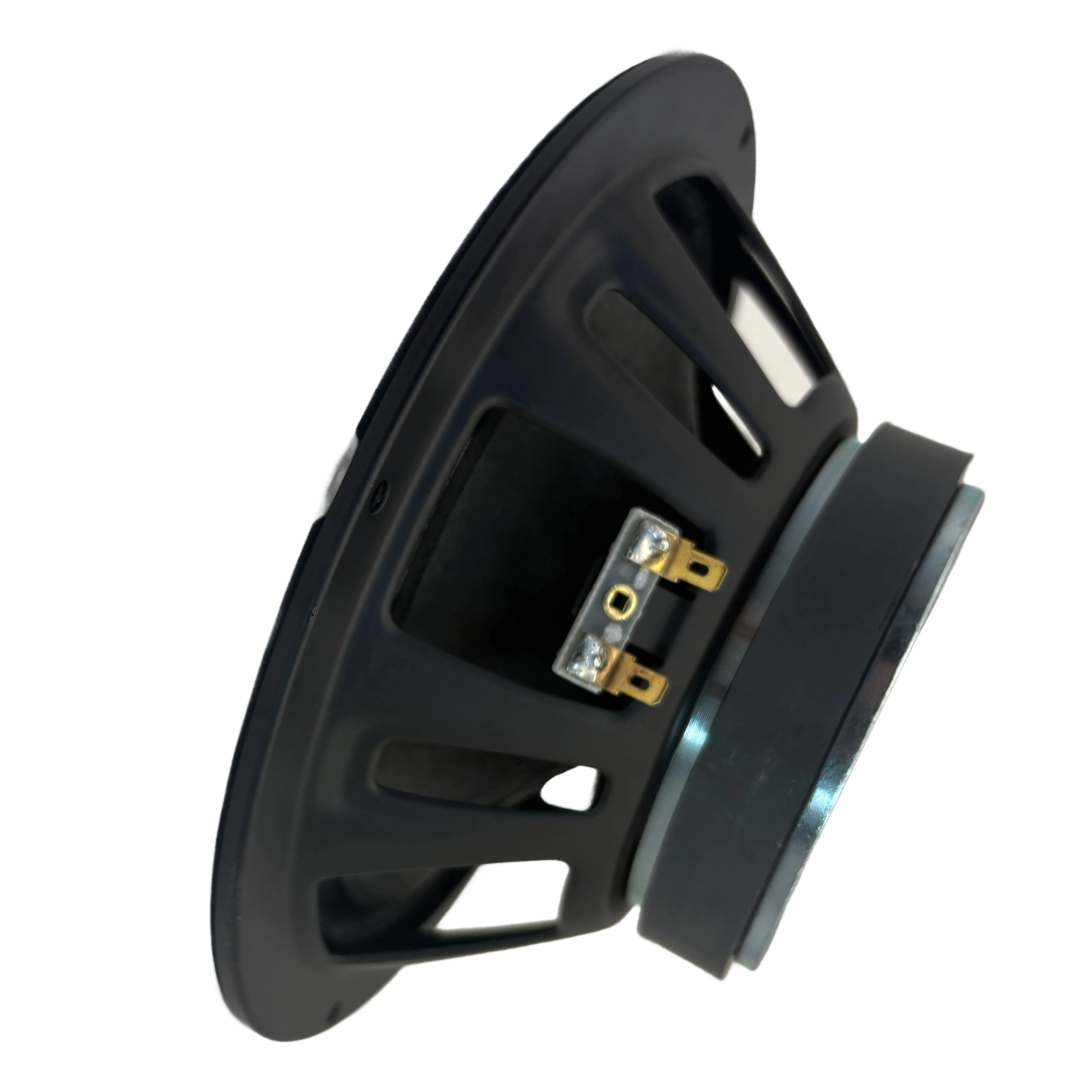

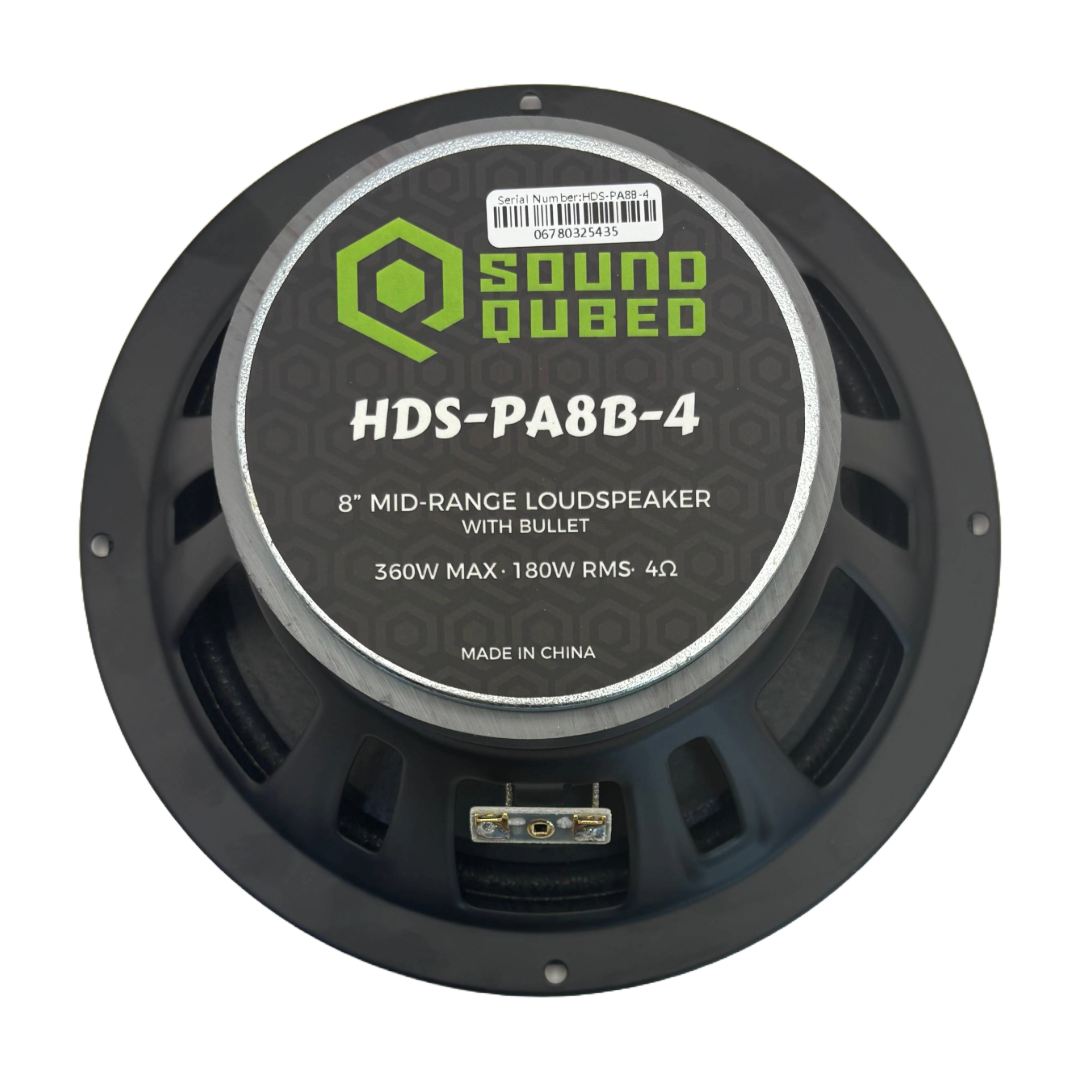

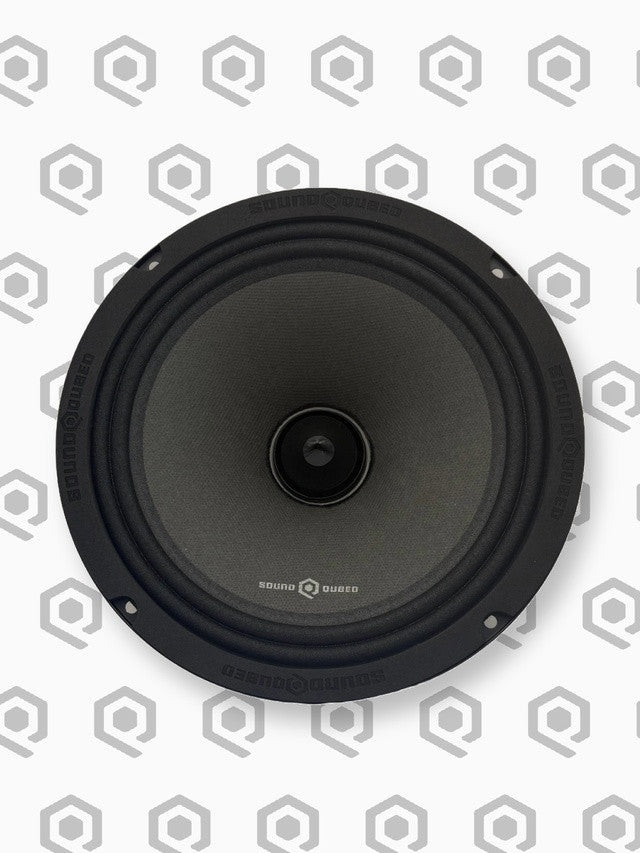

Model: HDS-PA8B-4 Sold as: Each
Specifications:
Nominal Diameter: 8.17" / 208mm
Nominal Impedance: 4 OHMs
Continuous Power Handling: 120W
RMS Power Handling: 180W
MAX Power Handling: 360W
Sensitivity (1w/1m): 97dB
Frequency Response: 70Hz–12kHz
Recommended Hi Pass Crossover: 120Hz
Sold Single
Features:
Cone Shape: Curvilinear
Speaker Terminals: Regular Spade
Motor:
Voice Coil Diameter: 1.5" / 38.3mm
Voice Coil Former Material: Kapton
Winding Material: CCAW
Cone Material: Non-Pressed Paper
Bullet Material: Aluminum
Bullet Color: Silver
Surround Material: Cloth
Leads Connection Type: Crossed on Spider
Basket Material: Steel
Basket Color: Black
Magnet Material: Ferrite
Magnet Weight: 23 Oz
Displacement Volume: 0.83L / 0.0293ft³
Thiele & Small Parameters:
Equivalent Volume — Vas: 4.66L
Excursion (one way) — Xmax: 7.2mm
Free Air Resonance — Fs: 136Hz
Mechanical Factor — Qms: 6.75
Electrical Factor — Qes: 1.79
Total Factor — Qts: 1.415
Mechanical Mass — Mms: 14.265g
Mechanical Compliance — Cms: 0.959mm/N
BL Factor — BL: 4.379
Voice Coil Inductance — Le: 0.5mH
Cone Area — Sd: 221.67cm²
DC Resistance — Re: 3.4ohms
Mechanical Mass w/o air — Mmd: 12.368g
Measurements:
Overall Diameter: 8.23" / 209mm
Overall Depth: 3.09" / 78.5mm
Front Mount Baffle Cutout: 7.07" / 179.5mm
Mounting Depth: 2.85" / 72.5mm
Motor Diameter: 4.33" / 110mm
