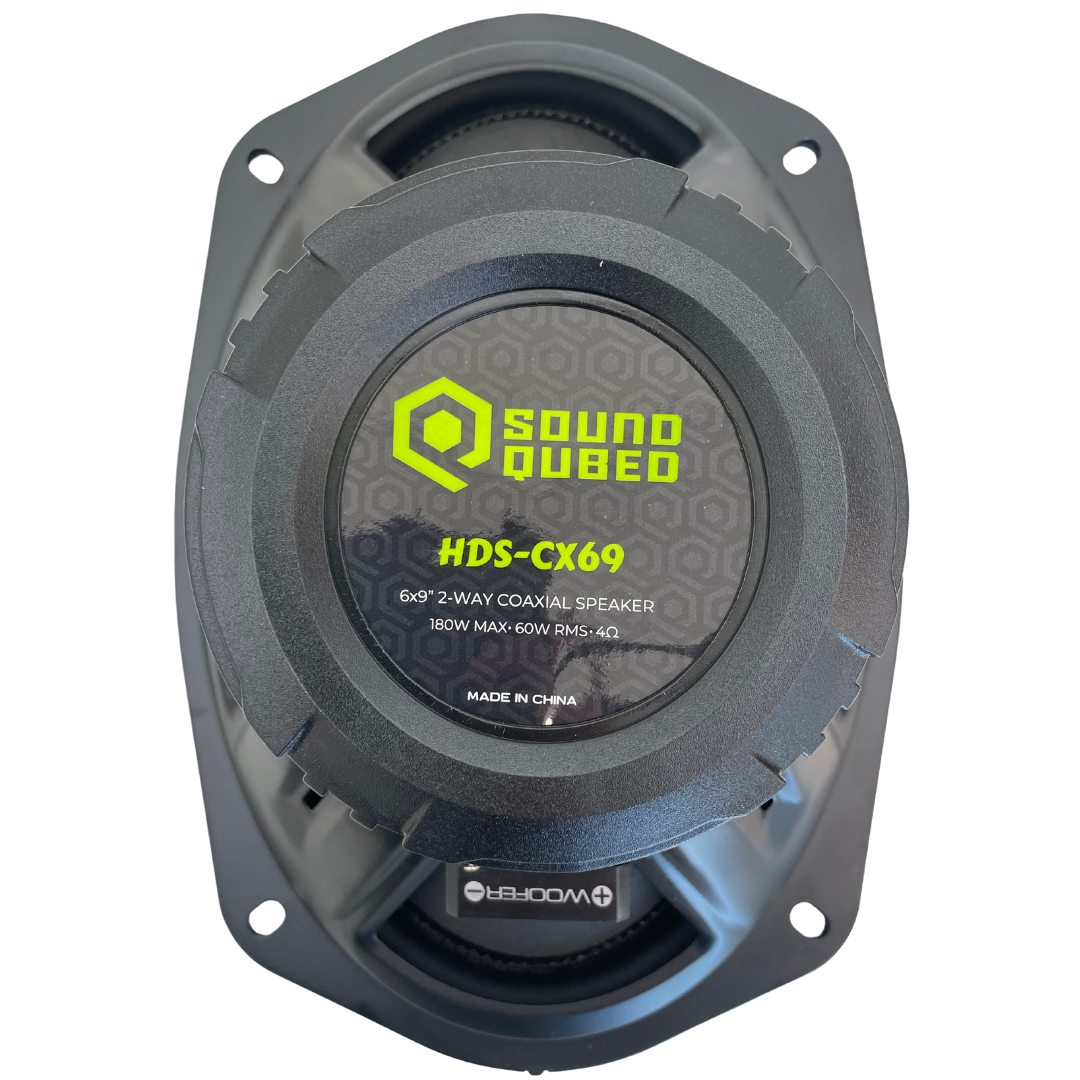

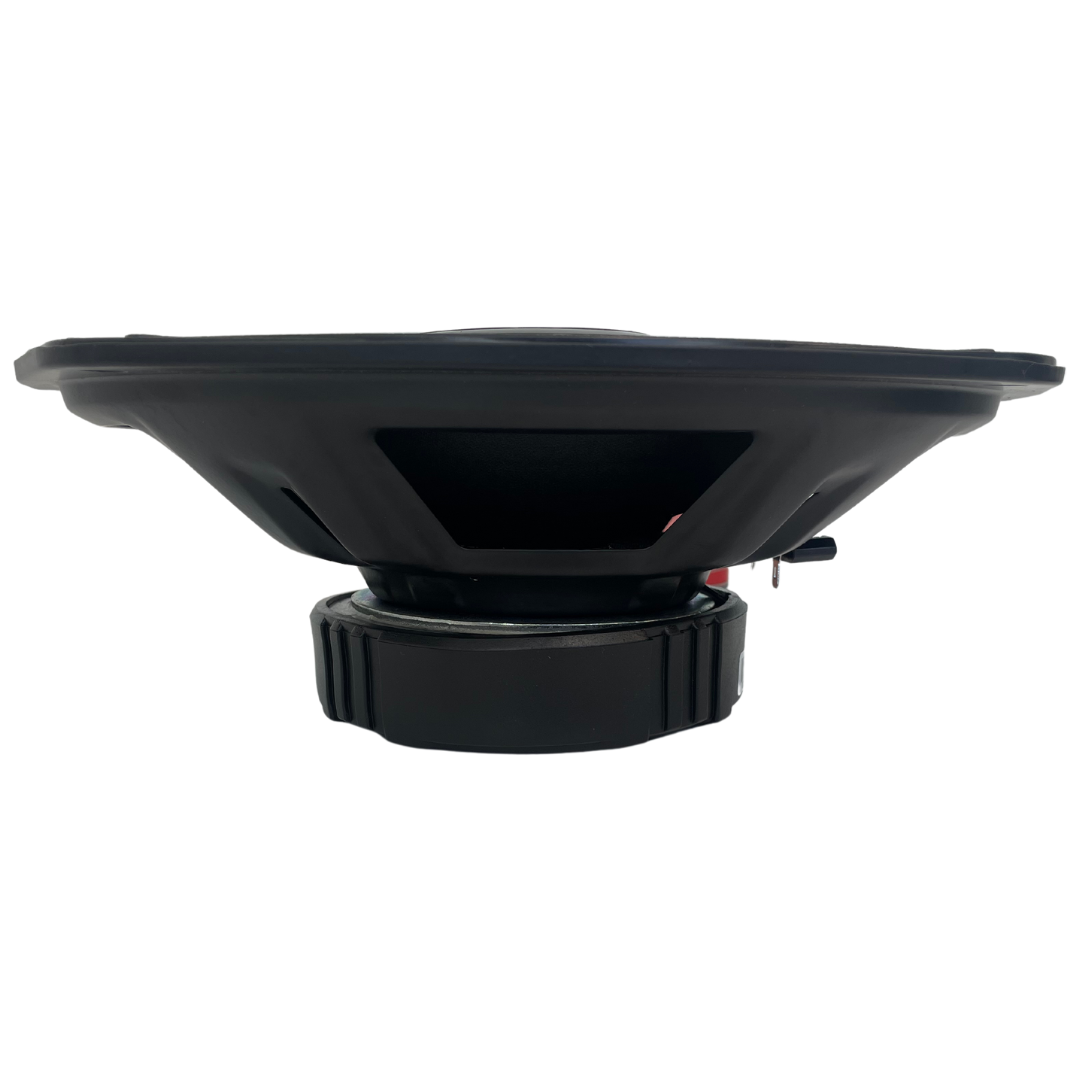

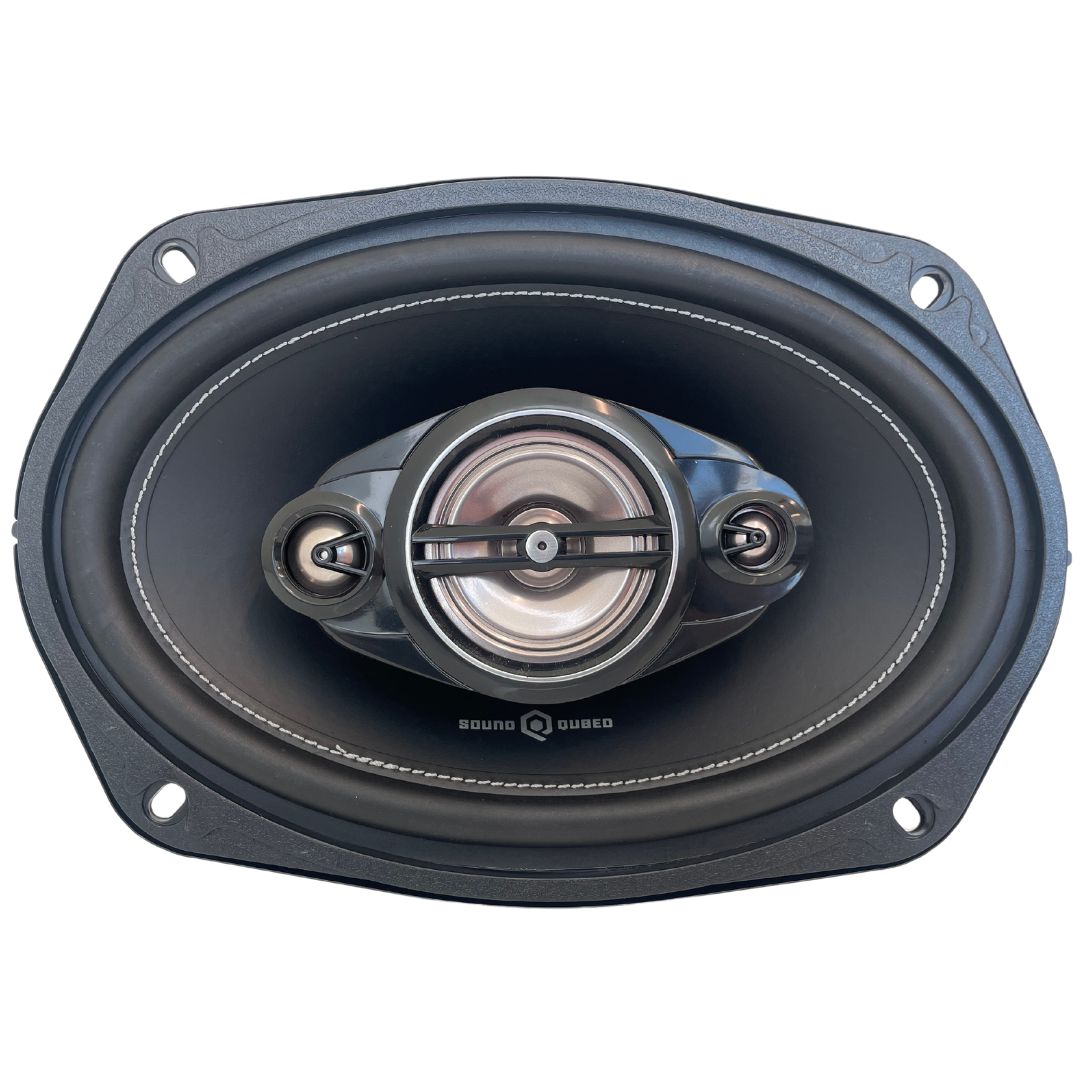

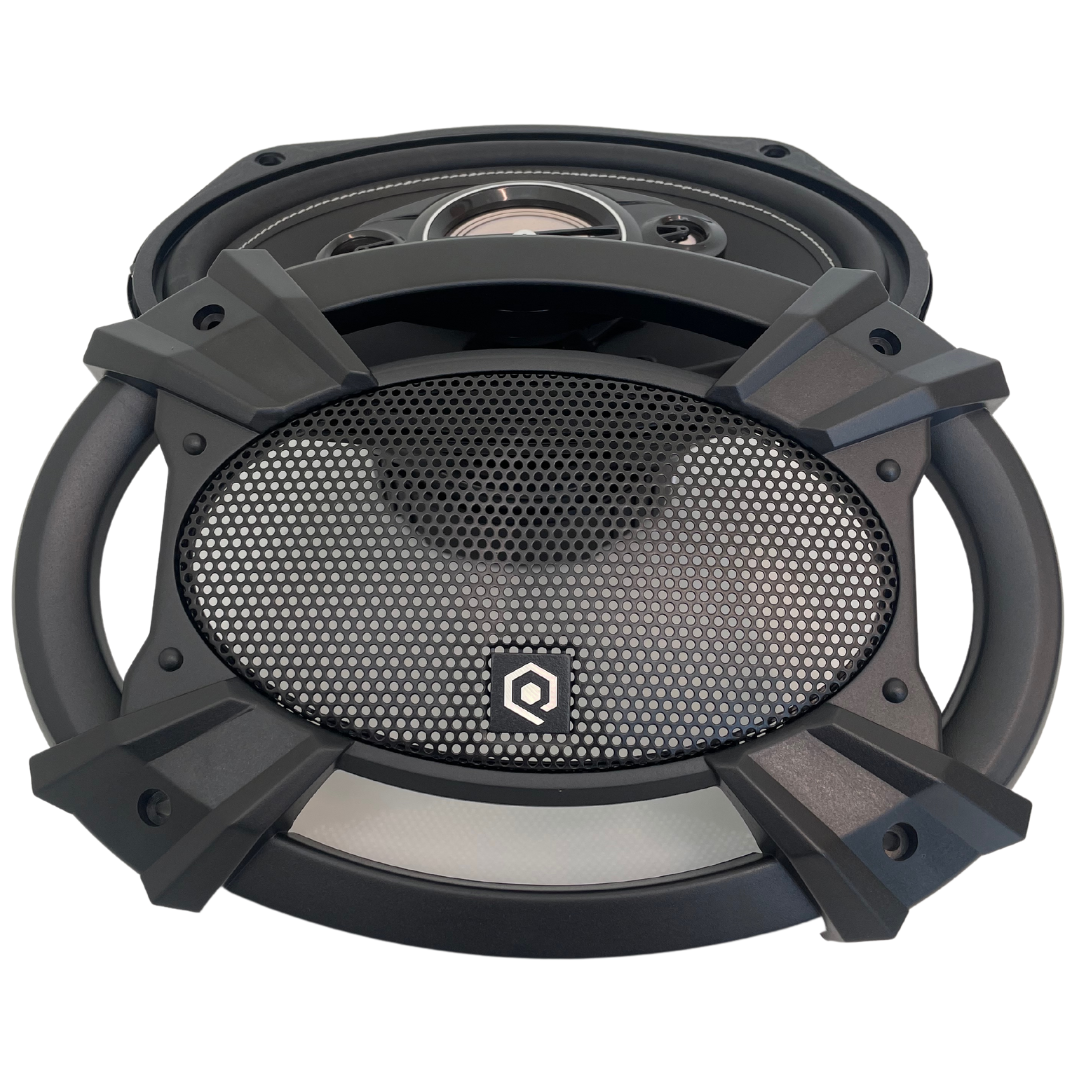

Model: HDS-CX69 Sold as: Pair
SoundQubed HDS Series Coaxial Speakers! The HDS Series has stood for, Heavy Duty Street Series, since day one. This is exactly what we expect from the HDS coaxial series speakers. These speakers provide the ability to upgrade your customers current stock door speakers, to something that can handle more power, look good, and do it all while maintaining a budget. This is Soundqubeds entry level coaxial speakers. SoundQubed offers a more robust, larger power handling coaxials in their HDX Series. So if your customer is looking for something stronger and more powerful than SoundQubed's HDS series, head on over there and find maintaining sleek looks with increasing power handling and performace.

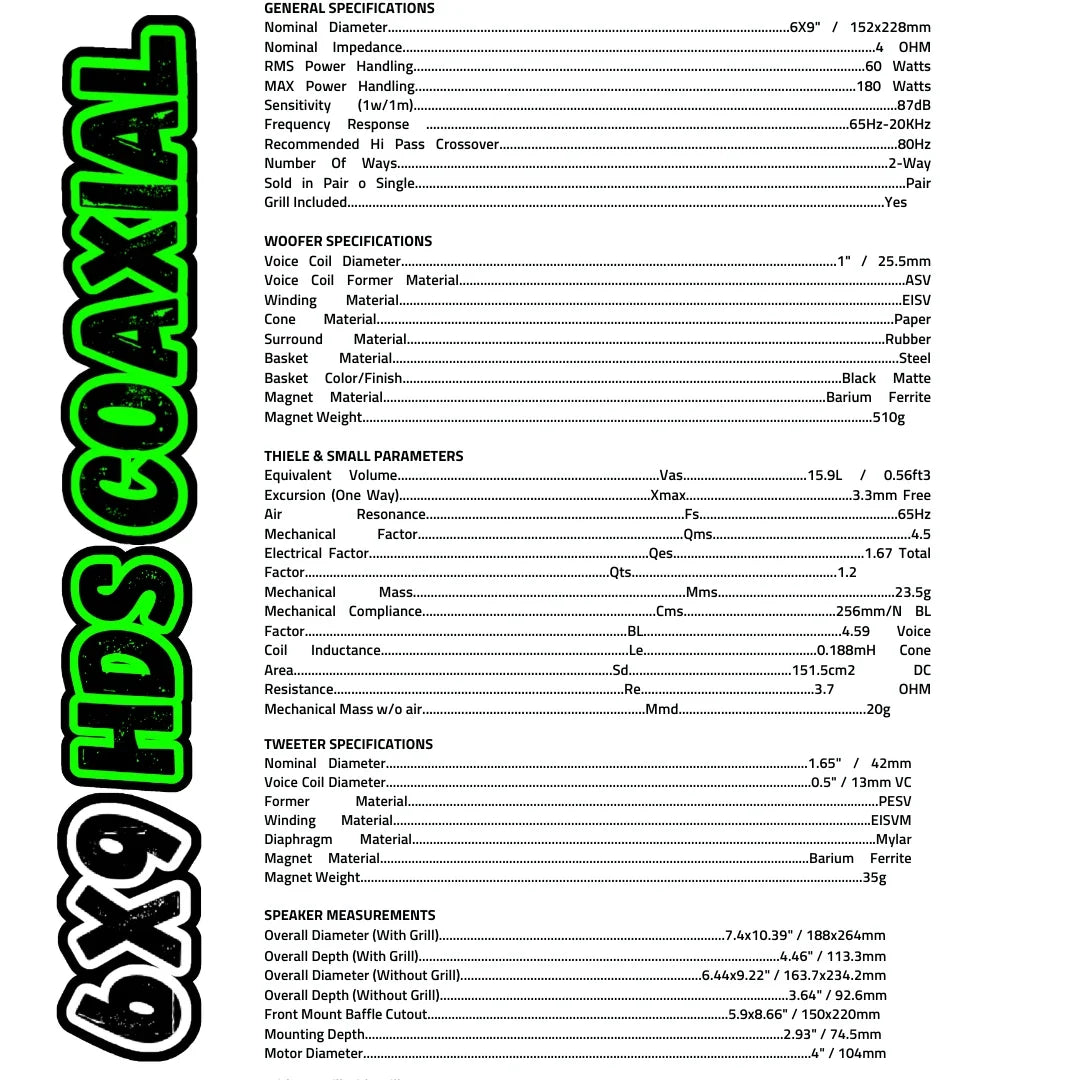

General Specifications:
Nominal Diameter: 6x9" / 152x228mm
Nominal Impedance: 4 OHM
RMS Power Handling: 60 Watts
MAX Power Handling: 180 Watts
Sensitivity (1w/1m): 87dB
Frequency Response: 65Hz-20KHz
Recommended Hi Pass Crossover: 80Hz
Number Of Ways: 2-Way
Woofer Specifications:
Voice Coil Diameter: 1" / 25.5mm
Voice Coil Former Material: ASV
Winding Material: EISV
Cone Material: Paper
Surround Material: Rubber
Basket Material: Steel
Basket Color/Finish: Black Matte
Magnet Material: Barium Ferrite
Magnet Weight: 510g
Tweeter Specifications:
Nominal Diameter: 1.65" / 42mm
Voice Coil Diameter: 0.5" / 13mm VC
Former Material: PESV
Winding Material: EISVM
Diaphragm Material: Mylar
Magnet Material: Barium Ferrite
Magnet Weight: 35g

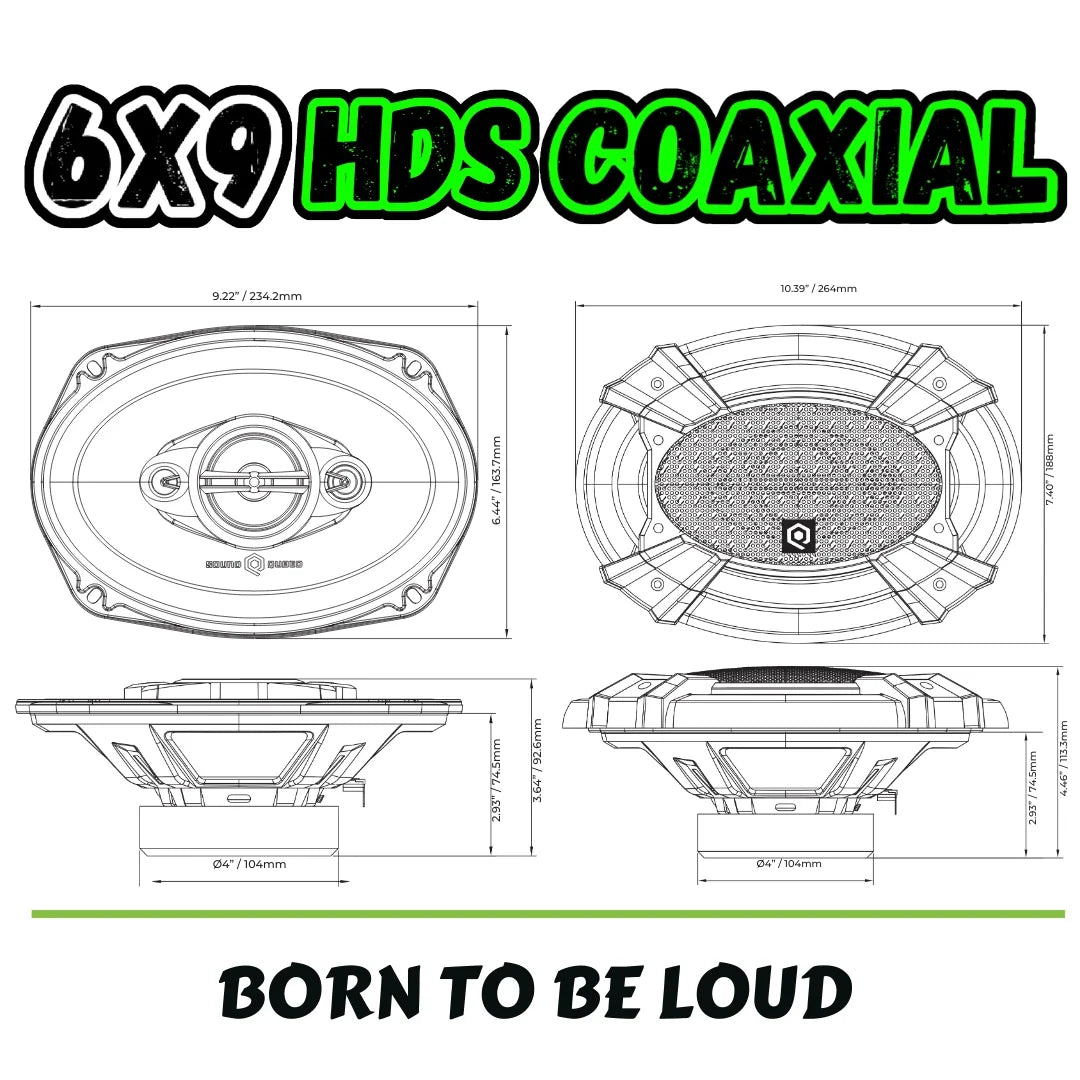

Speaker Measurements:
Overall Diameter (With Grill): 7.4x10.39" / 188x264mm
Overall Depth (With Grill): 4.46" / 113.3mm
Overall Diameter (Without Grill): 6.44x9.22" / 163.7x234.2mm
Overall Depth (Without Grill): 3.64" / 92.6mm
Front Mount Baffle Cutout: 5.9x8.66" / 150x220mm
Mounting Depth: 2.93" / 74.5mm
Motor Diameter: 4" / 104mm
