Musway M8 8-Channel Class D Amplifier 12-Channel DSP

Specifications:

• 8-Channel Class-D Amplifier with 12-Channel DSP
Power Output:
• 6 x 80 W + 2 x 135 W @40
• 6 ×135 W + 2 × 220 W @2 Ω
• Bridged 3 × 270 W +1 x 440 W@4
• Dimensions: 11.22"(W) x 5.16"(H) × 1.42"(L) (285 × 131 × 36 mm)

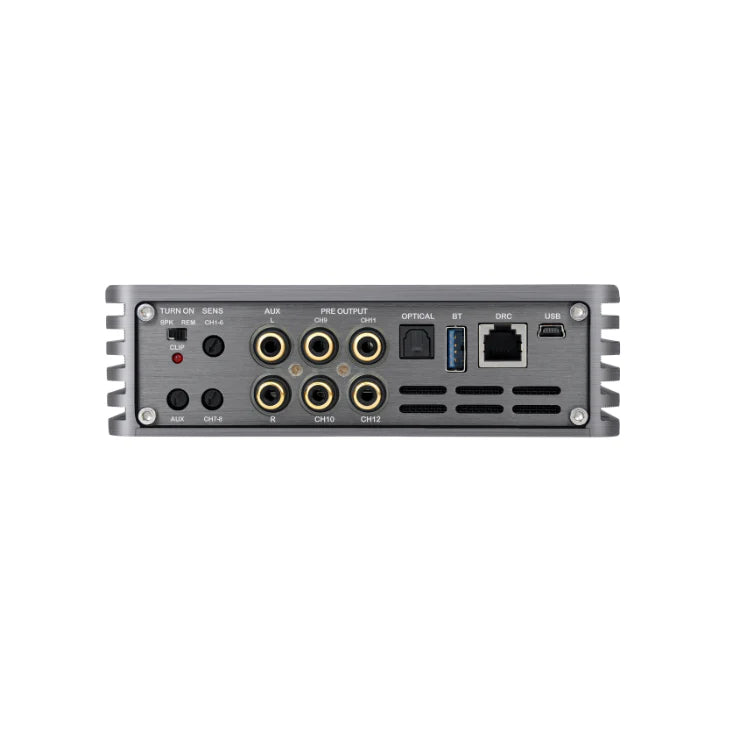

• Inputs: High-Level 8. Low-Level 6. AUX1. Optical (96 kHz/24-bit) 1

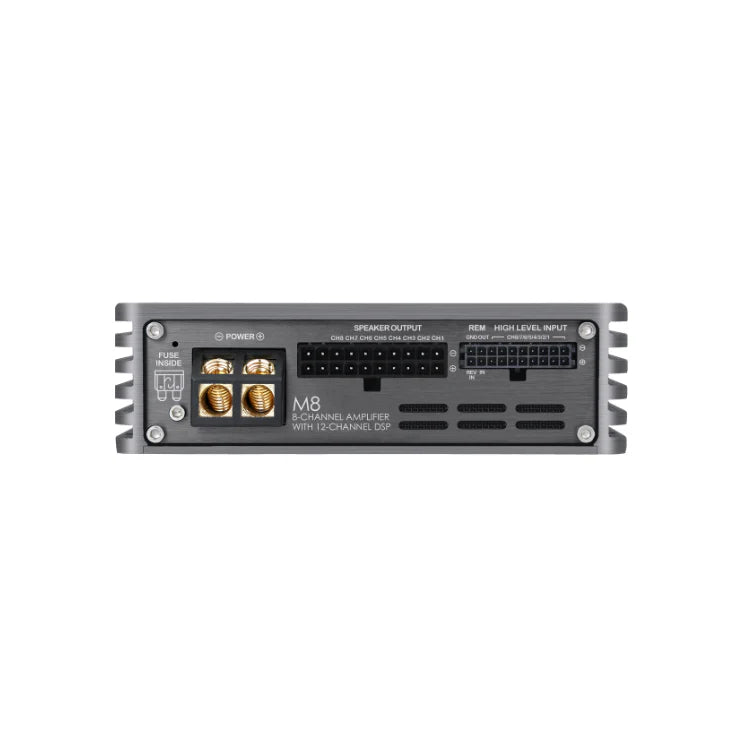

• Outputs: High-Level 8. Low-Level 4 (DSP Adjustable)
• THD: 0.02% (1 kHz @4 Ω, 10 W)
• Frequency Response: 10 Hz–20 kHz (-3 dB, 2 V RMS, 4
• S/N Ratio: 100 dB (A-weighted)
• Soft-Clipping protection indicating LED

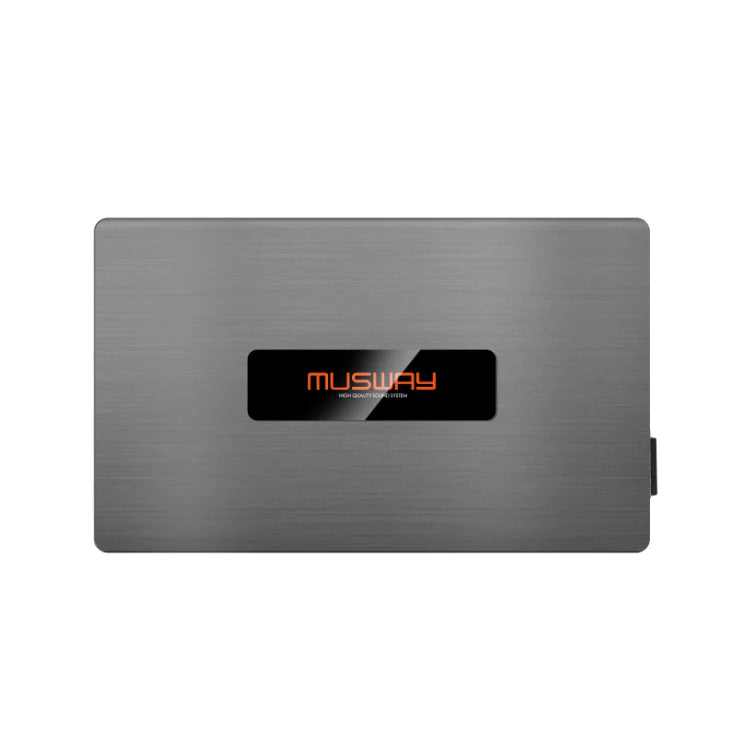

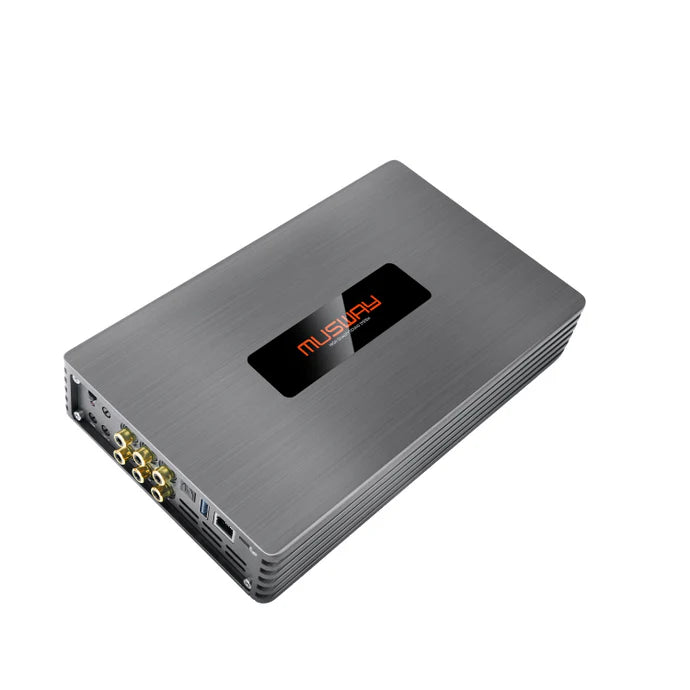

The Musway M8 is a compact 8-channel Class D amplifier with a 12-channel DSP, engineered to deliver precise tuning and powerful performance. With staggered outputs of 80–135 W across six channels and two high-power channels reaching 220 W each, the M8 offers versatile configurations for speakers and subwoofers alike.

The Musway M8 is designed for enthusiasts who want both flexibility and power in their car audio system. Featuring an 8-channel Class D design paired with a 12-channel DSP, the M8 allows precise control over sound staging, time alignment, and equalization. Channels 1–6 provide 80 W RMS at 4 Ω or 135 W RMS at 2 Ω, with the ability to bridge up to 270 W per pair. Channels 7–8 deliver extra headroom with 120 W RMS at 4 Ω or 220 W RMS at 2 Ω, making them ideal for subwoofers or demanding components, with up to 440 W available in bridged mode. Integration is seamless thanks to multiple input options—including high-level, RCA, AUX, and optical PCM 192 kHz/24-bit—while the four RCA pre-outs allow expanded system design. Housed in a sleek aluminum chassis measuring just 245 × 44 × 150 mm, the Musway M8 combines compact dimensions with premium audio performance, making it a powerhouse for modern car audio upgrades.
