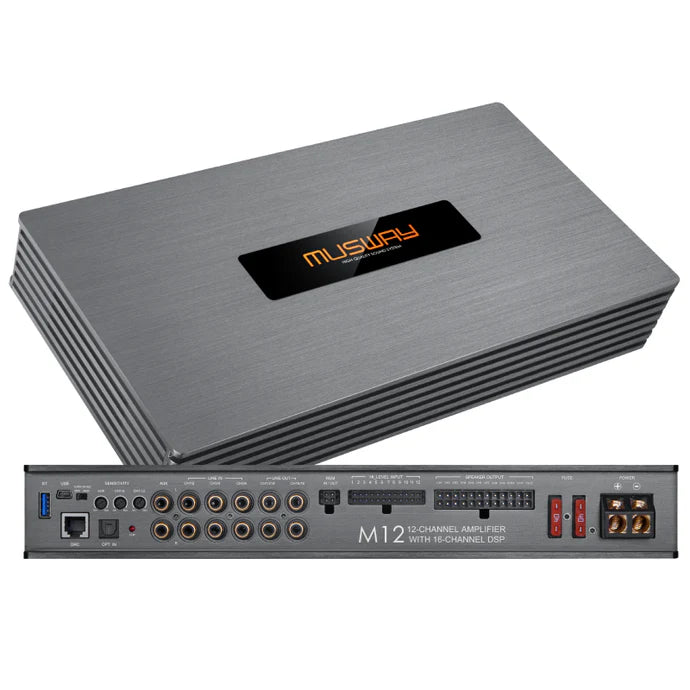

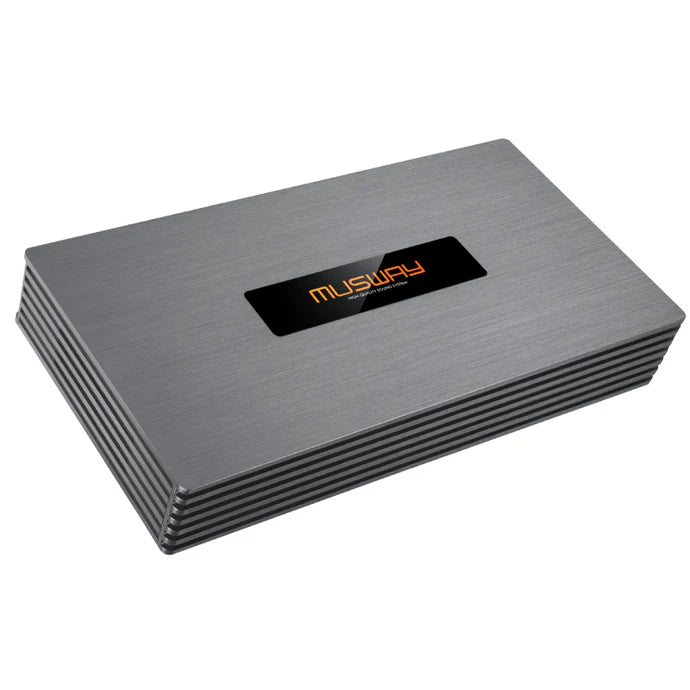

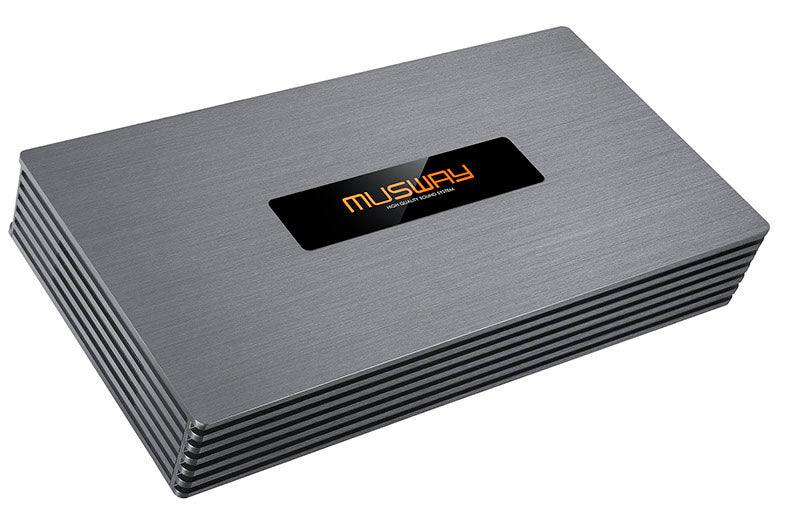

Musway M12 12-CHANNEL CLASS D AMPLIFIER WITH 16-CHANNEL DSP

Features:

• High Level Input with EPS® (Error Protection System)

• Start-Stop ready, Auto Turn-On

• Burr-Brown converters (PCM3168A) and Analog Devices DSP (ADAU1466)

• Dual 64bit, 295 MHz DSP technology, controllable via PC software or Smartphone App

• Soft-Clipping (power attenuation) in 2 Ohm operation

• Signal-to-noise Ratio 95dB

• Frequency Response 15 Hz – 22 kHz (-3dB)

• THD 0,05% (1 kHz, 4 Ohms, 90% Power)

• Separately controllable input sensitivity (Channel 1-6, Channel 7-12, AUX), Clipping LEDs

• External Bluetooth® USB-Dongles BTS, BTS-HD & BTA2 for Audio Streaming & App Control (optional)

• Digital remote control DRC1 with OLED display for controlling various DSP functions (optional)

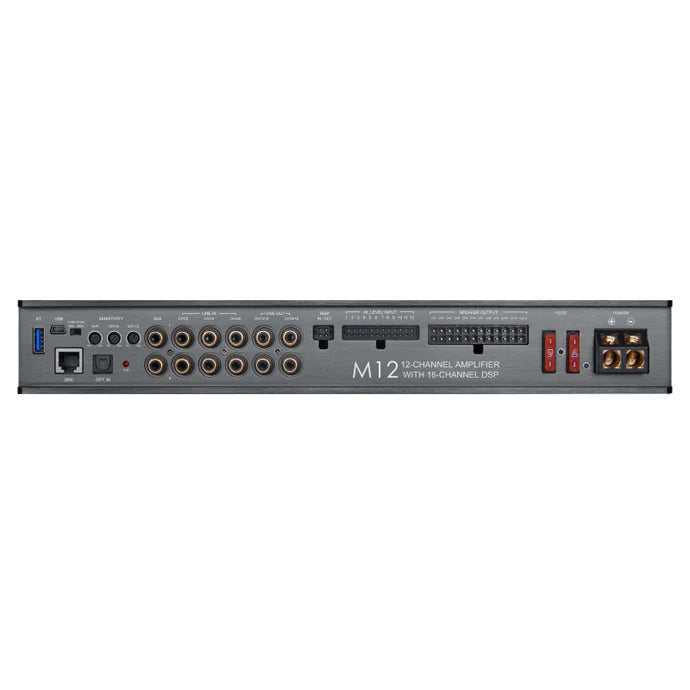

Specifications:

@ 4/2 Ohms 85/120 Watts RMS per channel*

@ 4 Ohms bridged 240 Watts RMS per channelpair*

12 x High Level Input with EPS®

6 x Low Level Input RCA

2 x AUX Input RCA

1 x Optical Input/Stereo PCM

4 x Pre-Amplifier Output RCA (configurable via DSP)

12 x Loudspeaker Output amplified

Dimensions: 340 x 48 x 171,5 mm

*depending on the application

MUSWAY is particularly known for building elegant and well-thought-out DSP amplifiers that can be controlled via a smartphone app and beautiful designs. The new M12 joins this tradition with an impressive number of 12 Class-D channels and an integrated 16-channel DSP. It appeals to those hi-fi fans who want to be able to individually tune their complex loudspeaker system in the vehicle for the best possible playback and at the same time be able to control it easily without complex cabling or the installation of several devices.

For optimal sound tuning, a high-quality input section is required, which receives the audio signals from the source. The M12 therefore has a large number of low-level and high-level input connections. There are not only 6 pairs of RCA inputs and an AUX input, but also 12 pairs of high-level inputs that can pick up signals from the speakers. They can withstand a very high load with 20 volts RMS and are used when a complex factory system is already installed in the vehicle. Of course, the high level signals fed in are protected with EPS® so that no errors occur in the diagnostic system. An optical PCM input is available “On Top” for hi-fi connoisseurs. The optional BTS-HD dongle enables HD audio streaming via aptX codecs (576 kBits, 24 bit, 48 kHz).

While the high-end processor supplies the 12 channels internally, the DSP also provides 4 freely configurable RCA preamp outputs. These can be assigned to external purposes and open up many expansion options. This means that further amplifiers can be included in the DSP performance, for example powerful mono amplifiers that are better suited for controlling subwoofers, for example. The MUSWAY monoblocks ONE600 or ONE1000 are particularly suitable for this. The woofers under the seats or in the footwell, which are often installed in a twin pack at BMW or Mercedes, can be optimally fired with it.

The heart of the M12 is the ADAU1452 processor from Analog Devices®, which is highly valued by audiophile connoisseurs. With the easy-to-use PC software, it can be configured perfectly and in real time via USB. With the optional BTA2 dongle, the DSP can also be controlled with the new "Tunest" app using iOS or Android smartphones
